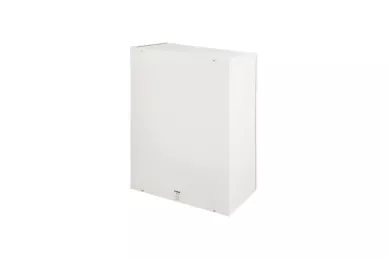

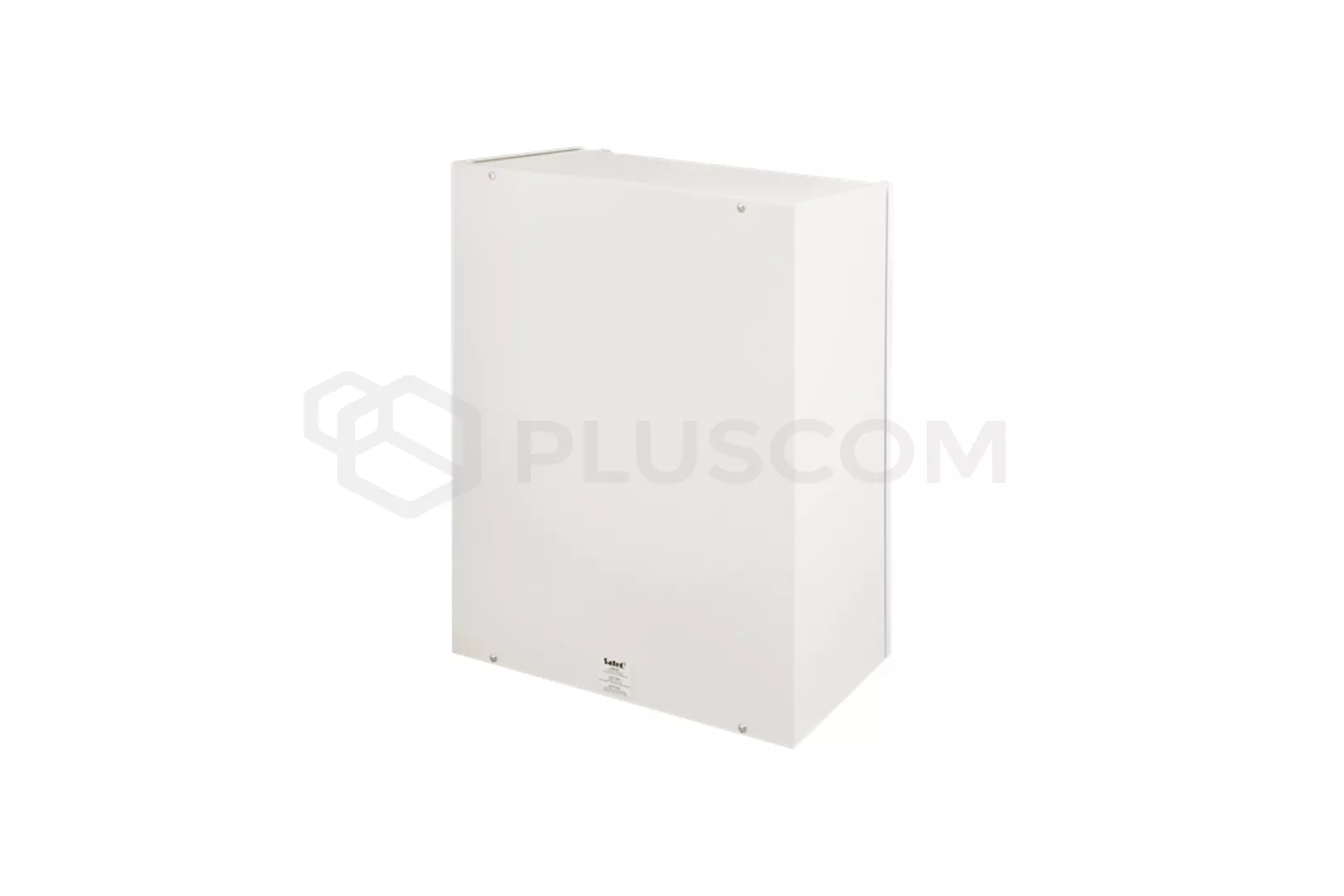

Pulsar AWO306 Casing for control panels SATEL with transformer

145,41 EUR including 23.00% VAT
Product code: #10542
Manufacturer: Pulsar
  • Housing dedicated to the control panel SATEL, surface-mounted
  • Transformer: TRP 80/16V/18V/20
  • Place on the battery 12V/28Ah
  • Dimensions: 460x550x175mm

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar AWO270 Casing for control panels SATEL with transformer Pulsar AWO257 Casing for control panels SATEL with transformer Pulsar AWO213 Casing for control panels SATEL with transformer

Pulsar AWO306 28/TRP80/SATEL/GRADE3

The AWO 270 metal casings are designedto the panel SATEL

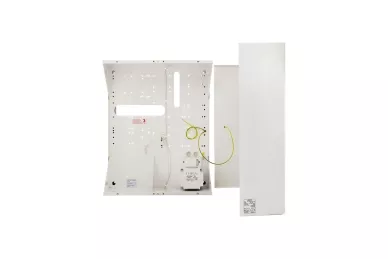

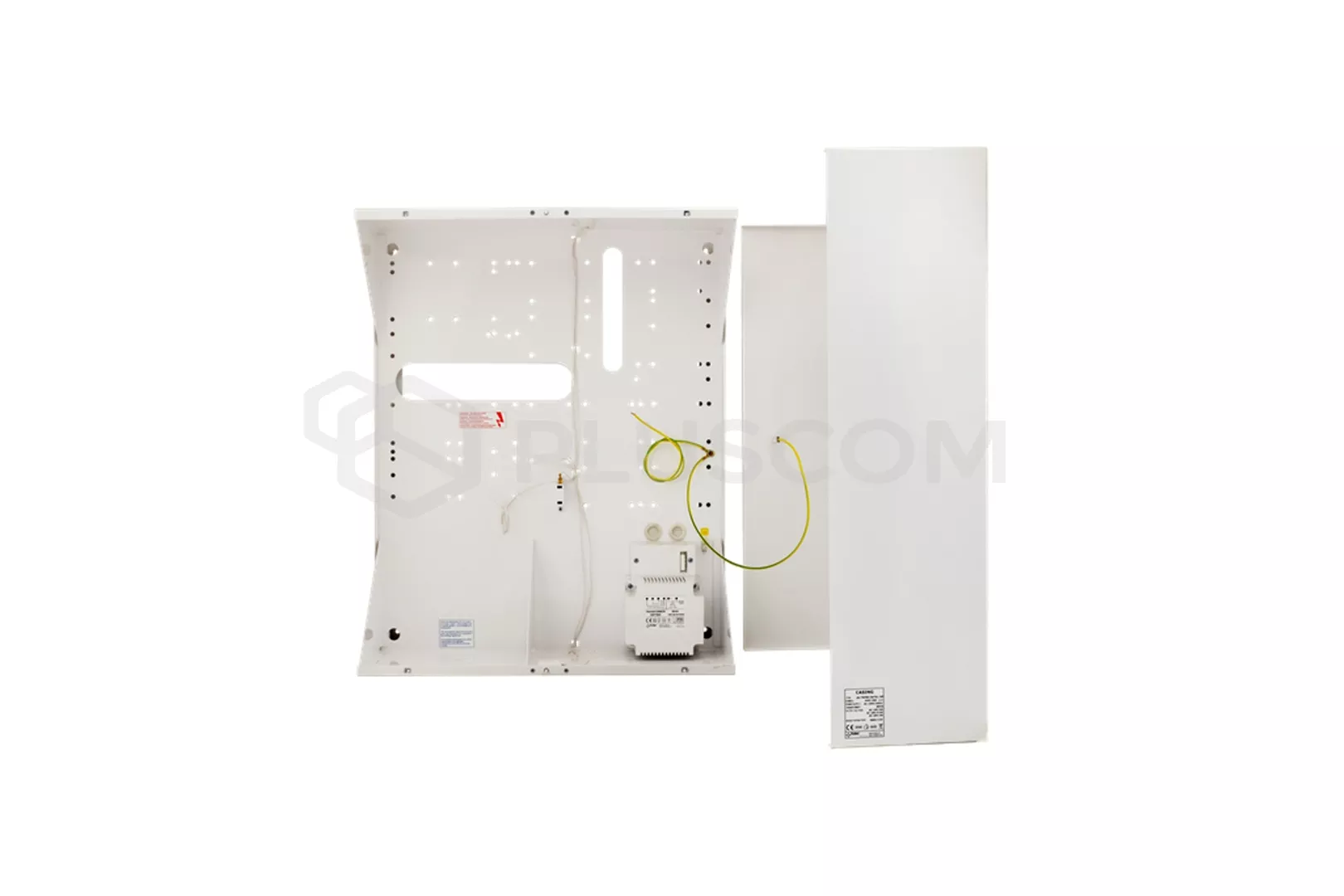

The housing includes a transformer TRP 80/16V/18V/20

Pulsar AWO306 Casing for control panels SATEL with transformer

Pulsar AWO306 Casing for control panels SATEL with transformer

Pulsar AWO306

Pulsar AWO306



The housing has a place for 12V/28Ah.
The standard is also a tamper protection in the form of the chassis intrusion detector

SPECIFICATIONS:
  • transformer: TRP 80/16V/18V/20
  • place on battery: 12V/28Ah
  • tamper protection: Yes
  • Material: 1.0mm sheet RAL9003 color
  • degree od protection : IP20
  • Internal dimensions: 460x550x175mm
  • distance from wall 20mm

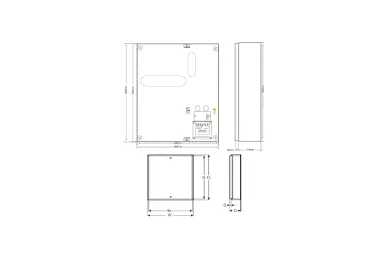

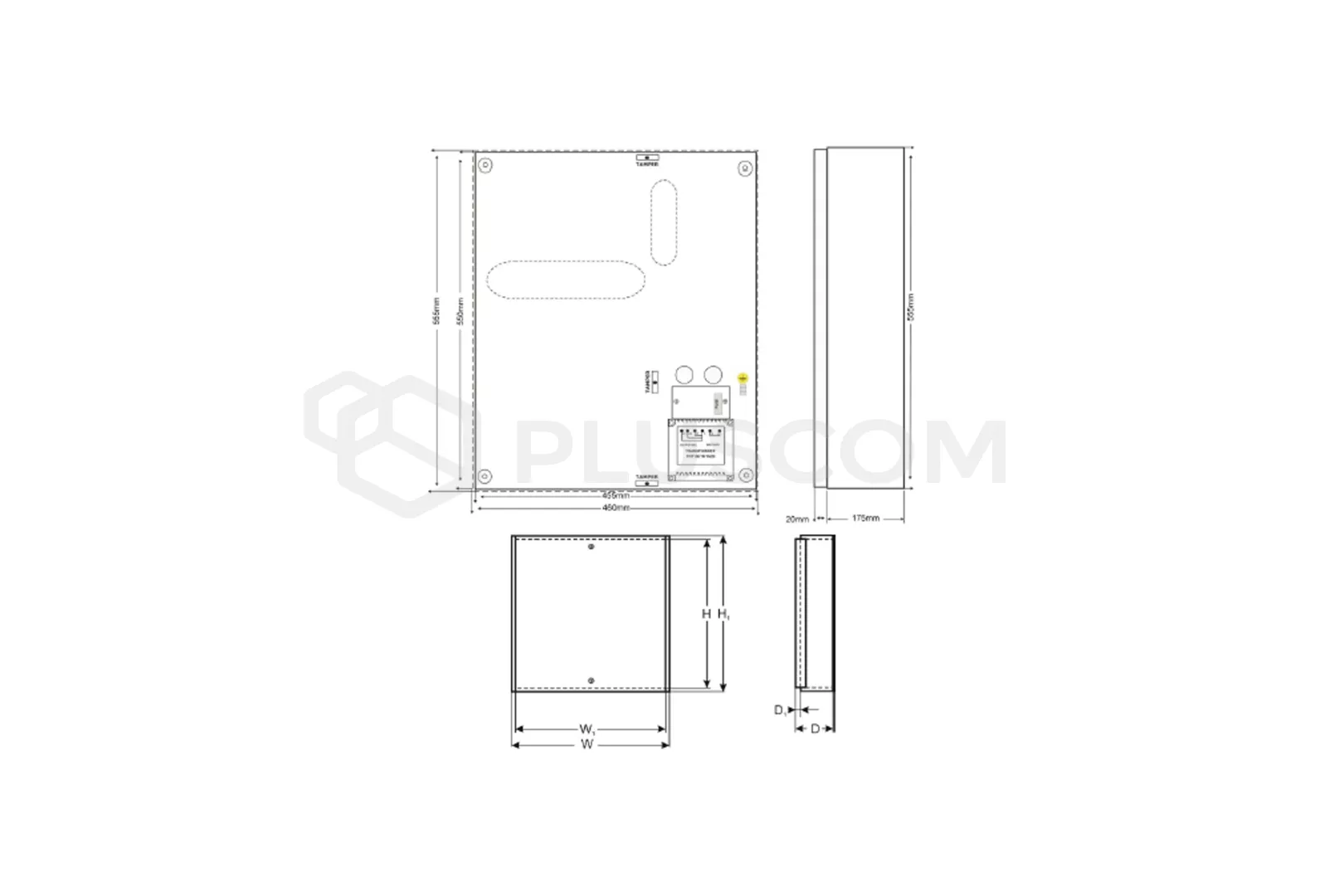

Dimensions:

Dimensions:



PANELS WHICH CAN BE MOUNTED:
  • Z 17Ah / 28Ah:
    • INTEGRA64, INTEGRA128, INTEGRA256 + 11x CA-64E (CA-64SM, INT-RS, INT-FI, INT-VG, GPRS-T1)
    • INTEGRA64, INTEGRA128, INTEGRA256 + 2x CA-64PP (CA-64 OPS-OC, CA-64 OPS-R, CA-64 OPS-ROC) + 5x CA-64E (CA-64SM, INT-RS, INT-FI, INT-VG, GPRS-T1)
    • INTEGRA64, INTEGRA128, INTEGRA256 + 4x CA-64EPS (CA-64 O, CA-64 ADR, CA-64 SR, CA-64 DR, VGM16, ETHM-1) +CA-64E (CA-64SM, INT-RS, INT-FI, INT-VG, GPRS-T1)
    • INTEGRA64, INTEGRA128, INTEGRA256 + 1x GSM4 (GSM5, GSM LT-1/LT2)+ 9x CA-64E (CA-64SM, INT-RS, INT-FI, INT-VG, GPRS-T1)
    • INTEGRA24, INTEGRA32 + 13x CA-64E (CA-64SM, INT-RS, INT-FI, INT-VG, GPRS-T1)
    • INTEGRA24, INTEGRA32 + 2x CA-64PP (CA-64 OPS-OC, CA-64 OPS-R, CA-64 OPS-ROC) + 7x CA-64E (CA-64SM, INT-RS, INTFI, INT-VG, GPRS-T1)
    • INTEGRA24, INTEGRA32 + 4x CA-64EPS (CA-64 O, CA-64 ADR, CA-64 SR, CA-64 DR, VGM16, ETHM-1) + 3x CA-64E (CA-64SM,INT-RS, INT-FI, INT-VG, GPRS-T1)
    • INTEGRA24, INTEGRA32 + 1x GSM4 (GSM5, GSM LT-1/LT2) + 11x CA-64E (CA-64SM, INT-RS, INT-FI, INT-VG, GPRS-T1)

  • Moduły:
    • 2x GSM4(GSM5) + 11x CA-64E (CA-64SM, INT-RS, INT-FI, INT-VG, GPRS-T1)
    • 5x CA-64EPS (CA-64 O, CA-64 ADR, CA-64 SR, CA-64 DR, VGM16, ETHM-1) + 3x CA-64E (CA-64SM, INT-RS, INT-FI, INT-VG,GPRS-T1)
    • 3x CA-64PP (CA-64 OPS-OC, CA-64 OPS-R, CA-64 OPS-ROC) + 7x CA-64E (CA-64SM, INT-RS, INT-FI, INT-VG, GPRS-T1)

Download
Data Sheet 0.32 MB
Instruction 0.38 MB
Declaration CE 0.32 MB
