Pulsar AWO270 Casing for control panels SATEL with transformer

104,93 EUR including 23.00% VAT
Product code: #10539
Manufacturer: Pulsar
  • Housing dedicated to the control panel SATEL, surface-mounted
  • Transformer: EIZ 75VA/20V
  • Place on the battery 12V/17Ah
  • Dimensions: 340x400x110mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar AWO306 Casing for control panels SATEL with transformer Pulsar AWO257 Casing for control panels SATEL with transformer Pulsar AWO213 Casing for control panels SATEL with transformer

Pulsar AWO270 17/EIZ75/SATEL/GRADE3

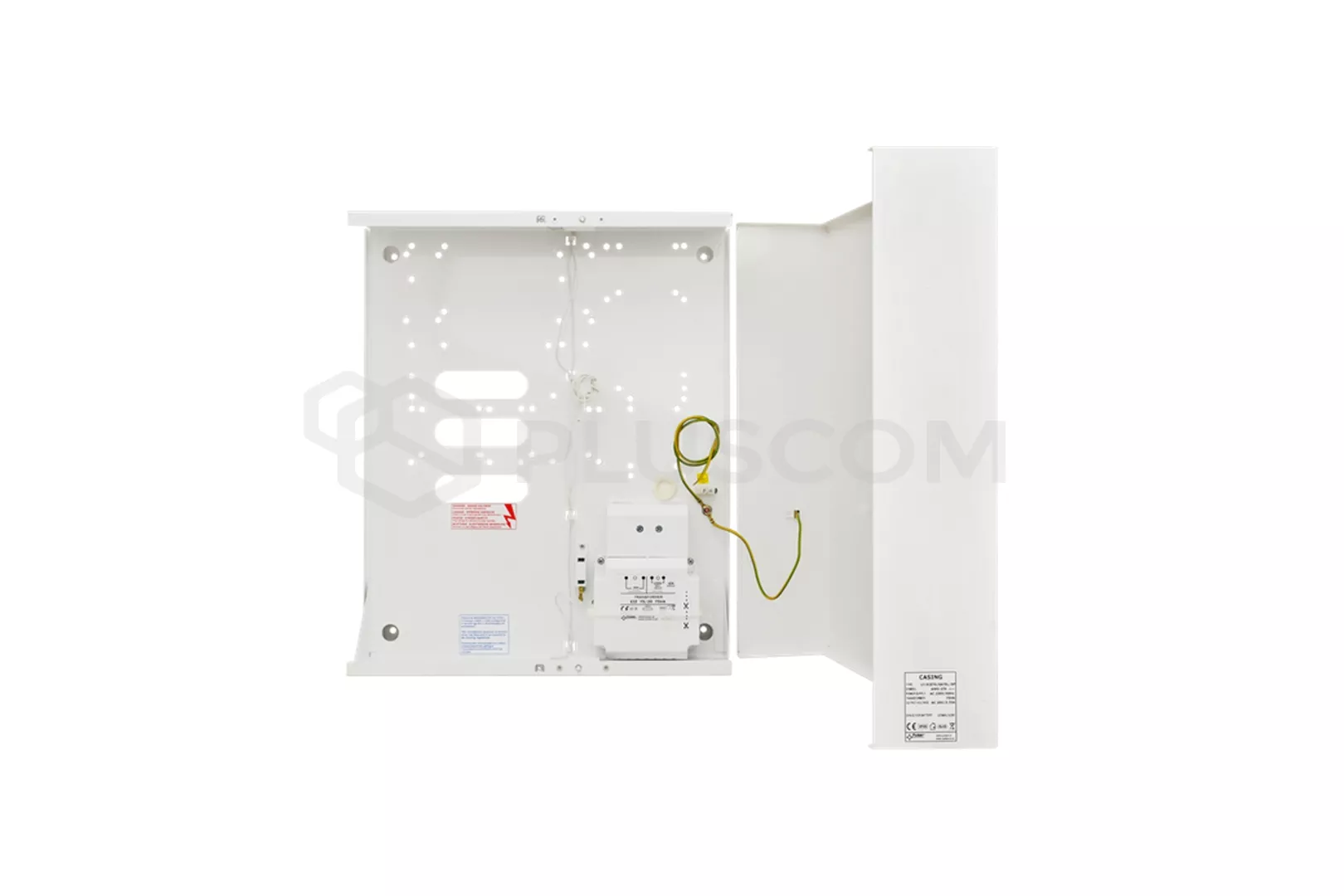

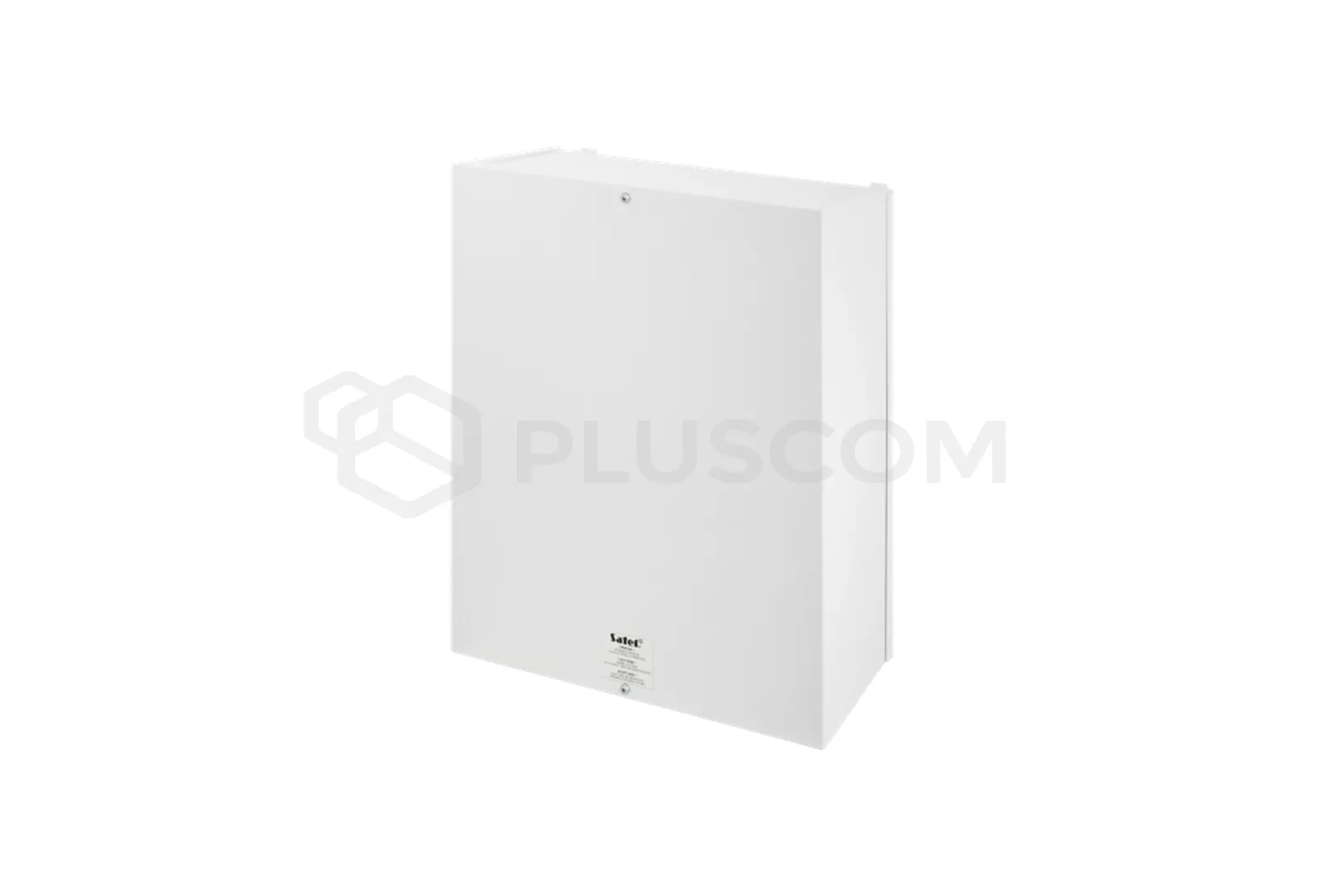

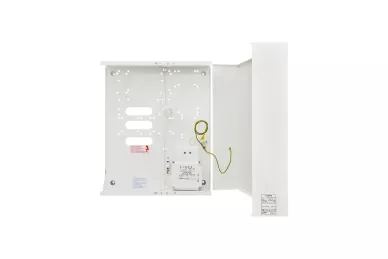

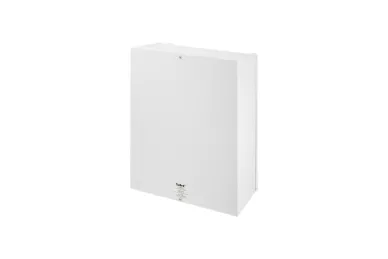

The AWO 270 metal casings are designedto the panel SATEL
 The housing includes a transformer EIZ 75VA/20V.

Pulsar AWO270 Casing for control panels SATEL with transformer

Pulsar AWO270 Casing for control panels SATEL with transformer

Pulsar AWO270

Pulsar AWO270



The housing has a place for 12V/17Ah.
The standard is also a tamper protection in the form of the chassis intrusion detector

SPECIFICATIONS:
  • transformer: EIZ 75VA/20V
  • place on battery: 12V/17Ah
  • output voltage: 20V/3,75A
  • tamper protection: Yes
  • Material: 1.0mm sheet RAL9003 color
  • degree od protection : IP20
  • Internal dimensions: 340x400x110mm
  • closing: 2x cylindrical screw
  • distance from wall 15mm

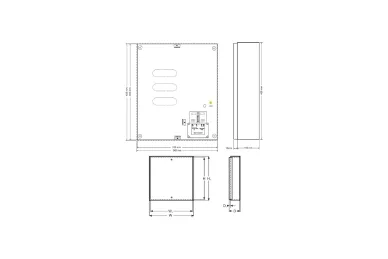

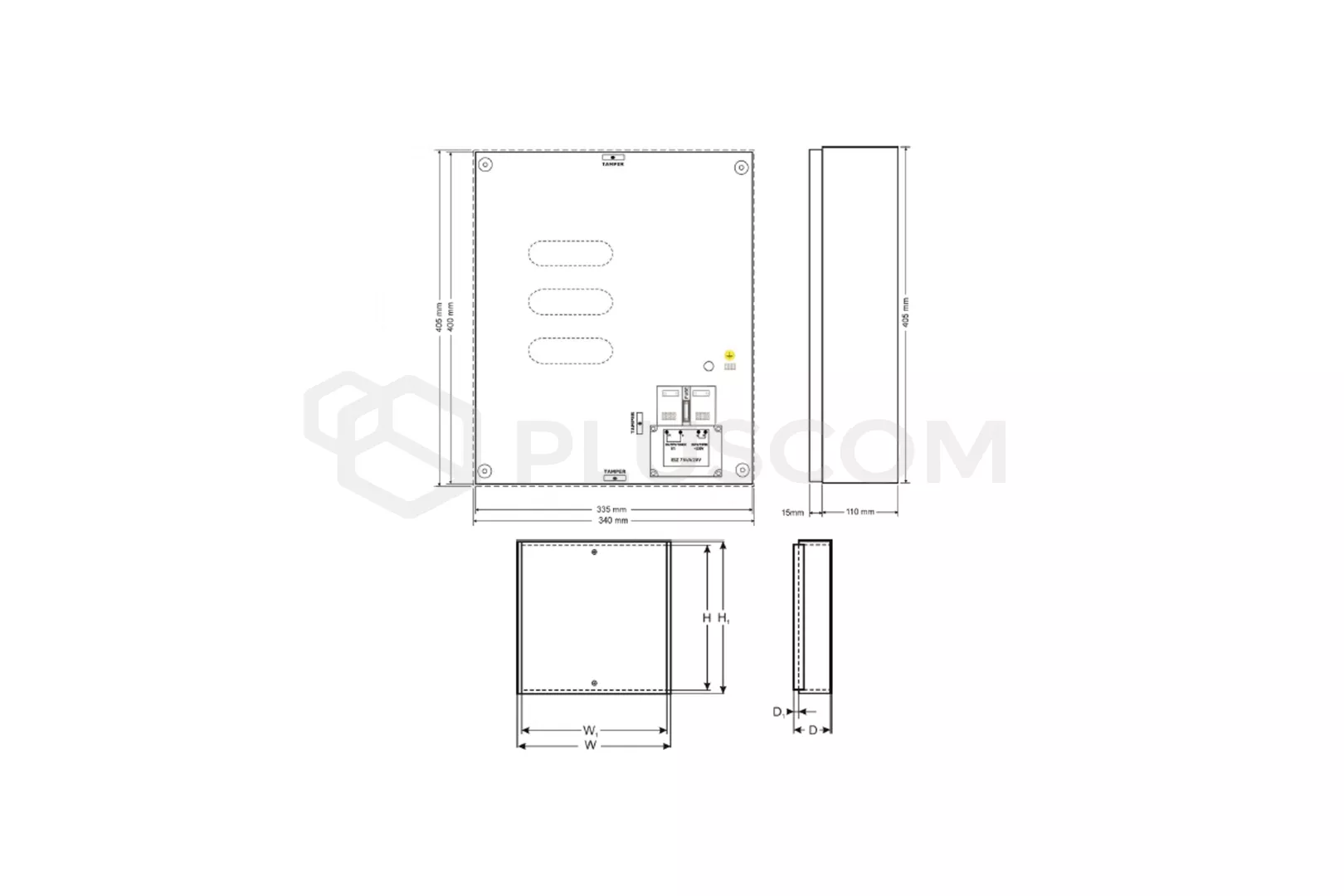

Dimensions:

Dimensions:



PANELS WHICH CAN BE MOUNTED:
  • Centrale:
    • CA6,10, VERSA 5,10,15, INTEGRA 24,32 + 4x CA10E ( CA64E, SM, MST1)
    • CA6,10, VERSA 5,10,15, INTEGRA 24, 32 + 3 x CA10E ( CA64E, SM, MST1) + CA64 ( EPS, O-OC, O- ROC, O-R, VGM- 16, SR, ADR, ACC-KP-PS)
    • CA 6, 10, VERSA 5,10,15, INTEGRA 24, 32 + CA64 ( E, SM, MST1) + 2 x CA64 ( EPS, O-OC, OROC, O-R, VGM- 16, SR, ADR, ACC- KP- PS)
    • INTEGRA 64, 128 + 3 x CA64E ( CA10E, SM, MST1)
    • INTEGRA 64, 128 + CA64E ( CA10E, SM, MST1) + CA64 ( EPS, O- OC, O-ROC, O-R, VGM- 16,
      SR, ADR, ACC- KP- PS)

  • Moduły:
    • CA64 ( PP, OPS- OC, OPS-R, OPS- ROC, EPS, O-OC, O-ROC, O-R, VGM- 16, SR, ADR, ACCKP-PS) + 4 x CA64E ( CA10E, SM, MST1)
    • CA64 ( PP, OPS-OC, OPS-R, OPS-ROC) + CA64 ( EPS, O-OC, O-ROC, O-R, VGM16, SR, ADR,ACC- KP-PS) + 3 x CA64E ( CA10E, SM, MST1)
    • 2 x CA64 ( EPS, O-OC, O-ROC, O-R, VGM- 16, SR, ADR, ACC- KP-PS) + 3 x CA64E ( CA10E,
      SM, MST1)
    • ACCO-KPWG-PS
Download
Data Sheet 0.14 MB
Instruction 0.39 MB
Declaration CE 0.32 MB
