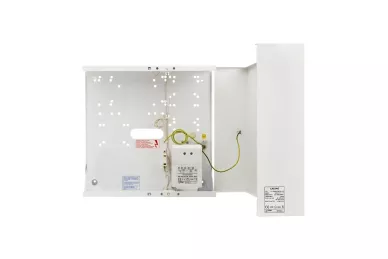

Pulsar AWO213 Casing for control panels SATEL with transformer

75,35 EUR including 23.00% VAT
Product code: #10524
Manufacturer: Pulsar
  • Housing to the control panel SATEL modules
  • Transformer: TRZ 40VA/16V/18V
  • Place on the battery 12V/17Ah
  • Dimensions: 330x305x110mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar AWO306 Casing for control panels SATEL with transformer Pulsar AWO270 Casing for control panels SATEL with transformer Pulsar AWO257 Casing for control panels SATEL with transformer

Pulsar AWO213 17/TRZ40/SATEL/GRADE3

The AWO 213 metal casings are designedto the panel RISCO, ROEL.
 The housing includes a transformer TRZ 40VA/16V/18V

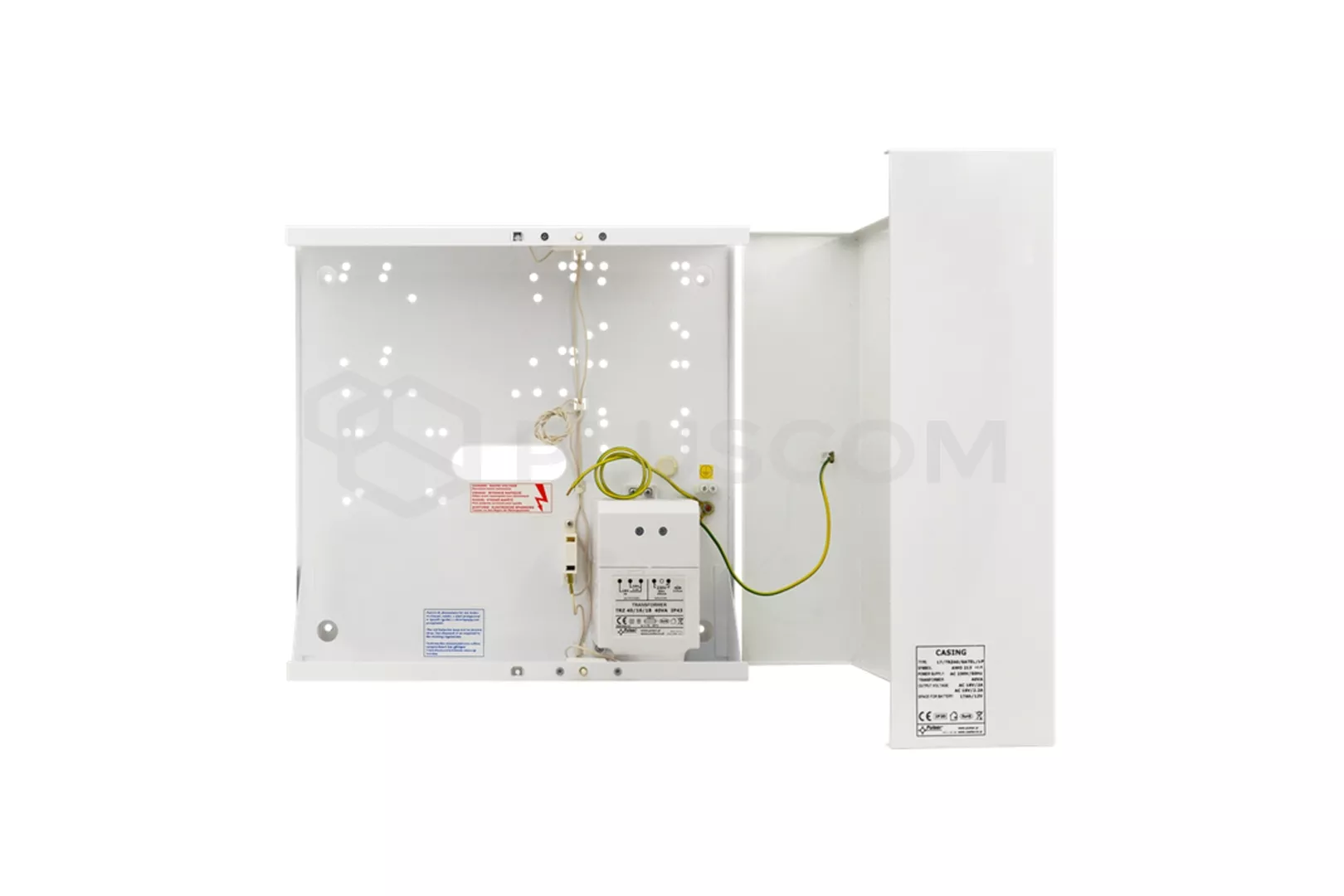

Pulsar AWO213 Casing for control panels SATEL with transformer

Pulsar AWO213 Casing for control panels SATEL with transformer

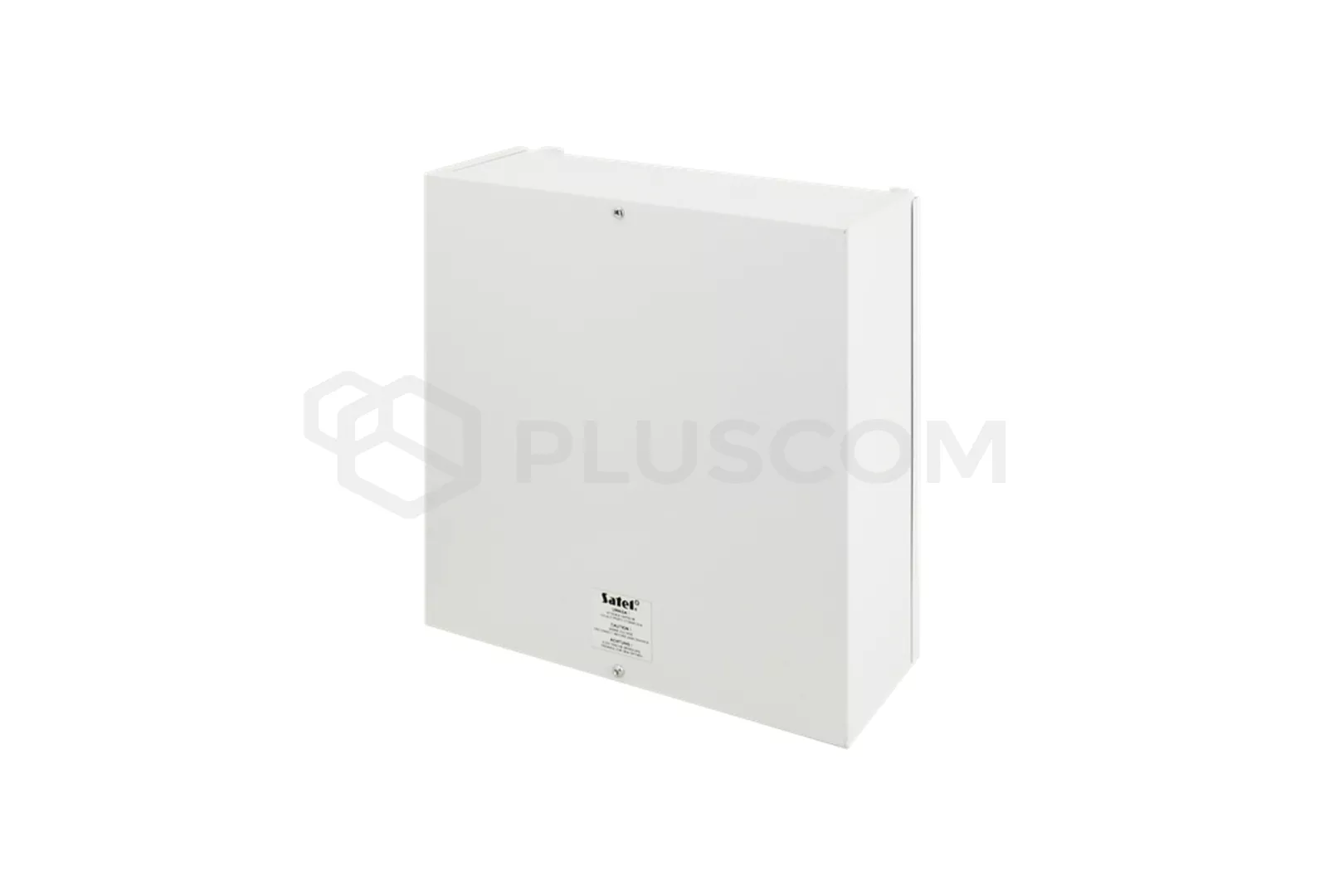

Pulsar AWO213

Pulsar AWO213



The housing has a place for 12V/17Ah.
The standard is also a tamper protection in the form of the chassis intrusion detector

SPECIFICATIONS:
  • transformer: TRZ 40VA/16V/18V
  • power supply 230V/AC 50Hz
  • output voltage: 16V/2,2A, 18V/2A
  • place on battery: 12V/17Ah
  • tamper protection: Yes
  • Material: 0.7mm sheet RAL9003 color
  • degree od protection : IP20
  • Internal dimensions: 330x305x110mm
  • closing: 2x cylindrical screw
  • distance from wall 15mm

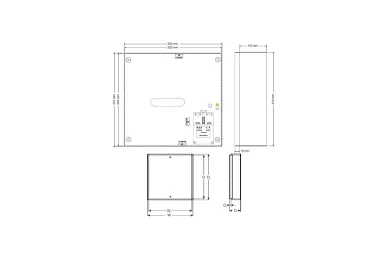

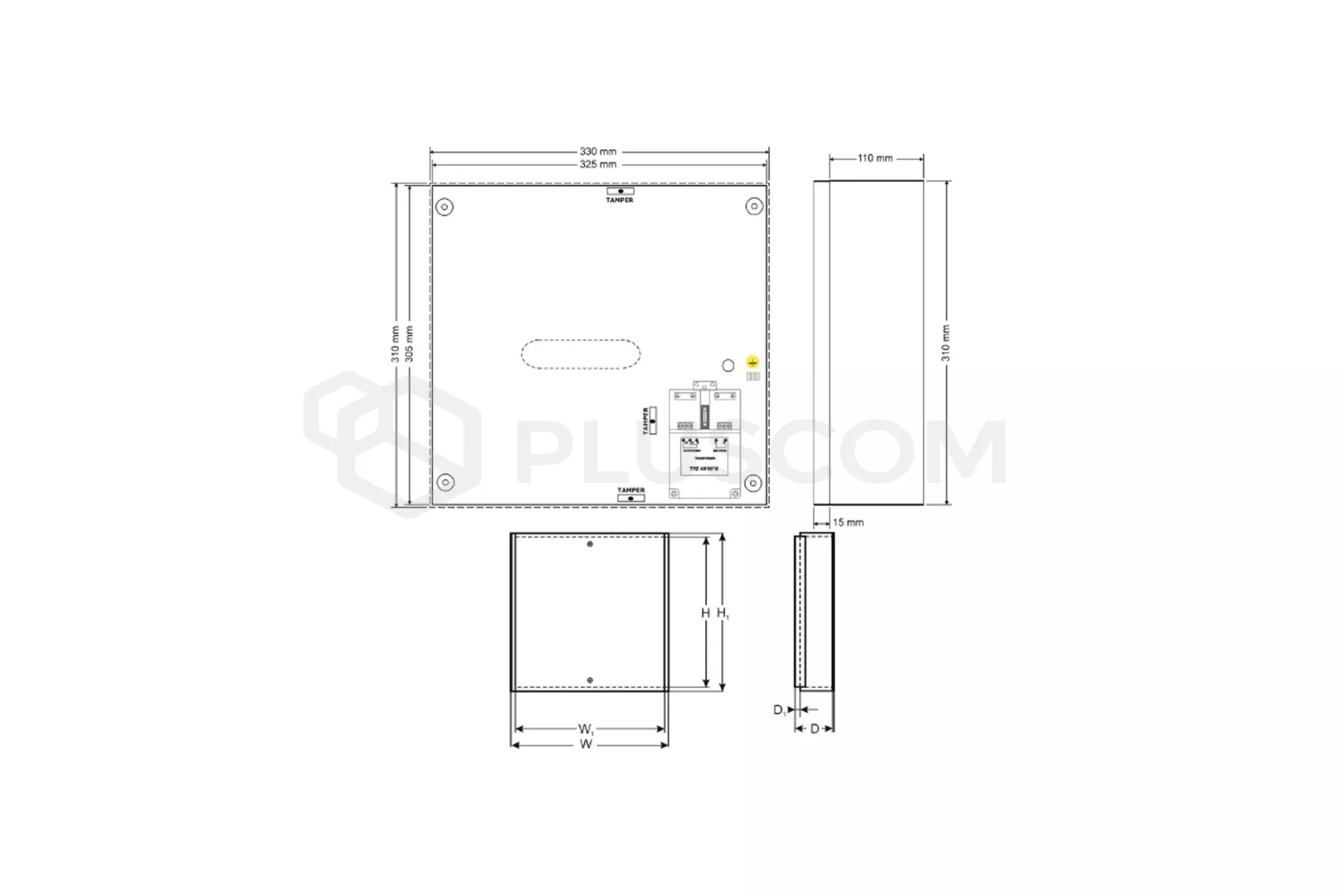

Dimensions:

Dimensions:



PANELS WHICH CAN BE MOUNTED:
  • z 7Ah:
    • 1) CA4V1, 5, 6, 10, VERSA 5, 10, 15, INTEGRA 24, 32 + 3 x CA10E ( CA64E, SM, MST1)
    • 2) CA4V1, 5,6,10, VERSA 5,10,15, INTEGRA 24, 32 + CA10E ( CA64E, SM, MST1) + GSMLT1
    • 3) CA4V1,5,6,10, VERSA 5,10,15, INTEGRA 24, 32 + CA10E ( CA64E, SM, MST1) + CA64 ( EPS, ADR, O-R, O-ROC, O-OC, VGM- 16, SR, ACC- KP-PS)
  • MODUŁY:
    • 1) CA64 ( PP, EPS, ADR, O- R, O-ROC, O-OC, OPS- OC, OPS- R, OPS- ROC, VGM- 16, SR, PTSA, ACC-KPPS) + 3 x CA10E ( CA64E, SM, MST1)
  • z 17 Ah:
    • 1) CA4V1, 5,6, 10, VERSA 5,10,15, INTEGRA 24, 32 + 2 x CA10E ( CA64E, SM, MST1)
    • 2) CA4V1, 5,6,10, VERSA 5,10,15, INTEGRA 24, 32 + GSMLT1
    • 3) CA4V1, 5,6,10, VERSA 5,10,15, INTEGRA 24, 32 + CA64 ( EPS, ADR, O- R, O-ROC, O-OC, VGM-16, SR, ACC- KP- PS)
  • MODUŁY:
    • 1) CA64 ( PP, EPS, ADR, O-R, O-ROC, O-OC, OPS- OC, OPS- R, OPS- ROC, VGM-16, SR, PTSA, ACC- KP-PS) + 2x CA10E ( CA64E, SM, MST1)
