Pole mount bracket OZB1

19,93 EUR including 23.00% VAT
Product code: #18257
Manufacturer: Pulsar
  • clamping clamp for hermetic housing
  • mounting plate dimensions: 194x144mm
  • metal clamp dimensions: 2m x 15mm
  • weight: 0.34kg
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Switch PoE Pulsar SG64H with power supply for 4 IP cameras in enclosure S64H 6-port switch with power supply in hermetic enclosure

Pole mount bracket Pulsar OZB2

Pole mount bracket is designed for mounting hermetic enclosures on poles, masts, structural elements, etc. in a way that does not damage the structure of the bearing element.

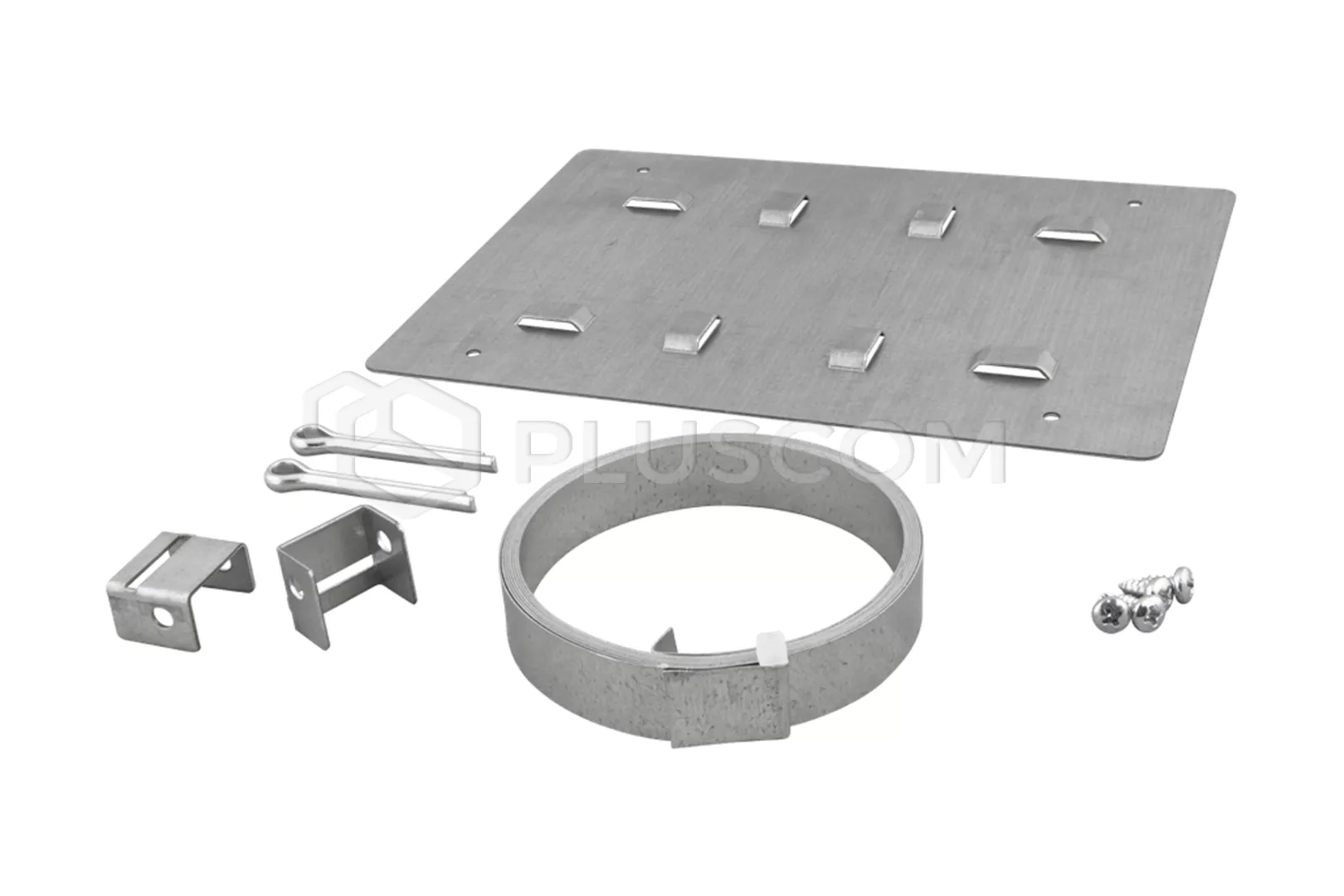

The set includes:

  • mounting plate
  • metal clamp
  • cotter pins 2szt
  • locking handle 2szt
  • aelf-tapping screw 4szt

PARAMETRY TECHNICZNE:

  • Mounting plate dimensions: 194x144mm (-/+ 2mm)
  • The length of the metal clamp: 2m
  • The width of the metal clamp: 15mm
  • Temperature of work: -25ºC÷50ºC
  • Weight: 0,34kg

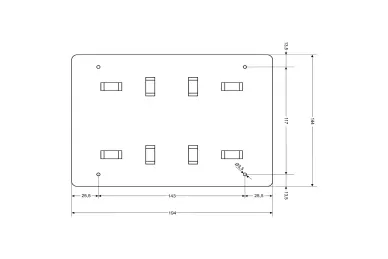

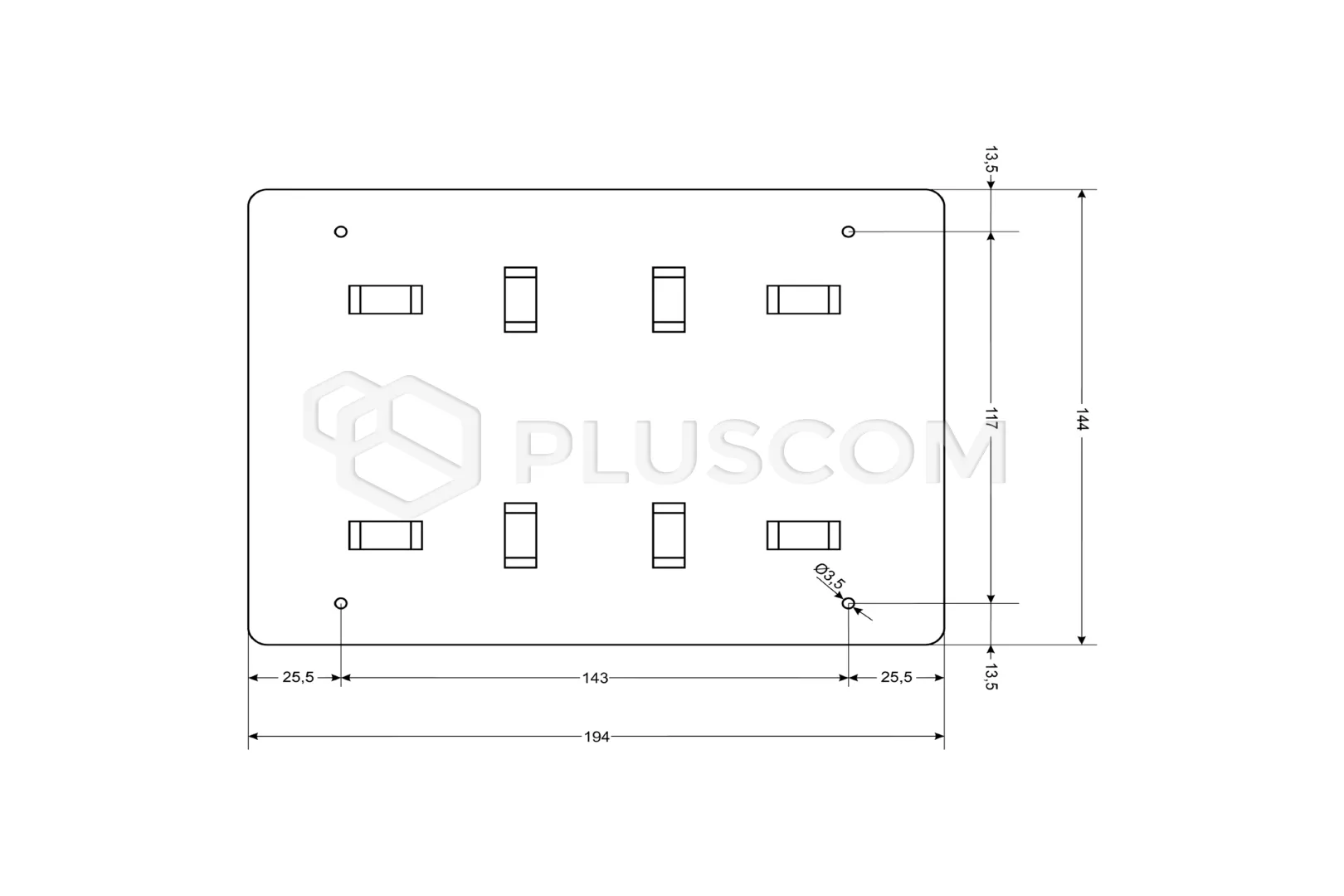

Dimensions:

Dimensions:


Download
Datasheet 0.28 MB
Instruction 0.24 MB
