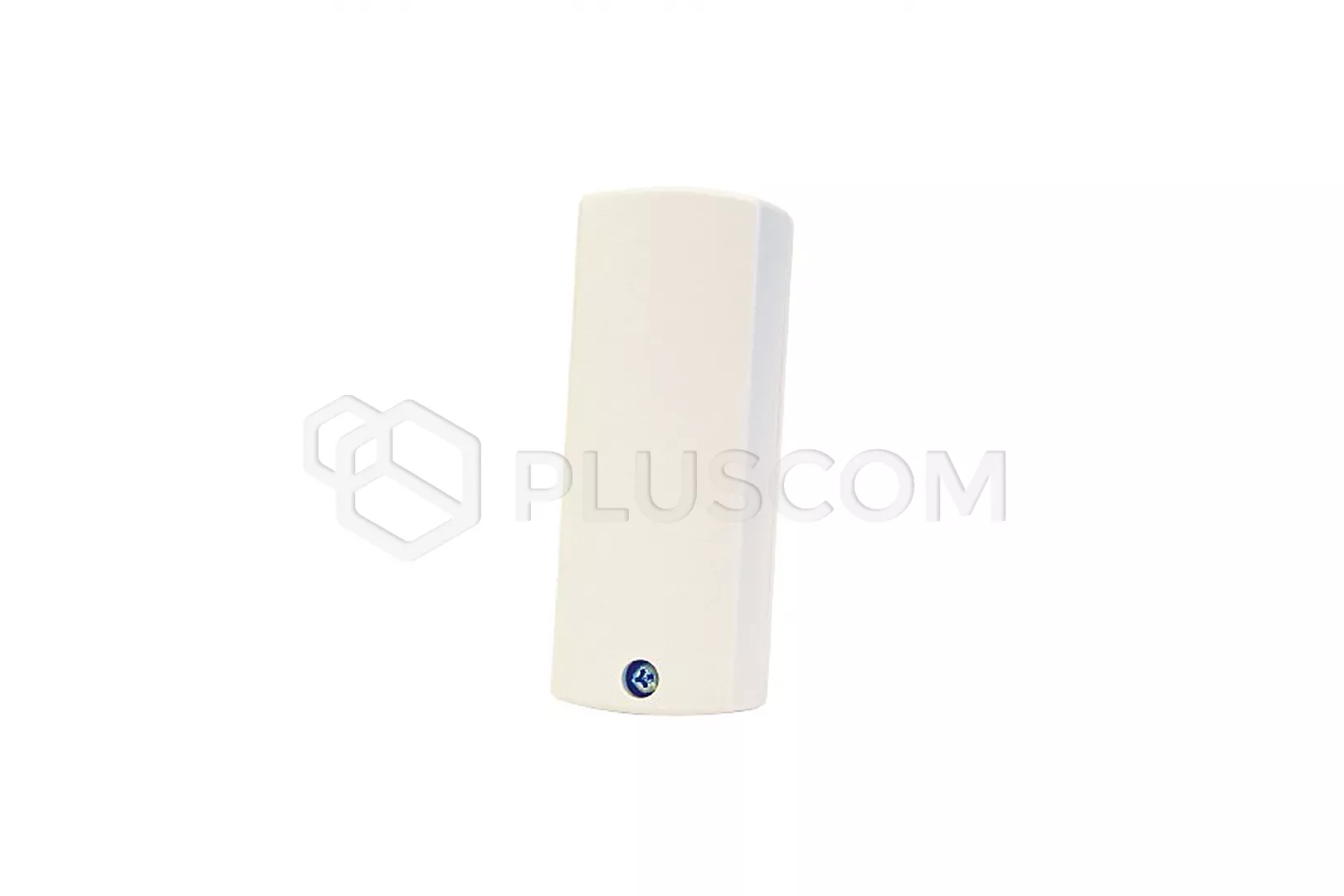

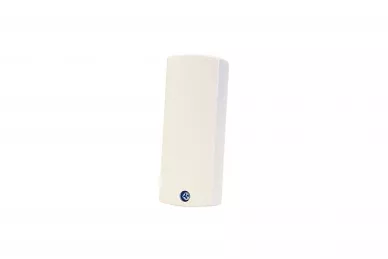

OPTEX EE1216 Inovonics wireless transmitter

The EE1216 is a universal transmitter with two inputs and protection tamper, designed for use with almost any standard contact or sensor. It has two entrances and is fully supervised.
Works with door opening sensors, shock detectors, buttons alarms, pressure mats, temperature sensors, status relays, photoelectronic beams or other digital output devices.

The transmitter has three contacts that allow you to connect inputs to one or two external alarm lines.
Selecting the input type is done through the NO / NC selection pins.

To monitor and supervise a transmitter, it must be registered with the system. IN in supervision mode, the transmitter sends a report message to the receiver every 12 min.

Technical data:

• RF frequency: 868-869 MHz
• external contacts: N / O or N / C
• distance of the outer contact from the transmitter: max 3m
• power supply: 3 V DC, 60 mA
• quiescent current: >10 uA
• low battery detection: 2.4V DC
• typical battery life: 3-5 years
• battery type (BAT604): CR123A
• tamper: Type B, fixed / mounted
• working temperature: from -10 ° C to 60 ° C
• dimensions: 10.5 × 4.5 × 2.3 cm
• weight: 86 g
• compliance: EN50131-1, security grade 2, environmental class II
