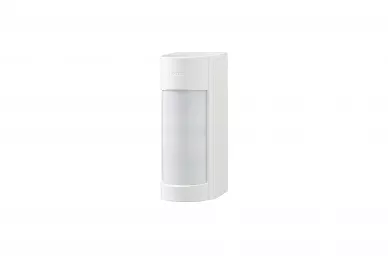

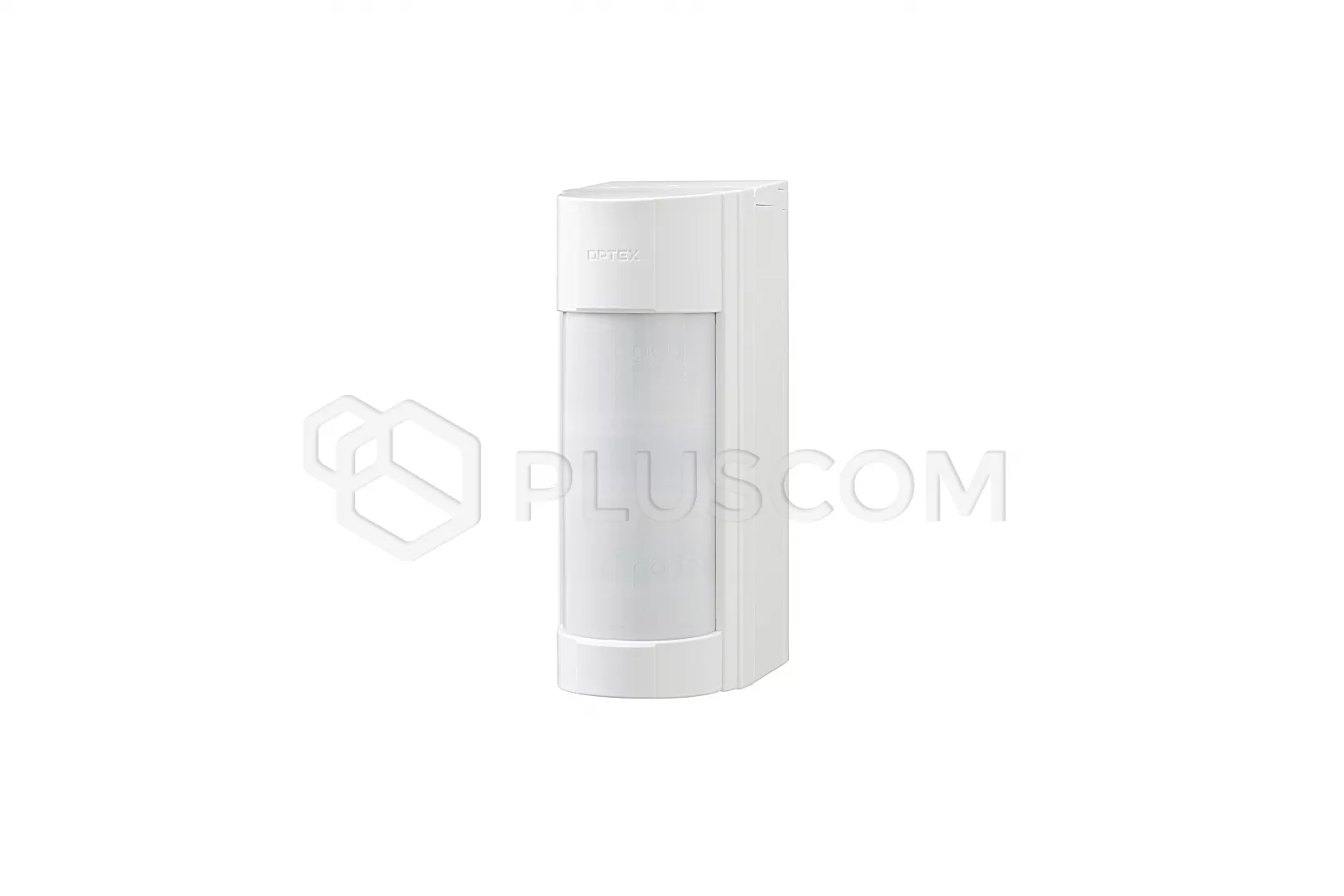

OPTEX VXI-RDAM-X5 PIR + MW detector with range control and anti-mask,
battery power
VXI-RDAM-X5 provides a very reliable approach detection with a range of up to
12m for residential and commercial applications. The sensor which should be
mounted at ca 1.2m height includes two PIRs providing a double layered
detection area, the sensor will only trigger when both layers are activated.
The VXI sensors are animal tolerant and feature digital analysis to eclude
cause of false alarm. The VXI-RDAM is the dual-technology, battery-powered
model with anti-masking.
Digital analysis and dual-tech for ultimate reliability
The VXI sensors features a digital microprocessor which analyses the infrared
emissions received and differentiate the ones generated by human from the ones
generated by sunlight, animals, vegetation sway, or weather conditions.
Additionally the combined infrared and microwave technology brings a greater
level of stability as the complementary technologies need both to triggered to
confirm the alarm. This makes the risk of false alarm extremely low.
The convenience of wireless
The VXI-RDAM-X5 sensor can be powered by a variety of universal batteries
including CR123, CR2 and 1/2 AA. Its housing can accommodate most wireless
radio transmitters available in the market. This makes it easy to add a VXI
sensor onto the shed, garage or any outer buildings and link it to an existing
wireless alarm panel The sensors are also easy to install in remote or
temporary locations.
Flexible detection coverage
The detection length of the VXI sensors can be set to 12m, 8.5m, 6m, 5.5m or
2.5m to adapt to the site configuration. The sensor comes as well with a choice
of pre-cut masking templates to modify the detection areas and only focus on
the points of interest.
Key Features
- 12m battery-powered PIR/MW for approach detection
- Digital signal analysis to greater reliability
- Accommodates most wireless transmitters
- Active infrared antimasking
SPECYFICATION
- Detection method: passive infrared and microwave
- PIR range: 12m, angle 90 ° / 16 zones
- PIR range adjustment: 2.5-12m (5 steps)
- Frequency: 10.525GHz
- Movement speed performed: 0.3 - 1.5 m/s
- Tenderness: 2 ° C at 0.6 m / s
- Power: 3-9V DC,lithium or alkaline battery
- Power consumption: 18μA (standby) / 8mA (max.) At 3V DC
- Alarm period: 2 (±1) s
- Warm-up period: approx. 60 s (LED flashes)
- Alarm output: N.C./N.O. Selectable-Solid State Switch 10 V DC 0.01 A
(max)
- Trouble alarm: N.C./N.O. Selectable-Solid State Switch 10 V DC 0.01 A
(max)
- LED indicator:
-
- Disable: During normal operation.
- Enable: During WALK TEST or LED SW on.
- Red: Warm-up, alarm, masking detection (VXI-RAM only)
- Yellow: preparation for work, MW detection
- RF interference: No 10V / m alarm
- Working temperature: -20°C~45°C
- Humidity: 95% max.
- Housing tightness: IP55
- Mounting height: 0.8 - 1.2 m
- Dimensions:
- Weight: 600 g
Accessories: Connector for POWER and ALARM, Connector for TROUBLE, Screw
(4×20mm) ×2, Masking seal ×3
