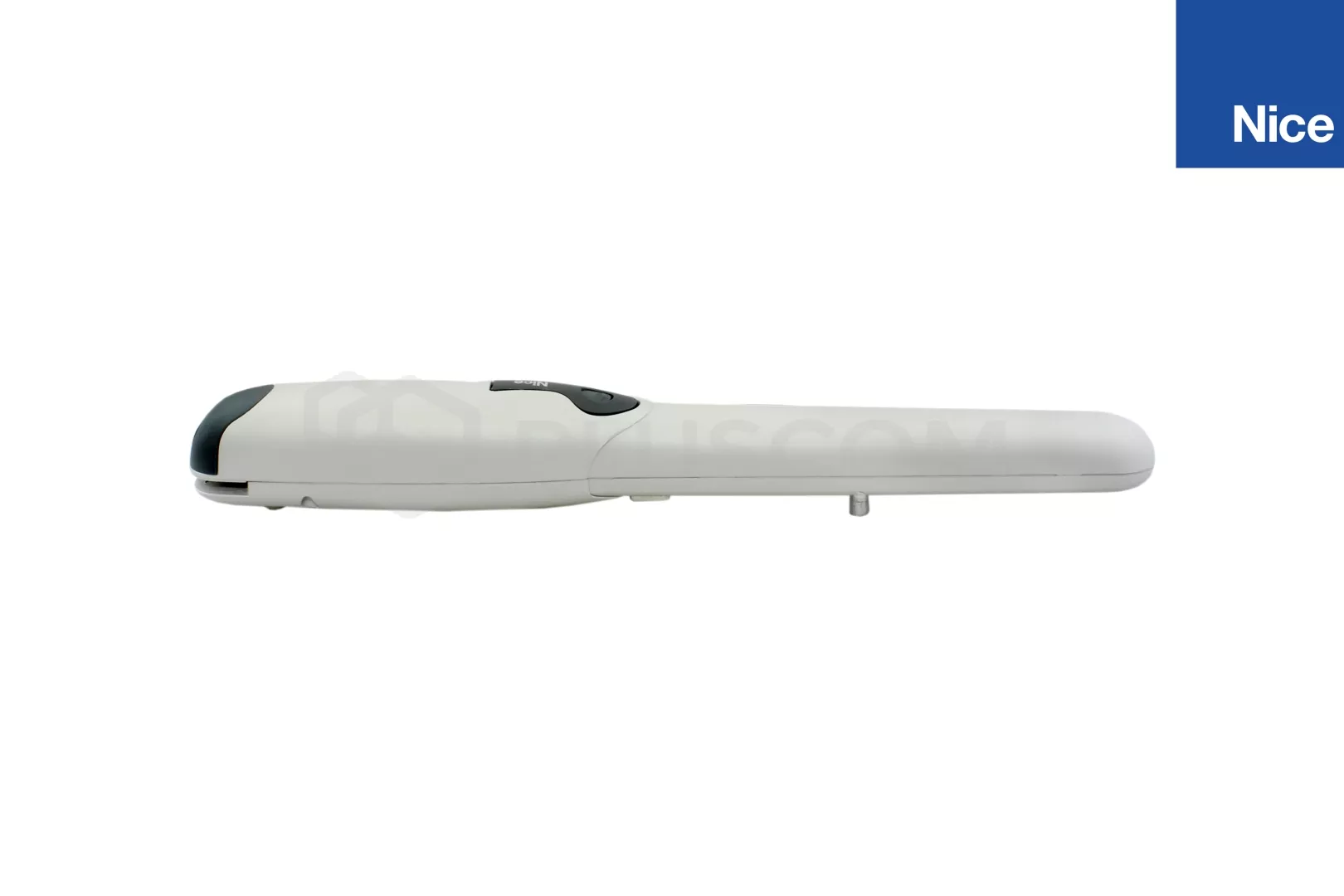

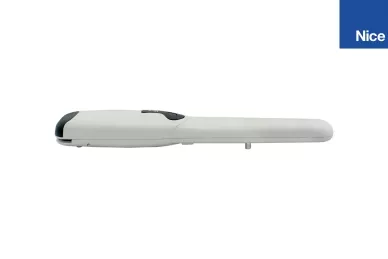

Nice WINGO 2024 Gear motor 24V wing up to 2m / 200kg

Nice WINGO 2024 Electromechanical gear motor24V

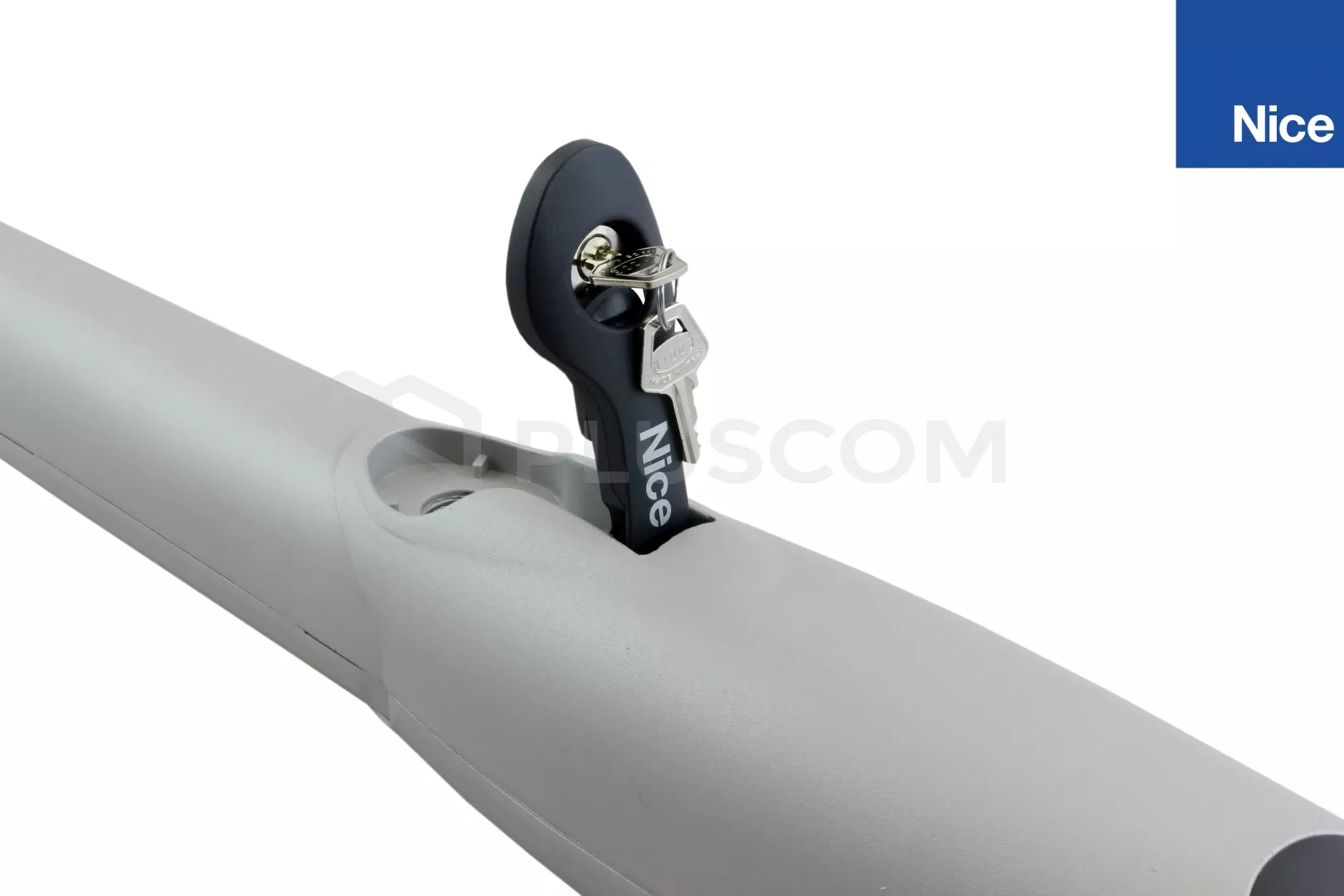

WINGO2024R10is a self-locking actuator with limit switch when opening,.The gate is locked and can not be opened manually, thus eliminating the need for additional locks. In the event of a power outage, the emergency unlocking key is provided with a Nice triangle key lock. Turning the key 90 ° clockwise, release the lock and it is possible to open the gate manually. By turning the key counter-clockwise, we also lock the drive.

WINGO2024 has an amperometric obstacle detection system - it is used to detect any obstacles that may occur during normal gate movement. Thanks to this function, when the obstacle is encountered, the drive stops the gate and changes its direction.
To avoid a strong jerk when opening or closing the door, the actuators have a smooth release function during closing and soft start.

SPECIFICATIONS:

• motor power supply: 24V
• current load: max 3,5A
• power consumption: 85W

• speed: 0,018m/s
• strength: max 1500N
• intensity work: 40 cycles/h


• operating temperature: -20°C...+ 50°C
• degree of protection: IP44
• dimensiosn: 770x98x95mm
• weight: 6kg
