Nice TO5024 Electromechanical gear motor 5m/200kg

535,55 EUR including 23.00% VAT
Product code: #7129
Manufacturer: Nice
  • Maximum leaf width 5 m
  • Maximum leaf weight 200kg
  • 24V AC motor
  • For intensive use
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice FLO2RE 2-channel remote Nice ELDC LED flashing signal light 12/24V Photocell Nice EPMB ERA Medium BLUEBUS Nice IT4WIFI BusT4 interface - Wi-Fi Nice OVIEW/A R01 Display programmer +IBT4N interface Photocell Nice FT210B adjustable, wireless transmitter, BLUEBUS Nice OXIBD 4-channels receiver two-way Nice MC824H R10 BLUEBUS control unit Nice PLA10 Electric lock vertical Nice PS324 24V battery with integrated battery charger

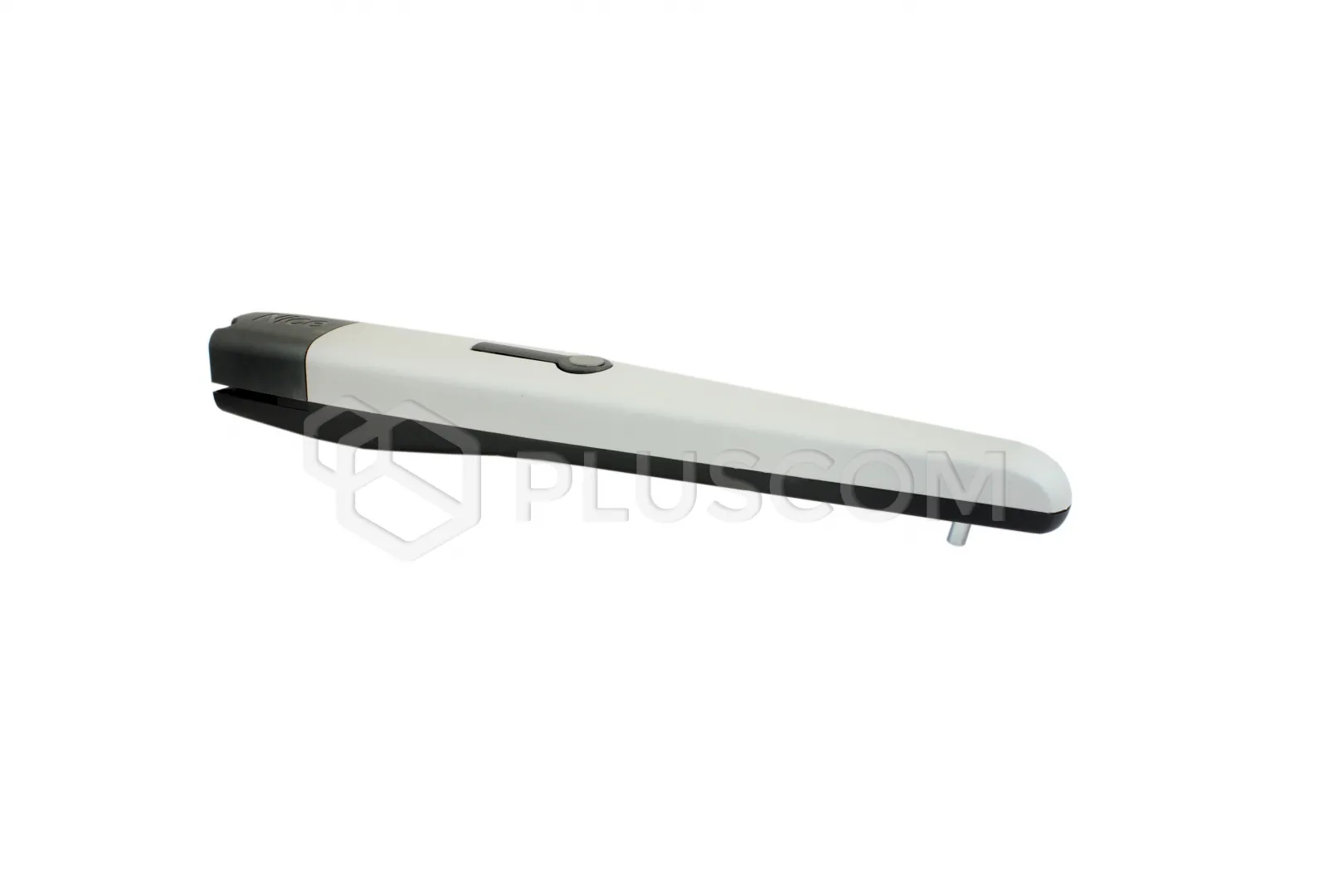

Nice TO5024 Electromechanical gear motor 5m/200kg

Electromechanical gear motor, surface mounted. 24 V DC version, with magnetic encoder.

Nice TO5024 Electromechanical gear motor 5m/200kg

Nice TO5024 Electromechanical gear motor 5m/200kg

Reliable: durability thanks to the housing, made up of two tough aluminium shells with polyester paint finish; more resistant to atmospheric agents.

Internal moving parts completely in steel, light alloys and technopolymers.

Silent: patented layout of internal parts and lead nut in bronze.
Generously sized and practical connection compartment:  rapid and easy access from above to internal parts located in the upper section of the motor.

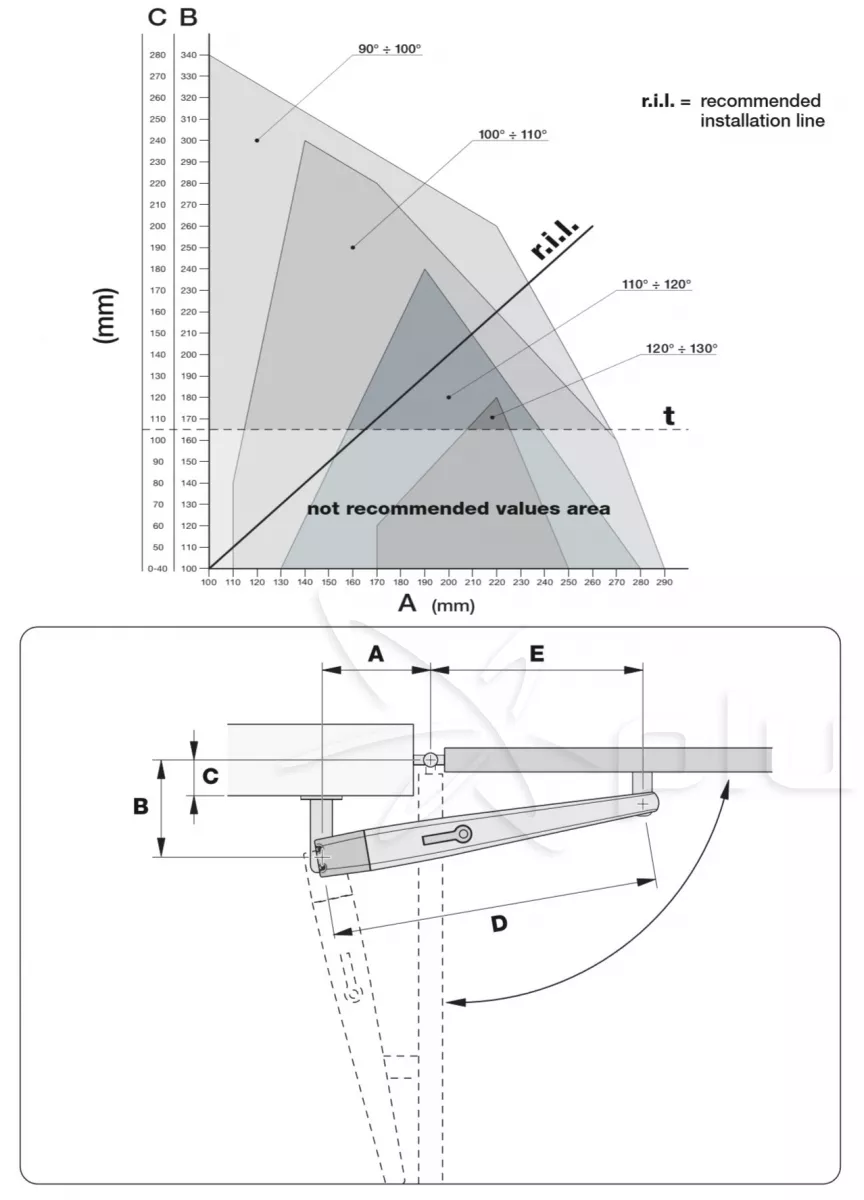

Nice TOONA TO5024 mounting

Nice TOONA TO5024 mounting

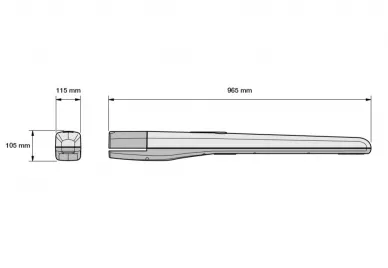

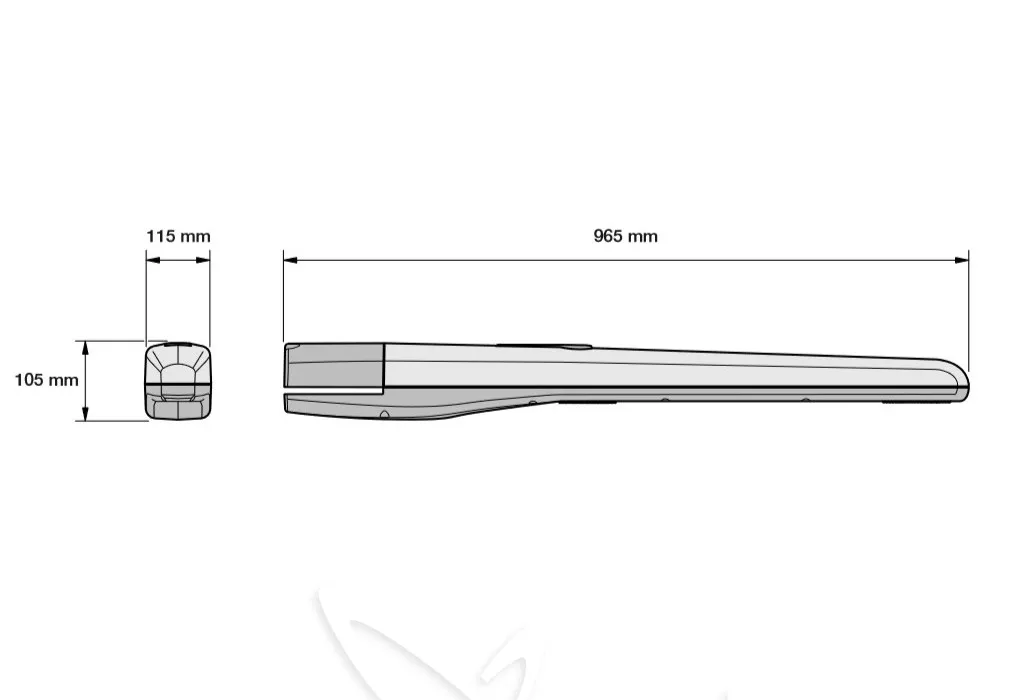

Nice TOONA TO5024 dimensions

Nice TOONA TO5024 dimensions



Simple installation and maintenance: with built-in capacitor.

SPECIFICATIONS:
  • motor power supply: 230V
  • current load: max 5A
  • power consumption: 120W
  • speed: 0,016m/s
  • working stroke: 540mm
  • strength: max 1800N
  • intensity work: 95 cycles/h
  • operating temperature: -20°C...+ 50°C
  • degree of protection: IP44
  • dimensions: 965x115x105mm
  • weight: 7kg
Recommended control unit Moonclever MC824HR10:
  • controlling the operation of two 24V actuators with an encoder
  • manual, semi-automatic, automatic operation
  • built-in radio
  • SM type connector for plug-in radio receivers
  • IBT4N connector for connecting BusT4 devices
  • BLUEBUS technology
  • auto programming during the first programming the control panel automatically determines and memorises the end positions of the gate
  • gentle start and release at closing
  • regulation of the speed of the actuators
  • function of partial opening of the gate - wicket
  • possibility of connecting the PS124 battery thanks to which the gate will open even when the mains power supply is disconnected
  • possibility of connection to the '' Solemyo '' solar power system
  • service of an electric lock
The control panel has an SM radio connector for OXI, OXIFM, OXIT, OXITFM, SMXI, SMIXIS receivers

The item is available in the following sets:

Nice TOONA 5024 Base set Nice TOONA 5024 Base set
Nice TO5024 MYGO set for swing gates up to 5m Nice TO5024 MYGO set for swing gates up to 5m
Download
Instruction 2.5 MB
