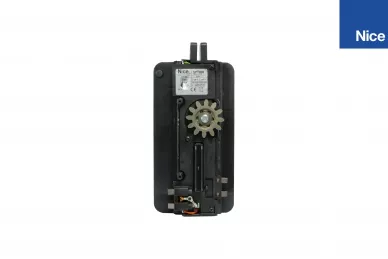

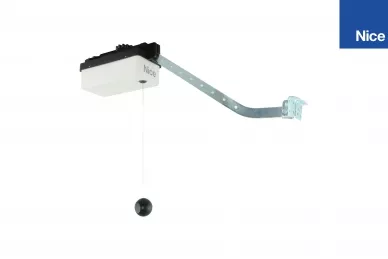

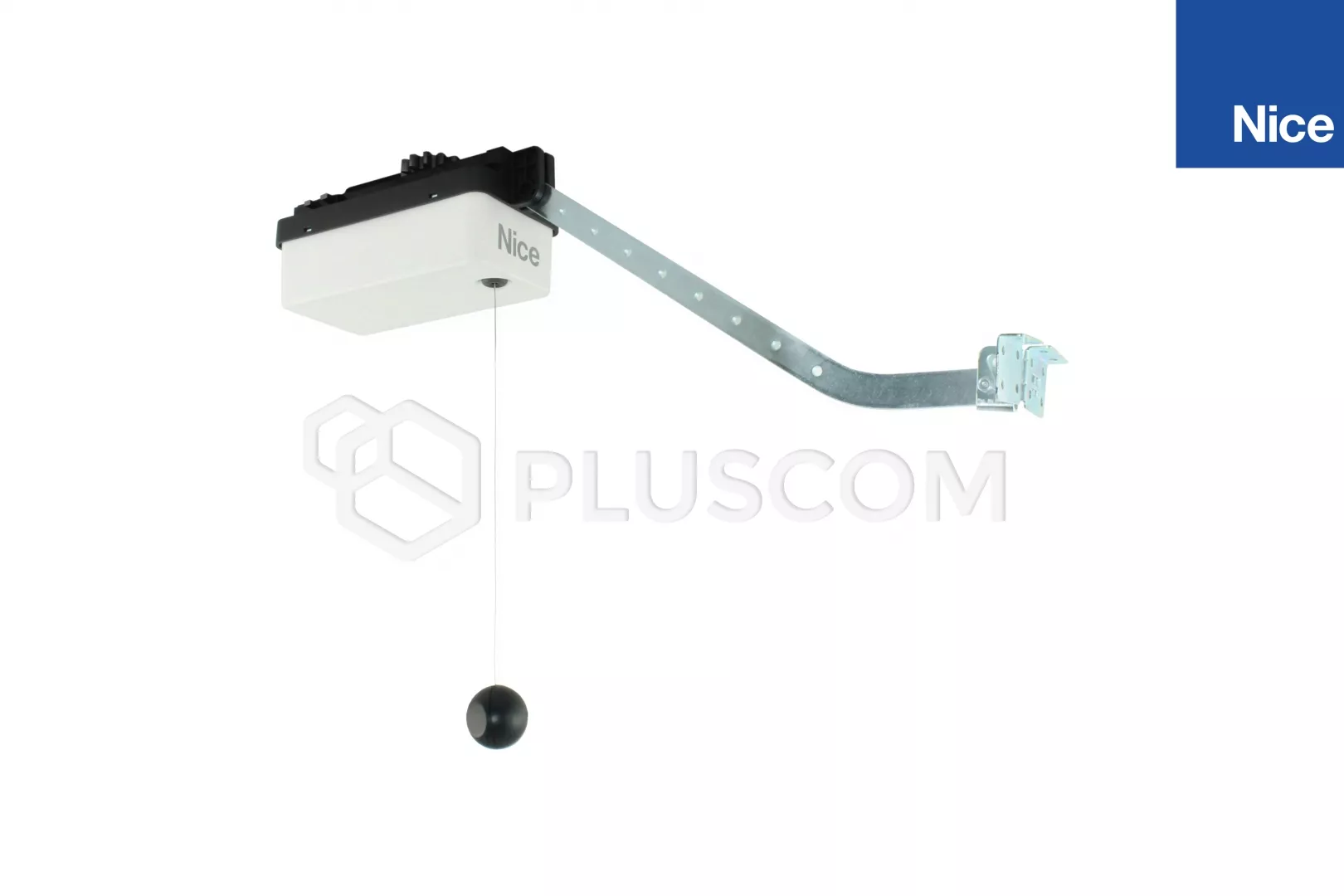

Nice SPY800 Operator for garage doors
SPY series garage drives are the first Nice cylinders with separate ones
control panel. This is definitely a more convenient solution for programming
and control (three buttons to control the gate).
Another new solution is the modular rail with already mounted accessories in
which the actuator moves, therefore installation is quick and straight. The

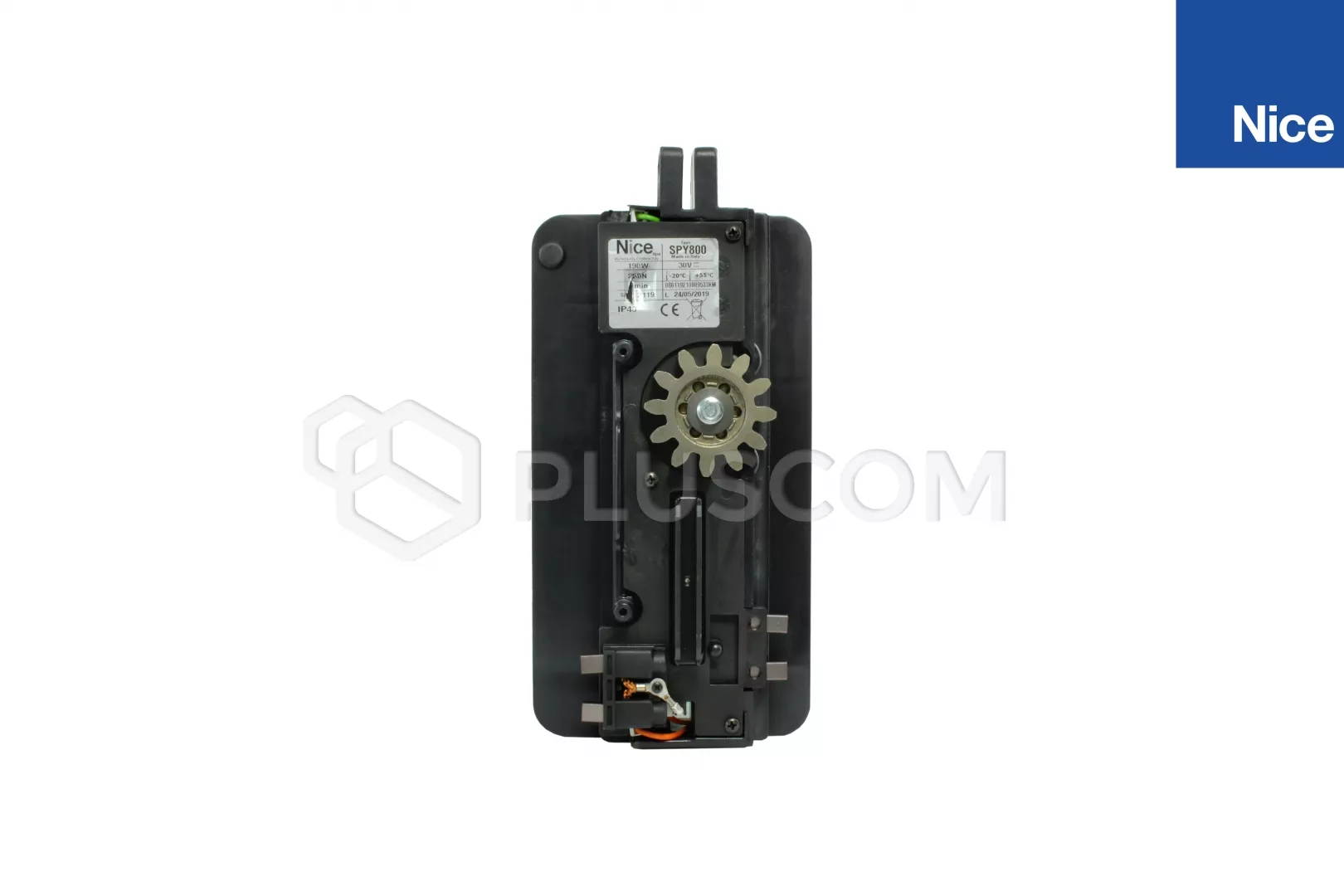

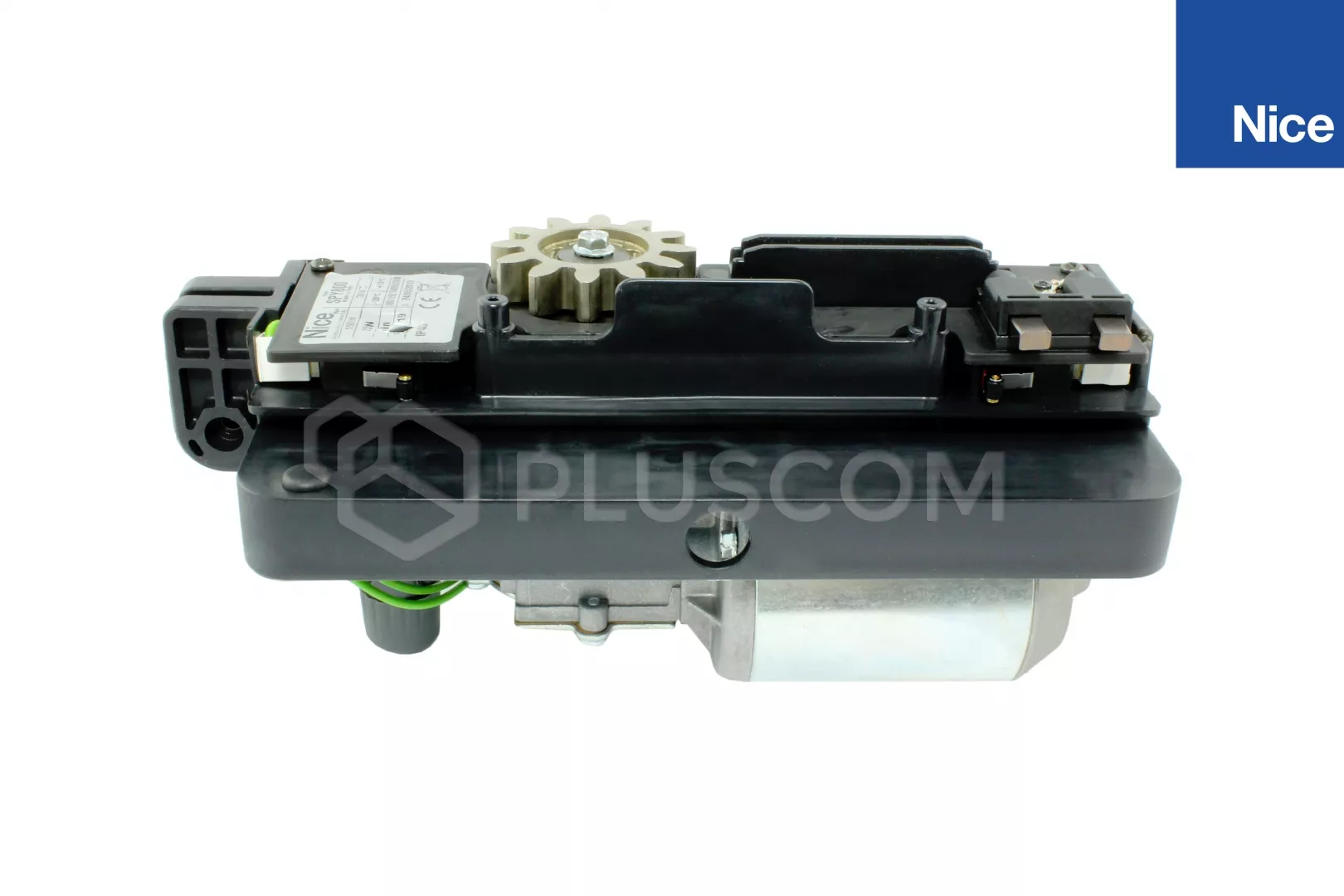

movement is carried out on a rack and pinion basis, without the need for use
chain. Functional and stylish solutions make SPY actuators ideal for any type
of architecture.
Functionality: Setting the limit switches is a quick procedure
because they also move along the rail.
Security: obstacle detection, works immediately. IN If the
gate comes in contact with a person or object, the motor movement is immediate
reversed. By means of a warning lamp and auxiliary lighting we receive
diagnostic messages, we can also control the engine power during operation.
With one move we can slow down or lock the engine in any position via
declutching system, guaranteeing yourself and the household members maximum
safety even at the time of power failure.
Thanks to the 24V power supply, we are protected against risks during
installation electric shock.
Savings: In standby mode, the drive consumes only 0.5W. At
connecting the PS324 emergency battery or hedge if we decide to power it
SOLEMYO solar set, which is a safe solution for the environment, the drive will
only download 0.1W
TECHNICAL SPECIFICATIONS:
- pulling force: 800N
- speed: 0.14m/s
- work intensity: 300 cykli na dzień
- power supply: 230V
- motor power: 24V
- input powera: 300W
