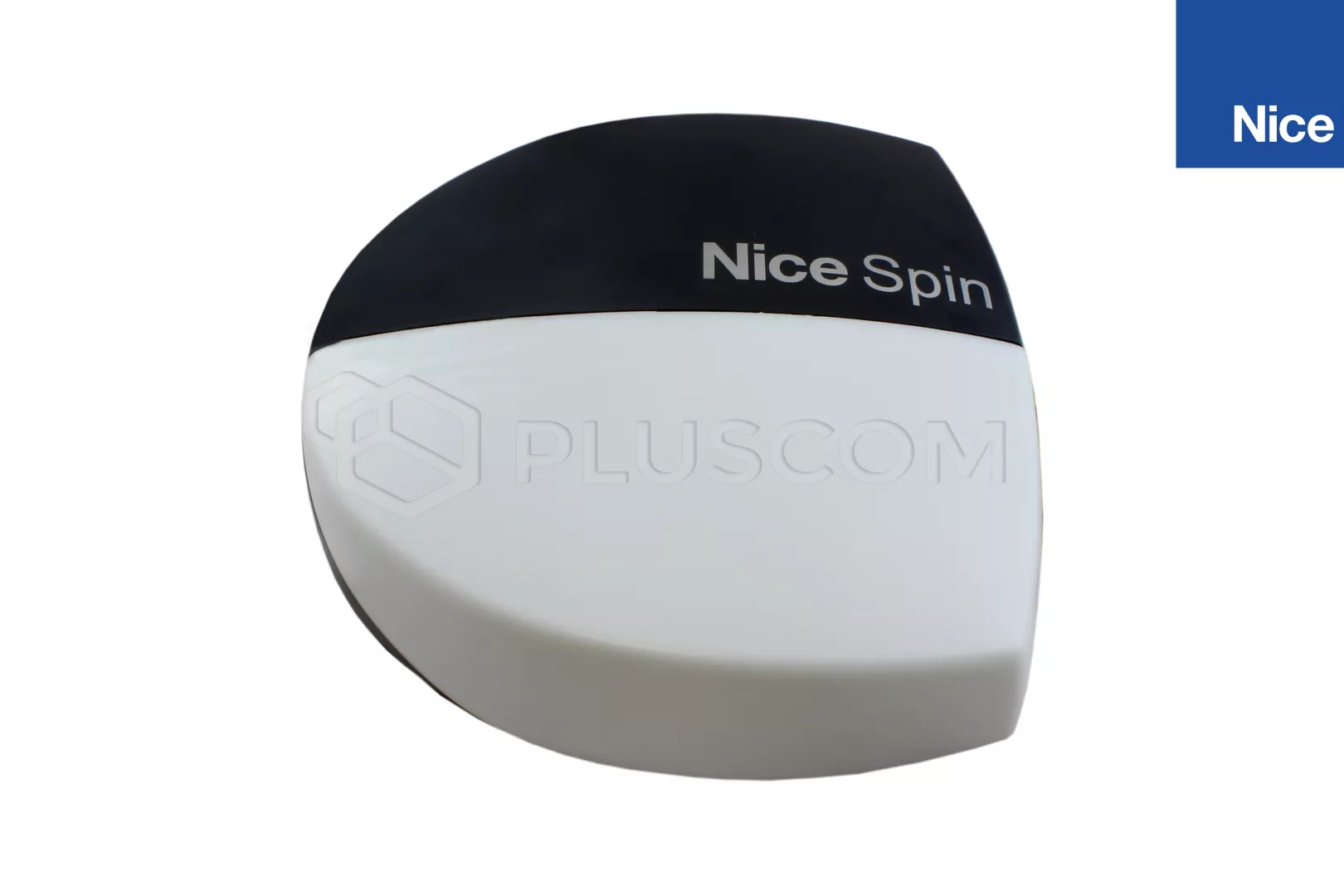

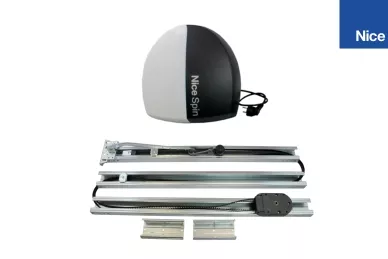

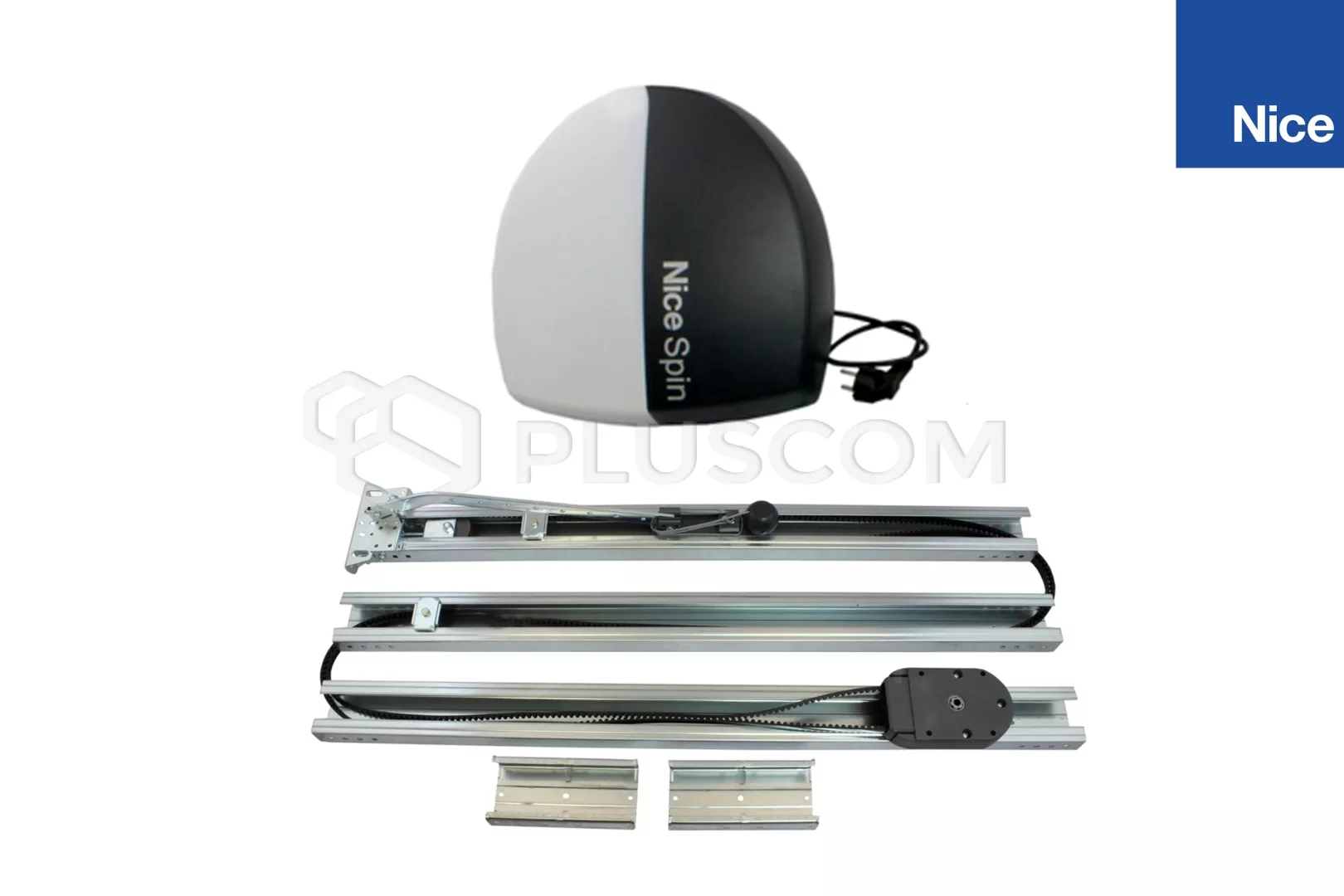

Nice SPIN40/A R10 actuator for garage door rail 3 x 1m

Nice SPIN40/A electromechanical gear motor, 24 V DC motor, with incorporated control unit, 1000 N, complete with guide in three 1 m-sections


230V AC irreversible electromechanical gear motor, for residential use, with belt drive, 24V DC motor, with magnetic encoder.

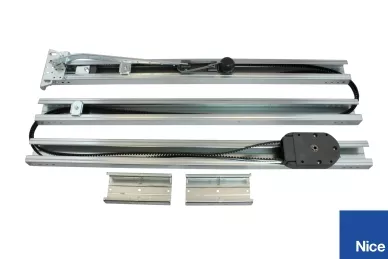

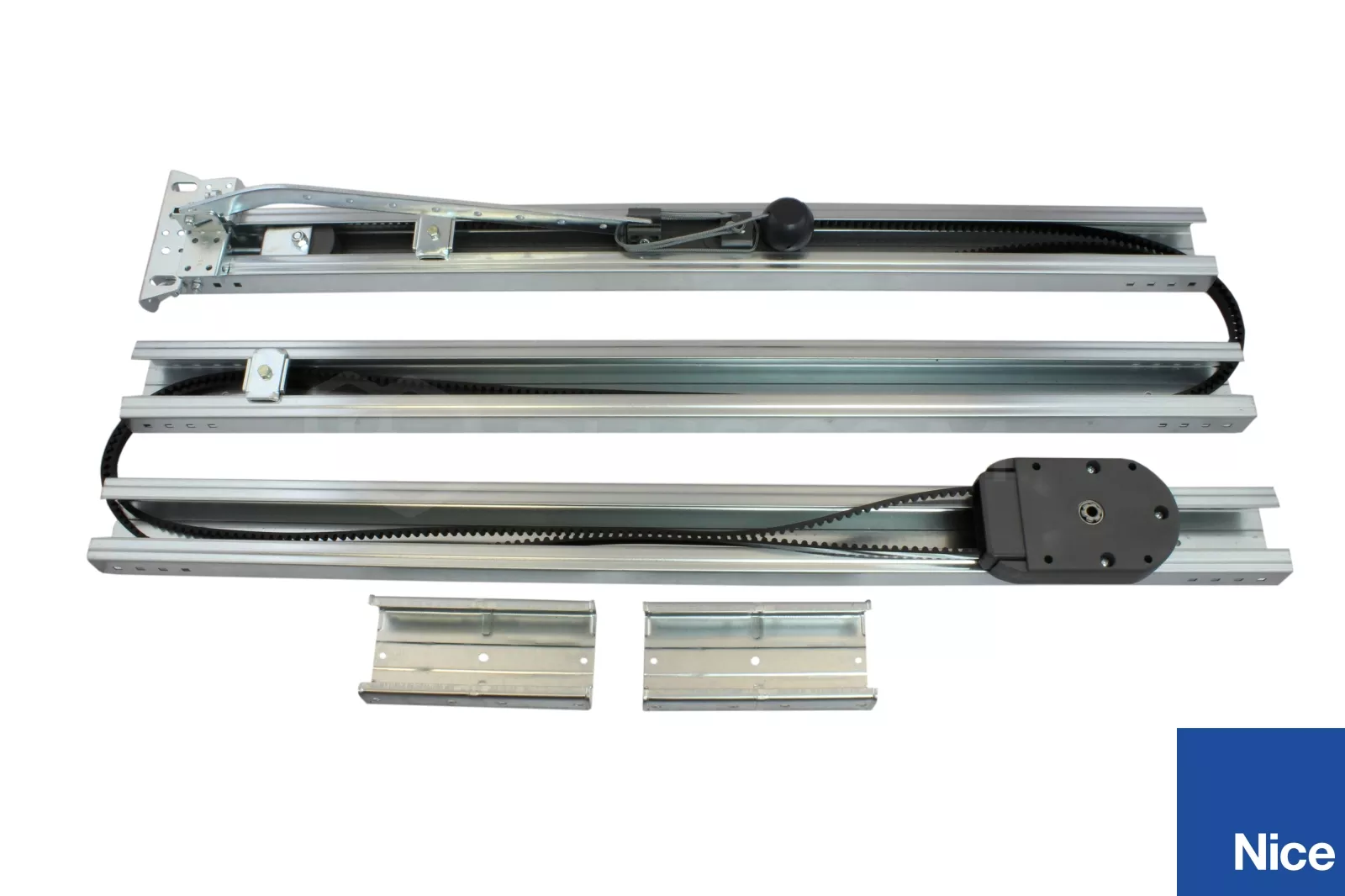

Complete version of the guide in 3x1 m sections.


Rapid installation - anywhere!
The adjustable head, cord-type release and cable-controlled, step-by-step release can be fitted in any part of the garage in order to actuate the system without a remote control device and without the need to install wall-mounted control units!

Guaranteed savings and respect for the environment:  with the connection to the mains in standby mode the control unit with radio connected consumes just 1.2 W; when connected to a battery or to the Solemyo kit, consumption in standby mode is reduced to 0.036 W.

User-friendly thanks to the BlueBUS system: which enables connection by means of just two wires between the control unit and pair of photocells.

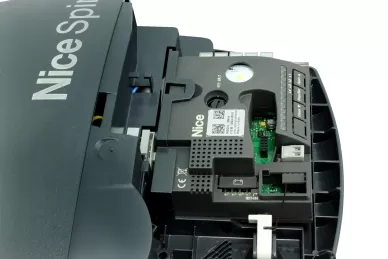

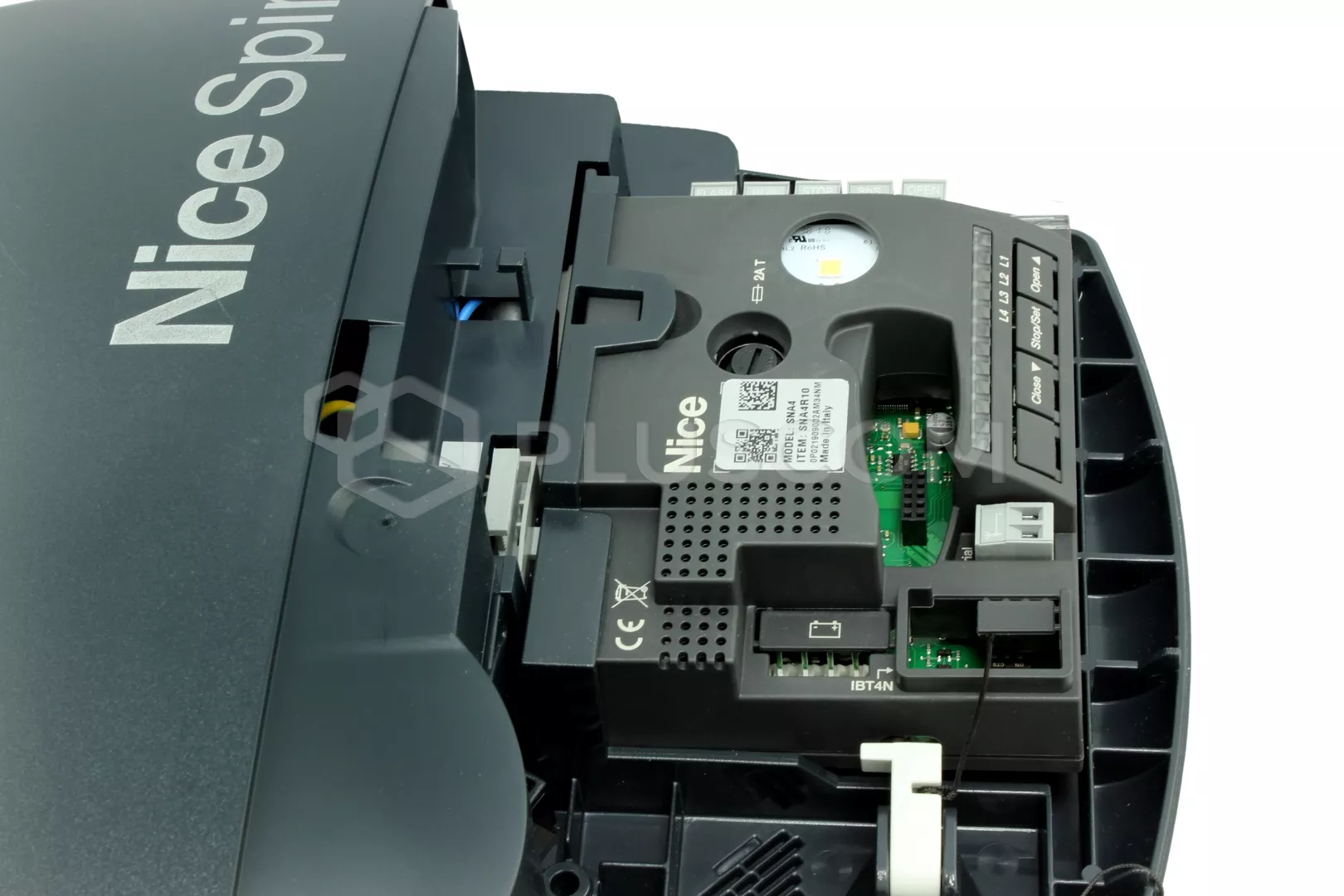

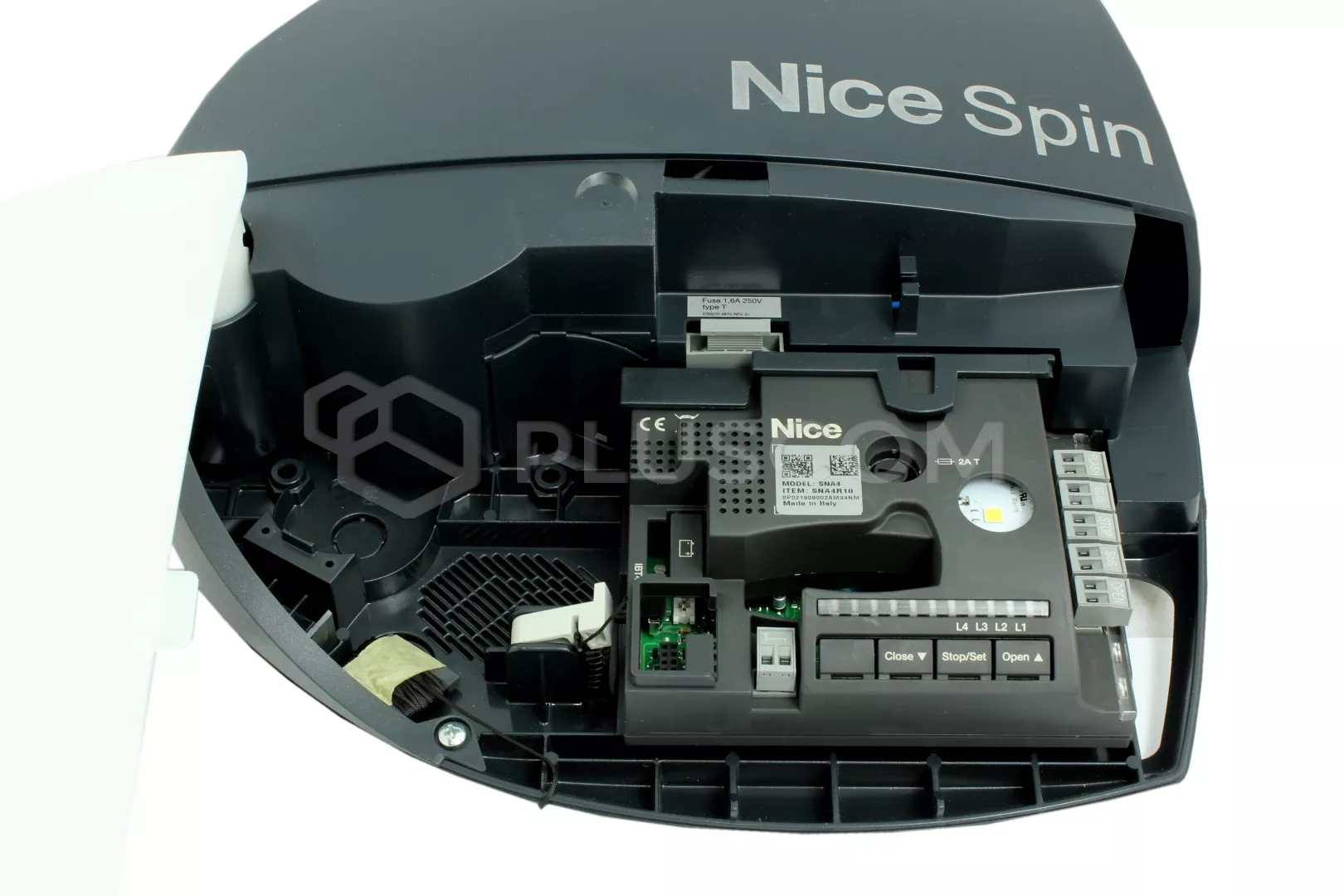

Model R10 of the control panel has been equipped with an '' IBT4N '' type connector, which enables connection of all devices equipped with the BusT4 interface.

Safe: obstacle detection system and automatic programming of the working times; motor absorption is monitored during movement, self-diagnosis by means of a  fl ashing light and courtesy light.
Acceleration and deceleration can be adjusted at the beginning and end of each opening and closing manoeuvre.
Can be connected with last generation sensitive edges 8.2 kΩ.

Luminous:  LED
