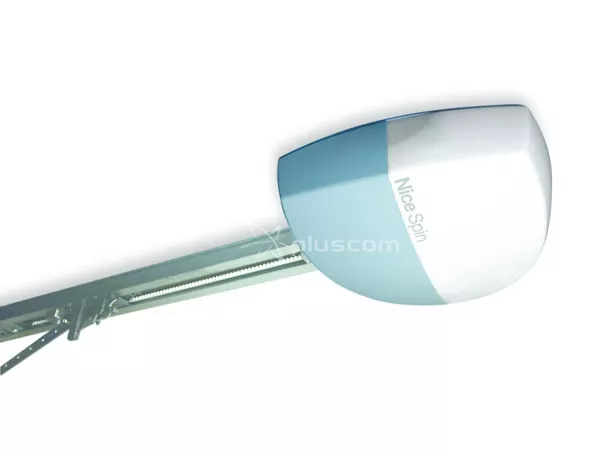

Nice SPIN31/A electromechanical gear motor, 24
Vdc motor, with incorporated control unit, 650 N
For sectional doors up to 9 m² and
up-and-over garage doors up to 9.8
m².
230 V AC irreversible electromechanical gear motor, for residential use, with
belt drive, 24 V DC motor, with magnetic encoder.

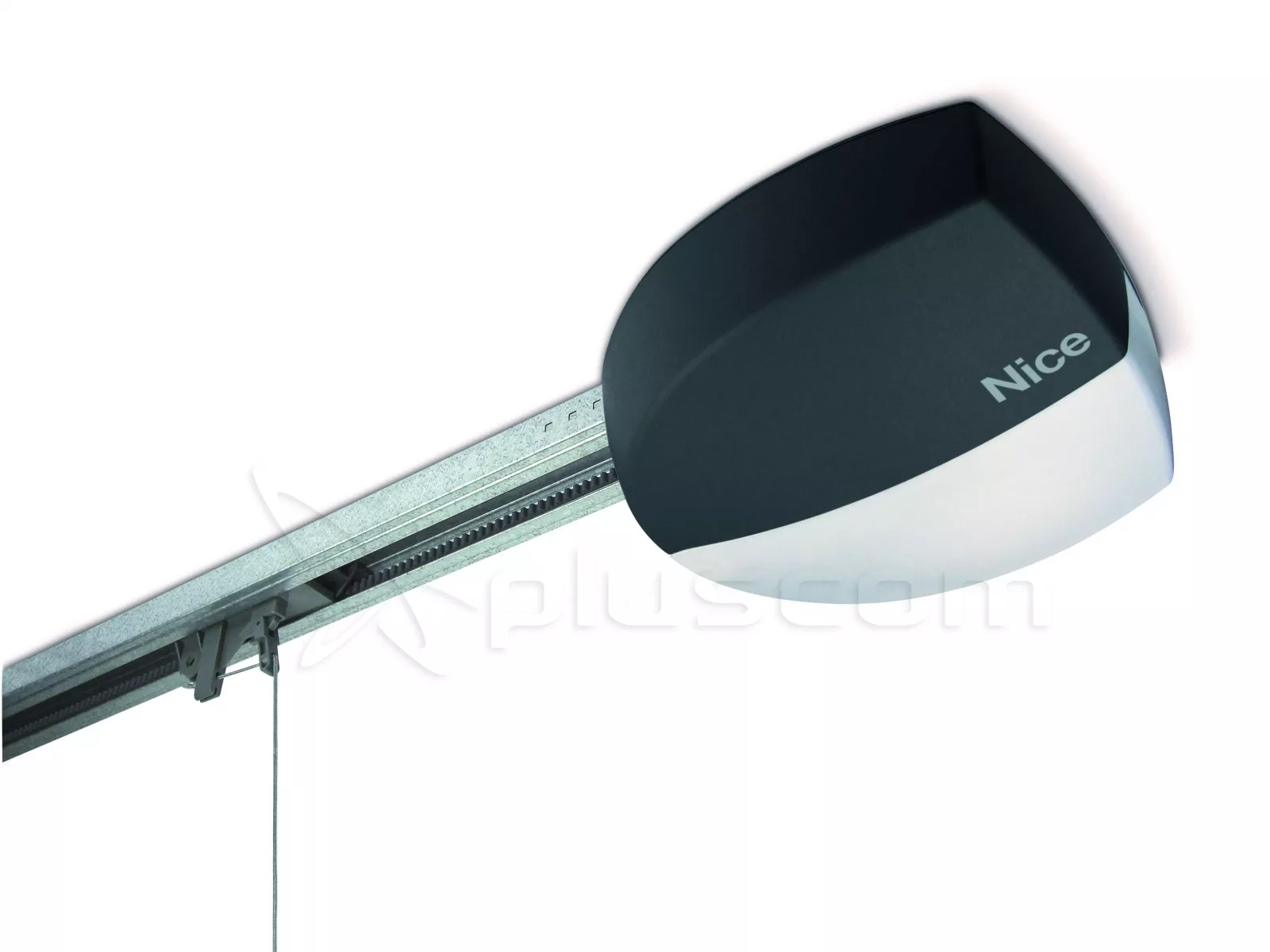

Nice SPIN31/A with incorporated SNA4 Bluebus control unit
To use with the SNA30/SNA6 guides.
Rapid installation - anywhere!
The adjustable head, cord-type release and cable-controlled, step-by-step
release can be fitted in any part of the garage in order to actuate the system
without a remote control device and without the need to install wall-mounted
control units!

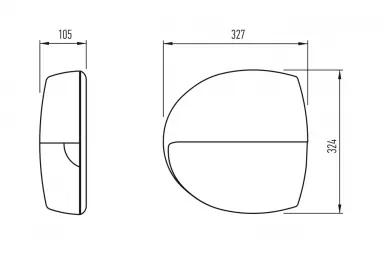

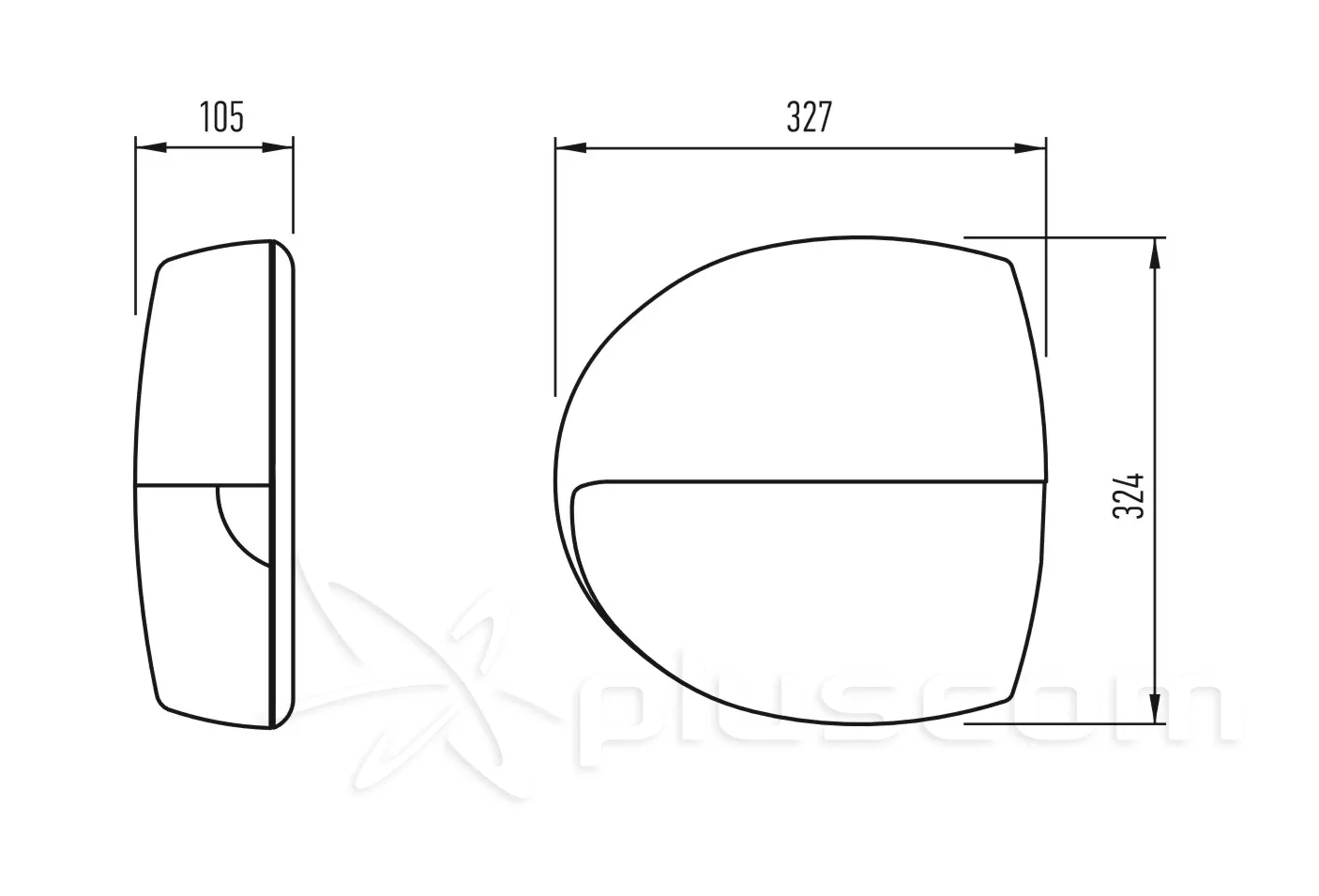

Nice SPIN31/A casing dimensions
Guaranteed savings and respect for
the environment: with the connection to the mains in standby mode the
control unit with radio connected consumes just 0.8 W; when connected to a
battery or to the Solemyo kit, consumption in standby mode is reduced to 0.036
W.
User-friendly thanks to the BlueBUS
system: which enables connection by means of just two wires between the
control unit and pair of photocells.
Safe: obstacle detection system and
automatic programming of the working times; motor absorption is monitored
during movement, self-diagnosis by means of a flashing light and courtesy
light.
Acceleration and deceleration can be adjusted at the beginning and end of each
opening and closing manoeuvre.
Can be connected with last generation sensitive edges 8.2 kΩ.

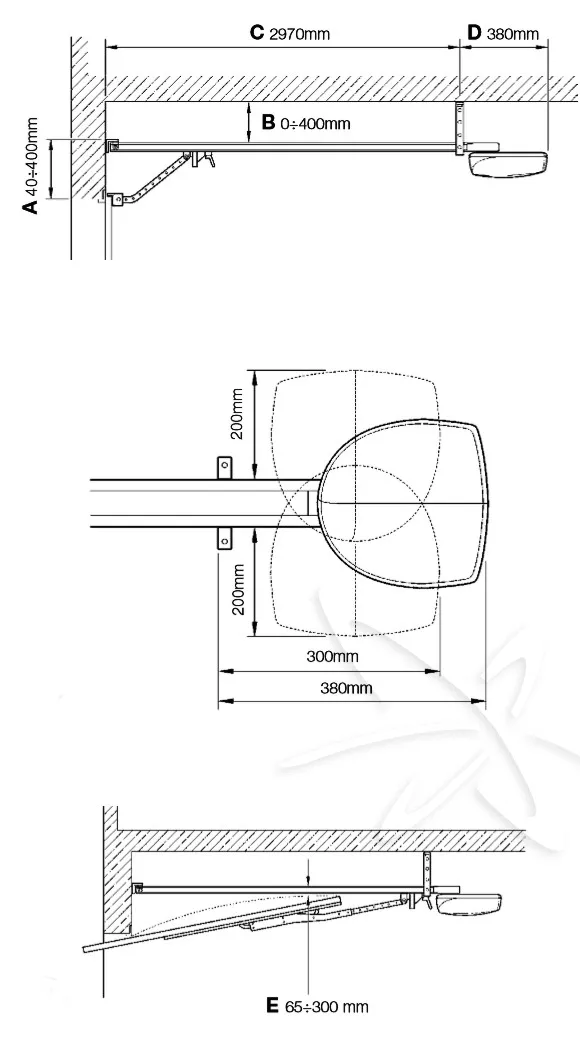

Nice SPIN31/A dimensions and mounting
Luminous: 40 W lamp E27 that can be used as garage lightening.
