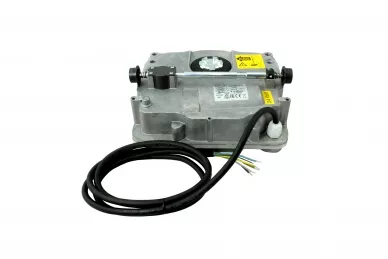

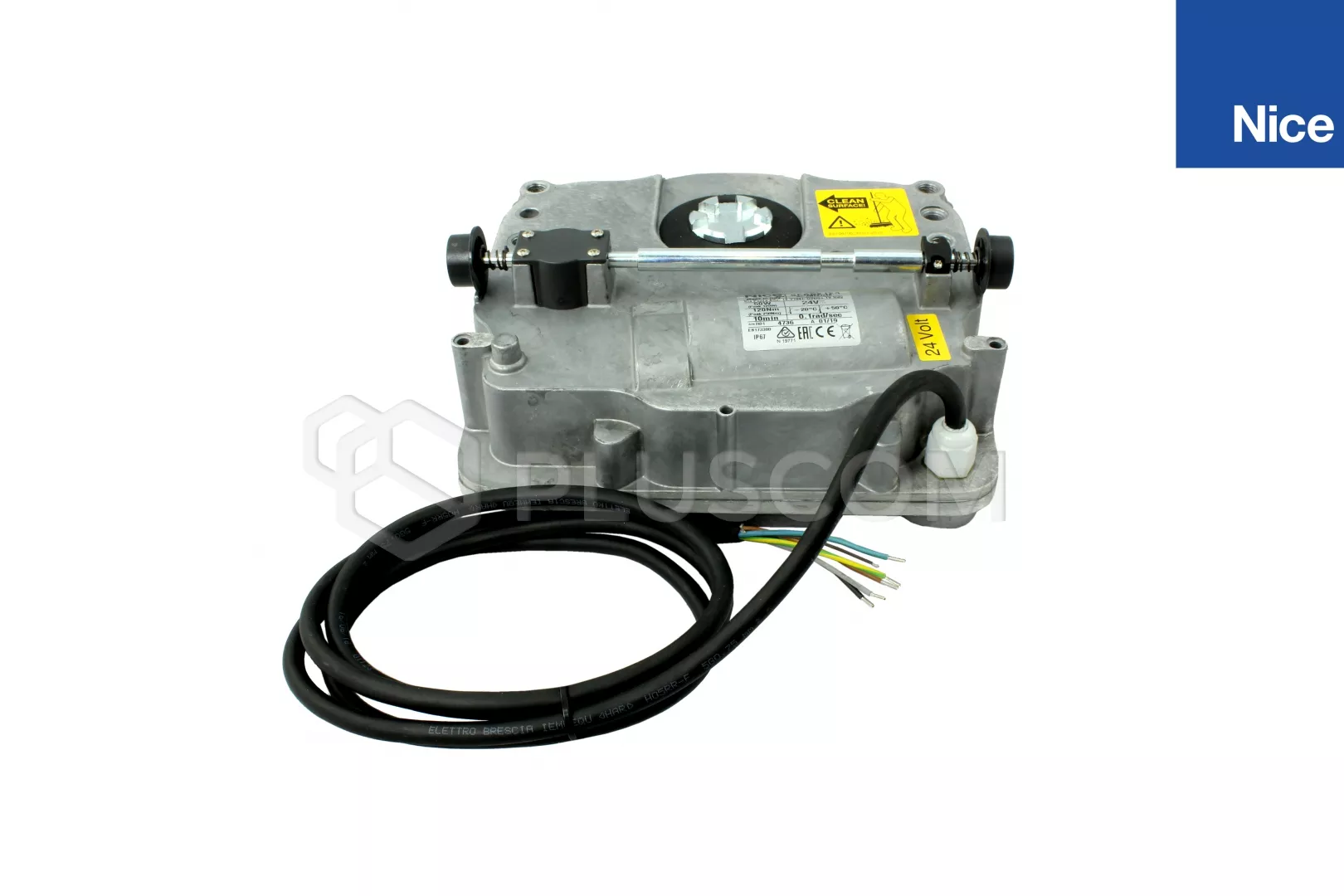

Nice S-FAB XME2124 Underground actuator 24V

404,78 EUR including 23.00% VAT

Add to cart

Product code: #7760

Manufacturer: Nice

Ask about this product

Maximum leaf width 2,3m
Maximum leaf weight 400kg
24V Motor
Built-in encoder

Delivery and tax:

Poland VAT: 23.00% change

Shipping cost from:

2,53 EUR

Payment methods:

We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:

Nice ELDC LED flashing signal light 12/24V

Nice OVIEW/A R01 Display programmer +IBT4N interface

Nice PS324 24V battery with integrated battery charger

Nice XMBOX Housing for installation of underground for L-FAB

Nice S-FAB XME2124 Irreversible 24 Vdc with magnetic encoder and mechanical stop

Nice XME2124 is an underground actuator that allows you to make a stylish and discreet automation installation for gates up to 2.3 m long with a weight of 400 kg.

The biggest advantage of the underground cylinders is the aesthetics and discretion of the drive which is invisible and does not spoil the image of the gate
The second major strength of underground drives is the possibility of installation in a place where due to:

narrow entry
very narrow bars where dimension A is less than 100mm

there is no space for the installation of screw drives or a broken arm.
It is also worth noting that as the only underground drives they can be opened up to 180 ° in a standard without additional accessories

INSTALLATION

Before installing the underground actuator, it is necessary to properly perform the drainage draining excess water. Although the actuator is enclosed in a sealed housing with an IP67 protection class, it can not be completely immersed for more than 30 minutes.

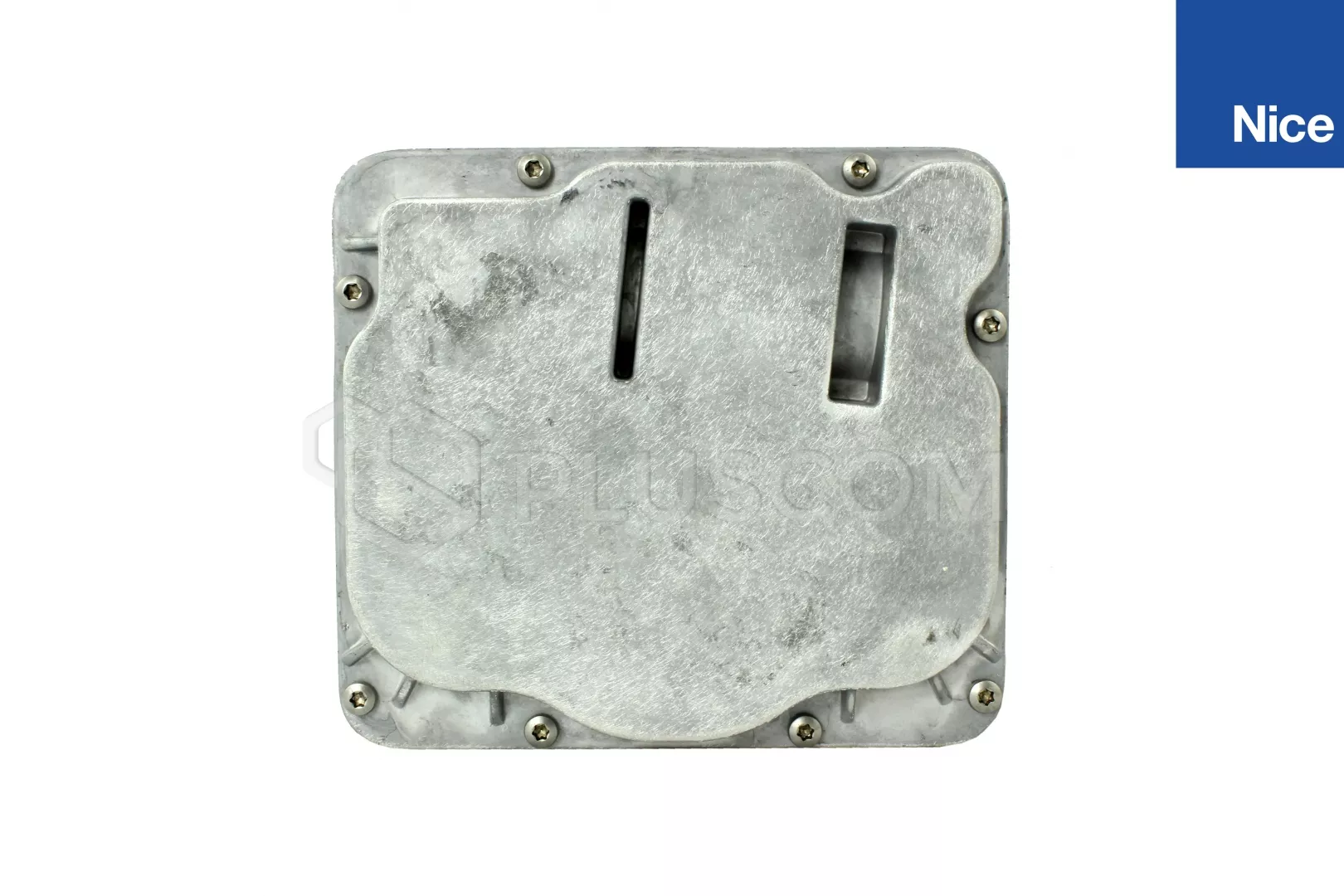

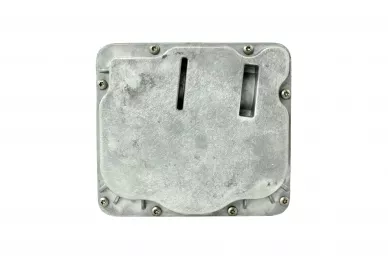

View from the back:

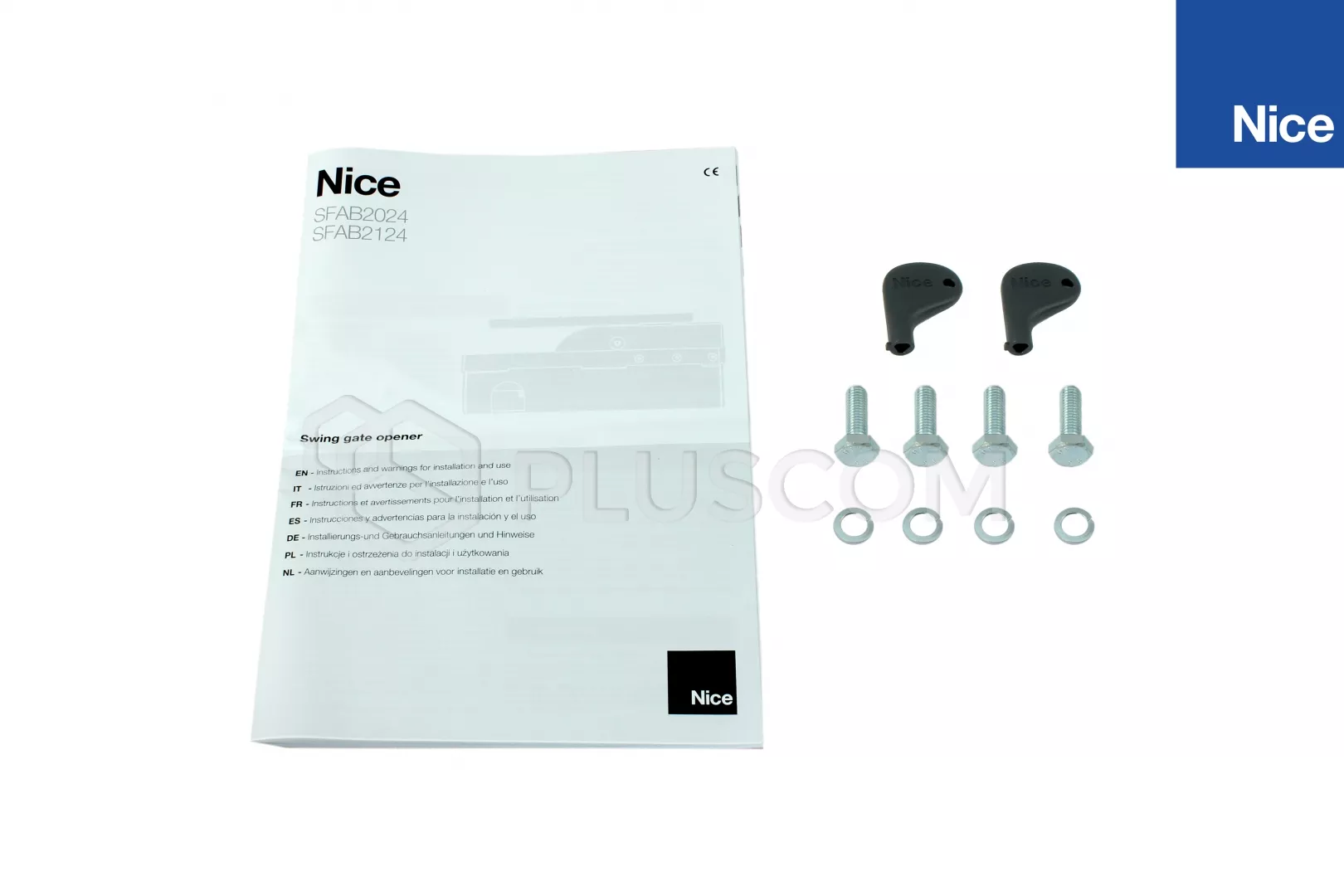

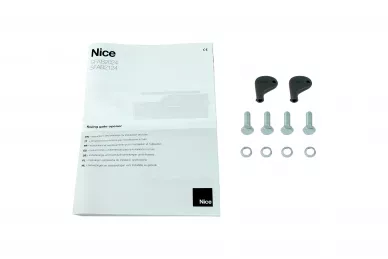

Accessories:

The actuators should be mounted in a special XMBOX housing.
Emergency unlocking of the gate leaf is accomplished through unlocking mechanisms using a key or lever. The user obtains access to the mechanism both from the inside and from the outside, and the service does not require the use of much force.

CONTROL CENTER
To control the actuator, the control panel is recommended:
MC824HR10 BLUEBUS for 24V actuators with an encoder
