NICE Robus 600 HI-SPEED MYGO4 set for sliding
gates weighing 600kg

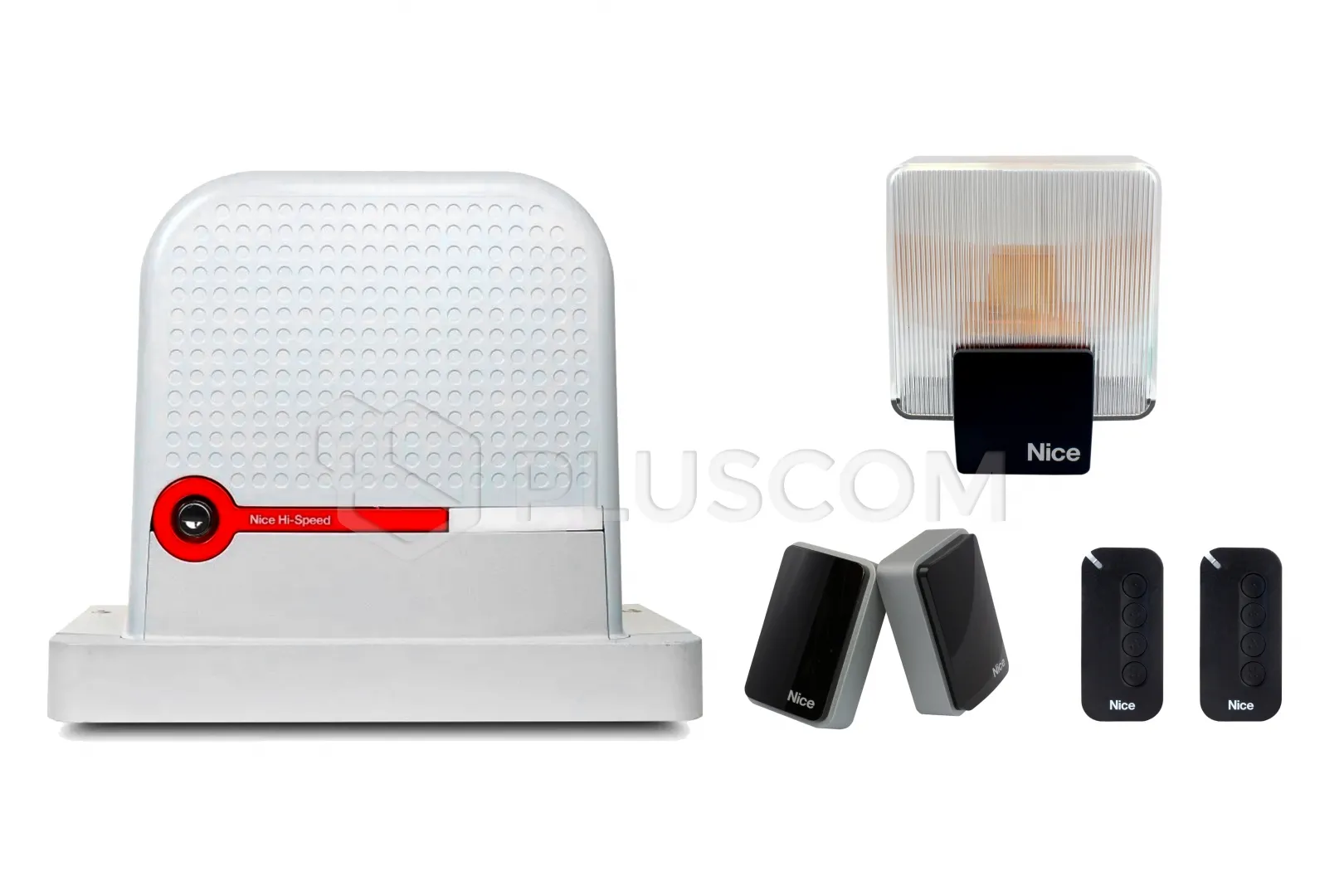

SET INCLUDES:
|
Nice RBS600HSBDKCE ROBUS600HS MYGO kit for sliding gates up to 600 kg
|
24 VDC sliding gate drive with control unit and integrated receiver,
magnetic limit switches, for gates weighing 600 kg. Thanks to advanced
technical parameters, opening even a heavy gate is quiet and smooth.
Robus 600HS has an electronic control unit, a plug-in connector type
"SM" for receivers type OXI or OXIBD, an integrated bidirectional
receiver and a built-in Wi-Fi module.
The actuator housing is prepared for an adjustable photocell and
optional LED lights.
The control unit is prepared for connecting the different variants of
I/O expansion modules MLAE21, MLAE22, MLAE44 and thus obtaining additional
inputs and outputs. Each additional input/output is as customised as
if it were an input/output of the control unit.
The control unit has a BusT4 socket to which you can connect, via the IBT4N
interface, the "ProView" interface, allowing complete and rapid
management of the installation, maintenance and diagnostics phases of the
entire automation, using a wireless connection and the My- Nice Pro
application. Once turned on, ProView automatically creates a WiFi network to
which you can connect.
The MYGO4 remote control provides radio control with a
dynamically changing code, with a frequency of 433.92 MHz, which provides a
high level of use safety and makes the code impossible to copy.
MYGO4 has a secret code, the so-called "SWITCHING CODE". By
transferring this code from a memorized transmitter to a new transmitter, the
latter is recognized (and remembered) automatically by the receiver.
The MYGO4 transmitter can be programmed using the ProView device. The remote
control is configured by default in one-way mode with radio coding
"O-Code".
The Nice ELDC signal lamp works with control units that supply
a voltage of 12/24V at the output of the warning lamp.
The light source
is a super bright LED diode emitting white light. An orange lampshade
has been installed above it that disperses the light. The LED diode is an
energy-saving, reliable, shock-resistant light source.
The lamp housing has an
integrated 433.92MHz antenna using a
50 Ohm RG58 coaxial cable that we connect to the control unit's antenna
output, we significantly increase the range of the remote controls.
EPMB photocells, for external installation, are a combination
of excellent technical parameters and excellent design. The operating range of
the devices is up to 30 m.
They are equipped with modern BlueBus technology, thanks to which the
connection to the control unit is made using a 2-wire cable, which is a
significant facilitation during installation and significantly shortens its
time.
The photocell housing protects against the ingress of dust and rain, which
means that they can be installed outdoors and operate in the temperature range:
-20°C...+50°C.
TECHNICAL PARAMETERS:
- power supply: 230V AC
- current consumption 3.1A
- power: 450W
- engine power supply: 24V DC
- force: 400N
- speed: 0.34m/s
- work intensity: 40 cycles per hour
- protection class: IP44
- working temperature: -20°C...55°C
- dimensions: 340x220x303mm
- weight: 11kg
