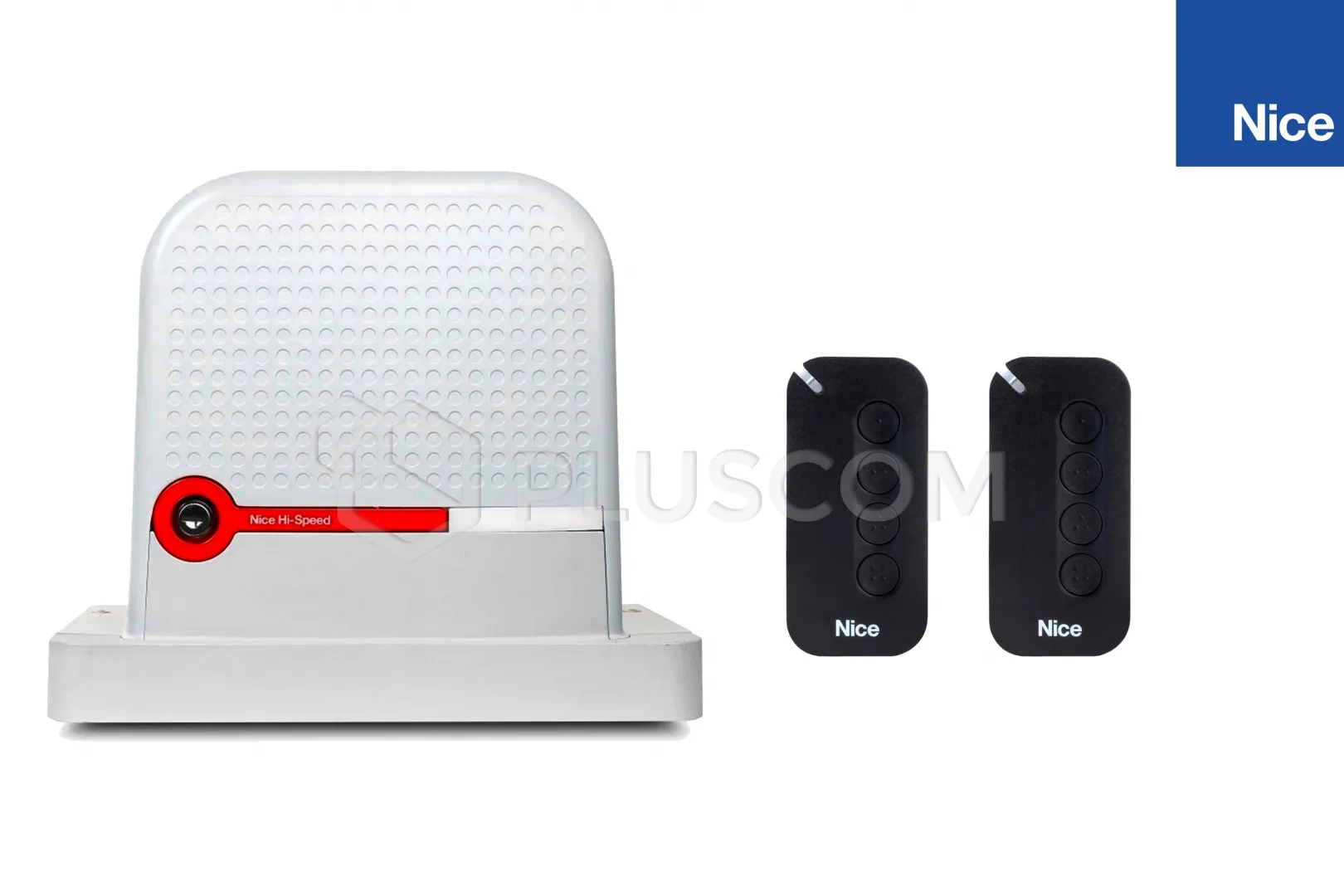

NICE Robus 600 HI-SPEED MYGO set for sliding
gates weighing 600kg
SET INCLUDES:
|
Nice RBS600HSBDKCE ROBUS600HS MYGO kit for sliding gates up to 600 kg
|
24 VDC sliding gate drive with control unit and integrated receiver,
magnetic limit switches, for gates weighing 600 kg. Thanks to advanced
technical parameters, opening even a heavy gate is quiet and smooth.
Robus 600HS has an electronic control unit, a plug-in connector type
"SM" for receivers type OXI or OXIBD, an integrated bidirectional
receiver and a built-in Wi-Fi module.
The actuator housing is prepared for an adjustable photocell and
optional LED lights.
The control unit is prepared for connecting the different variants of
I/O expansion modules MLAE21, MLAE22, MLAE44 and thus obtaining additional
inputs and outputs. Each additional input/output is as customised as
if it were an input/output of the control unit.
The control unit has a BusT4 socket to which you can connect, via the IBT4N
interface, the "ProView" interface, allowing complete and rapid
management of the installation, maintenance and diagnostics phases of the
entire automation, using a wireless connection and the My- Nice Pro
application. Once turned on, ProView automatically creates a WiFi network to
which you can connect.
MYGO4 is a practical and elegant 4-channel remote control, it
is compatible with receivers that use the one-way radio coding
"O-Code". It provides radio control with a dynamically changing code,
with a frequency of 433.92 MHz.
The MYGO4 transmitter can be programmed using the ProView device. The remote
control is configured by default in one-way mode with the radio coding
"O-Code".
The choice of materials, the design of internal components and the use of
high-quality systems guarantee robustness and maximum efficiency.
90%
of the materials used to construct the drive come from recycling.
TECHNICAL PARAMETERS:
- power supply: 230V AC
- current consumption 3.1A
- power: 450W
- engine power supply: 24V DC
- force: 400N
- speed: 0.34m/s
- work intensity: 40 cycles per hour
- protection class: IP44
- working temperature: -20°C...55°C
- dimensions: 340x220x303mm
- weight: 11kg
