NICE RBS600HSBDKCER30 Robus 600 HI-SPEED MYGO kit
for sliding gates weighing up to 600 kg

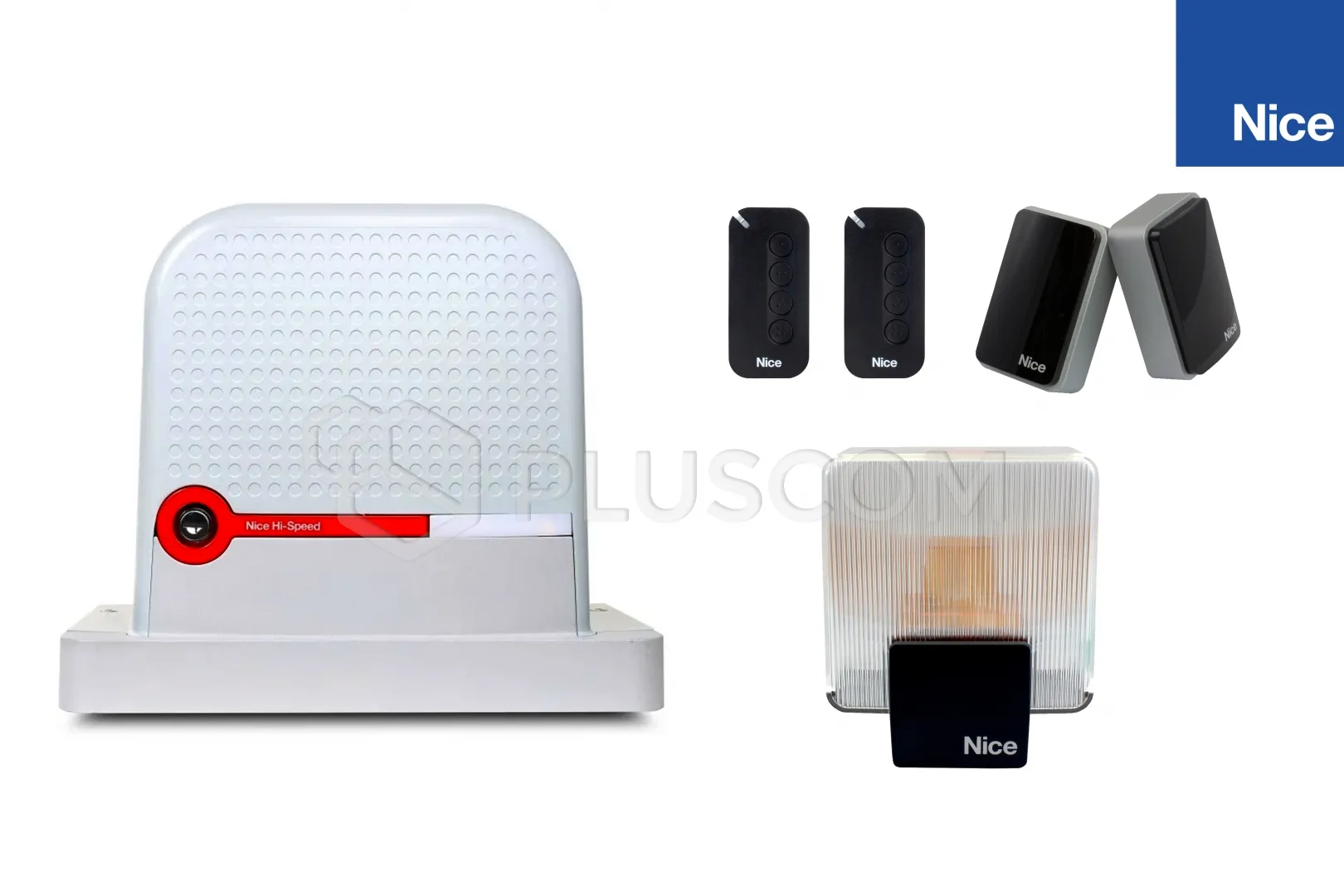

KIT INCLUDES:
|
Nice RBS600HSBDKCER30 ROBUS 600 HI-SPEED MYGO kit for sliding gates up to 600kg
|

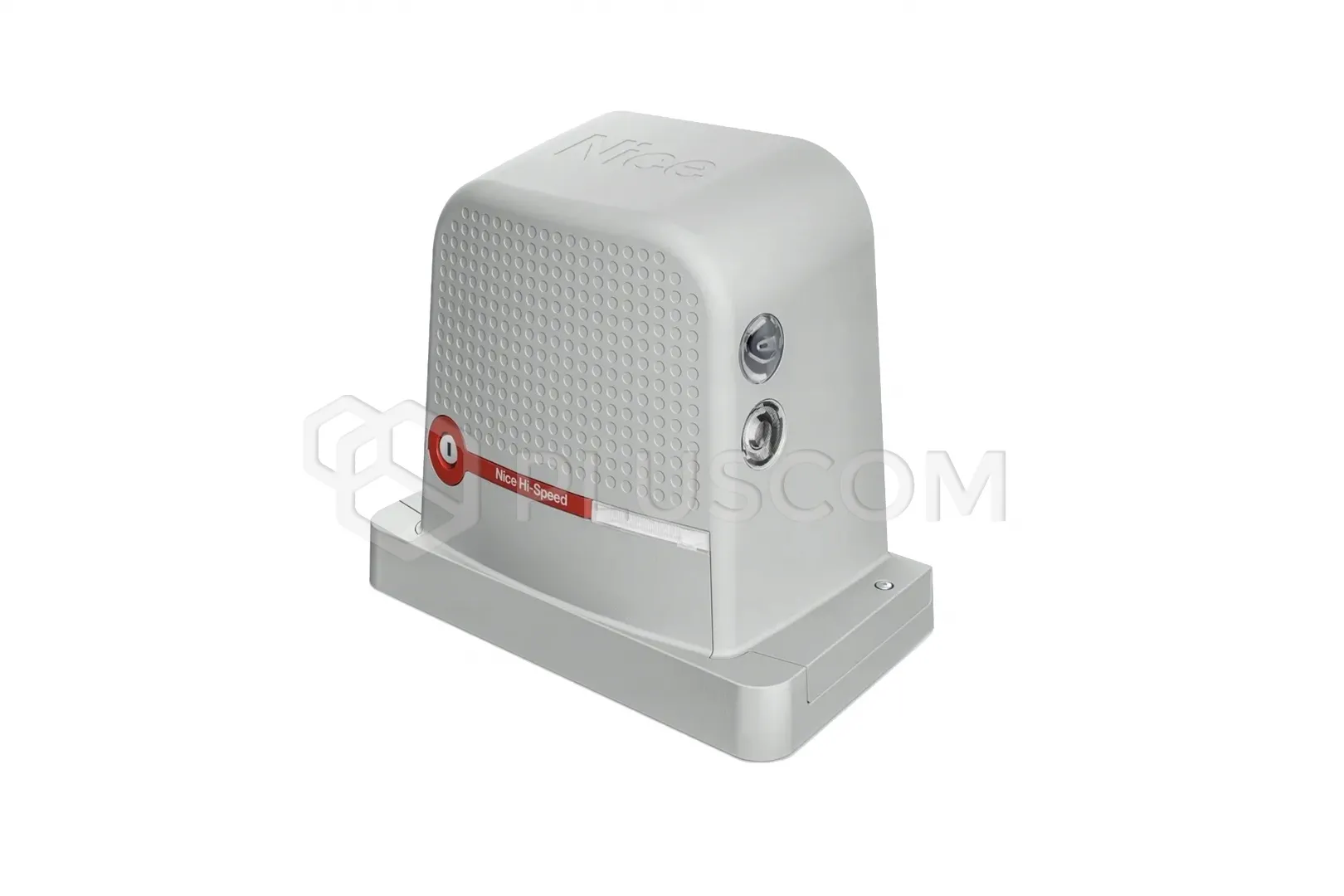

24 VDC sliding gate operator with control unit and integrated receiver,
magnetic limit switches, for gates weighing up to 600 kg. Thanks to advanced
technical parameters, even heavy gates open quietly and smoothly.
The Robus 600 HI-SPEED features an updated control board that complies
with European EPD energy efficiency standards. Thanks to the advanced Stand-by
mode, the device in idle mode has drastically reduced power
consumption.
Main differences compared to older versions of the MCU1 control
unit:
- Main difference – Implementation of Solemyo and Opera
technologies
- Stand-by mode – The MCU1R30 is characterized by
significantly lower power consumption in stand-by mode, which is important
when powering the system using a solar panel.
- Smoothness – The software in this version better handles
engine braking and acceleration, which extends the life of the drive's
mechanical parts.
- Backward compatibility – The MCU1R30 fully replaces
older versions of the MCU1 and SPMCU1
The actuator housing is designed for an adjustable photocell and
optional LED lights.

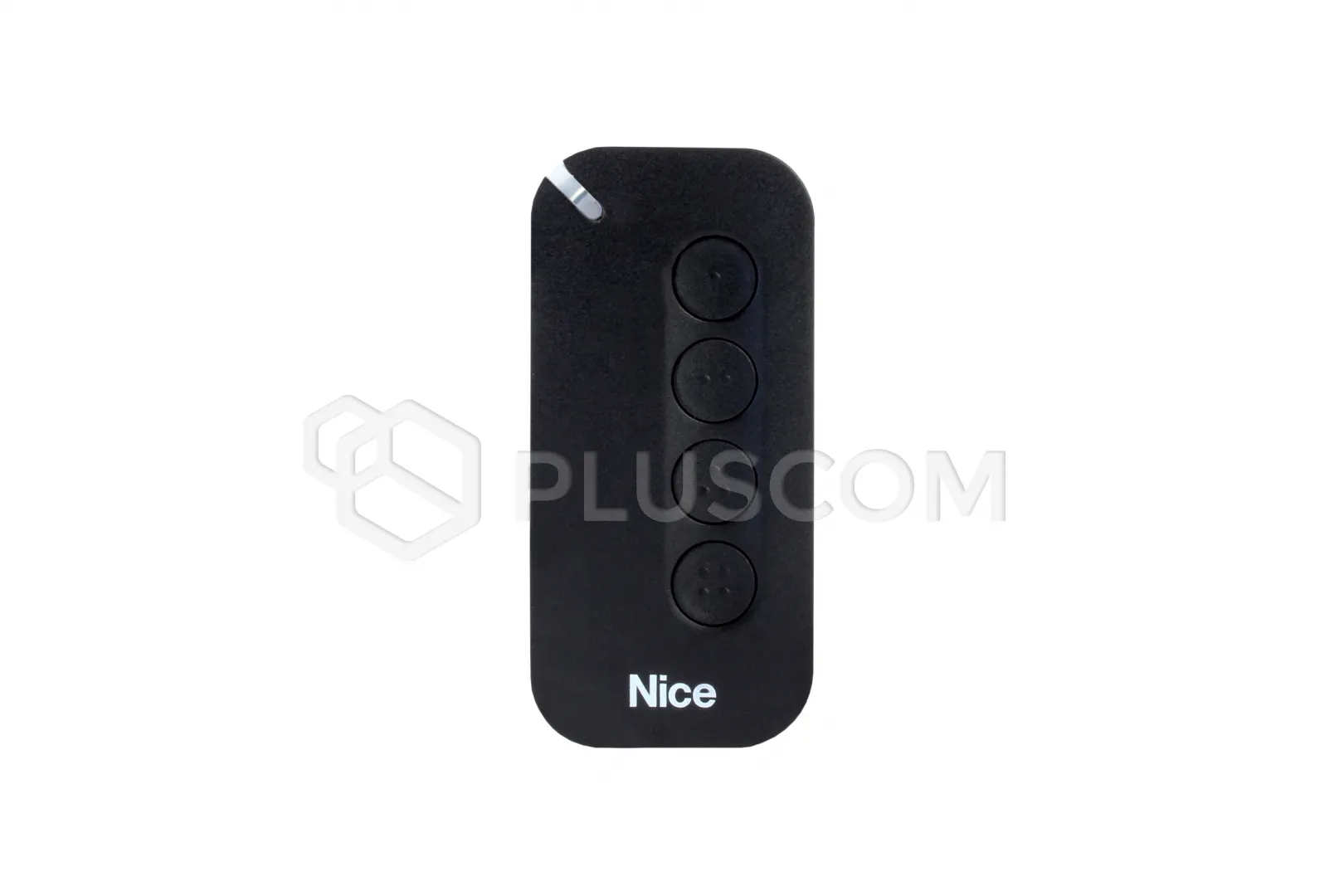

MYGO4 is a practical and elegant 4-channel remote control,
compatible with receivers that use one-way radio coding "O-Code." It
provides radio control with a dynamically changing code, at a frequency of
433.92 MHz.
The MYGO4 transmitter can be programmed using the ProView device. The remote
control is configured by default in one-way mode with "O-Code" radio
coding.

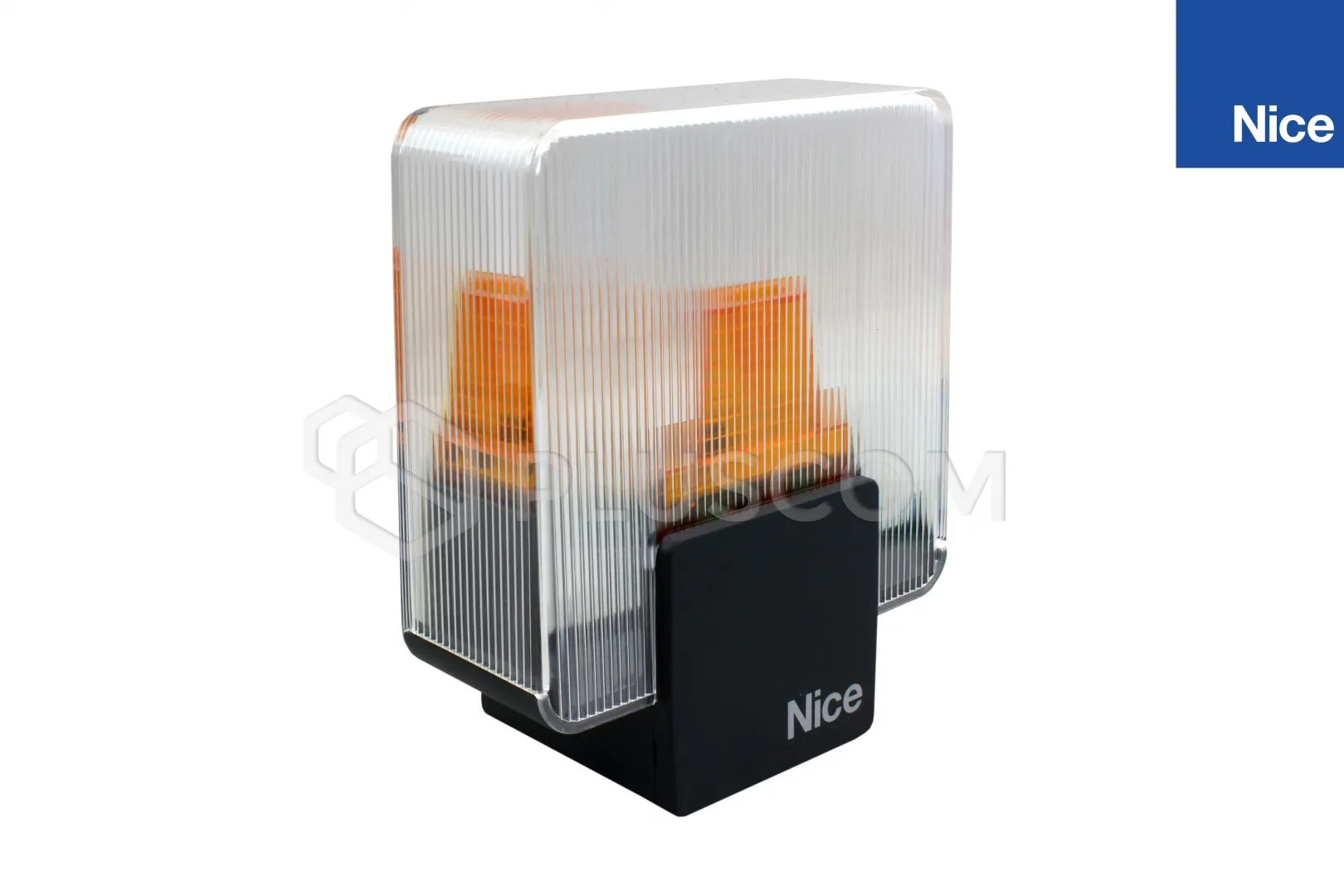

The Nice ELDC warning light works with control units that supply 12/24V voltage
at the warning light output. The light source is a super-bright LED emitting
white light. Above it, an orange diffuser is installed to diffuse the light.
The LED is an energy-saving, reliable, and shock-resistant light source.
The lamp housing has an integrated 433.92 MHz antenna. Using a 50 Ohm RG58
coaxial cable, which is connected to the control unit's antenna output, we
significantly increase the remote control's operating range.

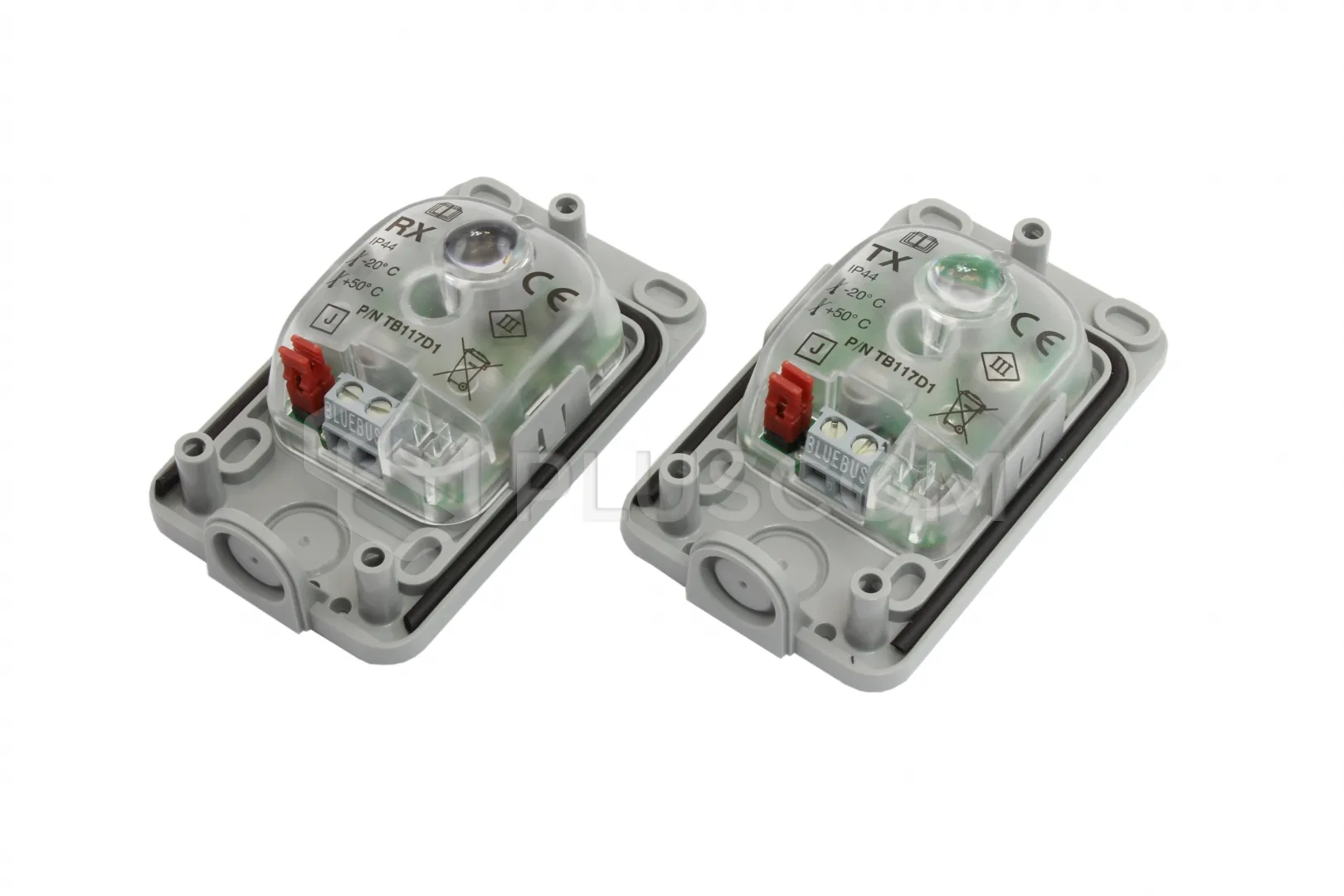

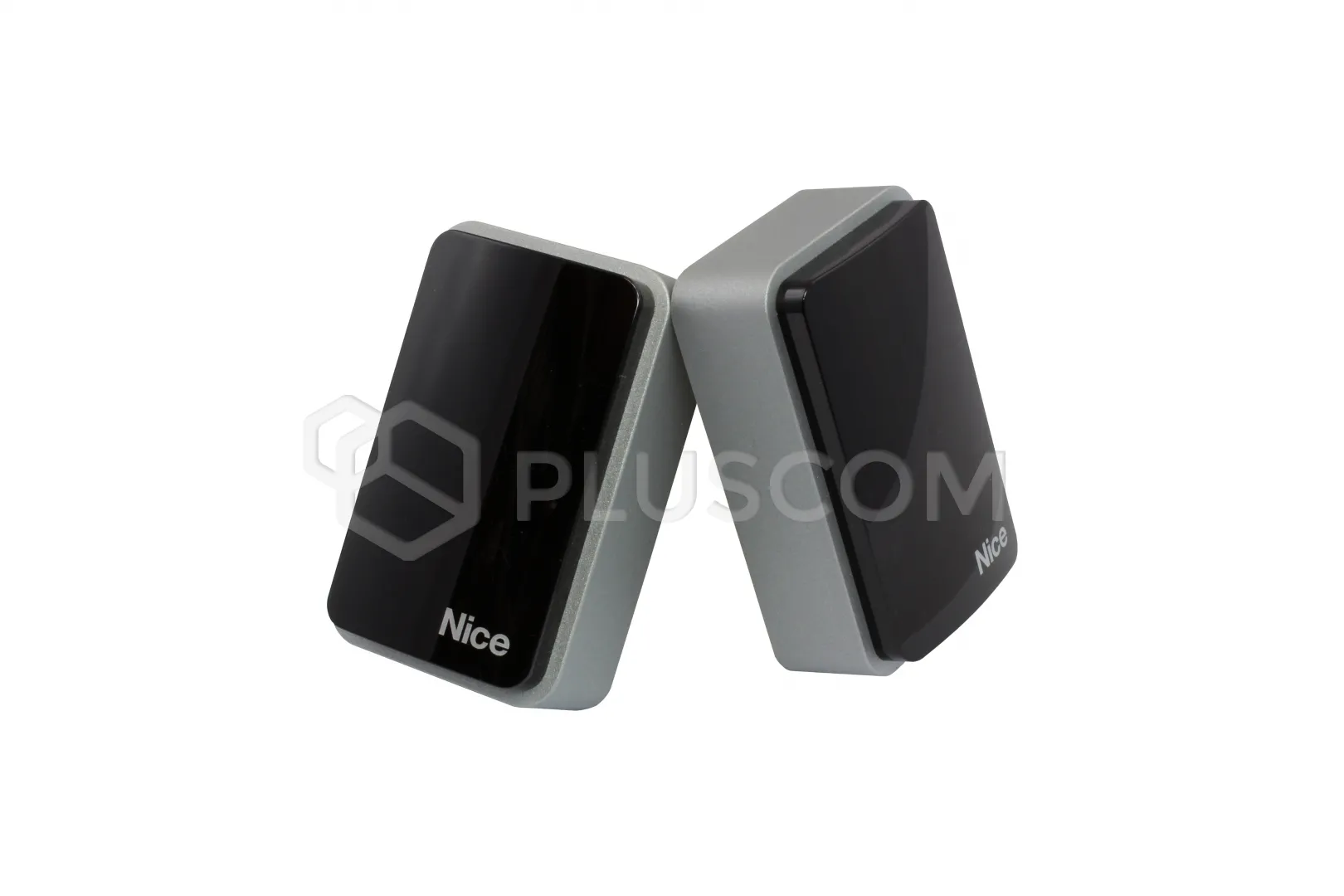

EPMB photocells, for outdoor installation, combine excellent
technical parameters with exquisite design. The operating range of the devices
is up to 30 m.
They are equipped with modern BlueBus technology, thanks to which connection to
the control unit is made using a 2-wire cable, which significantly simplifies
installation and significantly shortens installation time.
The photocell housing protects against dust and rain, allowing them to be
installed outdoors and operate in the temperature range of -20°C...+50°C.
The choice of materials, the design of internal components, and the use of
high-quality systems guarantee durability and maximum performance.
90%
of the materials used in the drive's construction are recycled.
TECHNICAL PARAMETERS:
- power supply: 230V AC
- current consumption 3.1A
- power: 450W
- engine power supply: 24V DC
- force: 400N
- speed: 0.34m/s
- work intensity: 40 cycles per hour
- protection class: IP44
- working temperature: -20°C...55°C
- dimensions: 340x220x303mm
- weight: 11kg
