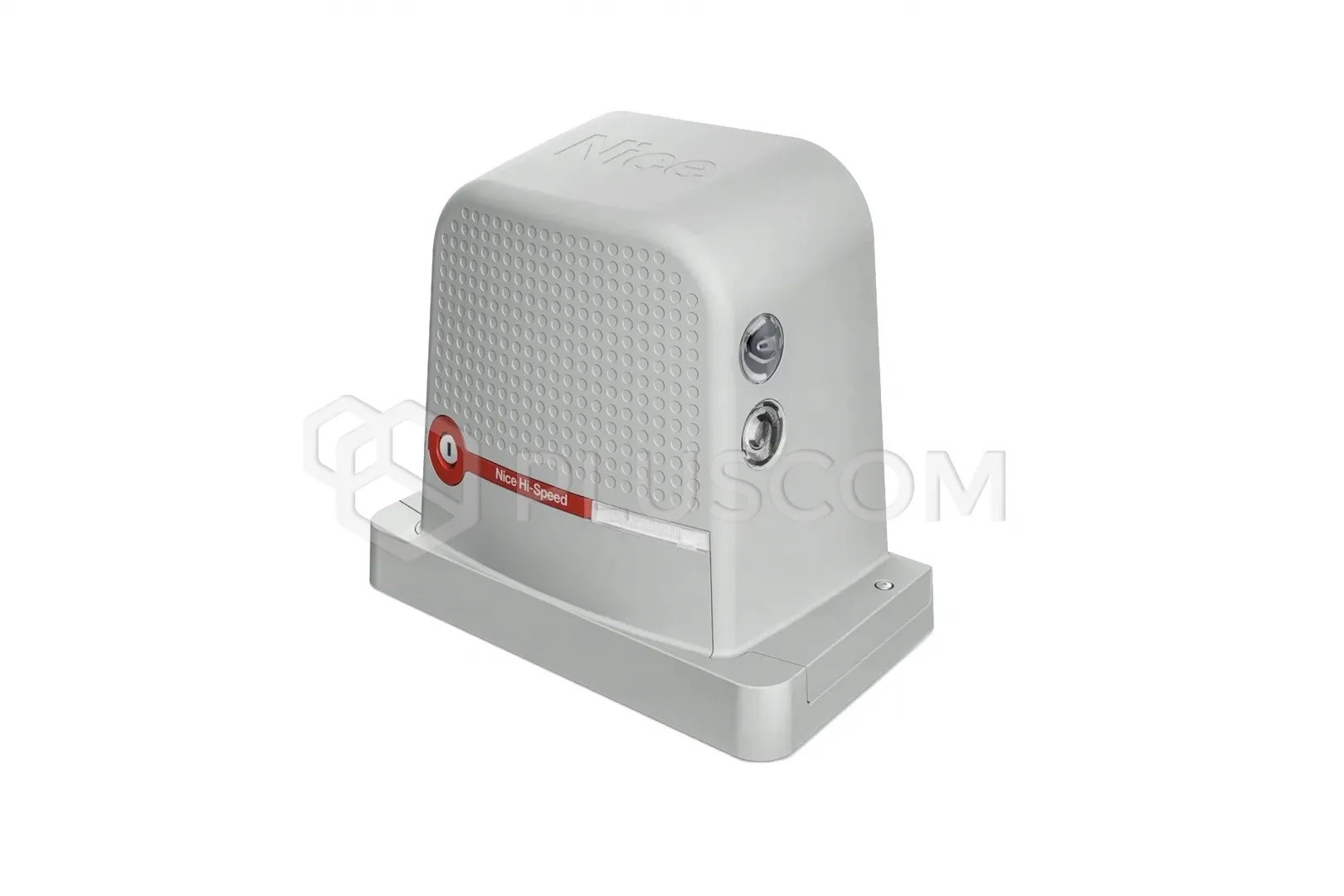

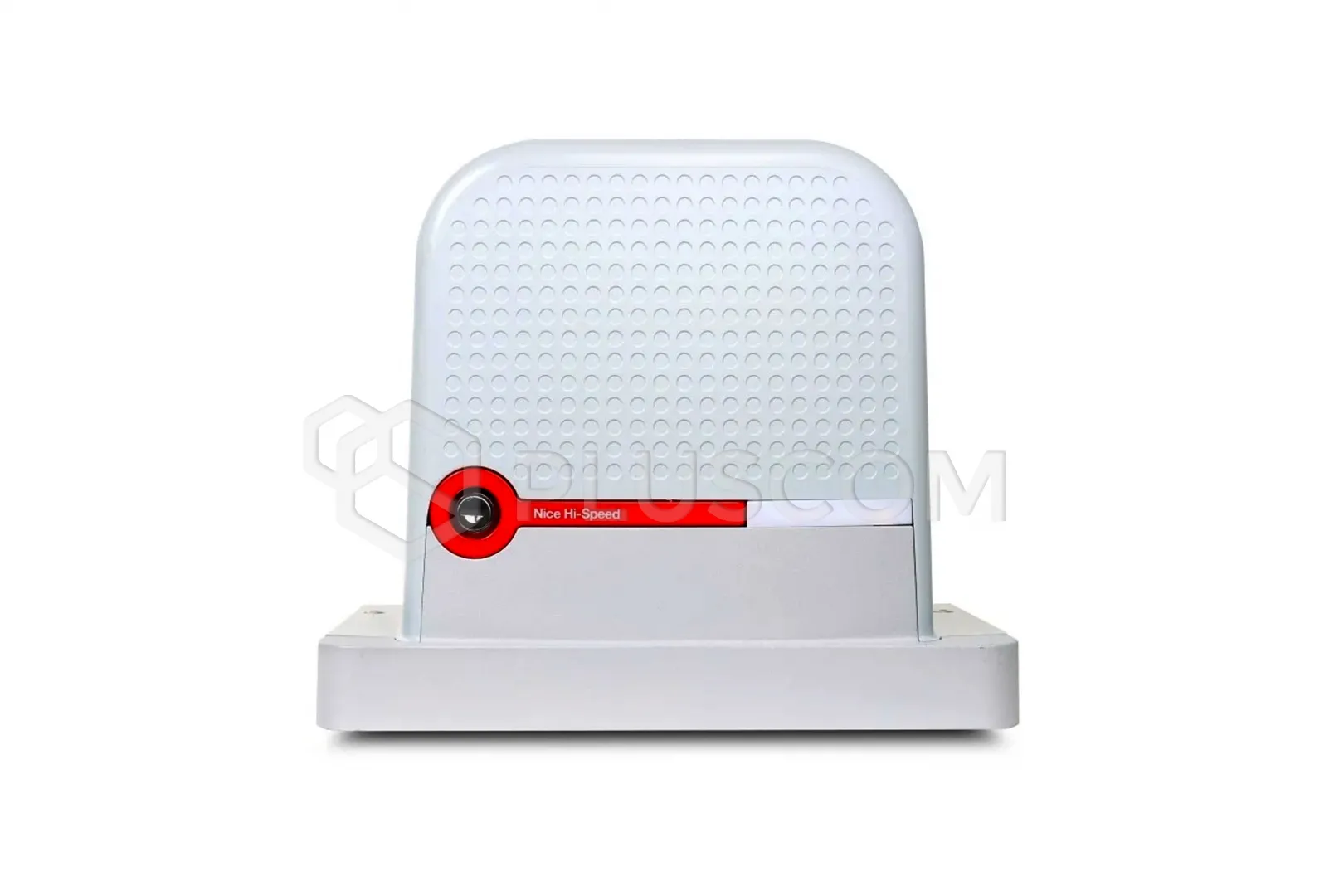

NICE RBS600HSR30 ROBUS 600 HI-SPEED Sliding Gate Operator for 600kg Sliding
Gates
GATE PARAMETERS:
- Gate weight up to 600kg
- Maximum number of cycles per hour: 40
|
Nice RBS600HSR30 ROBUS 600 HI-SPEED operator for sliding gates up to 600 kg
|
24 VDC sliding gate operator with control unit and integrated receiver,
magnetic limit switches, for gates weighing up to 600 kg. Thanks to advanced
technical parameters, even heavy gates open quietly and smoothly.
Robus 600 HI-SPEED has an updated control board that complies with European EPD
energy efficiency standards. Thanks to the advanced Stand-by mode, the
device's idle state features drastically reduced power
consumption.
Main differences compared to older versions of the MCU1 control
unit:
- Main difference – Implementation of Solemyo and Opera
technology
- Standby mode – The MCU1R30 features significantly lower
power consumption in standby mode, which is important when powering the
system with a solar panel.
- Smoothness – The software in this version handles motor
braking and acceleration better, extending the life of the drive's
mechanical parts.
- Backward compatibility – The MCU1R30 fully replaces the
older versions of the MCU1 and SPMCU1.
The actuator housing is designed to accommodate an adjustable
photocell and optional LED lights.
Electrical connections to external devices are simplified through the use of
"BLUEBUS" technology.
The BLUEBUS connector enables connection using just two wires between the
control unit and up to 7 pairs of photocells and control, safety, and signaling
devices.
The control unit is prepared for connecting various variants of MLAE21,
MLAE22, and MLAE44 I/O expansion modules, thus providing additional inputs and
outputs. Each additional input/output is as personalized as if it were
an input/output of the control unit.
The control unit features a BusT4 socket, which can be connected via the IBT4N
interface to the "ProView" interface, allowing for complete and rapid
management of the installation, maintenance, and diagnostics phases of the
entire automation system, using a wireless connection and the MyNice Pro app.
Once activated, ProView automatically creates a WiFi network to which you can
connect.
Thanks to Pro-View or Bidi-WiFi and the MyNice Pro app, installing Nice
Gate&Door systems is even easier and more convenient, allowing for programming
via the app.
ROBUS600 is compatible with WiFi connection, which is available in two ways:
- BiDi-Wifi interface supplied on request as an additional accessory
- Proview interface (only for MyNice Pro application), supplied on request
as an additional accessory
Light signals are located both on the actuator control unit and
its housing.
- on the control unit there is a set of diodes, each of which can emit
specific signals, both during normal operation and in the event of a
fault
- the engine status light on the housing consists of 2 colours (red and
green) and is intended to signal any faults
Convenience:
- wicket function, i.e. partial opening of the gate - thanks to it, when
you are walking or riding a bike, you do not have to wait for the gate to
open completely
- automatic gate closing function - with the option of setting the time
after which the gate will close after a vehicle enters, so you do not have to
remember to close the gate yourself
Safety:
- self-locking drive, which means that the gate locks mechanically after
the engine stops. Thanks to this, there is no need for additional mechanical
locking of the gate using a lock, nor is it possible to open it manually
- amperometric obstacle detection system - used to detect any obstacles
that may occur during normal gate movement. Thanks to this function, when it
encounters an obstacle, the actuator stops the gate and changes the direction
of its movement
- phototest function – before each gate movement, the control unit
automatically checks whether the photocells are functional and when
everything works properly, the gate is set in motion
- auto programming function, thanks to which the actuator automatically
remembers the gate's end positions during programming, i.e. remembers how
much the gate can open at each movement
Highest functionality and technology:
- force, operating mode, speed can be adjusted on 8 levels
- when not in use, it goes into "sleep" mode, significantly
reducing energy consumption
- smooth release function during closing and soft start – consists in
reducing the speed so as to avoid a strong jerk when opening or closing the
gate. Thanks to this, the gate operates smoothly and does not make noise
during operation
- possibility of connecting a battery, thanks to which the device will open
the gate even in the event of a power failure
The choice of materials, the design of internal components and the use of
high-quality systems guarantee solidity and maximum efficiency.
90% of
materials used in the construction of the drive comes from recycling.
TECHNICAL PARAMETERS:
- power supply: 230V AC
- current consumption 3.1A
- power: 450W
- engine power supply: 24V DC
- force: 400N
- speed: 0.34m/s
- work intensity: 40 cycles per hour
- protection class: IP44
- working temperature: -20°C...55°C
- dimensions: 340x220x303mm
- weight: 11kg
