Nice HOPP R10 Electromechanical gear motor
for swing gates 2.4m / 250kg
KIT INCLUDES:
|

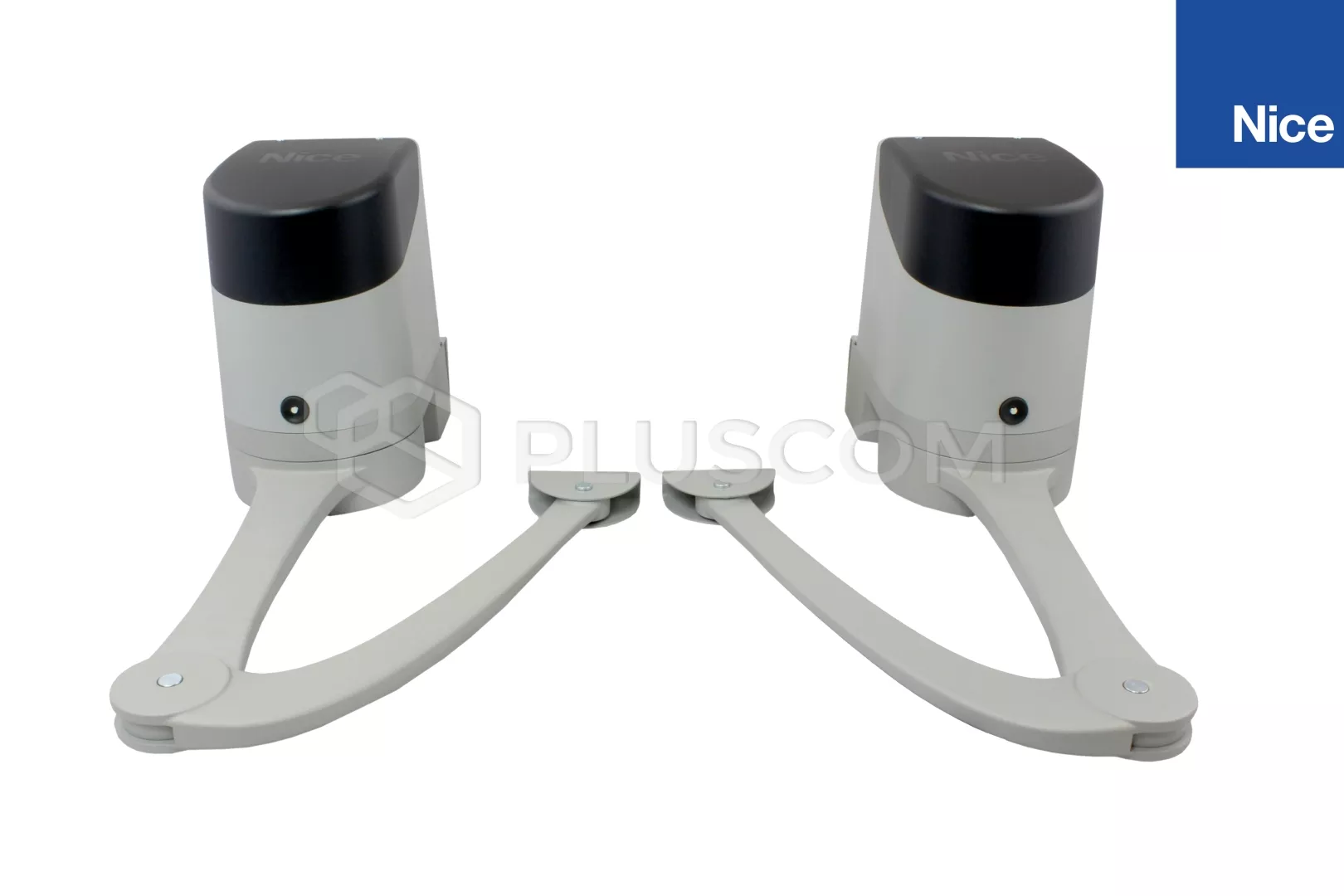

Nice HOPP R10 Electromechanical gear motor 24V
|
HOPP by Nice is Irreversible electromechanical 24 Vdc gear
motor with articulated arm, surface mounted. Ideal for intensive use for
swing gates with leaves up to 2,4m, and for large columns.
Two irreversible 24 Vdc in set: with micrometric adjustment
mechanical stops on opening and closing: with built-in control unit (HO7124)
and without control unit (HO7224).
Powerful thanks to the 250 Nm torque.
Resistant and compact: 180mm in width, ideal for any kind
of post. Small shockproof body with aluminium base. Sturdy, aluminium
anti-shearing arm.
Easy to install: thanks to the new fixing bracket with
quick connector for the motor. No welding.

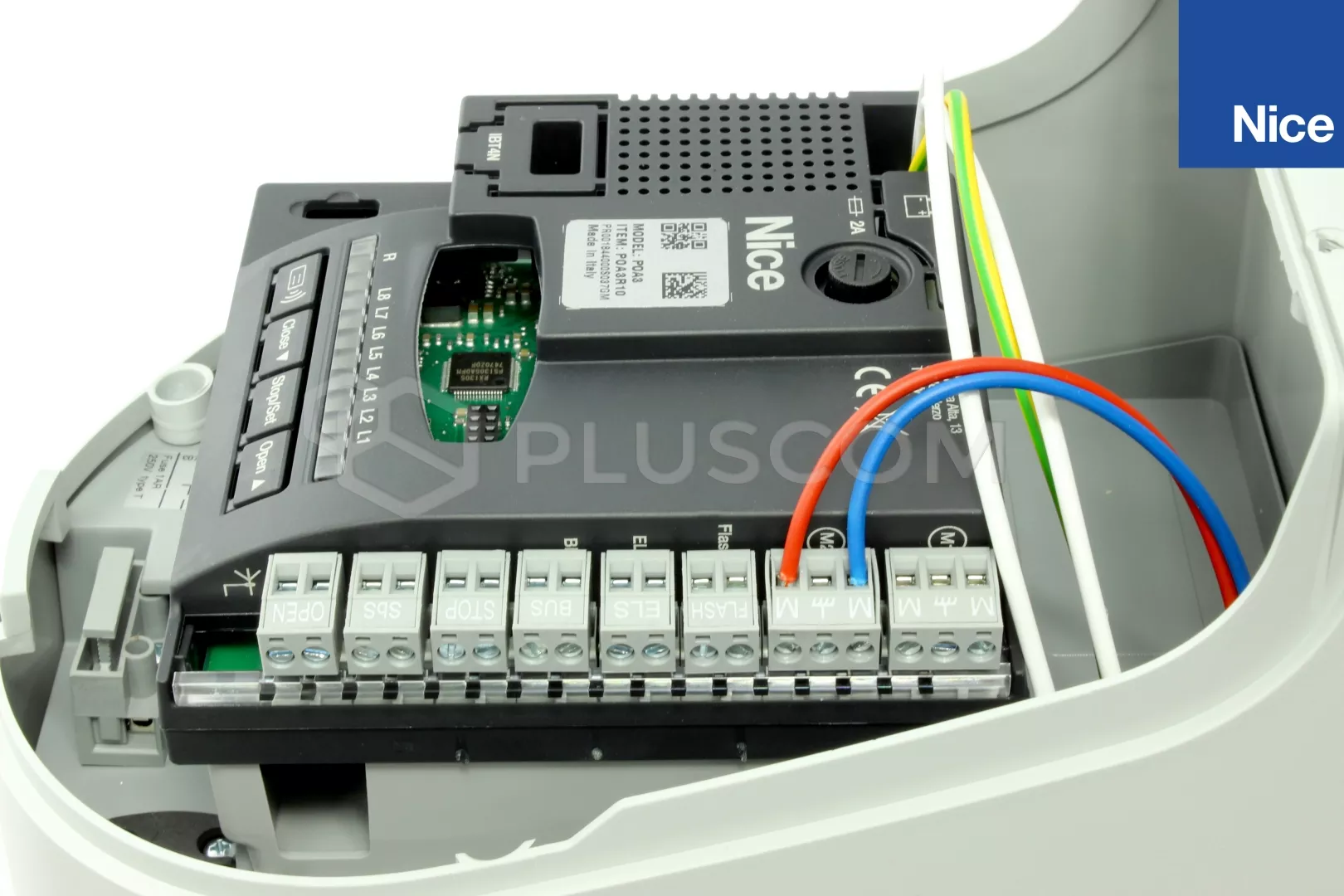

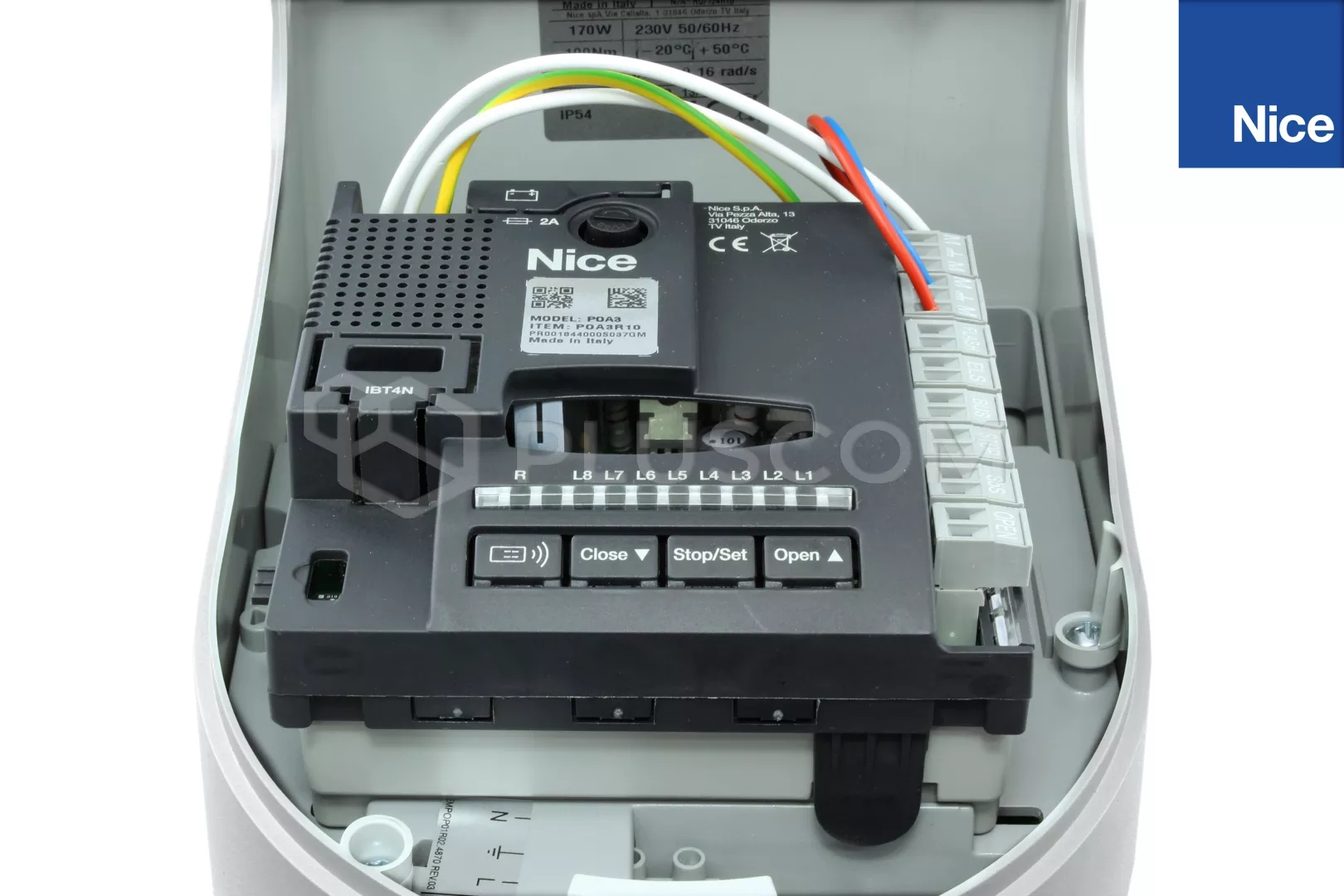

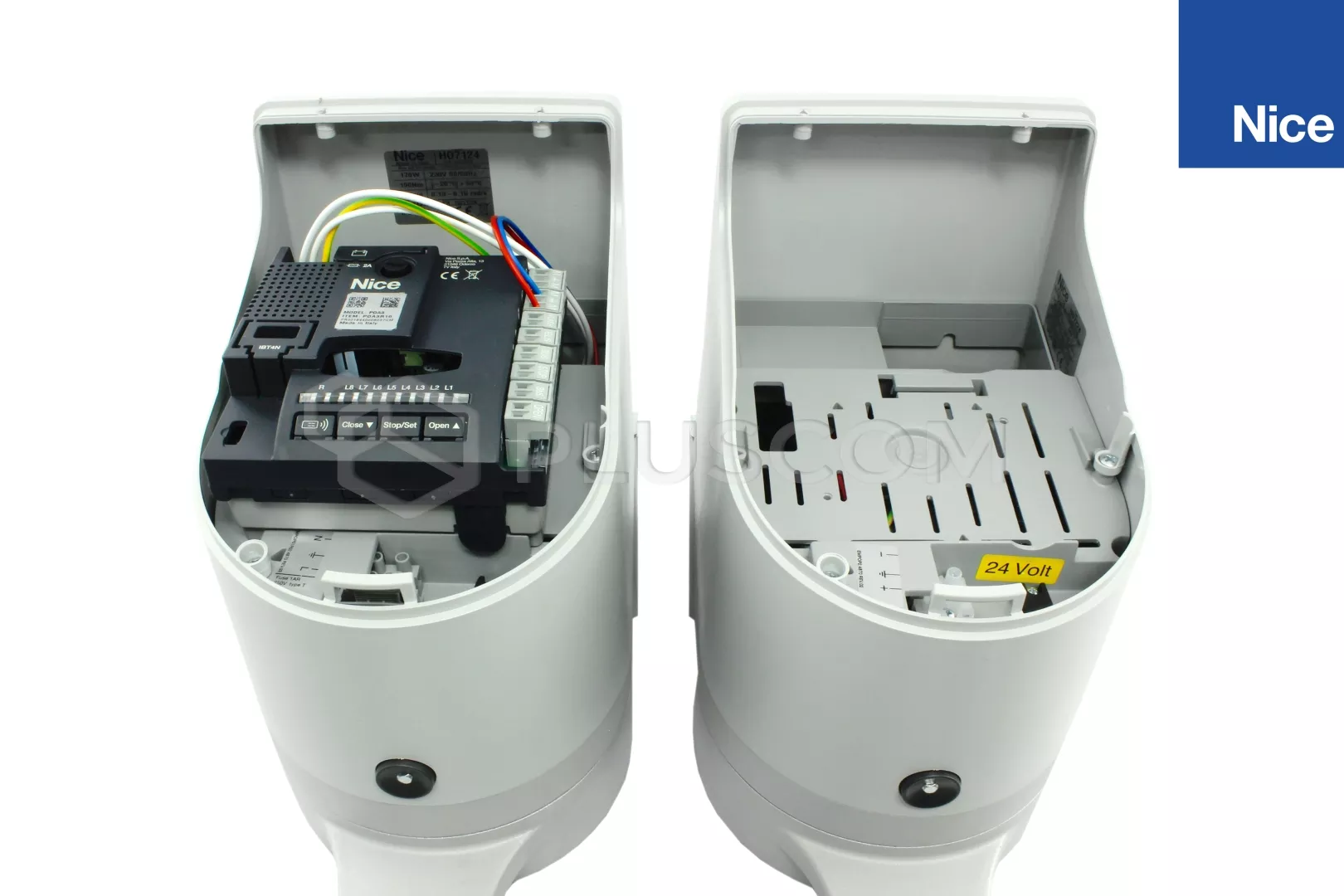

Sophisticated electronics with the built-in control unit,
just 3 keys to manage all programming operations:
- obstacle detection and possibility of connecting to 8,2KΩ sensitive edge,
fototest
- automatic fault diagnostics
- memorisation of opening and closing travel limits in self-learning
mode
- possibility of configuring the stop input in self-learning mode, NO, NC
and the latest generation 8,2 KΩ resistive sensitive edges
- deceleration on opening and closing
- simple connection of pairs of additional photocells, foto2
- programming of pause time
- pedestrian open and partial open
- clutch with anti-crushing safety mechanism
Energy saving with no black outs: 3 standby modes to reduce
mains consumption, or battery power consumption if connected to the Solemyo
kit. Operation in the event of a power failure thanks to the optional
batteries (PS124).
Everything under control: thanks to compatibility for
operation with Opera system bus T4, the unit can be used to expand the options
of programming, control and diagnostics of the automation on site and
remotely.
