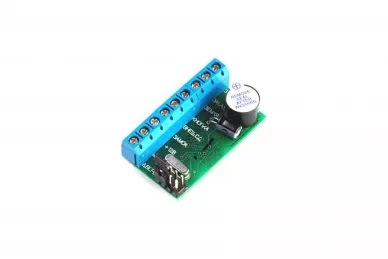

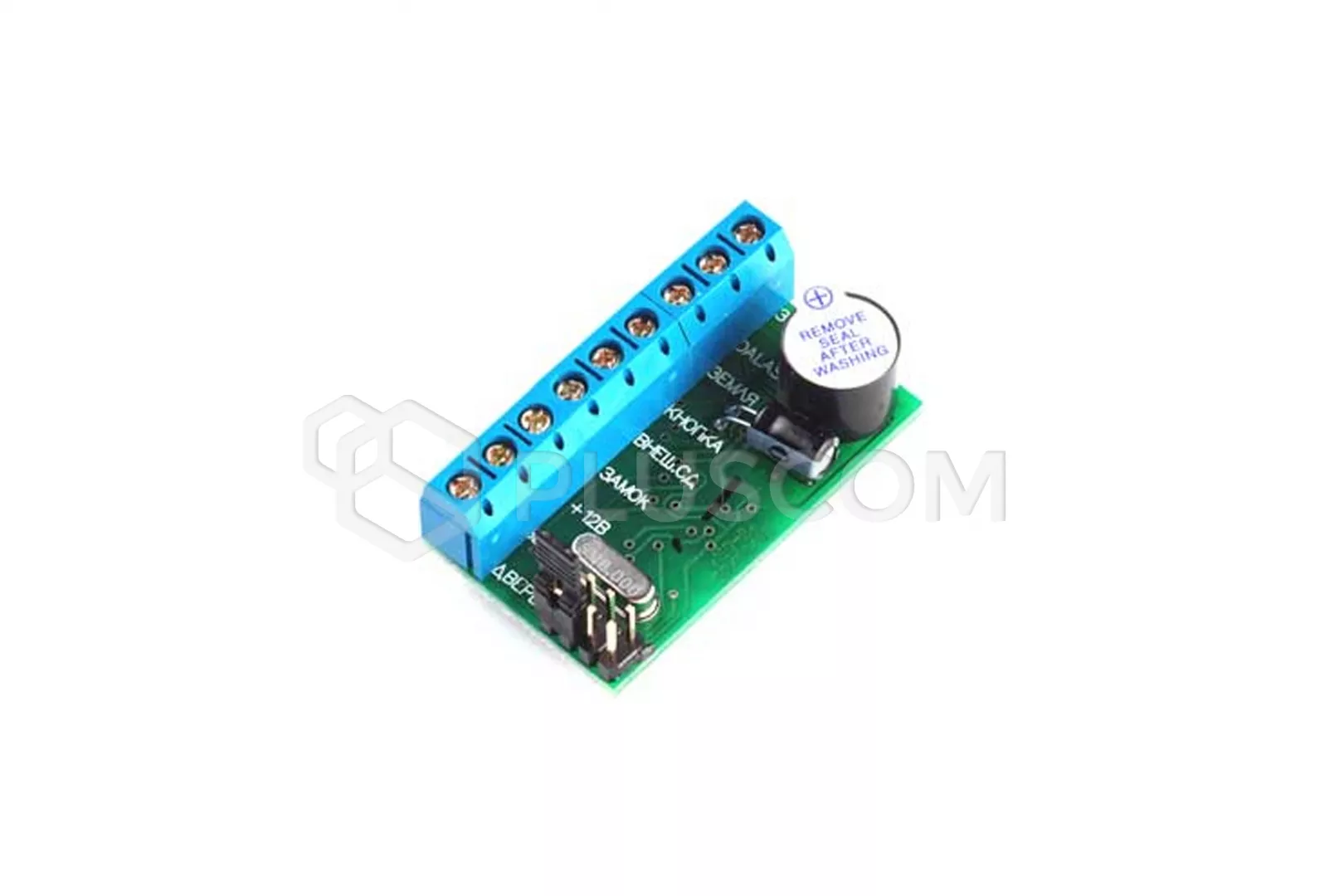

The Z-5R controller is a device for use in access control systems. As an independent controller limits access to residential buildings and facilities administrative, industrial plants, etc.

Thanks to the device, we have the ability to connect:

• electromagnetic or electromechanical lock, entrance gates
• external proximity card readers that send information behind using iButton or Dallas Touch memory contactor
• EXIT lock release button (NO - normally open)
• an external LED
• external buzzer
• door position sensor

The Z5R controller is very easy to connect, which doesn't take much time.
Works in several modes of operation with access rules:

• Normal - crossing with Normal and cards is allowed Block
• ACCEPT - upon activation, each new card opens the door and automatically saves in memory
• Block - allows an authorized person to enable / disable all cards in system
• Tigger - one touch of the card reader turns on next power turns off

TECHNICAL SPECIFICATIONS:

• maximum number of keys: 1364 keys
• the ability to copy the controller memory to the DS1996 key and vice versa
• setting the lock opening time: from 0 to 220 seconds (default - 3 seconds)
•

• output: FET transistor
• working voltage: 8~18VDC
• current consumption (monitoring mode): 20mA
• power consumption during operation: up to 5A
• dimensions: 45x25x14mm
• working temperature: - od -40°C do + 50°C
