HLG-40H-15A Mean Well 15V/40W/2.67A LED power supply

54,07 EUR including 20.00% VAT
Product code: #22623
Manufacturer: Pulsar
  • Output parameters: DC 15V 2.67A max 40W
  • Output current can be adjusted by internal potentiometer
  • Built-in Active PFC function
  • Lifetime > 62000h
  • IP65

Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
HLG-185H-C500B Mean Well 185W/500mA LED power supply HLG-150H-48B Mean Well 48V/150W/3.2A LED power supply Pulsar HLG-480H-24B HLG 24V/480W/20A LED power supply Pulsar HLG-320H-48B HLG 48V/320W/6.7ALED power supply Pulsar HLG-150H-12A HLG 12V/150W/12.5A LED power supply HLG-320H-24A Mean Well 24V/320W/13.34A LED power supply HLG-150H-12B Mean Well 12V/150W/12.5A LED power supply Pulsar HLG-480H-24 HLG 24V/480W/20ALED power supply Pulsar HLG-240H-24B HLG 24V/240W/10A LED power supply Pulsar HLG-120H-24A HLG 24V/120W/5A LED power supply

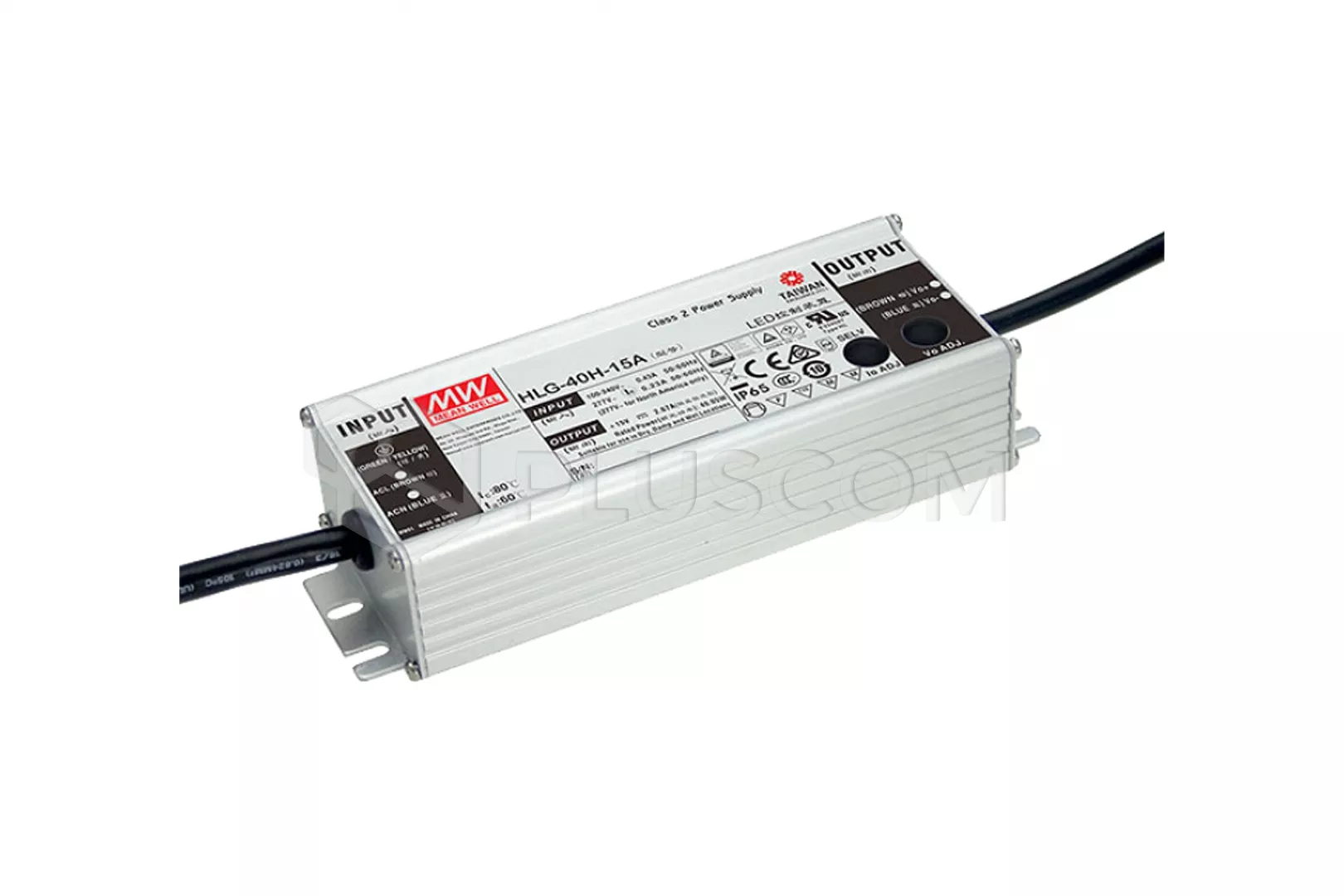

MEAN WELL HLG-40H-15A LED power supply 15V/40W/2.67A


Constant voltage / constant current power supply HLG-40H-15A for lighting systems has a power of 40W and an output voltage of 15V. It is closed in a housing with IP65 and cooled by free air circulation .
HLG-40H-15A has current and output voltage regulation with a potentiometer and built-in active PFC.

PARAMETERS AND FEATURES:
  • output voltage: DC 15V
  • output voltage adjustment range: 13.5-17VDC
  • output current: 2.67A
  • output current adjustment range: 1.6-2.67A
  • power: 40.05W
  • wide input voltage range: 90-305VAC, 127-431VDC
  • protection:
    • short circuit protection
    • overcurrent
    • overvoltage
    • over temperature
  • built-in Active PFC
  • class II isolation
  • power supply life: >62000h
  • efficiency: 86.5%
  • IP65
  • cable
    • AC power: 0.3m
    • DC power: 0.3m
  • working temperature: -40 ° C ÷ 80 ° C
  • dimensions: 171x61.5x36.8mm
  • weight: 0.73kg

Download
Datasheet 0.77 MB
CE Declaration 0.32 MB
