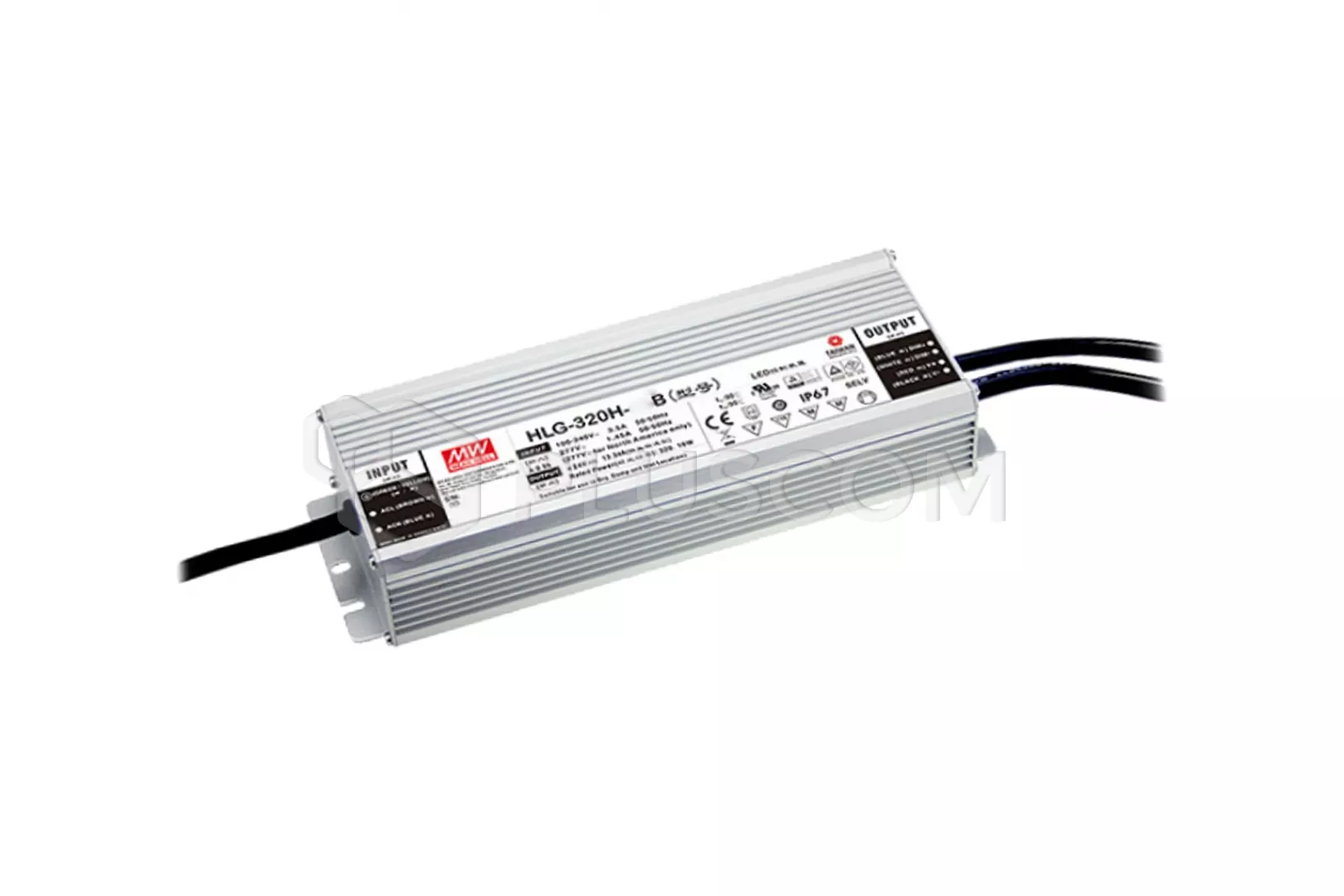

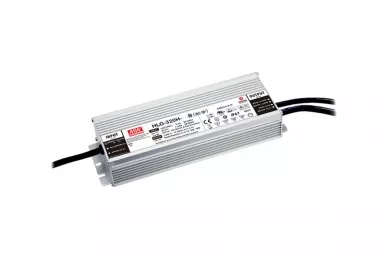

MEAN WELL HLG-320H-54B LED power supply 54V/320W/5.95A


The HLG-320H-54B constant-current power supply for lighting systems has a power of 320W and the output voltage of 54V. It is closed in a metal housing IP67 and is cooled with open air circulation .
HLG-320H-54B has the ability to remotely adjust the output current - input DIN 3W1 (1 ÷ 10VDC / PWM / resistance). It also has an active PFC function built in and 3in1 dimming function.

PARAMETERS AND FEATURES:
  • output voltage: DC 54V
  • output voltage adjustment range: 49-58VDC
  • output current: 5.95A
  • output current adjustment range: 2.97 - 5.95A
  • power: 321.3W
  • wide input voltage range: 90-305VAC, 127-431VDC
  • protection:
    • short circuit protection
    • overcurrent
    • overvoltage
    • thermal
  • free air cooling
  • built-in Active PFC
  • class II isolation
  • power supply life: >62000h
  • efficiency: 95%
  • cable
    • AC power: 0.3m
    • DC power: 0.3m
  • working temperature: -40 ° C ÷ 90 ° C
  • dimensions: 252x90x43.8mm
  • weight: 1.88kg

Download
Datasheet 0.86 MB
CE Declaration 0.32 MB
