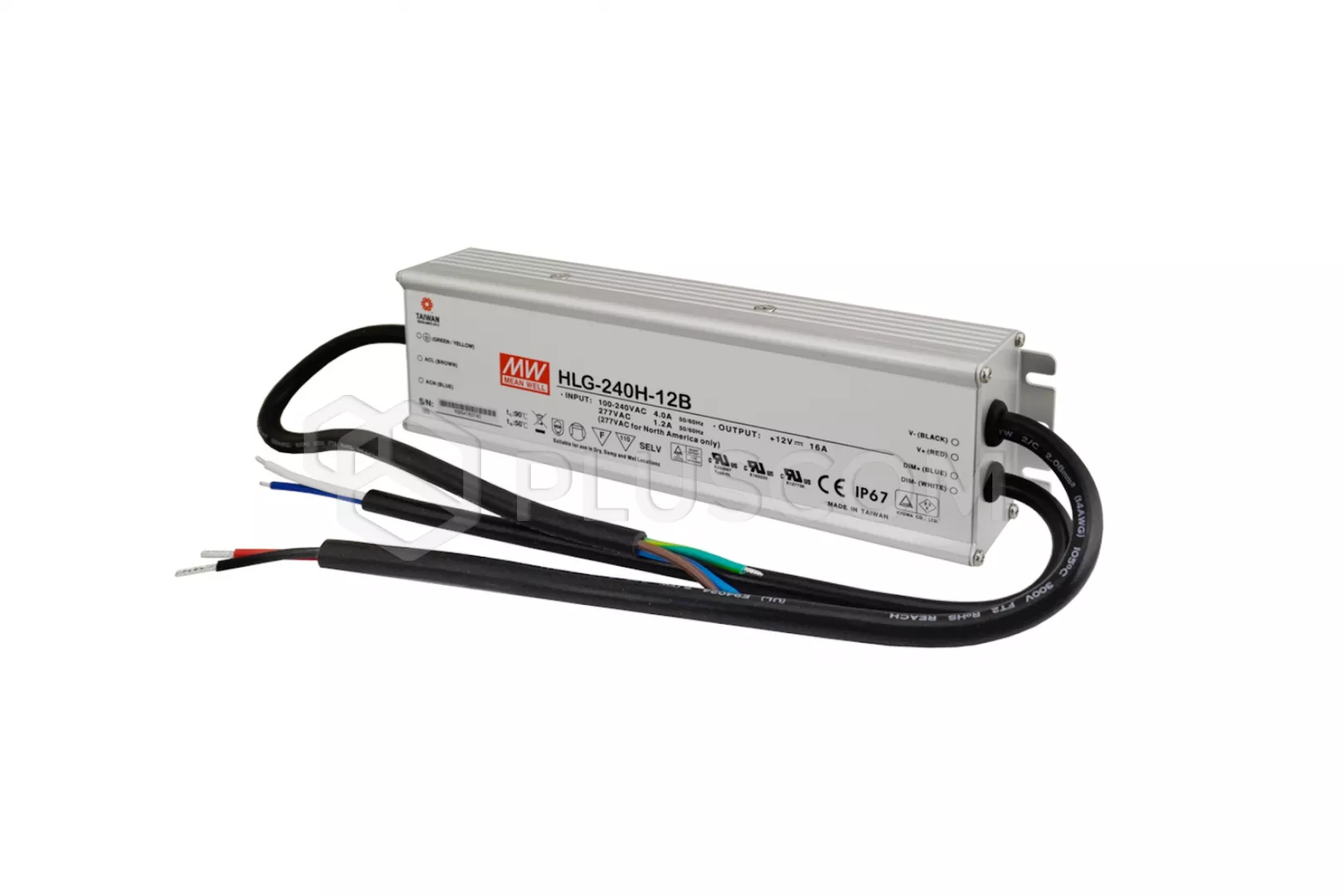

HLG-240H-12B Mean Well 12V/240W/16A LED power supply

115,74 EUR including 20.00% VAT
Product code: #22610
Manufacturer: Pulsar
  • Output parameters: DC 12V 16A max 240W
  • Possibility of remote control of output current
  • Built-in Active PFC function
  • 3 in 1 dimming
  • Lifetime > 62000h

Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
HLG-185H-C500B Mean Well 185W/500mA LED power supply HLG-40H-12 Mean Well 12V/40W/3.3A LED power supply Pulsar HLG-600H-24B HLG 24V/600W/25A LED power supply Pulsar HLG-60H-24B HLG 24V/60W/2.5A power supply Pulsar HLG-240H-12A HLG 12V/240W/16A LED power supply Pulsar HLG-320H-C1050A HLG 320W/1050mA LED power supply Pulsar HLG-600H-24AB HLG 24V/600W/25A  LED power supply HLG-185H-12A Mean Well 12V/185W/13A LED power supply Pulsar HLG-600H-48 HLG 48V/600W/12.5A LED power supply Pulsar HLG-240H-12 HLG 12V/240W/16A LED power supply

MEAN WELL HLG-240H-12B LED power supply 12V/240W/16A


The HLG-150H-48B constant-current power supply for lighting systems has a power of 192W and the output voltage of 12V. It is closed in a waterproof IP67 casing and is cooled by open air circulation .
HLG-240H-12B has the ability to remotely adjust the output current - input DIN 3W1 (1 ÷ 10VDC / PWM / resistance). It also has an active PFC function built in and 3in1 dimming function.

PARAMETERS AND FEATURES:
  • output voltage: DC 12V
  • output voltage adjustment range: 6-12VDC
  • output current: 16A
  • output current adjustment range: 8-16A
  • power: 192W
  • wide input voltage range: 90-305VAC, 127-431VDC
  • protection:
    • short circuit protection
    • overcurrent
    • overvoltage
    • thermal
  • free air cooling
  • built-in Active PFC
  • class II isolation
  • power supply life: >62000h
  • efficiency: 90%
  • cable
    • AC power: 0.3m
    • DC power: 0.3m
  • working temperature: -40 ° C ÷ 90 ° C
  • dimensions: 244.2x68x38.8mm
  • weight: 1.3kg

Download
Datasheet 0.8 MB
CE Declaration 0.18 MB
