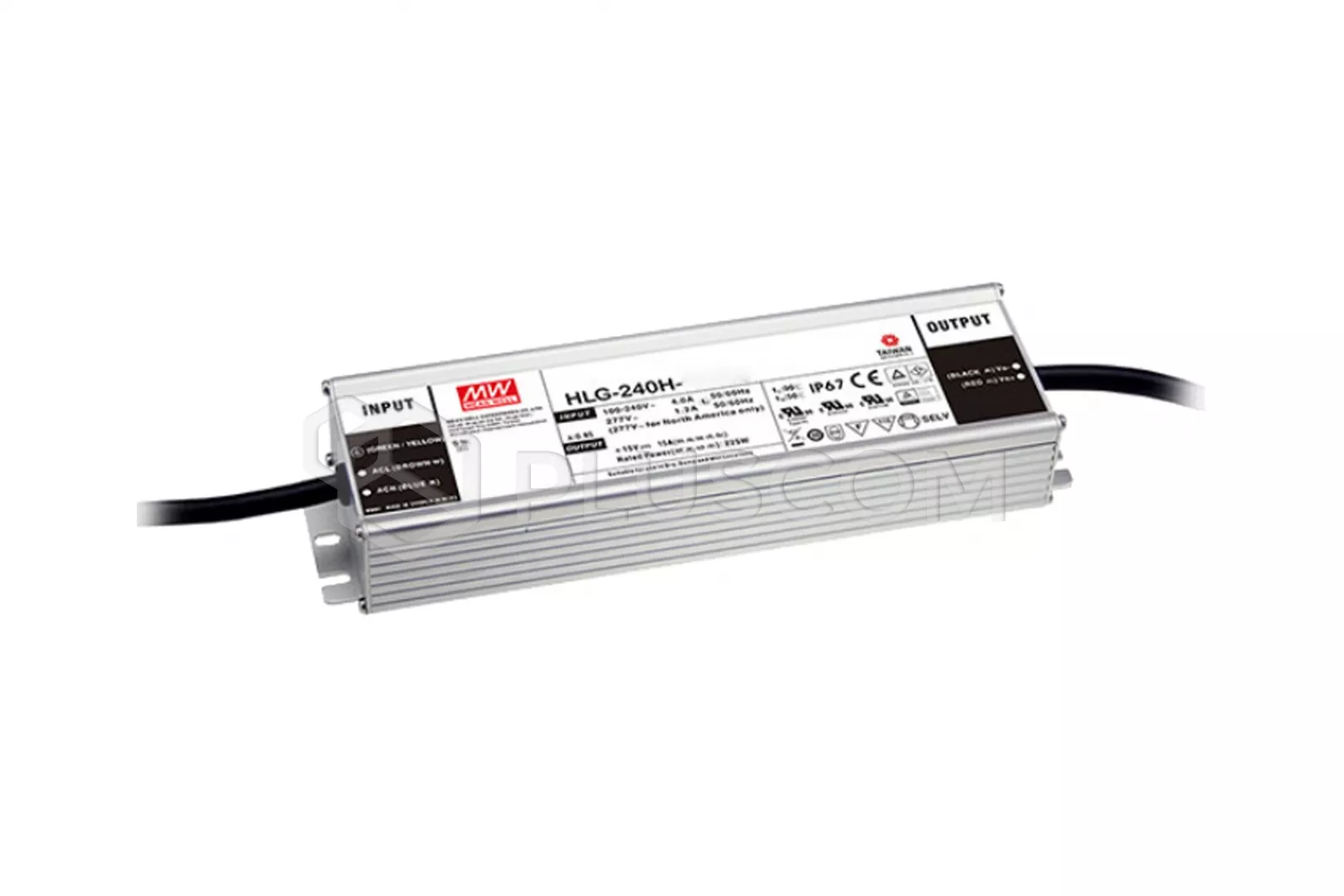

HLG-240H-48B Mean Well 48V/240W/5A LED power supply

114,56 EUR including 19.00% VAT
Product code: #22612
Manufacturer: Pulsar
  • Output parameters: DC 48V 5A max 240W
  • Possibility of remote control of output current
  • Built-in Active PFC function
  • 3 in 1 dimming
  • Lifetime > 62000h

Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,82 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
HLG-185H-C500B Mean Well 185W/500mA LED power supply HLG-80H-12B Mean Well 12V/60W/5A LED power supply Pulsar HLG-240H-C1400B HLG 240W/1400mA LED power supply Pulsar HLG-80H-24A HLG 24V/80W/3.4A LED power supply Pulsar HLG-100H-24B HLG 24V/96W/4A LED power supply HLG-80H-12A Mean Well 12V/60W/5A LED power supply HLG-240H-54A Mean Well 54V/240W/4.45A LED power supply Pulsar HLG-40H-24A HLG 24V/40W/1.67A LED power supply Pulsar HLG-80H-36A HLG 36V/80W/2.3A power supply HLG-40H-15A Mean Well 15V/40W/2.67A LED power supply

MEAN WELL HLG-240H-48B LED power supply 48V/240W/5A


The HLG-240H-48B constant-current power supply for lighting systems has a power of 240W and the output voltage of 48V. It is closed in a metal housing IP65 and is cooled with open air circulation .
HLG-240H-48B has the ability to remotely adjust the output current - input DIN 3W1 (1 ÷ 10VDC / PWM / resistance). It also has an active PFC function built in and 3in1 dimming function.

PARAMETERS AND FEATURES:
  • output voltage: DC 48V
  • output voltage adjustment range: 24-48VDC
  • output current: 5A
  • output current adjustment range: 2.5-5A
  • power: 240W
  • wide input voltage range: 90-305VAC, 127-431VDC
  • protection:
    • short circuit protection
    • overcurrent
    • overvoltage
    • thermal
  • free air cooling
  • built-in Active PFC
  • class II isolation
  • power supply life: >62000h
  • efficiency: 93%
  • cable
    • AC power: 0.3m
    • DC power: 0.3m
  • working temperature: -40 ° C ÷ 90 ° C
  • dimensions: 244.2x68x38.8mm
  • weight: 1.3kg

Download
Datasheet 0.8 MB
CE Declaration 0.18 MB
