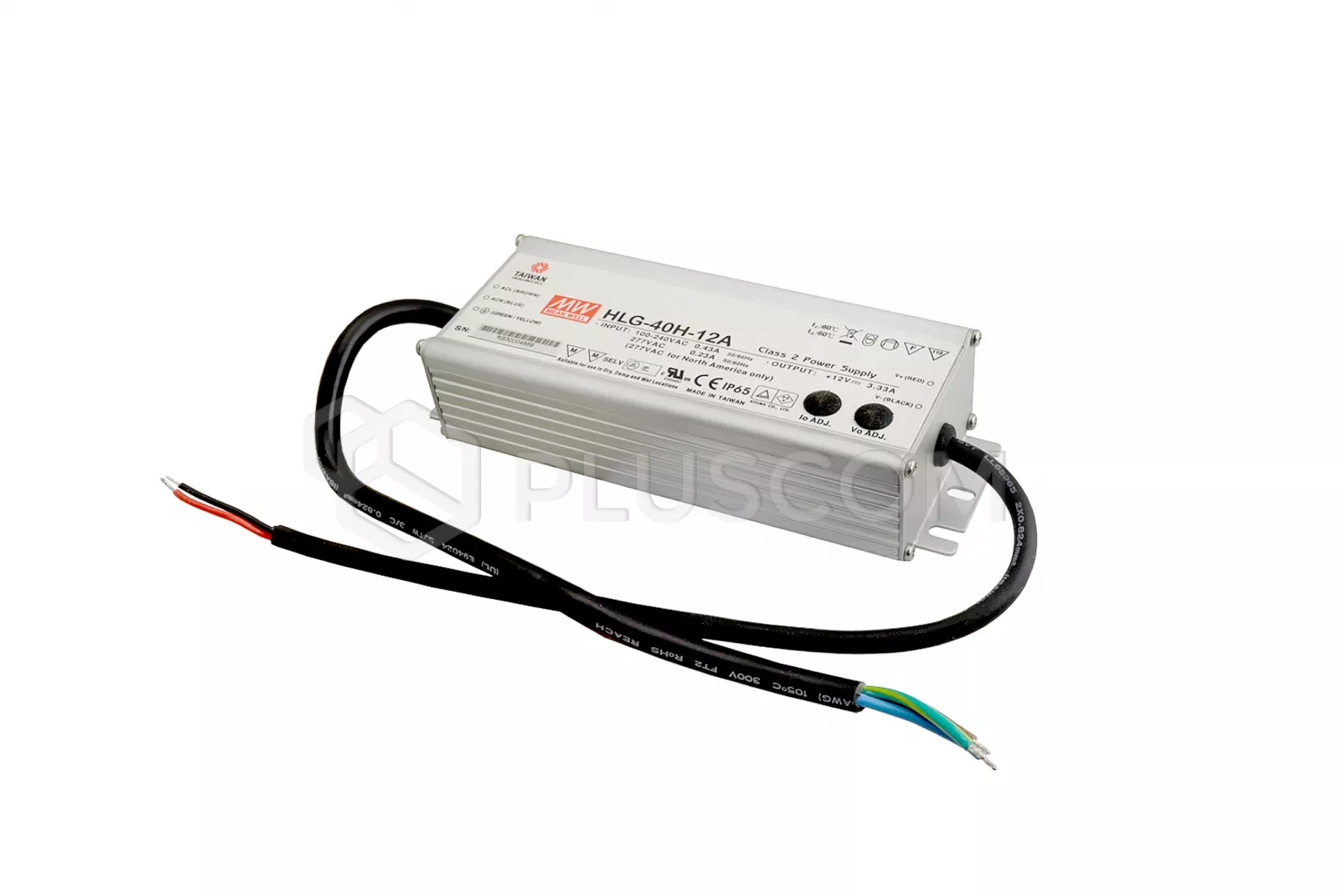

HLG-40H-12A Mean Well 12V/40W/3.3A LED power supply

53,62 EUR including 19.00% VAT
Product code: #22622
Manufacturer: Pulsar
  • Output parameters: DC 12V 3.3A max 40W
  • Output current can be adjusted by internal potentiometer
  • Built-in Active PFC function
  • Lifetime > 62000h
  • IP65

Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
HLG-185H-C500B Mean Well 185W/500mA LED power supply Pulsar HLG-185H-48 HLG 48V/187.2W/3.9A LED power supply HLG-120H-12B Mean Well 12V/120W/10A LED power supply Pulsar HLG-100H-36 HLG 36V/95.4W/2.65A power supply Pulsar HLG-100H-24A HLG 24V/100W/4A LED power supply Pulsar HLG-240H-C1400B HLG 240W/1400mA LED power supply Pulsar HLG-150H-24B HLG 24V/151.2W/6.3A LED power supply HLG-120H-12A Mean Well 12V/120W/10A LED power supply HLG-80H-12B Mean Well 12V/60W/5A LED power supply HLG-240H-54A Mean Well 54V/240W/4.45A LED power supply

MEAN WELL HLG-40H-12A LED power supply 12V/40W/3.3A


Constant voltage / constant current power supply HLG-40H-12A for lighting systems has a power of 40W and an output voltage of 12V. It is closed in a housing with IP65 and cooled by free air circulation .
HLG-40H-12A has current and output voltage regulation with a potentiometer and built-in active PFC.

PARAMETERS AND FEATURES:
  • output voltage: DC 12V
  • output voltage adjustment range: 10.8-13.5VDC
  • output current: 3.3A
  • output current adjustment range: 2-3.3A
  • power: 39.96W
  • wide input voltage range: 90-305VAC, 127-431VDC
  • protection:
    • short circuit protection
    • overcurrent
    • overvoltage
    • over temperature
  • built-in Active PFC
  • class II isolation
  • power supply life: >62000h
  • efficiency: 86.5%
  • IP65
  • cable
    • AC power: 0.3m
    • DC power: 0.3m
  • working temperature: -40 ° C ÷ 80 ° C
  • dimensions: 171x61.5x36.8mm
  • weight: 0.73kg

Download
Datasheet 0.77 MB
CE Declaration 0.32 MB
