Gorke RSU-K02/24V/H1 2-channel receiver

Gorke RSU-K02/24V/H1 2-channels receiver

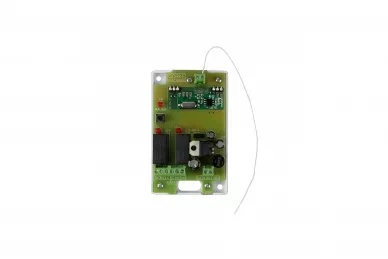

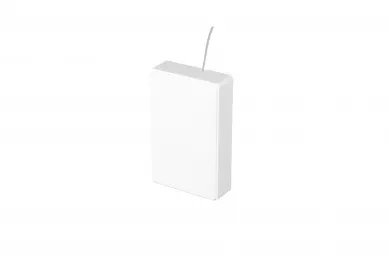

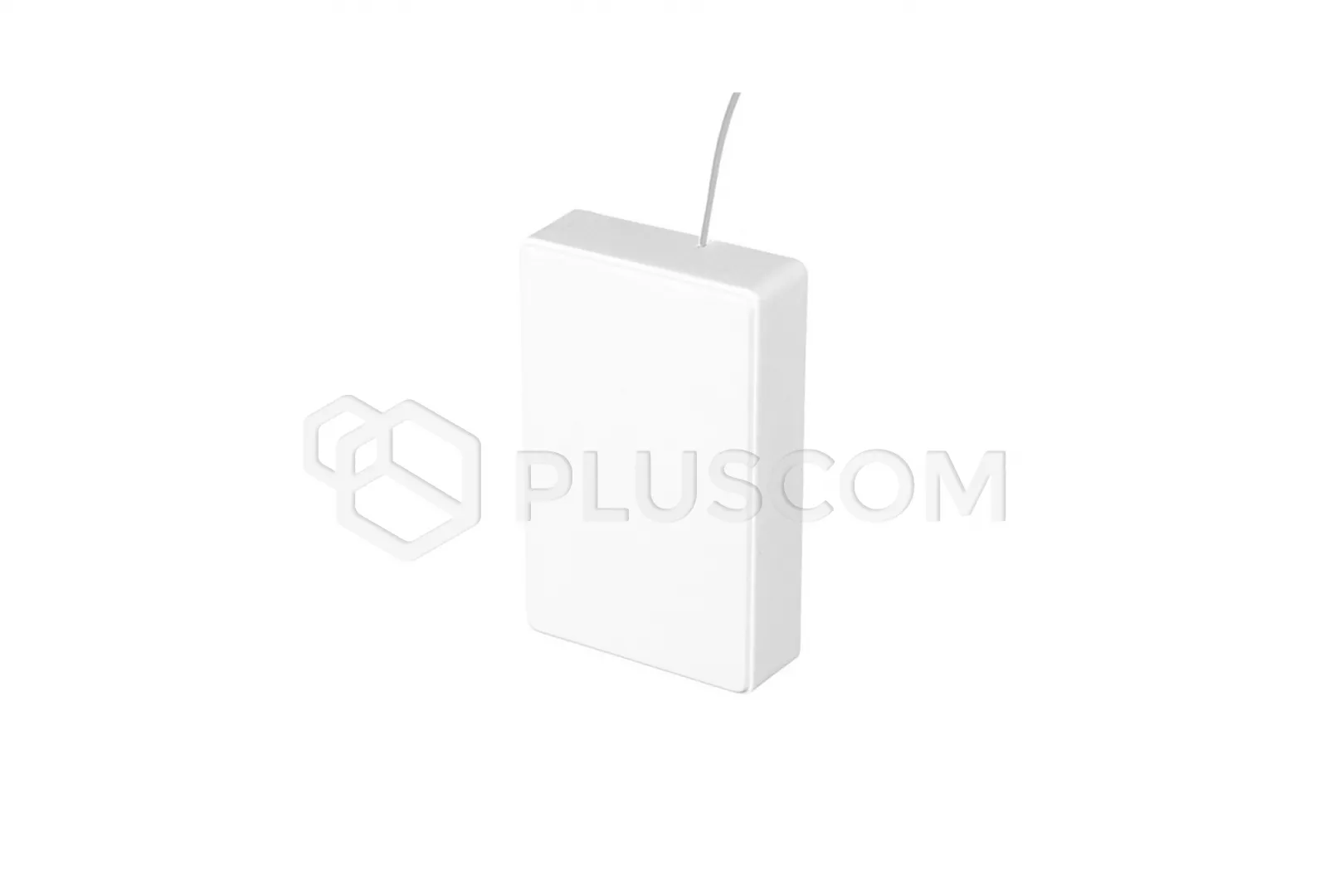

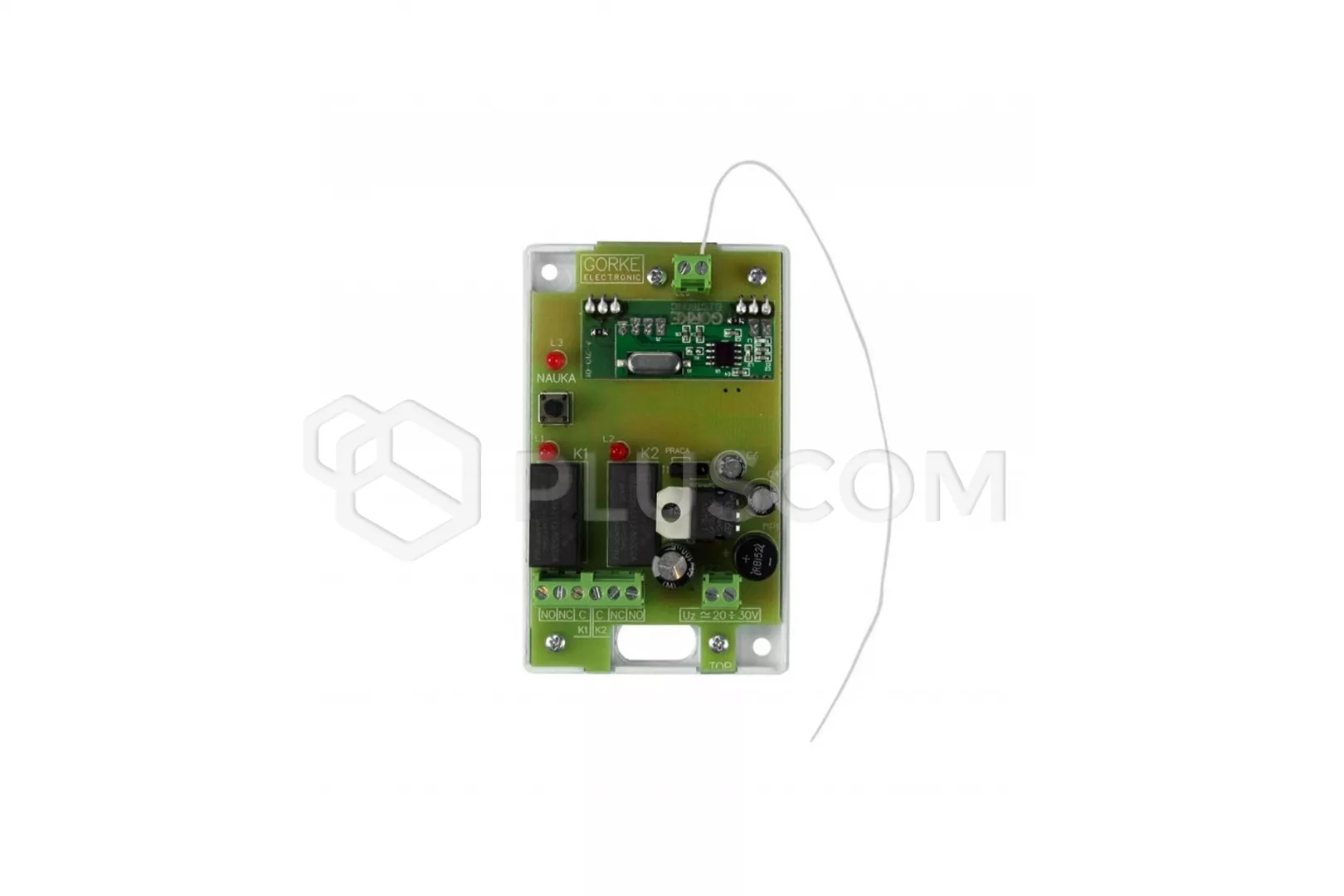

RSU-K02/24V/H1 is a radio receiver, 2-channels relay receiver for indoor installation closed.
The receiver can operate in bistable (on-off) or monostable mode (the relay is switched on for the programmed time).

RSU-K02/24V/H1 works with any sA series transmitter, operating range depend on the type of transmitter that has been selected to work with the receiver and may range from 100 to 500 meters.
Designed for installations where 24V supply voltage is available, generally applies to controlling a barrier, entrance gate, etc. Other applications:

• remote control of devices connected to the receiver's outputs
• in alarm systems - introduction to the button system anti-panic control, zone control, etc.

Transmission is based on variable code, which ensures high safe use and resistance to radio signals originating from other devices. Each transmitter has its own individual code. Receiver responds only to transmissions that come from transmitters programmed to his memory.

TECHNICAL DATA:

• frequency: 433.92 MHz
• encoding: variable code
• receiving module: heterodyne H1
• memory capacity: 113 transmitters
• power supply: 24V AC DC (20-30V AC DC)
• power consumption:
• • quiescent: 12 mA
  • maximum: 35 mA
• number of channels: 2
• relay operating modes: monostable, bistable
• monostable mode time range: ~1s-4min20s
• load capacity: relay output - 1A/ 24V DC
• operating temperature: -10÷ +55 °C
• humidity (max): 93±3%
• dimensions: 90x57x23 mm
• cooperation: any sA series transmitter
