GORKE PUK-102 Two-channel radio remote control in color
black
GORKE PUK-102
GORKE PUK-102
Solid and durable 2-channel remote control. The pilot's keyboard is done
made of embossed foil. The small buttons are almost flat but have
"hard" and noticeable keystroke. They are immune to accidents
keystrokes.
The power source is a popular 23A (12V) alkaline battery which at
in typical use, it lasts for 5-6 years.
Applications of the remote control are remote control
- alarm system operation
- a gate, a barrier
- roller shutter, blind
- electromagnetic locks
- lighting, air conditioning
The transmission uses the 433MHz frequency and is code based
variable that ensures high safety of use and resistance to
radio signals from other sources.
The remote control does not have low battery indication. LED not lit
while pressing a key, or a significant decrease in operating range
remote control may need to replace the batteries.
The remote control belongs to the sA series and works with any receiver of this series.
The remote control range depends on the used receiving module and is:
- up to 100m with H1 receiver modules (e.g. RSU)
- up to 200m with H2 receiver modules (OPC, IDO receivers)
The
ranges given are for open space where the transmitter is located
"sees" with the receiver.
If there are obstacles between the receiver and the transmitter,
predict a reduction in the working range, respectively for:
- wood and plaster by 5-20%
- bricks by 20-40%
- reinforced concrete by 40-80%
In particular, avoid metal obstacles.

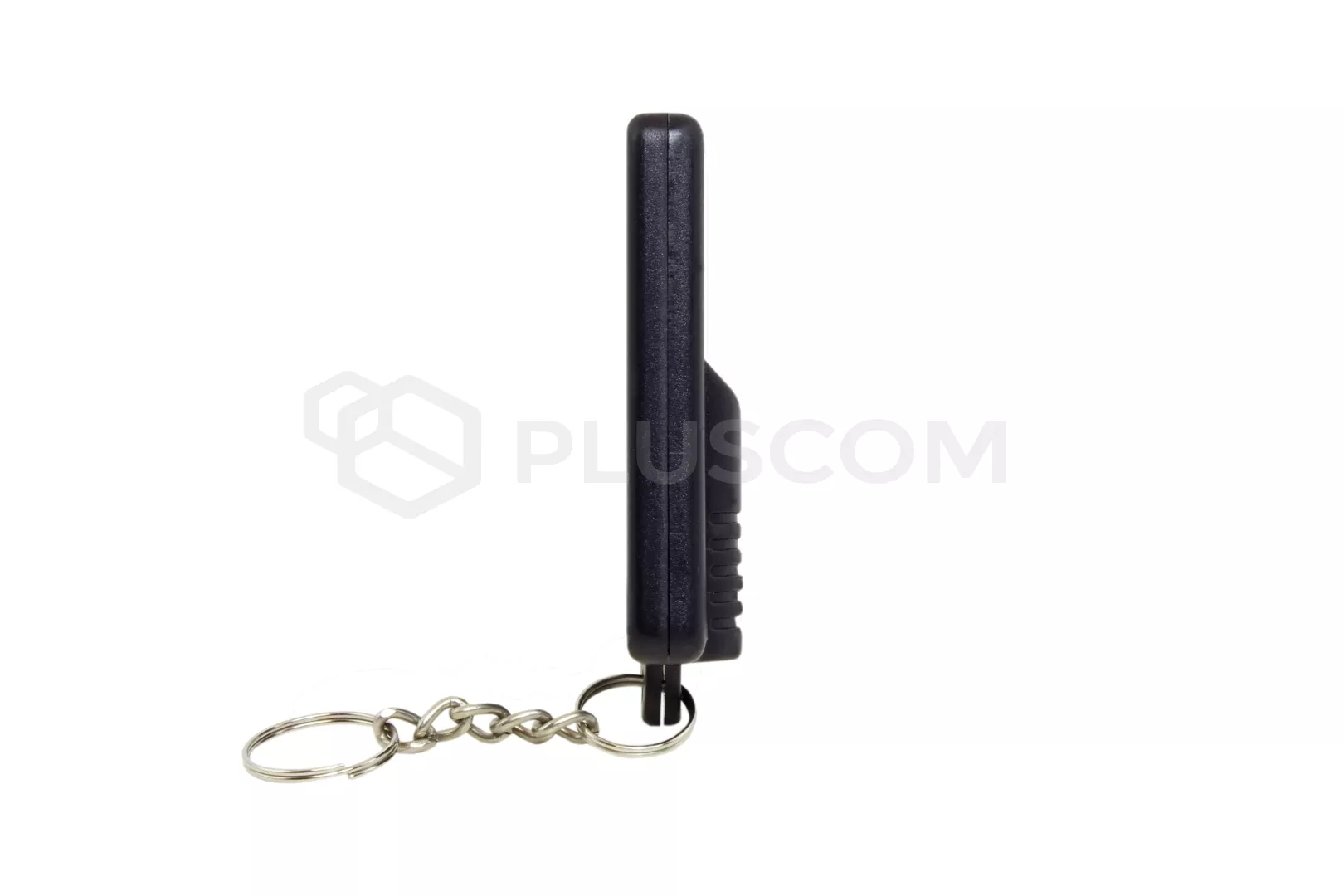

Side view:

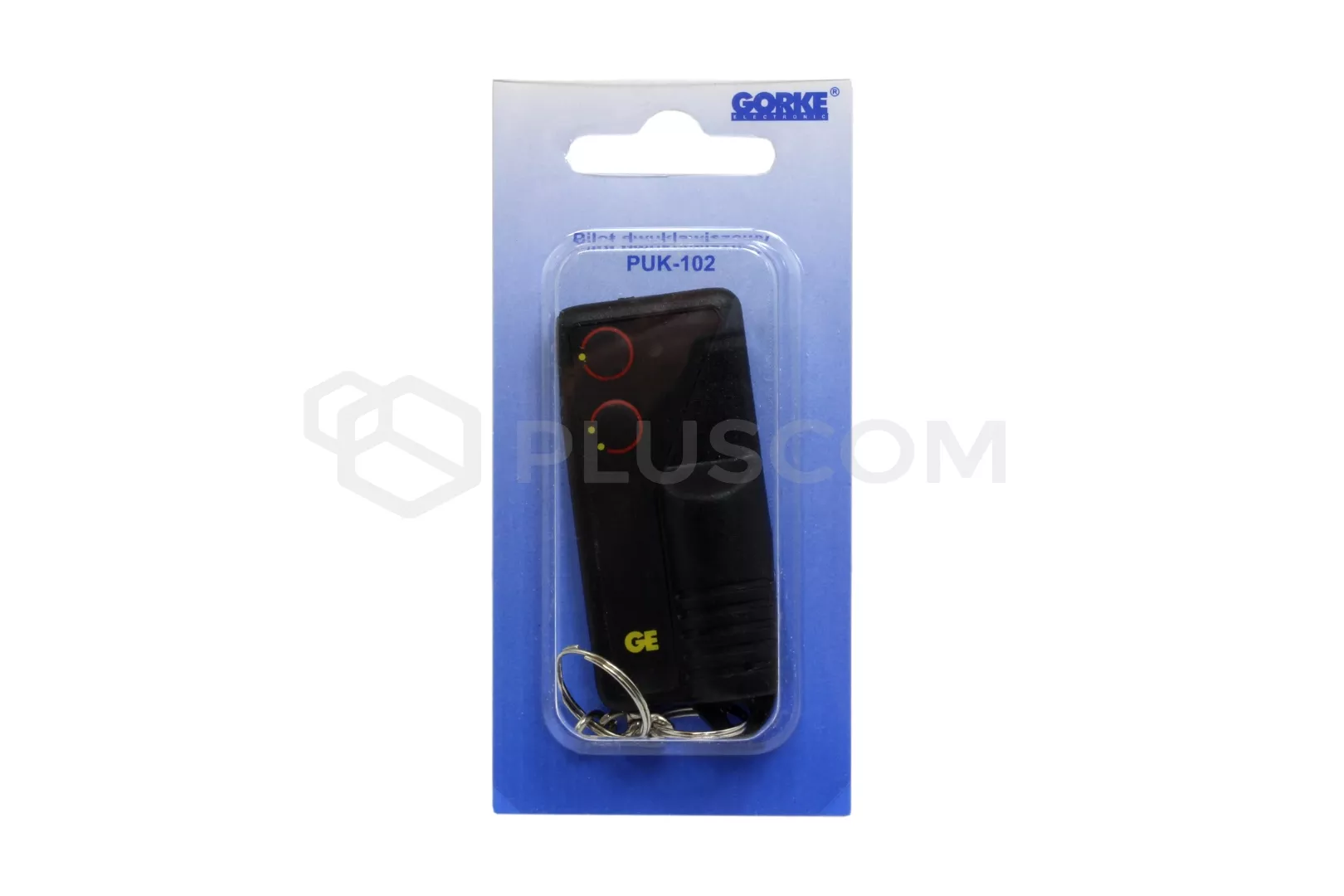

Package:
