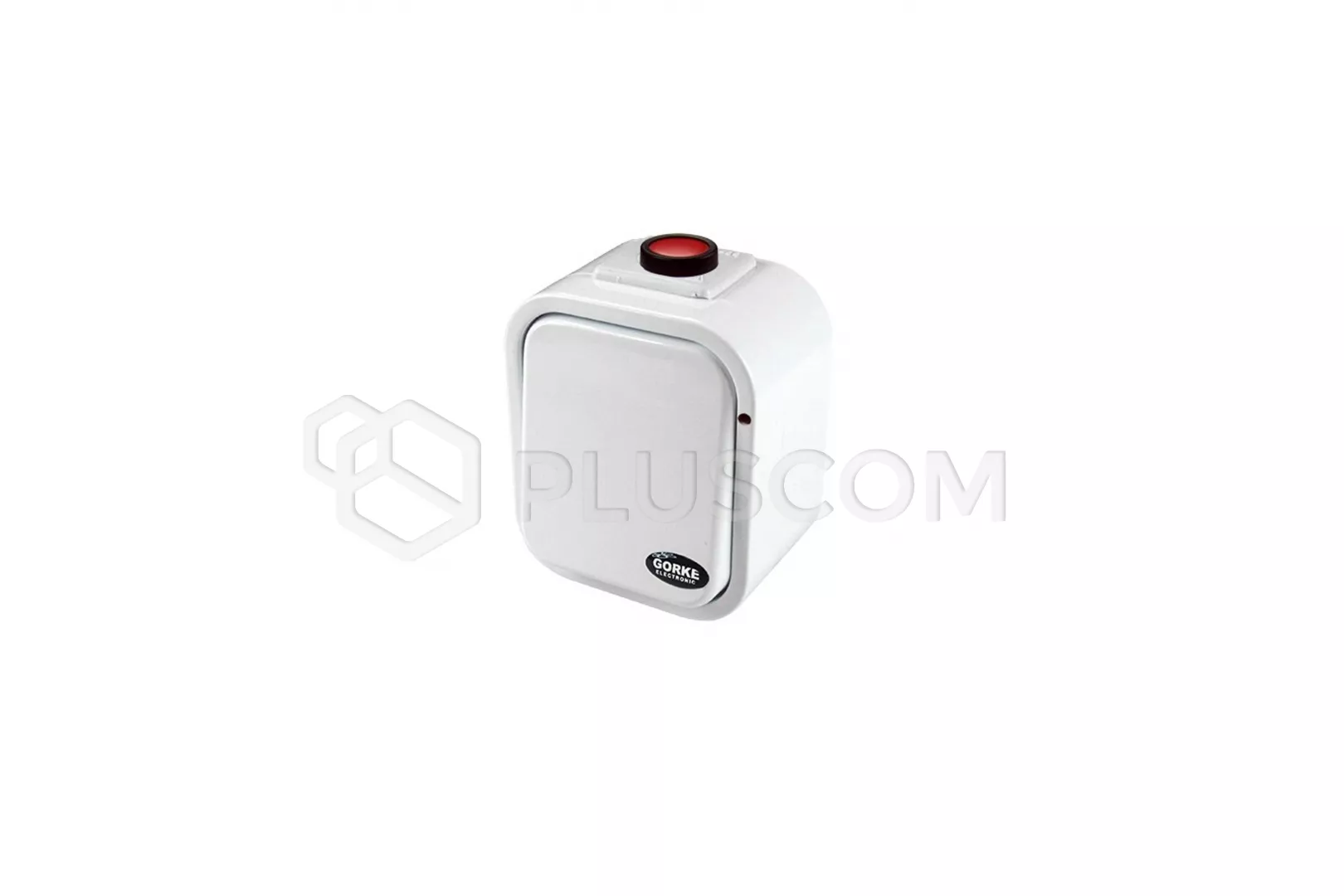

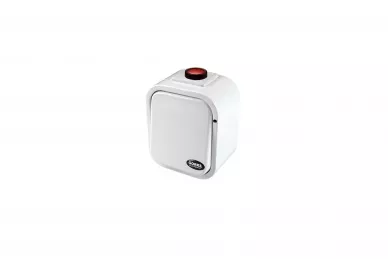

Gorke PNH-202 Hermetic button transmitter
GORKE PNH 202 is a radio transmitter enclosed in a hermetic casing
button. It is suitable for outdoor or indoor installation rooms with high
humidity, for work in unfavorable conditions atmospheric conditions: moisture,
low temperatures.
The main areas of application of the transmitter are medical facilities with
installed Recall System.
The PNH-202 housing is hermetic, so it can be installed in rooms with high
humidity (bathrooms, swimming pools). May be mounted on a metal substrate. It
is also perfect for metal gate or gate. Other functions it can perform are:
- panic button
- zone activation/deactivation
- remote control of the gate, roller shutter, lighting, etc.
The button works with any sA series receiver. based transmission is on a
rolling code ensuring high security of use and immunity to radio signals from
other devices. Every transmitter has its own individual code. The receiver
responds only to those transmissions that they come from transmitters
programmed into its memory.
The range of the button depends on the receiver it works with. And so
for superreactive receiver (RSU) is
200m and superheterodyne receiver
(OPC) is
200m 400m. The distances refer to the situation when the
transmitter and receiver see each other. In the case of buildings or other
terrain obstacles, this must be taken into account range reduction.
Gorke PNH-202 2-button radio transmitter
TECHNICAL DATE:
- frequency: 433.92 MHz
- encoding: rolling code
- number of keys: 2
- power supply: 12V/MN21, 23A battery
- scope:
-
- 200 m - with H1 receiver (e.g. RSU)
- 400 m - with H2 receiver (e.g. OPC)
- cooperation: any sA series receiver
- sealing class: IP44
- operating temperature: -10ºC ~ 55ºC
- humidity: max. 93% ± 3%

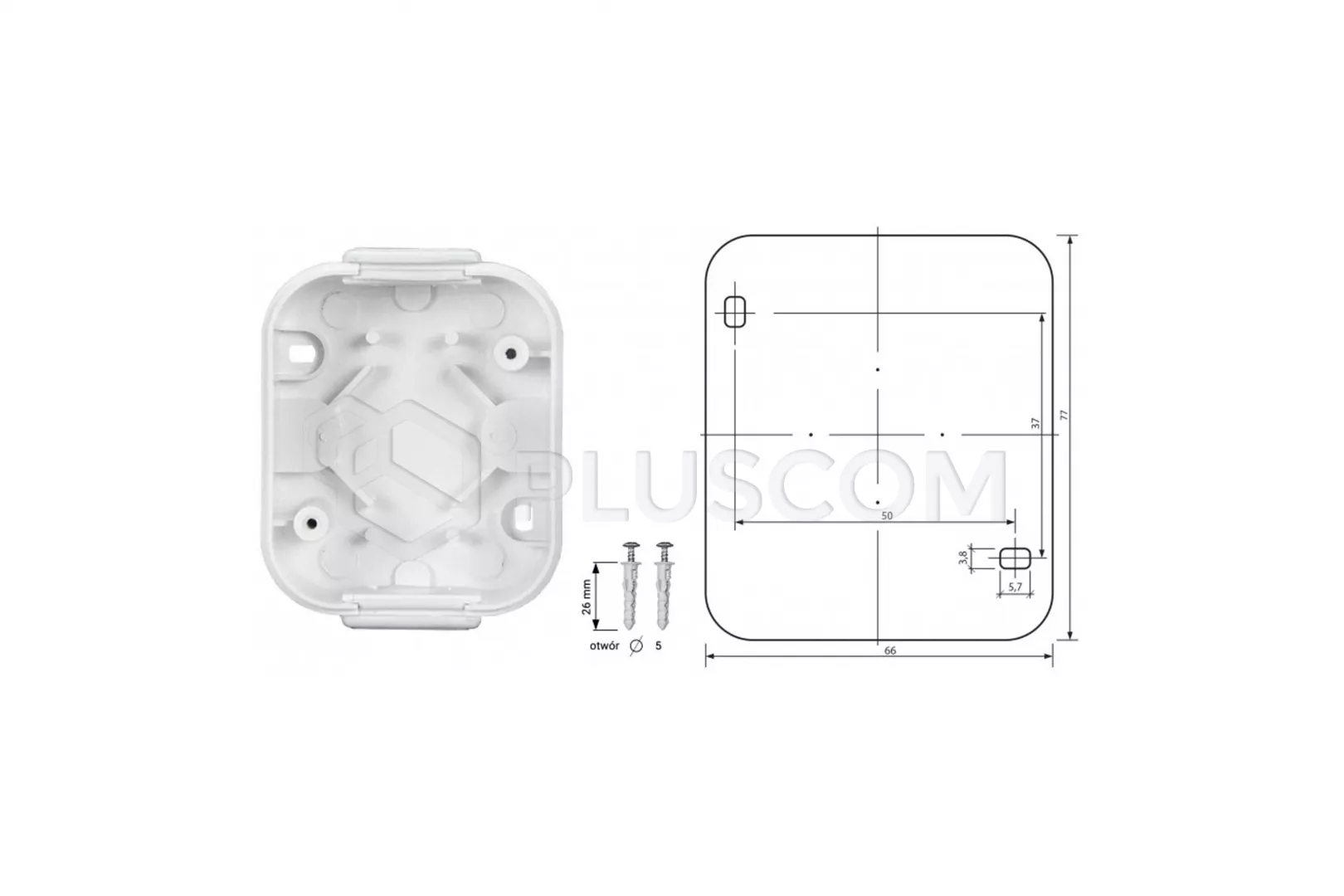

- dimensions: 73x62x30mm
