Gorke PNH-201C Hermetic button transmitter with reset
GORKE PNH 201C is a radio transmitter enclosed in a hermetic button
housing. It is adapted for installation outdoors or in rooms with high
humidity, for work in unfavorable weather conditions: moisture, low
temperatures.
It has a built-in acoustic signaling device activated for the time of
transmission and a reset button.
The main areas of application of the transmitter are medical facilities with an
installed Calling System. The requirement to delete the transmission allows you
to monitor the "speed" of providing assistance, but above all, the
system notes "access" of medical personnel to the patient's bed.
The PNH-201C housing is hermetic, so it can be installed in rooms with high

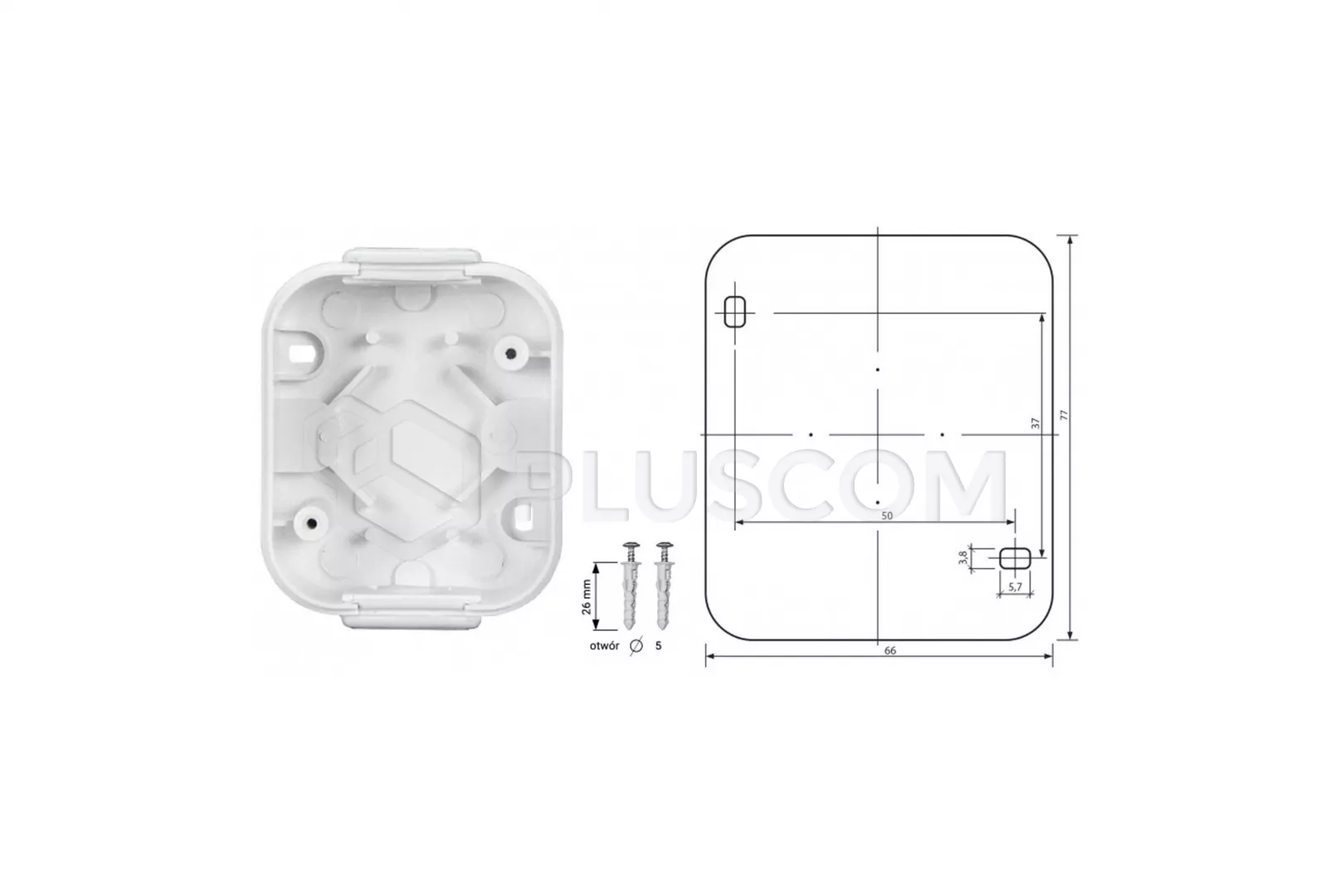

humidity (bathrooms, swimming pools). It can be mounted on a metal substrate.
Excellent it will also work with a metal wicket or gate. Other functions it can
perform this:
- panic button
- zone activation/deactivation
- remote control of the gate, roller shutter, lighting, etc.
The button works with any sA series receiver. The transmission is based on
a rolling code ensuring high security use and immunity to radio signals from
other devices. Each transmitter has its own individual code. The receiver only
responds to these transmissions that come from transmitters programmed into its
memory.
The range of the button depends on the receiver it works with. And so
for superreactive receiver (RSU) is
200m and superheterodyne receiver
(OPC) is
200m 400m. The distances refer to the situation when the
transmitter and receiver see each other. In the case of buildings or other
terrain obstacles, this must be taken into account range reduction.

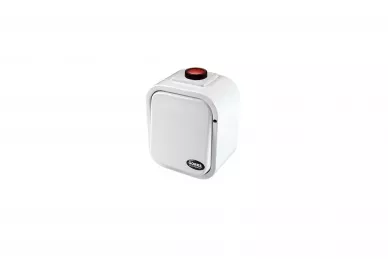

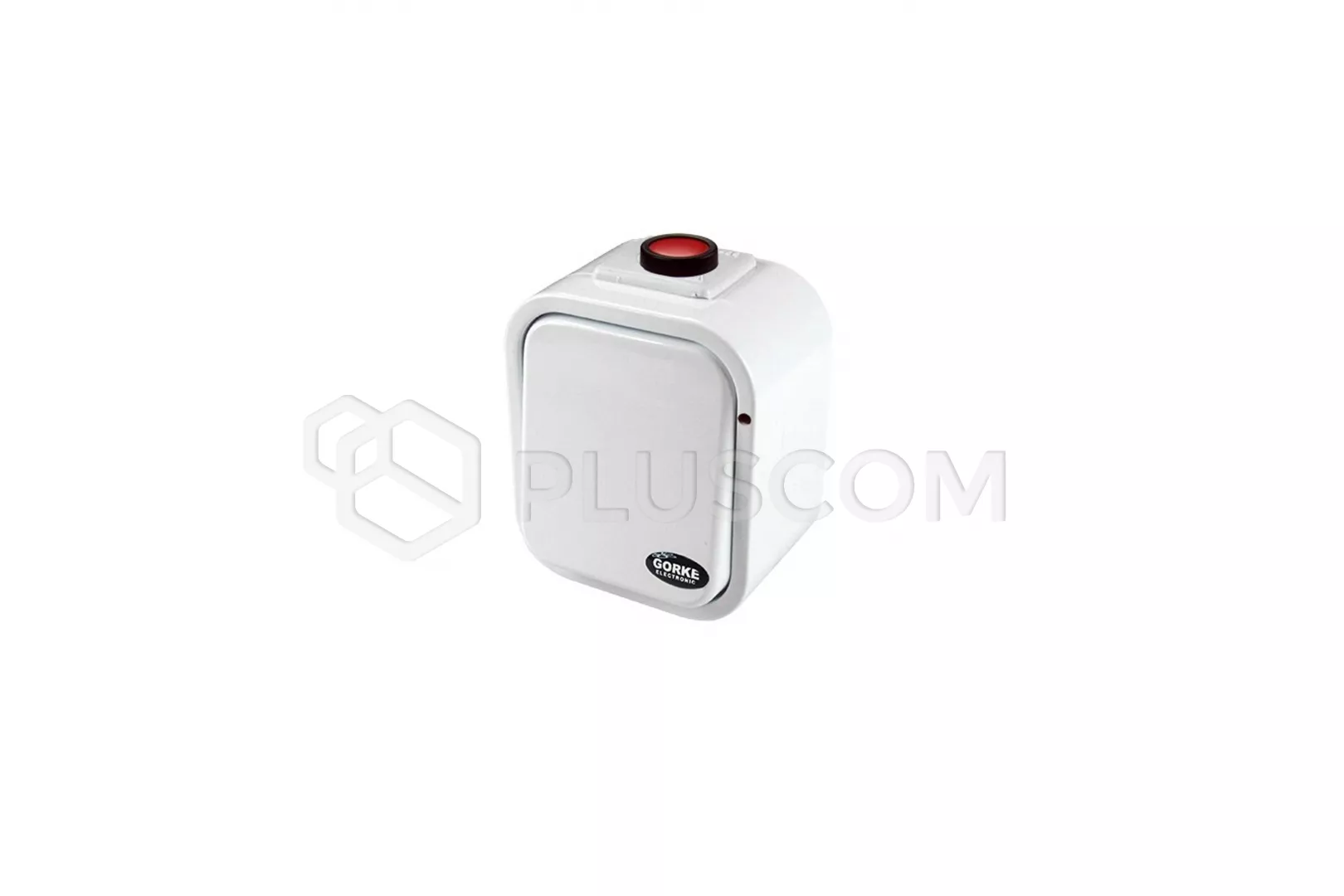

Gorke PNH-201C hermetic radio button
Pressing the key causes transmissions with code 1, which are repeated for 20
minutes at intervals of 40 seconds until deleted with the button located on the
top of the housing; pressing the delete button causes sending a radio
transmission with code 2; if no key is pressed for 20 minutes after pressing
the key the reset button, the transmission cycle will end automatically after
20 minutes - the last signal will be sent with key code 2; the LED located on
the front surface flashes from the moment of pressing the main key until erased
or until the end of the repeat cycle; pressing the key during the 20 minute
timer no causes its lengthening; pressing the reset button outside of the
20-minute timer mode does not trigger any transmission.
TECHNICAL DATE:
- frequency: 433.92 MHz
- encoding: rolling code
- number of keys: 2 (transmission key + delete key)
- power supply: 12V/MN21, 23A battery
- scope:
-
- 200 m - with H1 receiver (e.g. RSU)
- 400 m - with H2 receiver (e.g. OPC)
- cooperation: any sA series receiver
- sealing class: IP44
- operating temperature: -10ºC ~ 55ºC
- humidity: max. 93% ± 3%
- dimensions: 73x62x30mm
