Gorke OPC-K1/1000 set

160,60 EUR including 22.00% VAT
Product code: #25641
Manufacturer: Gorke
  • OPC-K01 receiver + RNB-101 remote control
  • Range: up to 1000m
  • Rolling code
  • Memory: 113 transmitters
  • It can be used as an anti-panic button
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Gorke RTS-1000 Repeater with 1000 remote controls Gorke OPC-K01 1-channel receiver Gorke RNB-101 1-key remote control Gorke WLC-201 digital line amplifier

Gorke OPC-K1/1000 set of 1-channel OPC-K01 receiver and remote control RNB-101


OPC-K1/1000 is a ready-to-use set consisting of a 1-channel receiver OPC-K01 and the RNB-101 remote control. The working range is up to 1000 meters in space open. It is dedicated to installations where transmission is required over long distances or when remote control is required environment with numerous radio obstacles.
The set is designed to remotely control the operation of devices connected to receiver outputs, e.g. entrance and garage gates, blinds, blinds, locks electromagnetic, lighting, pumps, air conditioning, etc. a in systems as a panic button, zone control, etc.

The transmission is based on a rolling code ensuring high security use and immunity to radio signals from other devices. Each transmitter has its own individual code. The receiver only responds to these transmissions that come from transmitters programmed into its memory.
The remote control can be programmed to an unlimited number of receivers.

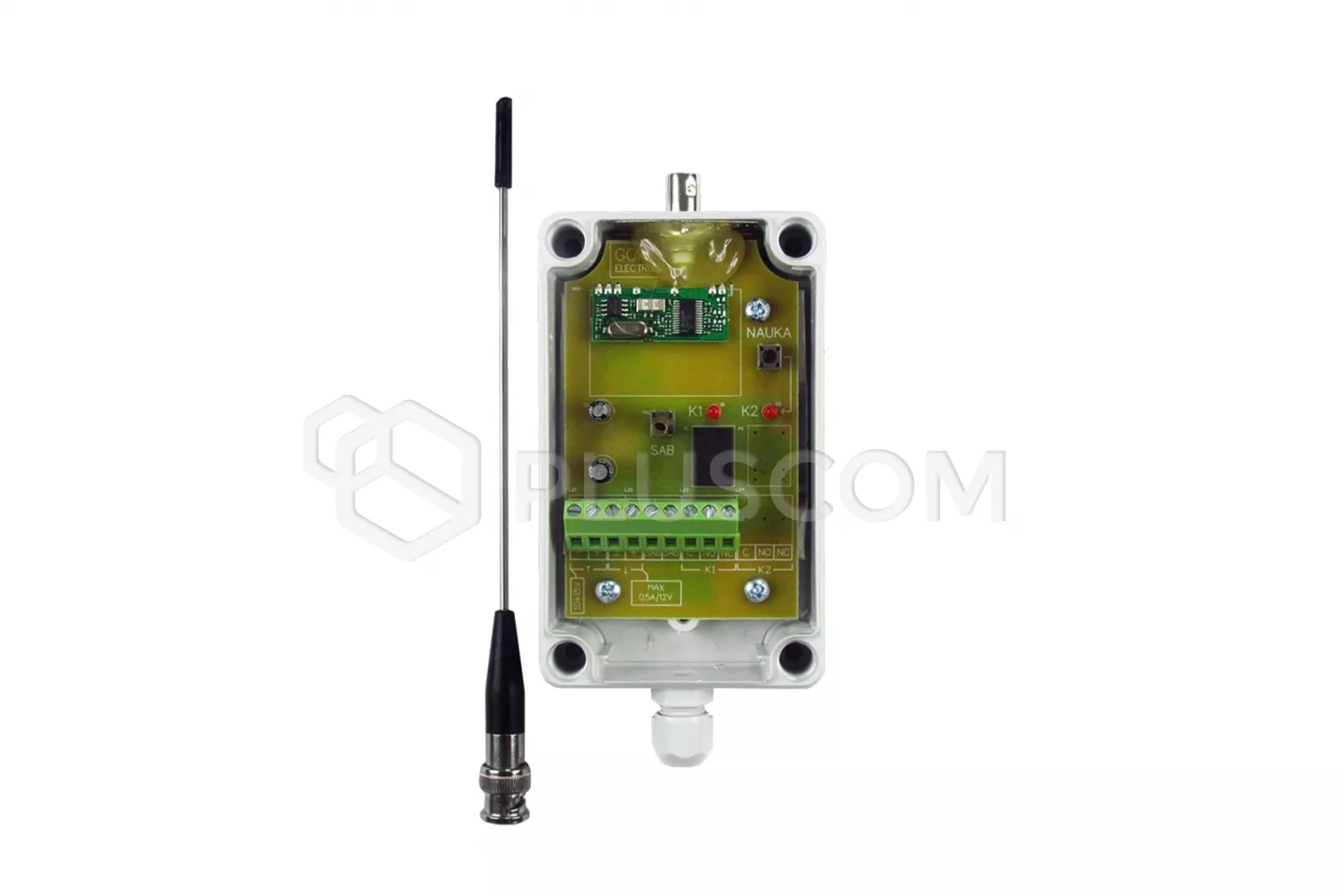

RECEIVER TECHNICAL PARAMETERS:
  • power supply: 12V DC(10-15V DC)
  • power consumption:
    • resting: 14mA
    • maximum: 45mA
  • number of channels: 1
  • frequency: 433.92 MHz
  • encoding: rolling code
  • cooperation: any sA series transmitter
  • receiving module: heterodyne H2
  • memory capacity: 113 transmitters
  • relay operating modes: monostable, bistable
  • monostable time range: ~1s - 256s (4min 16s)
  • load capacity:
    • relay output: 1A/ 30V DC
    • sygnaling output: 0.5A/ 12V DC
    • tamper output: 50mA/ 12V DC
  • antenna: rod, 50 Ohm BNC connector
  • IP65
  • operating temperature: -10÷ +55 °C
  • dimensions: 130x80x35 mm

TECHNICAL PARAMETERS OF THE TRANSMITTER:
  • frequency: 433.92 MHz
  • encoding: rolling code
  • number of keys: 1
  • transmission power: ≤ 10 dBm
  • power supply: 9V alkaline battery type 6F22
  • signalling during transmission: built-in buzzer + LED diode
  • number of transmissions (without battery replacement): min. 20,000
  • operating temperature: -10 ÷ +55 ºC
  • dimensions (with antenna): 65×100 (300)×24mm
  • cooperation: sA series receivers
  • range in open area: approx. 1000 m with H2 receiver
  • weight: 155g
  • assembly: belt clip
