Gorke BSO-300 Optical and acoustic alarm

70,68 EUR including 23.00% VAT
Product code: #25709
Manufacturer: Gorke
  • Optical signaling: 40 x LED
  • Sound signaling: 2450 Hz / adjustable 0-82 dB
  • Memory capacity: 32 keys
  • Power supply: DC 12V
  • Cooperation: sA series remote controls and transmitters
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Gorke PNH 201 Button hermetic Gorke PUK-401 1-key remote control Gorke PUK-121 watch SOS transmitter Gorke PNH-201SC towed transmitter with reset

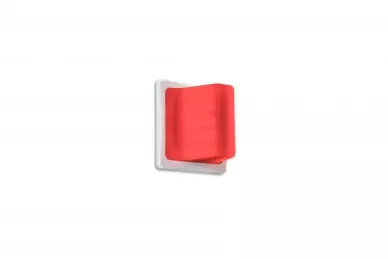

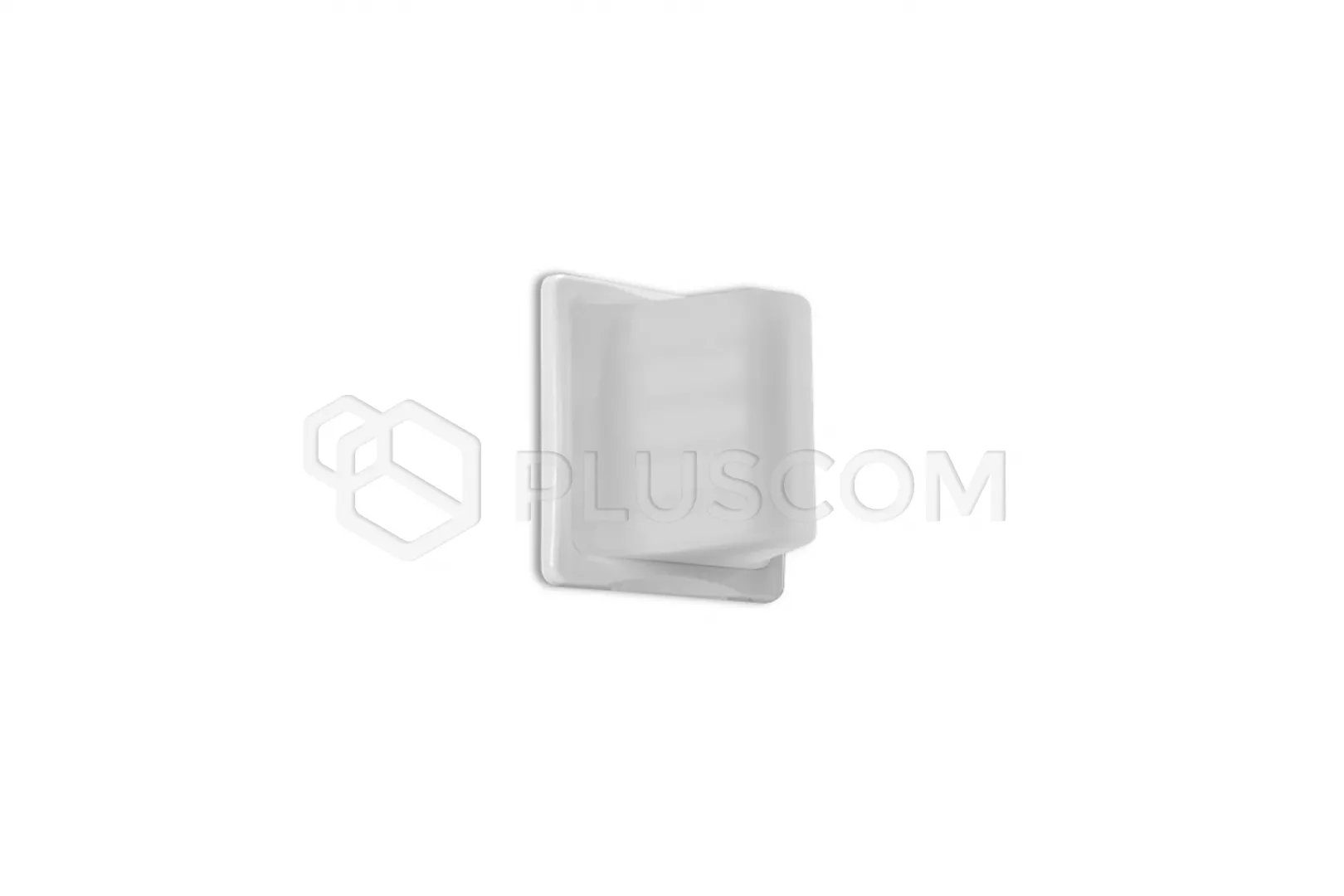

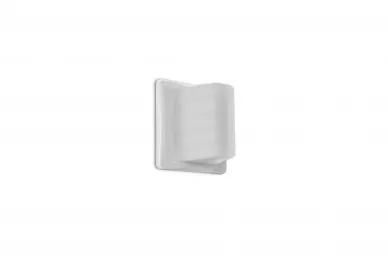

Gorke BSO-300 Optical and acoustic alarm

The BSO-300 optical and acoustic alarm is dedicated to medical Emergency Call Systems. It is intended for surface mounting and on a 60 mm box.

Features:
  • strong light sources (40 LEDs) ensure clear signaling also in strong external lighting conditions (above 500 lux)
  • smooth regulation of light and sound intensity
  • assigning remote controls to two different signaling modes - P Mode / C Mode
  • programming the reset keys of Mode P - Mode C or both Mode P and C
  • two night modes: turning off the acoustics / lowering the brightness
  • storage of the siren state in the event of a power failure
The small dimensions of the signaling device (80x80x60mm) and the fact that it does not light up when there is no alarm (it is white) mean that when installed it becomes a discreet element of the system. In situations where it is important to minimize elements in the environment of some patients that may cause discomfort or even panic, these are valuable parameters.

The operation of the siren is controlled by sending signals from remote controls, transmitters or buttons that have been programmed into its memory. The way the siren responds to each learned device (remote control, button) is determined by selecting the type of learning used when programming it.

Types of signaling:
  • P MODE (pulse)
    • light 0.5s / break 0.5s / light 0.5s ...
    • sound 0.5s / pause 0.5s / sound 0.5s ...
  • MODE C (continuous)
    • continuous light
    • sound 0.5s / pause 15s / sound 0.5s ...


TECHNICAL DATA:
  • power supply: 12V DC (10 - 15V DC)
  • current consumption - in standby: 22 mA
  • current consumption - acoustics (min) - optics (max): 120 mA
  • current consumption - maximum: 180 mA
  • frequency: 433.92 MHz
  • encoding: variable code
  • memory capacity: 32 keys
  • receiving module: heterodyne H1; sensitivity -108 dBm
  • sound: 2450 Hz / adjustable 0-82 dB
  • light source: smooth regulation. brightness (40 x LED)
  • light color: red
  • operating modes: day I / day II / night I / night II
  • housing color: white
  • cooperation: sA series remote controls and transmitters
  • operating temperature: -10 ÷ +55 ºC
  • humidity (max): 93 ± 3%
  • dimensions: 80x80x60mm
  • weight: 67 g
