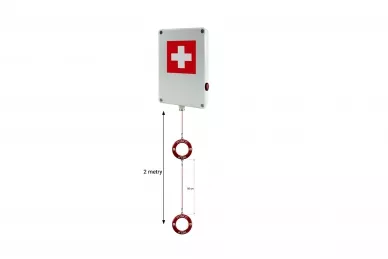

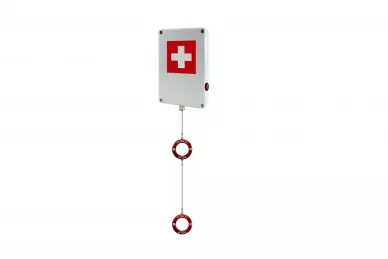

Gorke PNH-201SC towed transmitter with reset

Gorke PNH-201SC pull transmitter with reset button

PNH-201SC is a 1-channel transmitter with a reset button, dedicated to the Calling System. The main purpose of the device is to install in bathrooms, saunas, or swimming pools.
The PNH-201S has a hermetic housing, which allows it to work in an environment with high humidity or in cold rooms (brines).

The transmission is repeated at intervals of 40s until manually deleted with the delete button.
Pressing the key causes transmissions with code 1, which are repeated by 20 minutes in 40 second increments until canceled with the button on top of the housing; pressing the delete button sends radio transmission code 2; if for 20 minutes after pressing a key if the reset button is not pressed, the transmission cycle will end automatically after 20 minutes - the signal with the key code will be sent as the last one 2; the LED located on the front surface flashes from the moment pressing the main key until cleared or until the end of the cycle repetition; pressing the key during the 20 minute timer no causes its lengthening; pressing the delete button out of mode the 20-minute timer does not trigger any transmission.

The transmission is based on a rolling code ensuring high security use and immunity to radio signals from other devices. Each transmitter has its own individual code. The receiver only responds to these transmissions that come from transmitters programmed into its memory. The transmitter can be programmed to an unlimited number of receivers.

TECHNICAL DATA:

• frequency: 433.92 MHz
• transmission power: ≤+8 dBm
• encoding: rolling code
• power supply: 12V/MN21, 23A battery
• range:
• • 200 m – with a receiver with H1 module (e.g. RSU)
  • 400 m – with a receiver with H2 module (e.g. OPC)
• cooperation: any sA series receiver
• operating temperature: -10 ÷ +55 °C
• humidity: max. 93% ± 3%
• dimensions: 130 x 80 x 35
