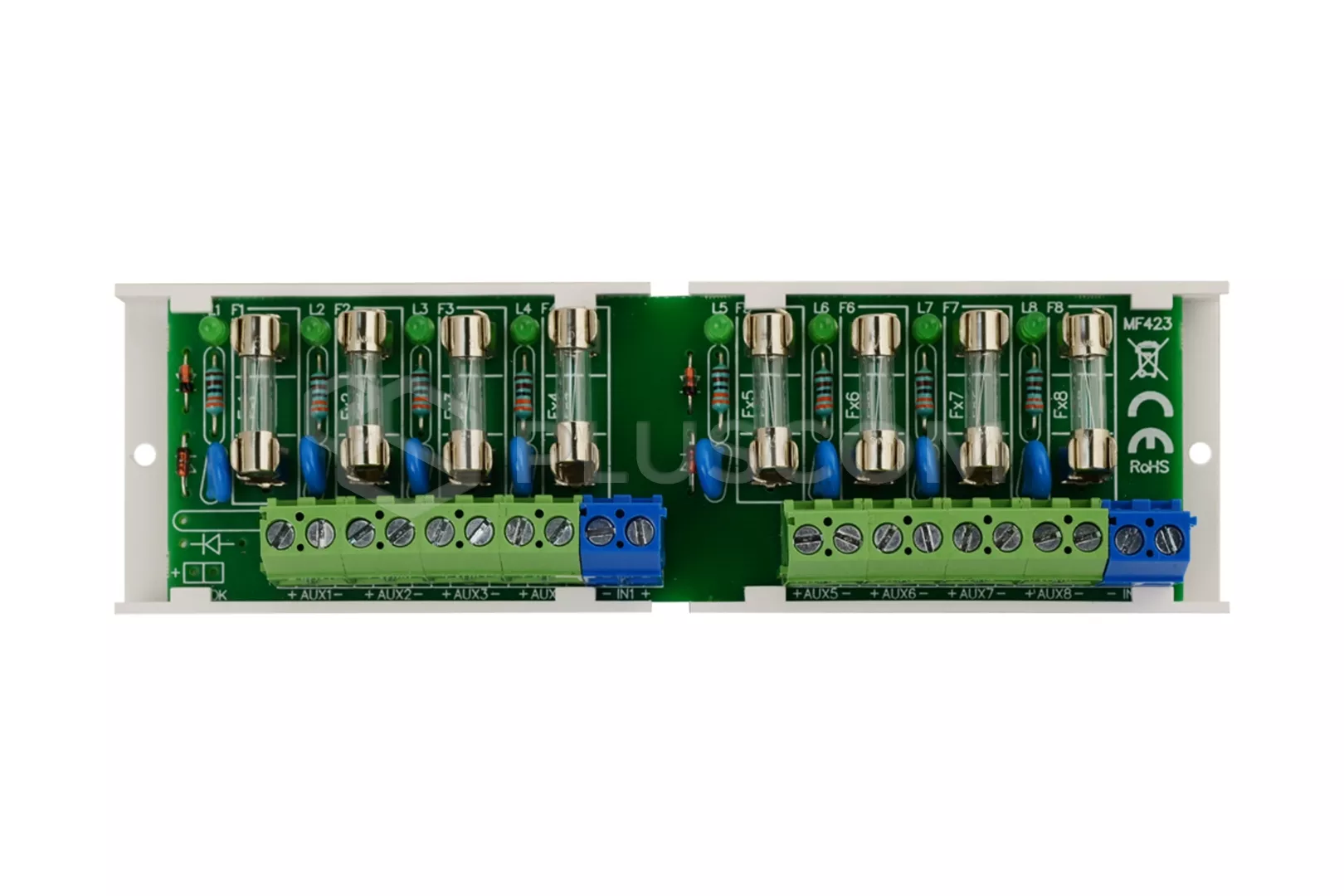

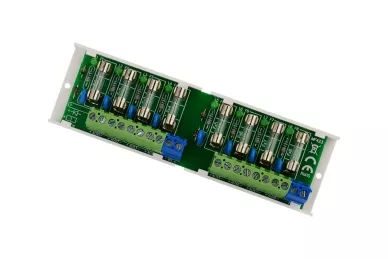

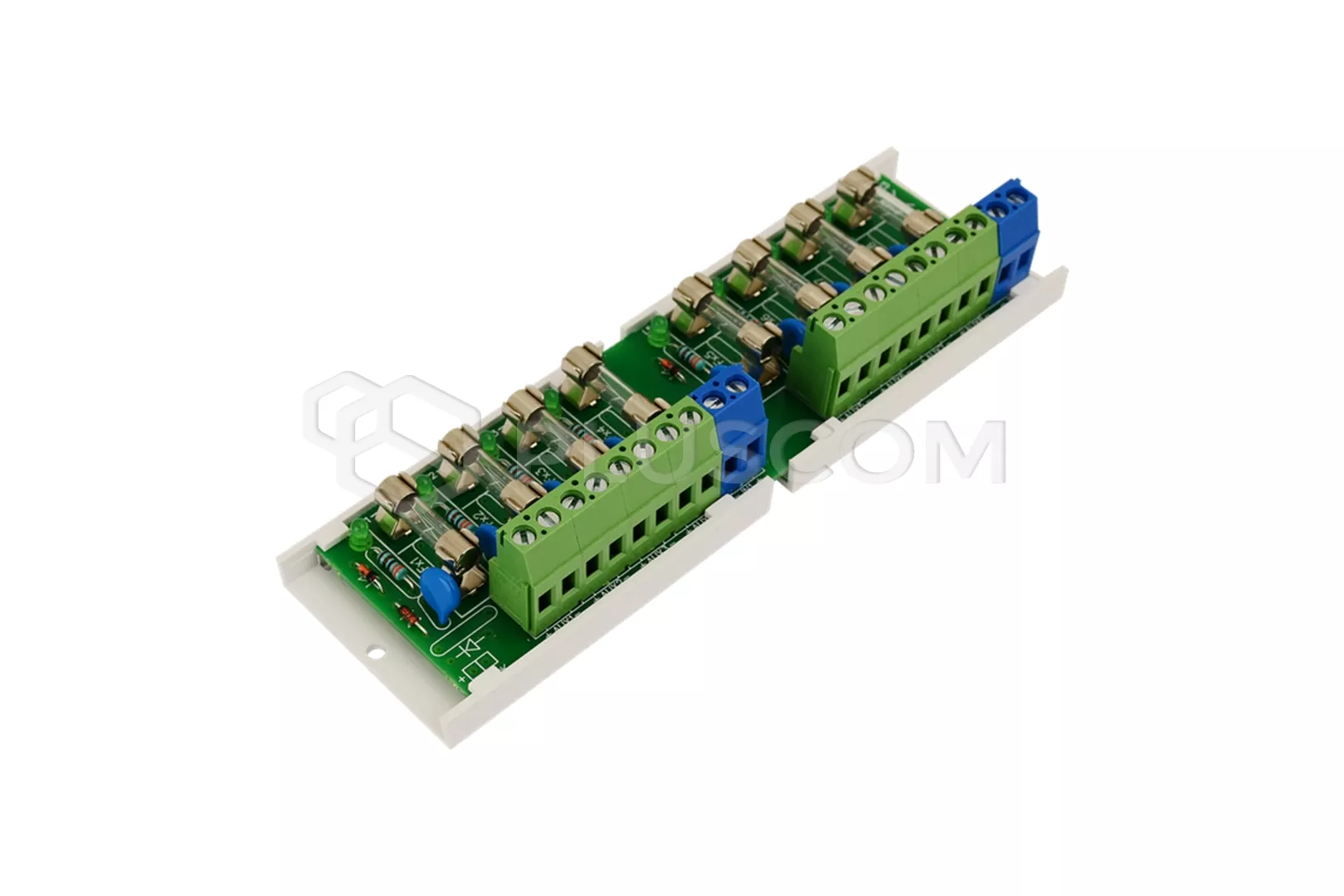

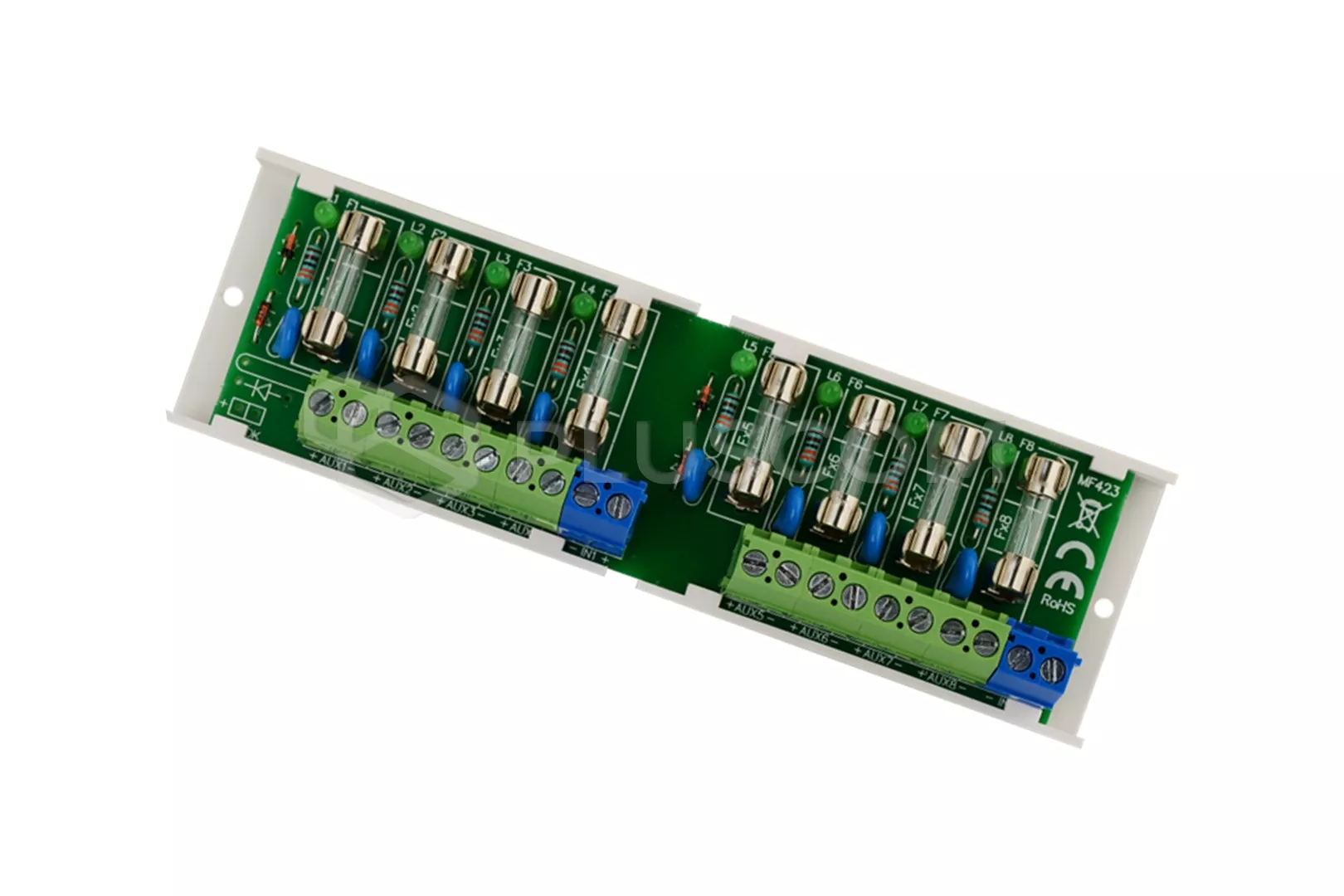

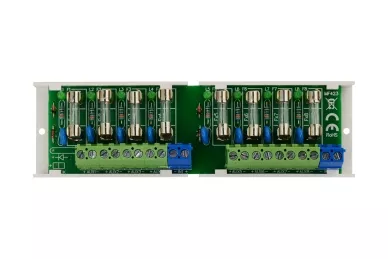

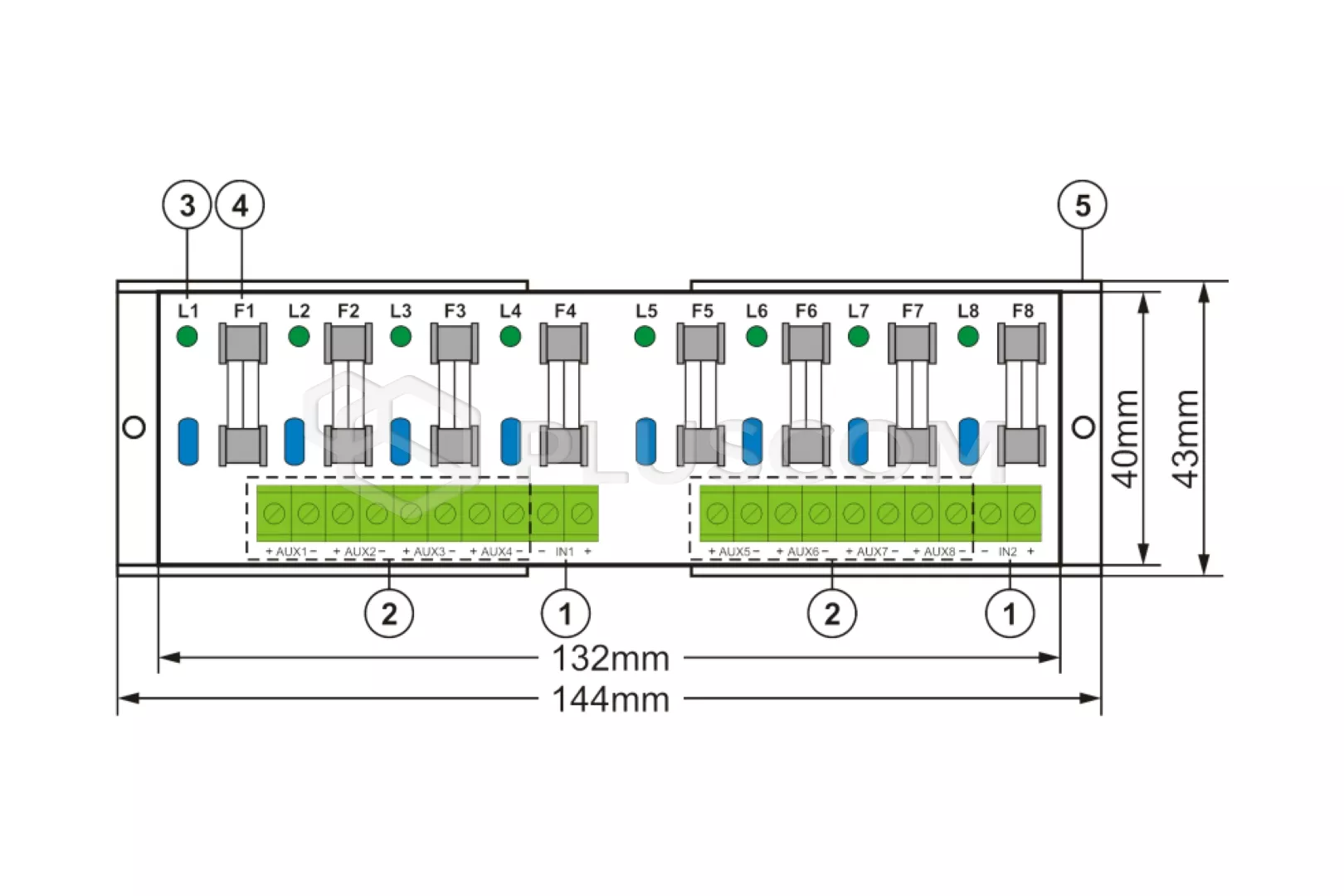

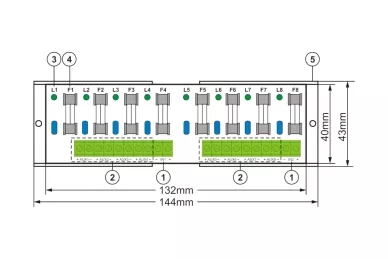

Fuse module Pulsar AWZ598 8x1.5A

Pulsar AWZ598 - fuse module, a power distribution module

The LB8/8x1.5A/2.5/FTA fuse module is designed for power distribution in low-voltage systems requiring voltage of 10V÷30V DC or 10V÷24V AC (e.g. buffer power supply, transformer etc.). It is fitted with 2 power inputs and 8 independent power paths protected with 1.5A fuses. Fuse activation is indicated by switching off the appropriate LED: L1 for AUX1, L2 for AUX2 etc. Additionally, each output is protected with a varistor protecting the power supply and receivers against surges in the supply system. The module is adapted for connection of cables with a maximum cross-section of
2,5mm2.
Protections against:

• a short circut SCP
• an overload OLP
• a surge


The module board is mounted on a plastic base plate, which can be mounted to a flat substrate by means of two screws ø3mm or integrated adhesive tape.

TECHNICAL PARAMETERS:

• supply voltage range: 10-30VDC / 10-24VAC
• output voltage: Uaux = Uin ( equal to supply voltage )
• power consumption: 8mA-60mA 10-30V DC
• power inputs: 2 (IN terminals) – max. 2.5mm2 cable

• number of outputs: 8 (AUX terminals) – max. 2.5mm2 cable
• fuse: 8x1.5A fuse

• operating temperature: -10°C..50°C
• dimensions: 144x43x26mm
• weight: 0.14kg
