Fuse module Pulsar AWZ589 4x2A

Pulsar AWZ588 - fuse module, a power distribution module

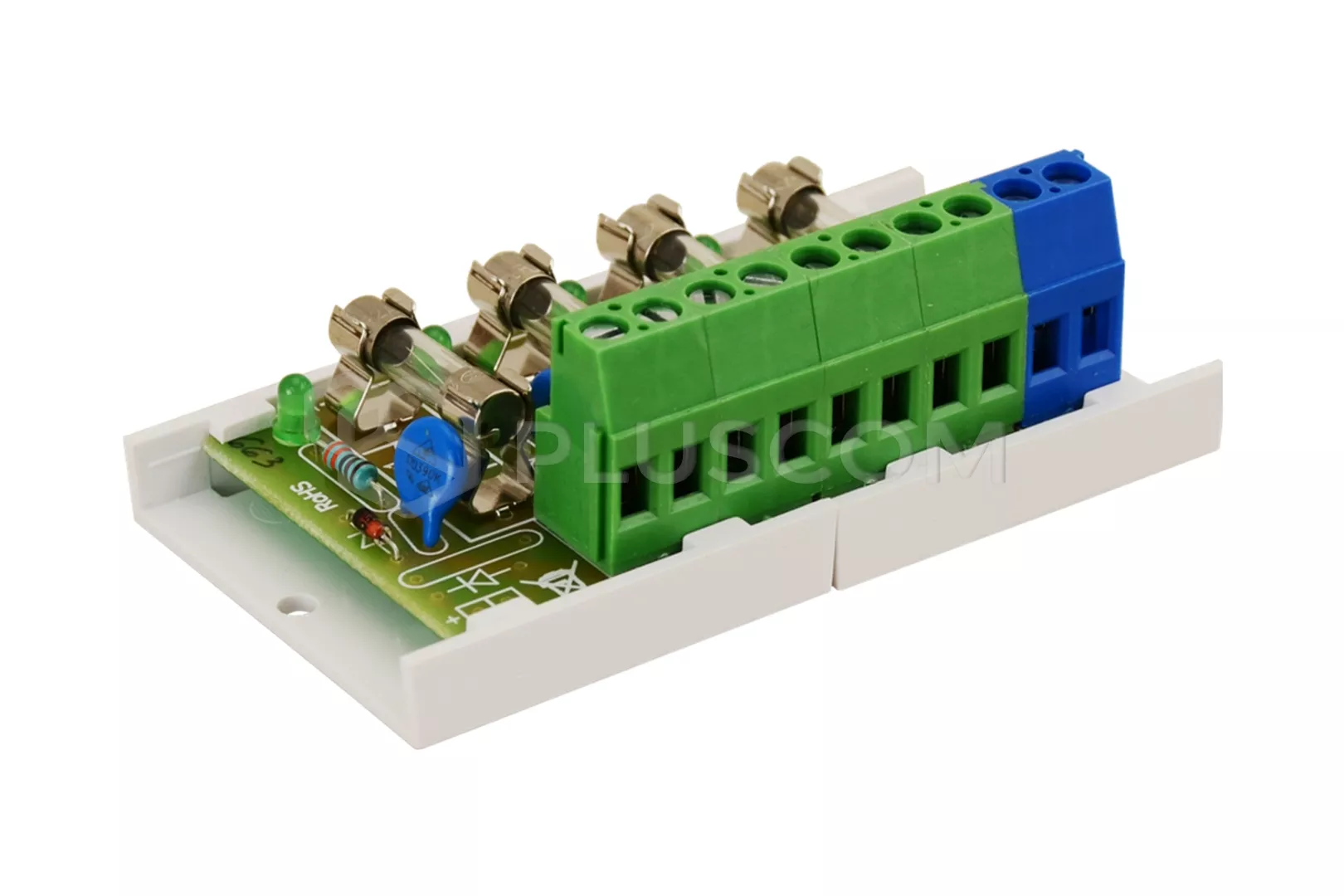

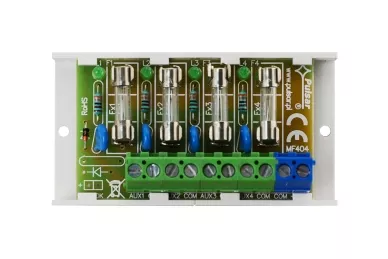

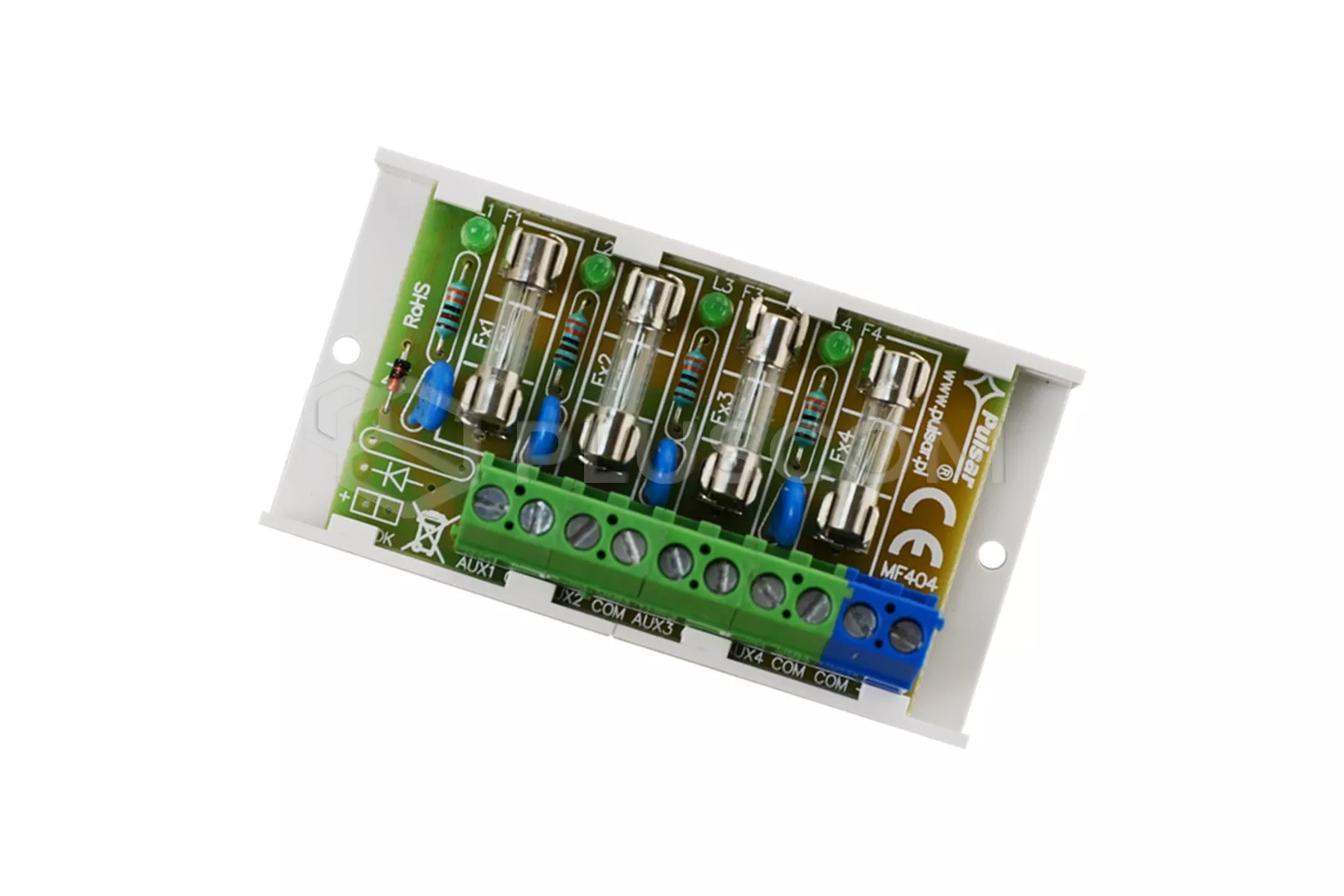

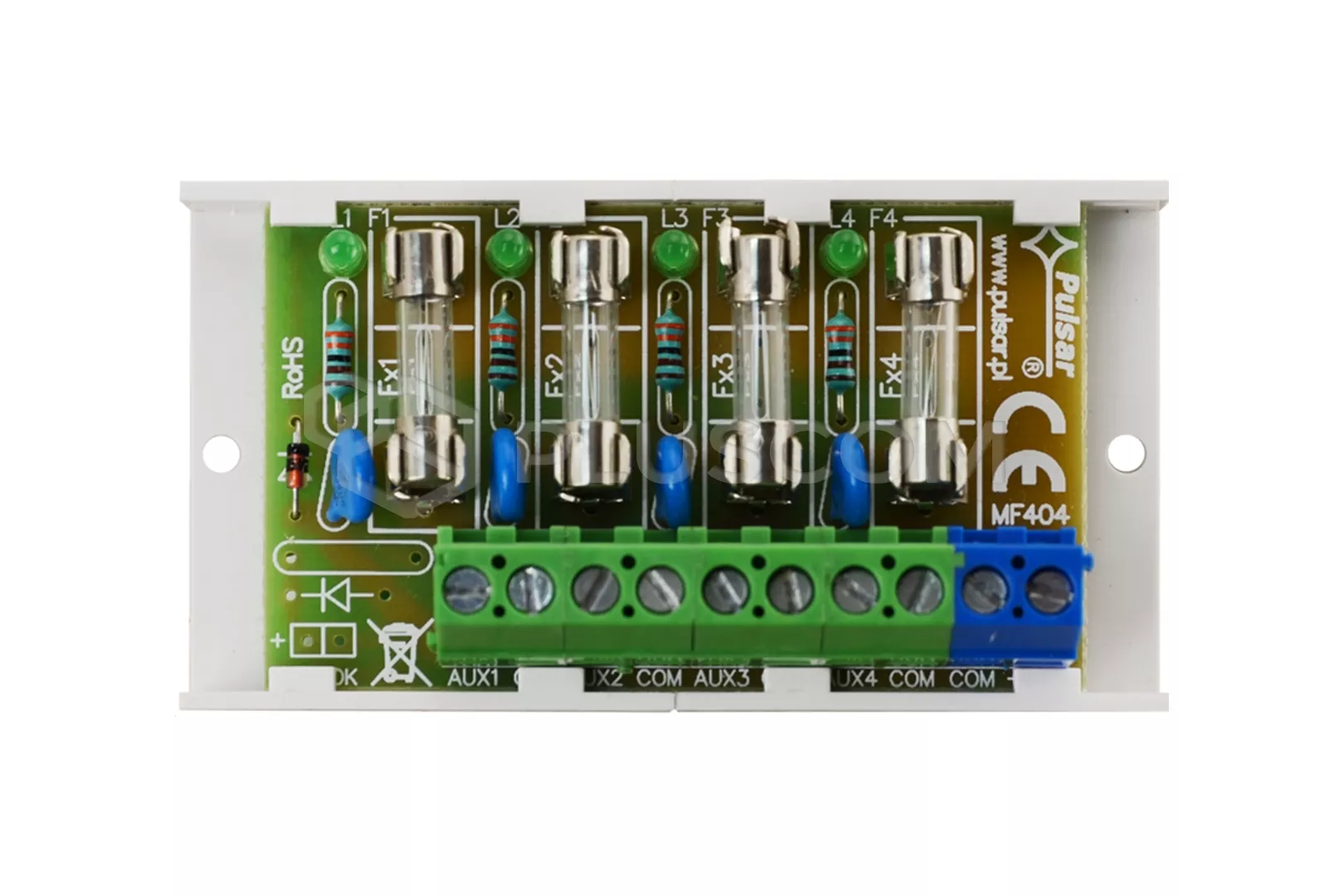

The LB4/4x2A/2.5/FTA fuse module is designed for power distribution in low-voltage systems requiring voltage of 10V÷30V DC. It is fitted with the IN input for power supply and 4 AUX1÷AUX4 power supply outputs independently protected with 2A fuses. Fuse activation is indicated by switching off the appropriate LED: L1 for AUX1, L2 for AUX2 etc. Additionally, each output is protected with a varistor protecting the power supply and receivers against surges in the supply
system. The module is adapted for connection of wires with a maximum cross-section of 2,5mm2.

Protections against:

• a short circut SCP
• an overload OLP
• a surge


The module board is mounted on a plastic base plate, which can be mounted to a flat substrate by means of two screws ø3mm or integrated adhesive tape.

TECHNICAL PARAMETERS:

• supply voltage range: 10-30VDC
• output voltage: Uaux = Uin ( equal to supply voltage )
• power consumption: 5mA-30mA 10-30V DC
• power inputs: 1 (IN terminals) – max. 2.5mm2 cable

• number of outputs: 4 (AUX terminals) – max. 2.5mm2 cable
• fuse: 4x2A fuse

• operating temperature: -10°C..50°C

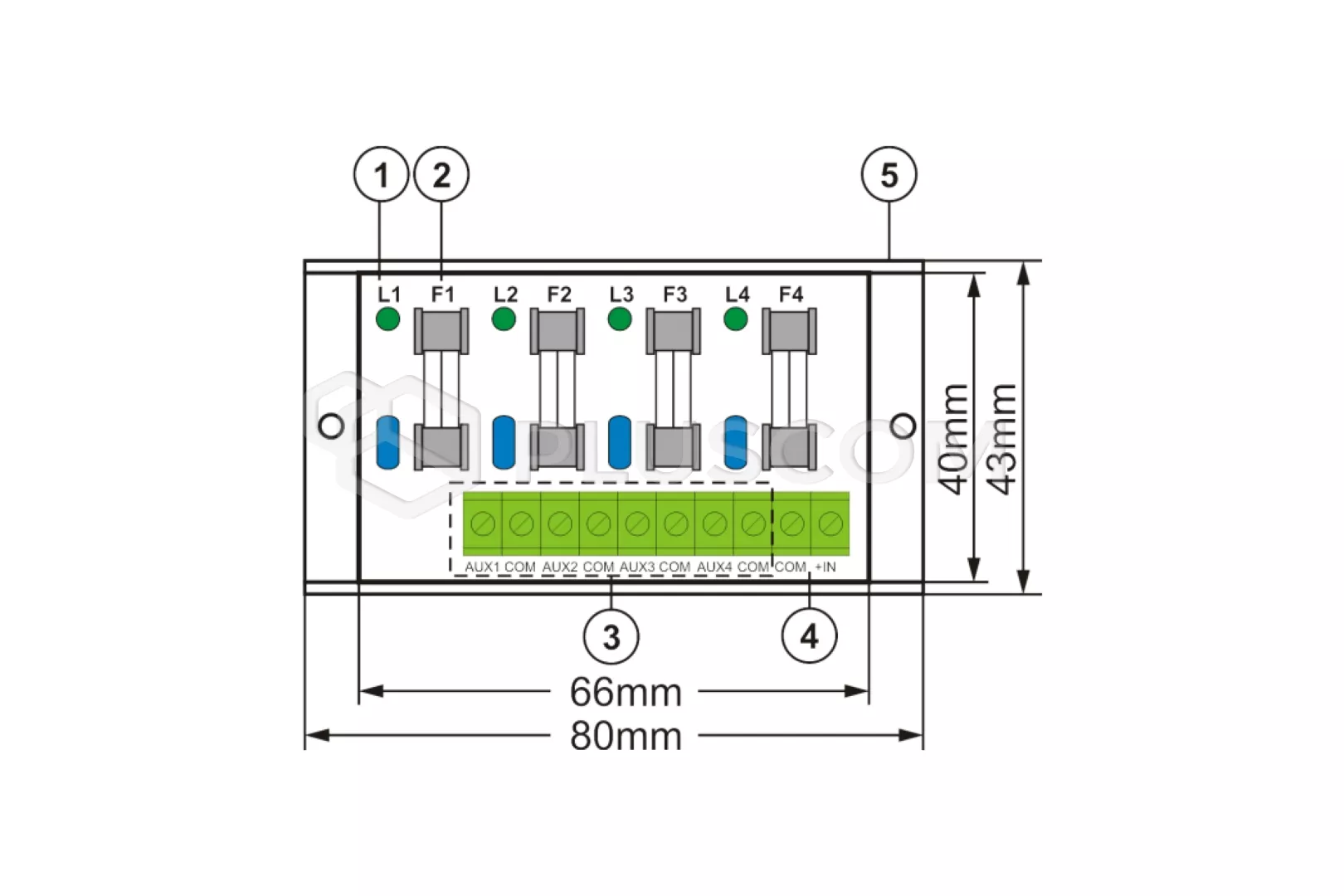

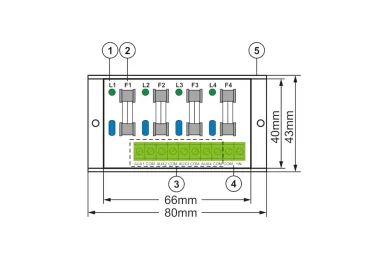

• dimensions: 80x43x30mm
• weight: 0.07kg
