Fadini K115.6L NYOTA 115 EVO Kit for sliding gates weighing up to 1800
kg

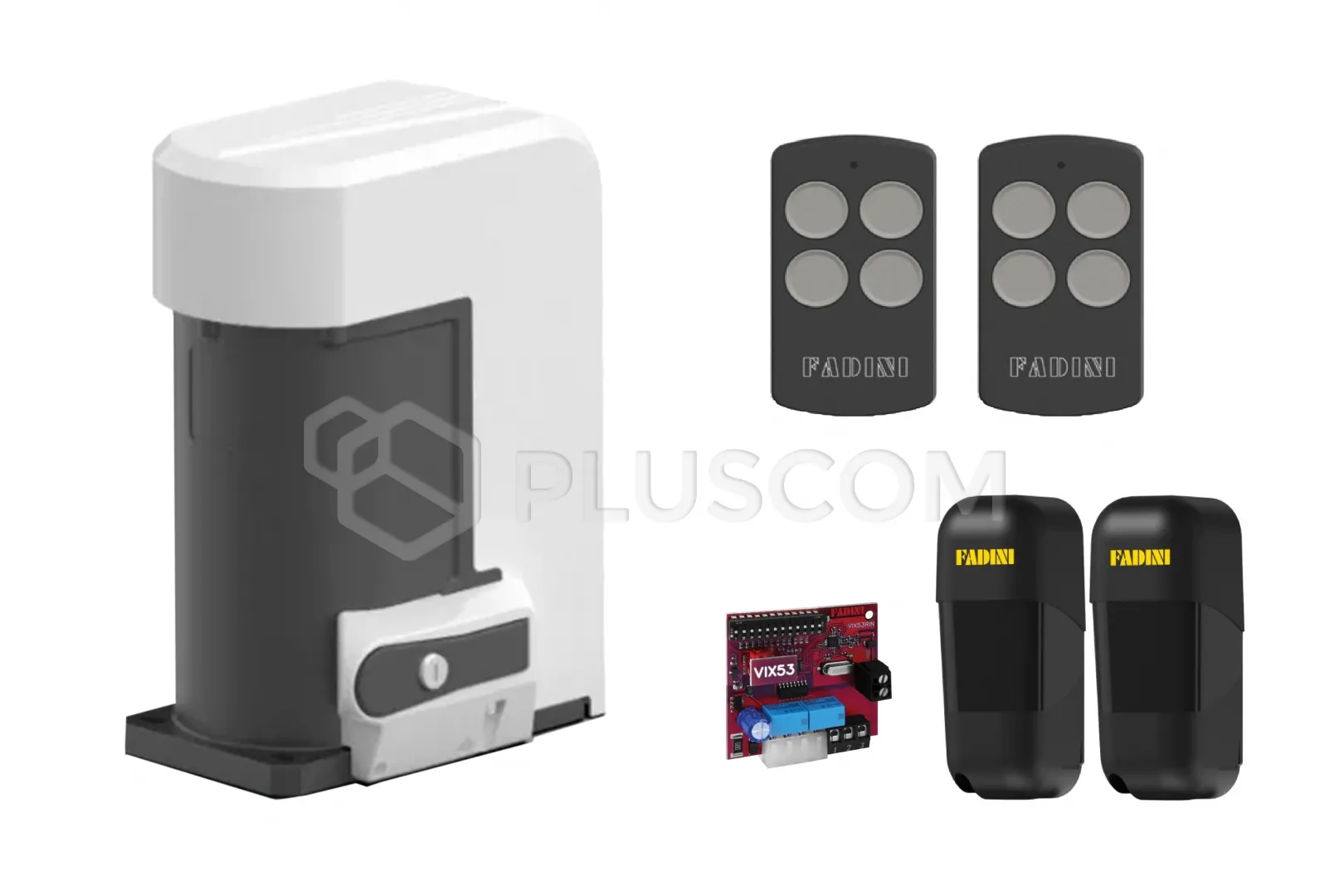

Kit includes:
|
Fadini K115.6L NYOTA 115 EVO kit for sliding gates up to 1800kg
|
The actuator is powered by 230 V, equipped with an oil-bath worm gear
and a bronze gear wheel mounted on ball bearings.
Additionally, the aluminum construction and housing provide a full long-term
warranty.
The NYOTA 115 is a safe drive equipped with an electronic brake, acceleration
and deceleration with each movement, and an anti-crushing system thanks to the
combined action of an encoder and amperometric obstacle detection, to reverse
the direction of movement.
The actuator is unlocked using an aluminum lever with a key. The control unit
can be mounted inside the NYOTA 115 EVO or placed externally in its own
polycarbonate housing. Programming the gate's movement is possible with a
single button. Master/slave function for automating two gates with opposing
wings.
The Fadini VIX 53/4 TR remote control is a 4-channel radio
remote control operating at a frequency of 868.19 MHz and uses rolling code
technology, ensuring a high level of security. Compact and ergonomic, it allows
remote control of up to four devices.
The remote control uses bidirectional radio signal transmission with feedback
to the transmitter when the radio signal has been received. bezprzewodowa
/przewodowa, możliwość synchronizacji
ORBITA 57 Rotating photocells with synchronization option
ensuring safety complies with the EN 12453 standard. The cover is made of
highly weather-resistant ABS plastic. The photocells are quick and easy to
install, provide a range of solutions for protecting your home and can be
connected to a safety edge.
They have a relay output for connection to any ELPRO series control unit or an
existing installation.
The set also includes
VIX 53/2 R - a universal, 2-channel internal
radio receiver.
TECHNICAL DATA:
- Power supply: 230V - 50Hz
- Max. power consumption: 1.130W
- Max. Current consumption: 5.7A
- Power output: 0.73 kW
- Motor speed: 1,380 rpm
- Capacitor: 30/40 μF
- Nominal torque: 80 Nm
- Travel speed: 10 m/min
- Gear ratio: 1/32
- Operating temperature: -25°C ÷ +80°C
- Motor thermal protection: 160°C
- Limit switch: magnetic
- Protection rating: IP55
- Oil type: 706L
- Weight: 20 kg
