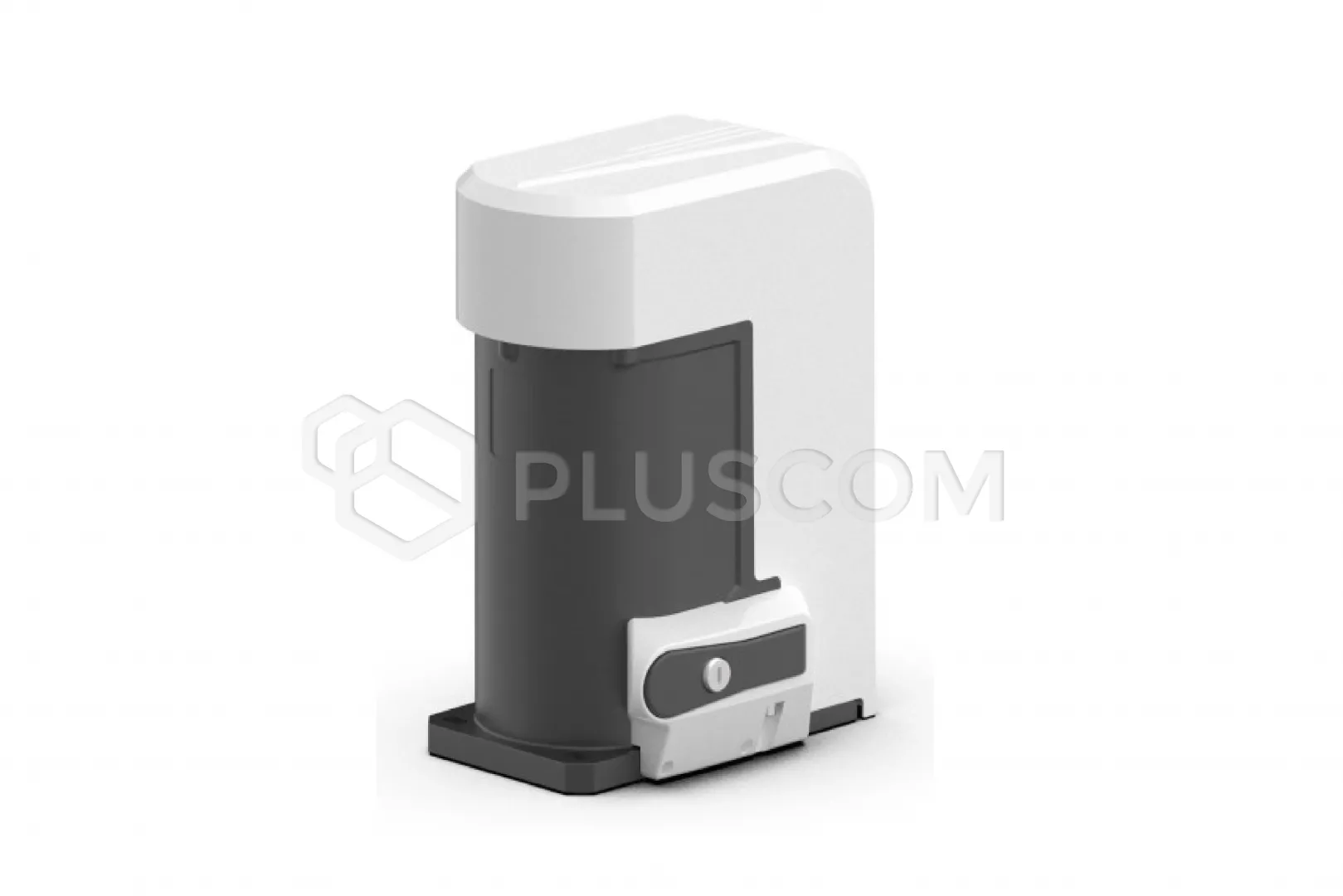

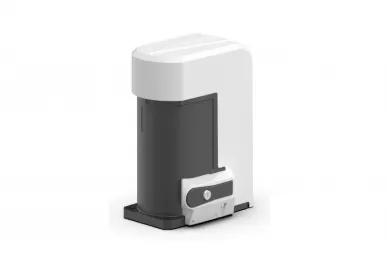

Fadini 1122L NYOTA 115 EVO 1 KM 230V 1PH Sliding gate operator with built-in control unit, encoder and brake up to 1800kg
NYOTA 115 EVO 230V 1PH (0.73 kW / 1 HP) electromechanical gear drive with built-in ELPRO 12 EVO control unit, encoder, and brake for up to 1800 kg for residential and industrial use.
Powerful and elegant
The actuator operates on 230 V and 400 V AC, featuring an oil-bath worm gear and bronze gear wheel with ball bearings.
Reliable
The aluminum construction and housing provide a full long-term warranty. Unlocking is via an aluminum lever with a key.
Safe
Anti-crushing system combines an encoder with amperometric obstacle detection to reverse movement. Electronic brake, acceleration and deceleration with every movement.
Universal
A full range of models with various types of electric motors.
The control unit can be mounted inside the NYOTA 115 EVO or placed externally in its own polycarbonate housing.
Program gate movement with a single button. Master/slave function for automating two gates with opposing leaves.
Tested and certified
CE marking.
RT DATA
Real-time control system capable of quickly responding to any possible external events (weather conditions, temperature, mechanical friction, etc.) that could compromise the proper operation of the system.
The microprocessor's data processing speed allows the control unit to increase the contact force (motor torque) to properly close and open the gate leaf while maintaining safety conditions.
This real-time reading process is designed to provide effective support to the installer during system adjustments.
Self-locking device
A hydraulic actuator with a self-locking device that slows down the movement of the gate leaf. Depending on the model, it operates during the opening, closing, or both phases.
An electromechanical actuator equipped with an electronic brake and a slowing system during the opening and closing of the gate leaf.
Technical Specifications:
- Power Supply: 230V - 50Hz
- Max. Power Consumption: 1130W
- Max. Current Consumption: 5.7A
- Power Output: 0.73 kW
- Motor Speed: 1,380 rpm
- Capacitor: 30/40 μF
- Nominal Torque: 80 Nm
- Movement Speed: 10 m/min
- Gear Ratio: 1/32
- Operating Temperature: -25°C ÷ +80°C
- Motor Thermal Protection: 160°C
- Limit Switch: Magnetic
- Stage Protection: IP55
- Oil type: 706L
- Weight: 20 kg
- Frequency of use: very intensive
