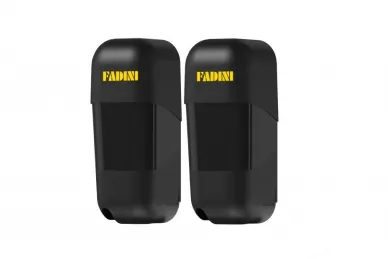

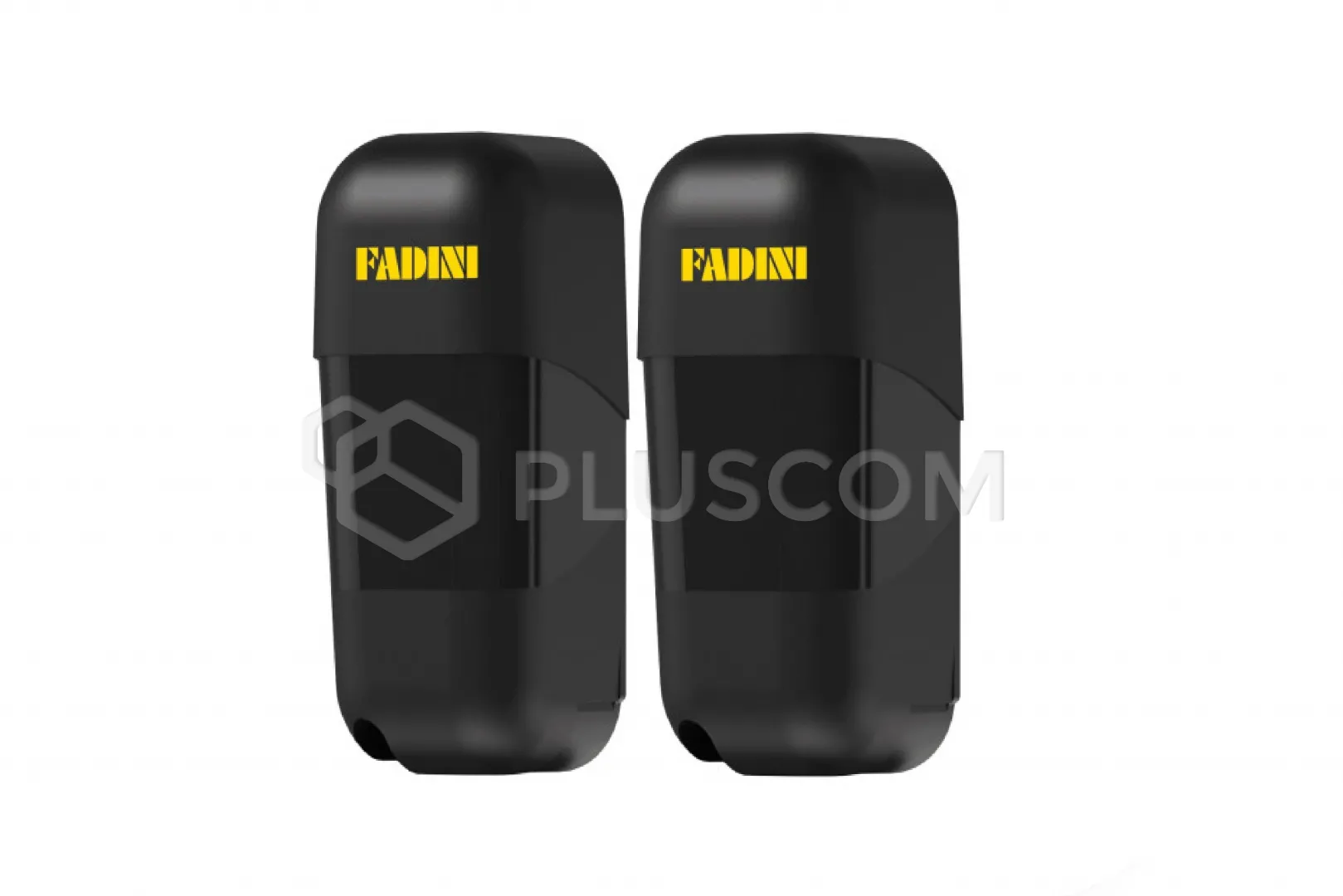

Surface-mounted rotating photocells with synchronization option ORBITA 57 - safety device compliant with EN 12453, equipped with one receiver and one transmitter (wired).

IDEAL

A range of solutions in one photocell: rotation up to 200°, wireless/wired, synchronization option. ABS plastic cover with high resistance to weather conditions. Practical and quick to install.

SYNCHRONIZATION

Possibility to install up to 7 pairs of photocells to create a protective barrier free from interference. Possibility of connecting to a safety edge, which allows to achieve the level of safety required by the EN 12453 standard.

SAFE

Range 15 m, 6 m when powered by a battery. Relay output enabling connection to any control unit from the ELPRO series or an existing installation. Power supply voltage 12 or 24V AC/DC or 2 AAA batteries with a voltage of 1.5V.

Technical data:

• Power supply: 2x 1.5AAA - 12/24V
• Transmitter current consumption: 11mA – 55μA (battery powered)
• Receiver current consumption: 16 mA
• Protection class: IP55
• Operating temperature: -20°C / +80°C
• Range: 6 m (battery powered), 15 m*
• Adjustment range: 200°
• Relay contact load capacity: 1A/125Vac - 60VA
• Battery life: approximately 2 years
• Recommended cable cross-section: 0.5 mm²

*The distance is reduced by about 30-50% in the case of fog, rain or dust.
