Fadini JUNIOR 624 K624.2L Sliding gate kit

Fadini JUNIOR 624 K624.2L Sliding Gate Kit

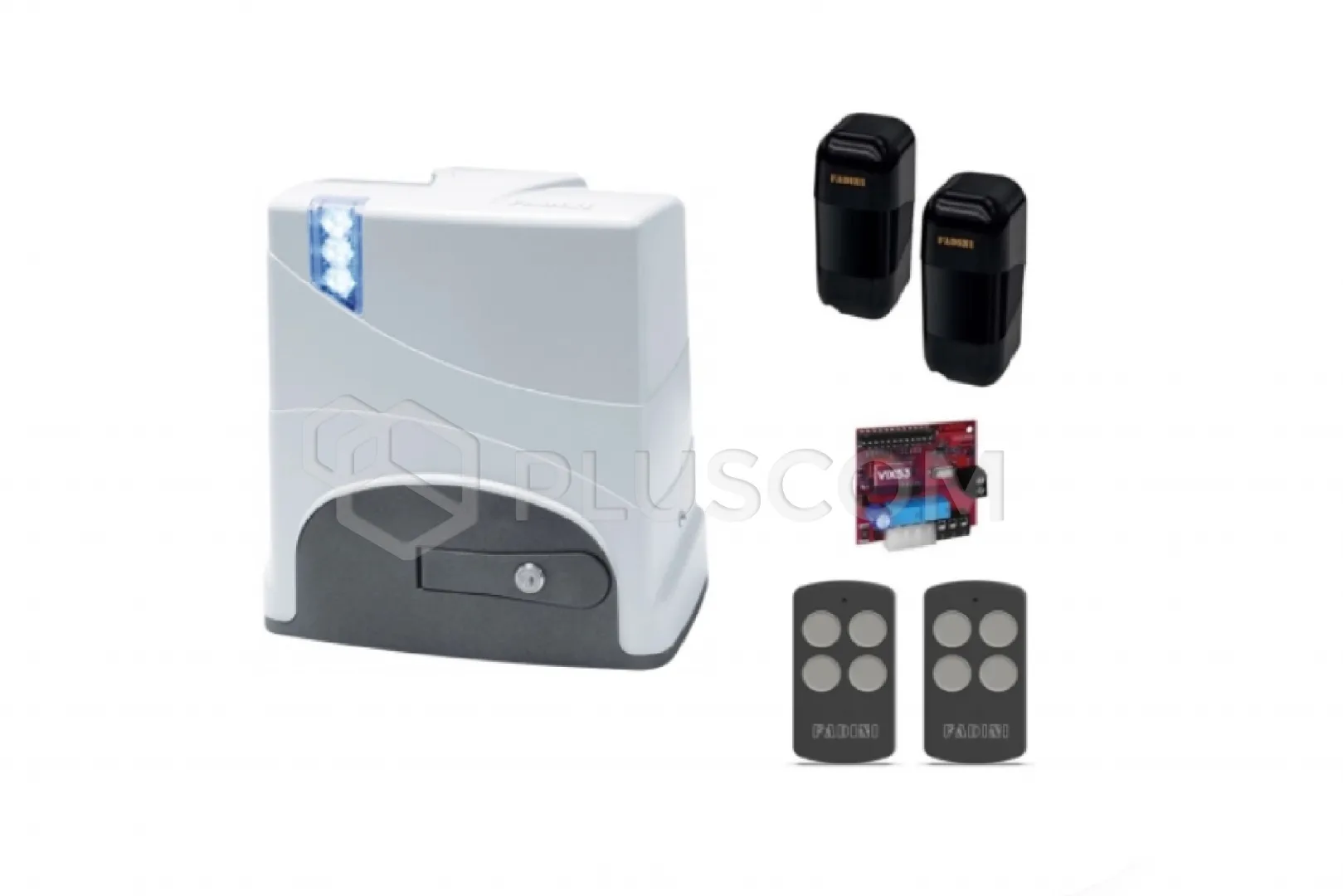

The kit includes: Motor for sliding gates weighing up to 400kg FADINI JUNIOR 624, BUILT-IN ELPRO 64 CONTROL UNIT Pair of adjustable photocells 570L ORBITA 57 Radio receiver 5311L VIX 53/2 R 2x 4-channel remote control, 868.19 MHz graphite 5313SL VIX 53/4 TR

Fadini JUNIOR 624 K624.2L Sliding gate kit

DESIGN

Modern design with blue LED on the housing to identify the automation status.

SILENT

24 V DC gear motor, equipped with a worm gear in an oil bath and a plastic pinion, on ball bearings.

INTUITIVE AND SAFE

Programming of the gate movement with a single button, acceleration and deceleration with each movement. Magnetic limiter.
Anti-crushing system thanks to the combined action of the encoder and amperometric obstacle detection, designed to reverse the direction of movement. Unlocking by means of an aluminium lever with key.

UNIVERSAL

For the automation of two gates with opposite wings by selecting the master/slave function in ELPRO 64.Suitable for power supply by batteries in the event of a power failure.

TESTED AND CERTIFIED

Complies with European standards EN 12445 and EN 12453 and CE marking.

Technical data:

• Power supply (Vac – Hz): 230 - 50
• Motor voltage (Vdc): 24
• Max. power consumption (W): 220
• Max. current consumption (A): 6.3
• Max. torque (N): 400
• Engine speed (rpm): 3.000
• Speed (m/min): 12
• Gear ratio: 1:61
• IP protection class: 54
• Oil type: 706L
• Operating temperature (°C): -20 ÷ +50
• Weight (kg): 11
• Use frequency: intensive
