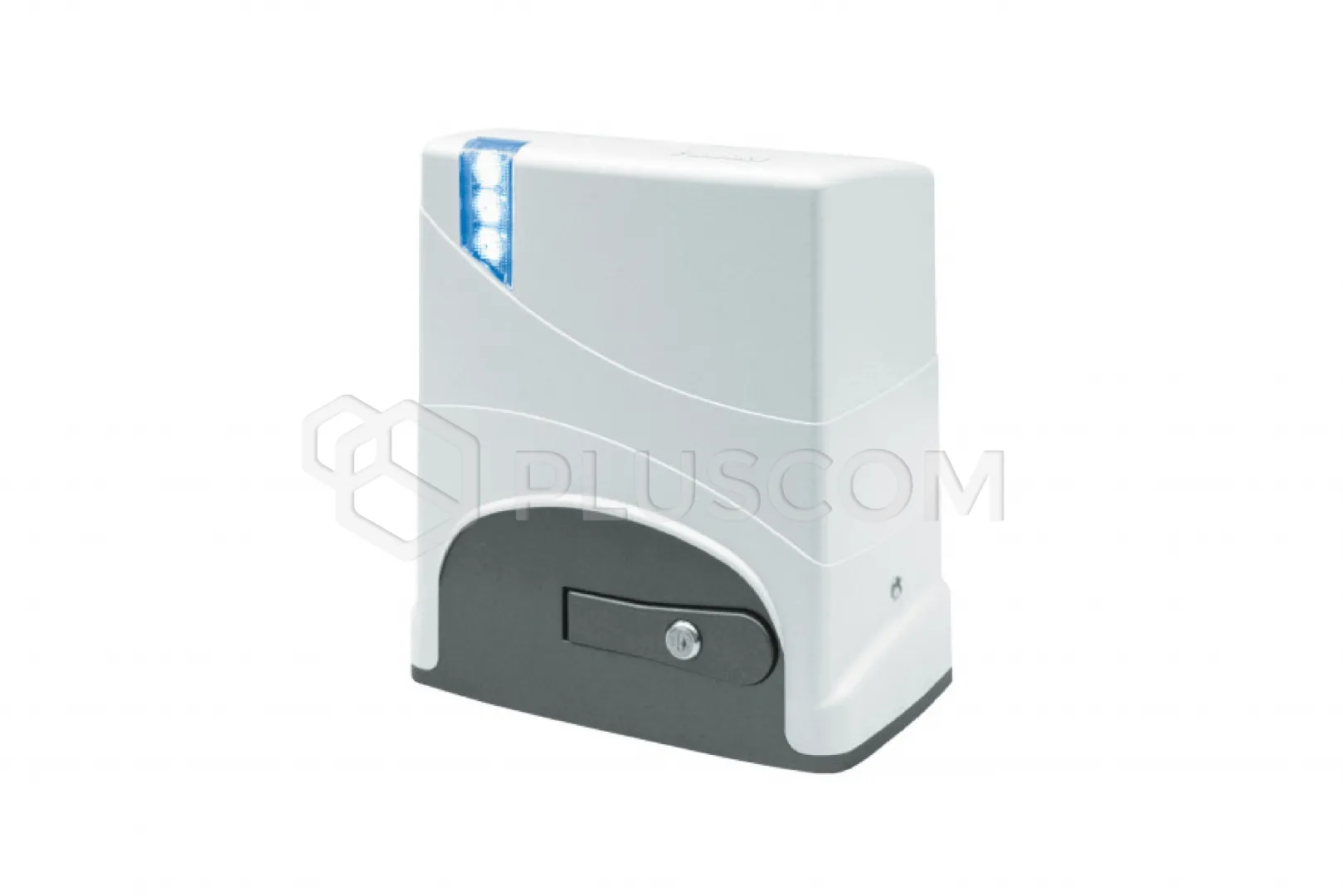

FADINI JUNIOR 624 24V sliding gate operator with built-in control unit up to 400 kg
JUNIOR 624 24V electromechanical gear operator with built-in ELPRO 64 control unit, up to 400 kg, for residential use.
An encoder for anti-crush safety, a gear for the rack, a mounting plate with ground anchors, two keys for emergency opening, a magnetic limit switch, and a pair of limit switch brackets.
Design
Modern design with a blue LED on the housing to indicate the automation status.
Quiet
24V DC gear motor equipped with an oil-bath worm gear and a plastic gear wheel mounted on ball bearings.
Intuitive and safe
Gate movement programming with a single button, acceleration and deceleration with each movement. Magnetic limit switch.
Anti-crushing system using a combined encoder and amperometric obstacle detection to reverse movement.
Unlocks using an aluminum lever with a key.
Universal
For automating two gates with opposing leaves by selecting the master/slave function in ELPRO 64.
Battery-powered in the event of a power failure.
Tested and certified
Complies with European standards EN 12445 and EN 12453 and CE marking.
Battery
Wireless battery-powered.
Safety device with automatic testing function
Automatic testing technology for photocells connected to the system.
If any fault is detected in a given photocell, the system will cease operation until the problem is detected and corrected.
This solution guarantees a high level of safety.
Device with automatic testing function - safety edges
Safety edge control technology integrated into the system (meets the requirements of the EN 12978 and EN 13849-1 standards).
The actual consistency and correct operation of the safety system are constantly monitored using a dedicated and separate microcontroller installed on the board.
Any malfunctions or loss of performance will be signaled by the continuous flashing of the diagnostic indicator lights on the safety edges.
Self-locking device
A hydraulic actuator with a self-locking device that slows down the movement of the gate leaf, operating, depending on the model, during the opening phase, closing phase, or both.
Electromechanical actuator equipped with an electronic brake and slow-down system during gate opening and closing.
RT DATA
Real-time control system capable of quickly responding to any possible external events (weather conditions, temperature, mechanical friction, etc.) that could compromise the proper operation of the system.
The microprocessor's data processing speed allows the control unit to increase the pressure force (motor torque) to properly close and open the gate leaf while maintaining safety conditions.
This real-time reading process is designed to provide effective support to the installer during system adjustments.
LED DIODES
LED technology saves up to 95% energy and provides up to 50 times longer lifespan compared to incandescent lamps.
High brightness and visibility. Environmentally friendly, meeting the requirements of Directive 2005/32/EC.
Electromechanical Technology
The actuator uses a motion transmission system using an electric motor and a speed reducer (worm and gear).
Technical Specifications:
- Power Supply: 230V - 50Hz
- Motor Voltage: 24V
- Max. Power Consumption: 220W
- Max. Current Consumption: 6.3A
- Max. Torque: 400 N
- Motor Speed: 3,000 rpm
- Speed: 12 m/min
- Gear Ratio: 1:61
- Protection Rating: IP54
- Oil Type: 706L
- Operating Temperature: -20°C ÷ +50°C
- Weight: 11 kg
- Use Frequency: Intensive
