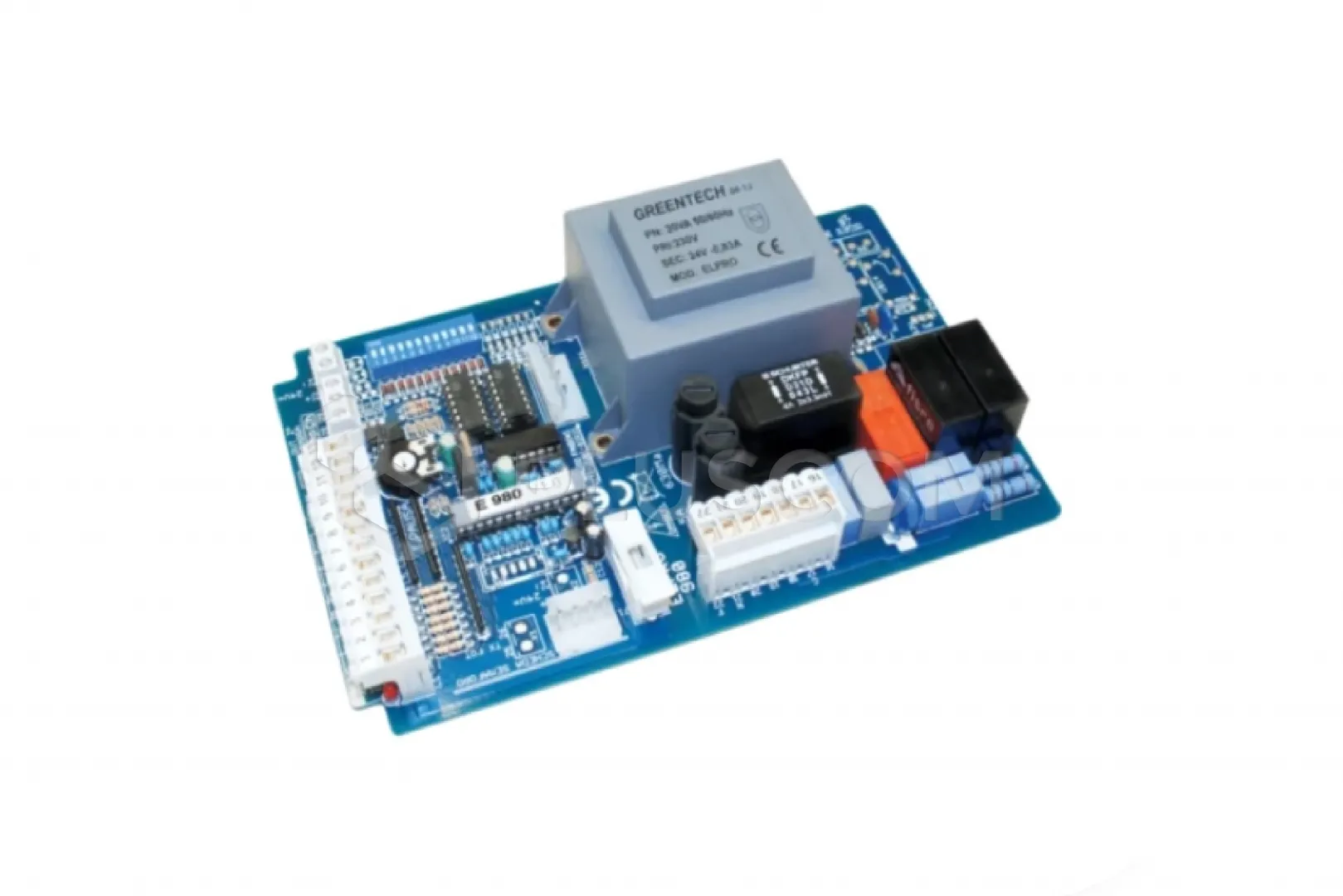

Fadini 9899L ELPRO 980 control unit for BAYT 980

280,23 EUR including 23.00% VAT
Product code: #37279
Manufacturer: Fadini
  • Power supply: 230V AC
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fadini BAYT 980 9895SXL Manual automatic barrier left side Fadini BAYT 980 9895DXL Manual automatic barrier right-hand side

Fadini 9899L Control unit ELPRO 980 for BAYT 980

COMPATIBILITY

Control unit for BAYT 980.

OPERATION LOGIC

Automatic, semi-automatic, step-by-step mode, obstacle detection function and flashing of the lamp before opening the gate.

BASIC FUNCTIONS

Intuitive adjustment using trimmers and DIP switches: ability to operate two barriers simultaneously (master/slave), external clock, semaphore for up to three lights, automation status signaling. Housing dimensions 235x314x139 mm. IP protection level 53. Operating temperature -20 °C +55 °C.

Technical data:

  • Single-phase power supply (Vac - Hz): 230 - 50
  • Three-phase power supply (Vac - Hz): -
  • Maximum motor power (W): 1,200
  • Additional lighting output (Vac): -
  • Accessories power supply (Vac - mA): 24 - 500
  • Gate status indicator output (Vac - W): 24 - 3
  • DSA control output (Vac - mA): -
  • Warning light output (Vac - W): 230 - 25
  • Motor operating time (s): 25 max.
  • Pause time (s): 0 - 180
  • Gate closing delay (s): -
  • Pedestrian opening time (s): -
