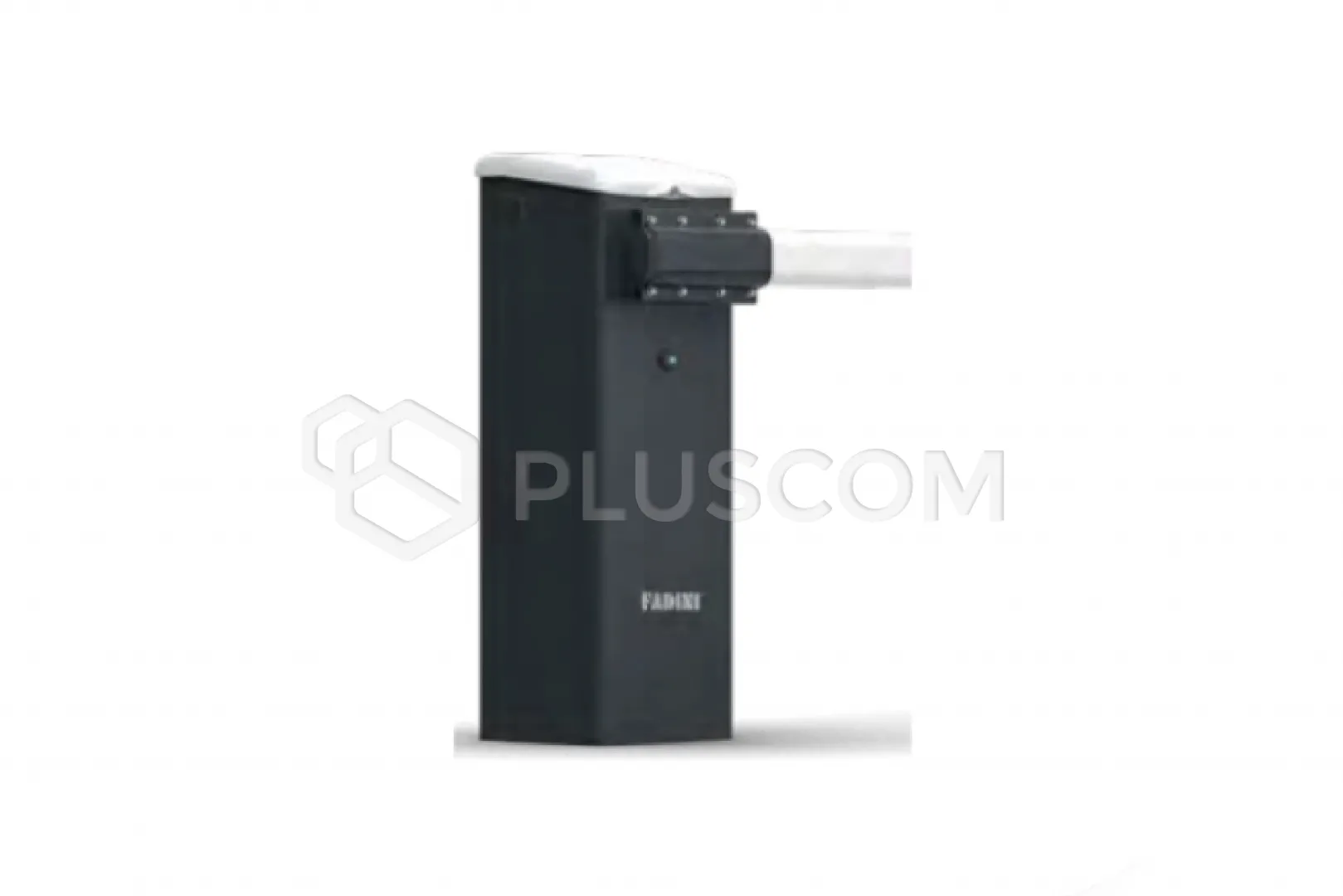

Fadini BAYT 980 9895DXL Manual automatic barrier right-hand side
The ideal barrier for locations where connection to the power supply is not
possible.
The barrier body can be protected with cataphoresis and covered with a
polyester powder coating in two colours: graphite RAL 7016, while the top cover
and door are textured grey 9006 SW3061, or made of brushed AISI 304 stainless
steel.
It is possible to transform the manual barrier into an automatic one even at a
later date by fitting it with the COS 982 motor-pump-piston unit.
SOLID
Reinforced structure in powder-coated steel with high weather
resistance or AISI 304 stainless steel. Anodized aluminium arm with oval
cross-section, various dimensions, aluminium connector; high wind resistance.
UNIVERSAL
A wide range of accessories: arm with aluminum curtain, arm
with integrated LED lighting ensuring good visibility at night (flashing
semaphore effect optional), joint for articulated arm enabling installation in
roofed rooms, collar protecting the arm in the event of collision with a
vehicle.
QUICK INSTALLATION
Control unit located in the upper part of the
housing, in a dedicated space designed for this purpose.
"Master/slave" function for operating opposing barriers.
PRACTICAL
Version with manual arm operation (max. length 6.40 m without
aluminum curtain). Ideal for locations where connection to the power supply is
not possible.
Technical data:
- Power supply (Vac – Hz): 230 - 50
- Power consumption (W): 510
- Current consumption (A): 2.4
- Power efficiency (kW – HP): 0.37 - 0.5
- Operating temperature (°C): -20 ÷ +80
- Working pressure (atm): 20
- Max. pressure (atm): 40
- IP protection class: 65
- Oil type: 708L
- Tank volume (l): 2.5
- Weight without beam (kg): 75
- Use frequency: very intensive
