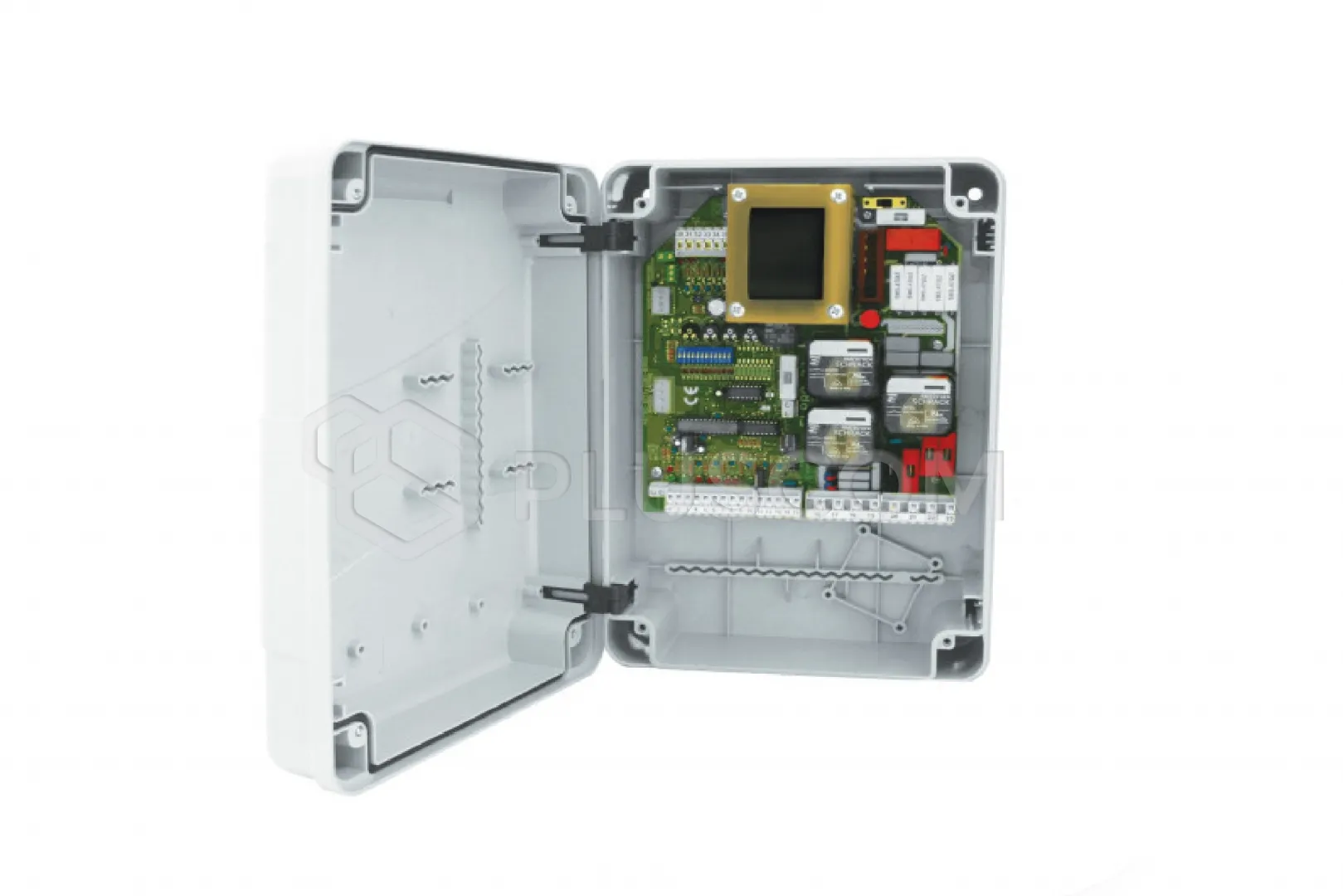

Fadini 7184L ELPRO 37 FN control unit for one actuator with 230/400V power
supply, with position locking brake
ELPRO 37 FN control unit for one actuator with 230V AC 1PH or 230/400V AC 3PH
power supply, with position locking brake for sliding gates.
OPERATION LOGIC
Automatic, semi-automatic, step-by-step mode, obstacle
detection function, wicket function and flashing of the lamp before gate
opening.
BASIC FUNCTIONS
Intuitive adjustment using trimmers and DIP switches:
negative brake (makes the actuator reversible only in the event of a power
failure), electric lock power supply, possibility of connecting an external
clock, automation status signalling. Automatic photocell test (DSA), automatic
safety edge test (DACS), adapted for semaphore installation for up to three
lights. Single-phase and three-phase power supply. Housing dimensions
210x295x110 mm. IP 64 protection level. Operating temperature -20 °C +55 °C.
The control units are entirely designed and manufactured in Meccanica Fadini
plants.
They comply with applicable standards and directives in the field of
electromagnetic compatibility and meet the requirements of any type of
installation: swing gates, sliding gates, automatic barriers, doors,
double-leaf, single-leaf or folding gates, or extendable hydraulic posts.
Each ELPRO control unit has its own logic system adapted to the type of
actuator. Easy programming of various functions.
All boards are equipped with a connector for Fadini radios.
To obtain a door lock on the plastic housing, a voltage cut-off switch equipped
with a lever can be mounted
FEATURES:
- Three-phase power supply: YES
- Photocell operation on opening: YES
- Second pair of photocells input: YES
- Dedicated safety edge input: YES
- Dedicated second safety edge input: YES
- Photocell safety self-test device (DSA): YES
- Safety edge self-test device (DACS): YES
- Electronic brake: YES
- Memorization of remaining motor operating time in interrupted cycles:
NO
- Soft start and deceleration: NO
- Force adjustment: NO
- RT data: NO
- Learning of working times using the remote control: NO
- Slave mode: NO
- Electric lock: YES
- Step-by-step mode: YES
- MOTMAN mode: YES
- Wicket door function: YES
- Pedestrian opening using the remote control: YES
- Change of direction of movement: NO
- External timer: YES
- Gate status indicator: YES
- Automation status indicator: YES
- Semi-automatic mode: YES
- Automatic mode: YES
- Pre-flashing: YES
- No flashing when stationary, automatic mode: YES
- Radio receiver connection: YES
- Residential complex: YES
- Close after photo: YES
- Semaphores: YES
-
Technical data:
- 1-phase power supply: 230V - 50/60Hz
- 3-phase power supply: 400V - 50/60Hz
- Maximum engine power: 750 1PH - 1200 3PH
- Additional lighting output: 12V relay
- Accessories power supply: 24V - 500mA
- Gate status indicator output: 24V - 3W
- DSA control output: 24V - 150mA
- Warning lamp output: 230V - 25W
- Engine operating time: 0 - 120 s
- Pause time: 1 - 220 s
- Gate closing delay: -
- Pedestrian opening time: 1 - 45 s
