Fadini 7155L MEC 200 Manual opening version up to 2000 kg

1488,50 EUR including 20.00% VAT
Product code: #37044
Manufacturer: Fadini
  • Max. gate weight: 2000kg
  • Power supply: 230/400V AC
  • Mechanical limit switch
  • Feed speed: 10 m/min
  • For industrial use
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fadini 207L Galvanized toothed rack M4 30x12x1000 mm with mounting holes Fadini 206L Safety switch with base for cutting off low voltage 24V for MEC 200 drive Fadini 204L Galvanized toothed rack M4 30x8x1000 mm with mounting holes Fadini 7184L ELPRO 37 FN control unit for one actuator with 230/400V power supply, with position locking brake Fadini 2039L Galvanized toothed rack M4 22x22x2000 mm for welding Fadini 7180L ELPRO 37 DS control unit for two actuators with 230/400V power supply with built-in electric brake Fadini 7087L ELPRO 37 control unit for one actuator with 230/400V power supply with built-in electric brake Fadini 706L FADINI UTTO transmission oil canister 2L Fadini 7060L ELPRO 70/3 PLUS control unit for MEC 200 drive Fadini 2098L Gearbox for MEC 200 (vertical version)

Fadini 7155L MEC 200 Manual opening version up to 2000 kg

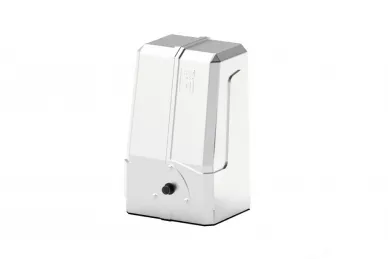

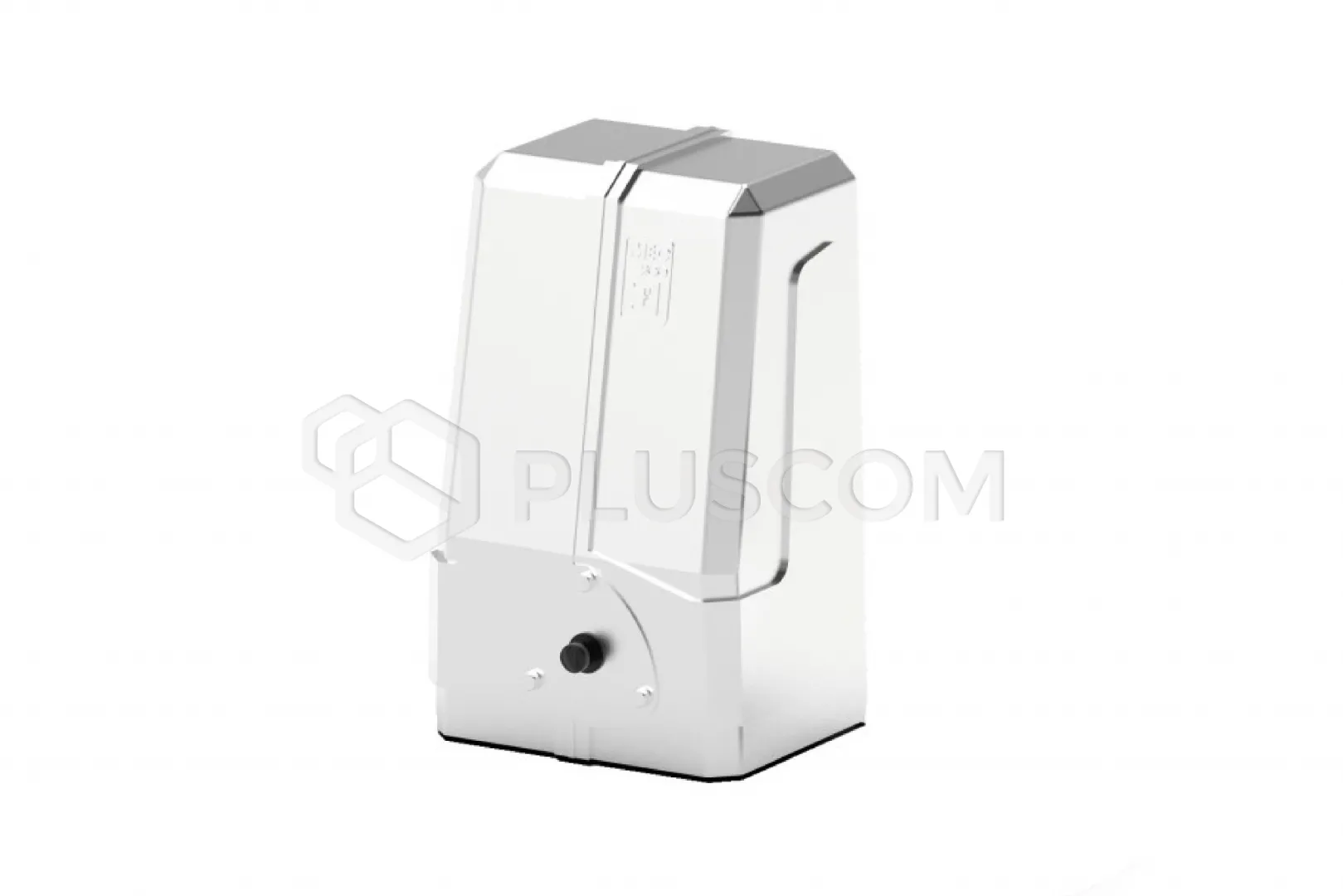

Electromechanical drive with gear and mechanical clutch MEC 200 230/400V 3PH (0.37 kW / 0.5 HP), irreversible (vertical) up to 2000 kg for industrial use.

POWERFUL

230 V and 400 V AC gear motor, equipped with a worm gear in an oil bath and a bronze gear wheel, on ball bearings.

RELIABLE

Aluminum structure and housing provide a full guarantee for a long time.

SAFE

Mechanical clutch for force regulation; discs lubricated with liquid grease for increased efficiency.

SOLID AND COMPACT

Base made of die-cast aluminum.

UNIVERSAL

A full range of models with different types of electric motors, also available with a ventilated motor and electronic brake. Depending on the position of the rack on the gate, models are available with horizontal or vertical rack. The control unit can be mounted inside the MEC 200 or placed outside in its own polycarbonate housing.

TESTED AND CERTIFIED

CE marking.

Technical data:

  • Power supply: 230/400V - 50Hz
  • Max. power consumption: 575W
  • Max. current consumption: 2.1/1.2A
  • Power efficiency: 0.37 kW
  • Engine speed: 1,380 rpm
  • Capacitor: -
  • Nominal torque: 40 Nm
  • Movement speed: 10 m/min
  • Gear ratio: 1/32
  • Operating temperature: -25°C ÷ +80°C
  • Limit switch: mechanical
  • Protection class: IP55
  • Oil type: 706L
  • Weight: 18.5 kg
  • Frequency of use: very intensive
