Fadini 7154L MEC 200 Manual opening version up to 1800 kg

1495,74 EUR including 23.00% VAT
Product code: #37043
Manufacturer: Fadini
  • Max. gate weight: 1800kg
  • Power supply: 230V AC
  • Mechanical limit switch
  • Feed speed: 10 m/min
  • For industrial use
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fadini 7184L ELPRO 37 FN control unit for one actuator with 230/400V power supply, with position locking brake Fadini 2039L Galvanized toothed rack M4 22x22x2000 mm for welding Fadini 7180L ELPRO 37 DS control unit for two actuators with 230/400V power supply with built-in electric brake Fadini 7087L ELPRO 37 control unit for one actuator with 230/400V power supply with built-in electric brake Fadini 706L FADINI UTTO transmission oil canister 2L Fadini 7060L ELPRO 70/3 PLUS control unit for MEC 200 drive Fadini 2098L Gearbox for MEC 200 (vertical version) Fadini 2097L Gearbox for MEC 200 (horizontal version) Fadini 208L Rack Mounting Kit with Screw and Washer Fadini 207L Galvanized toothed rack M4 30x12x1000 mm with mounting holes

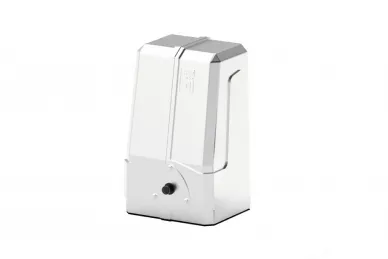

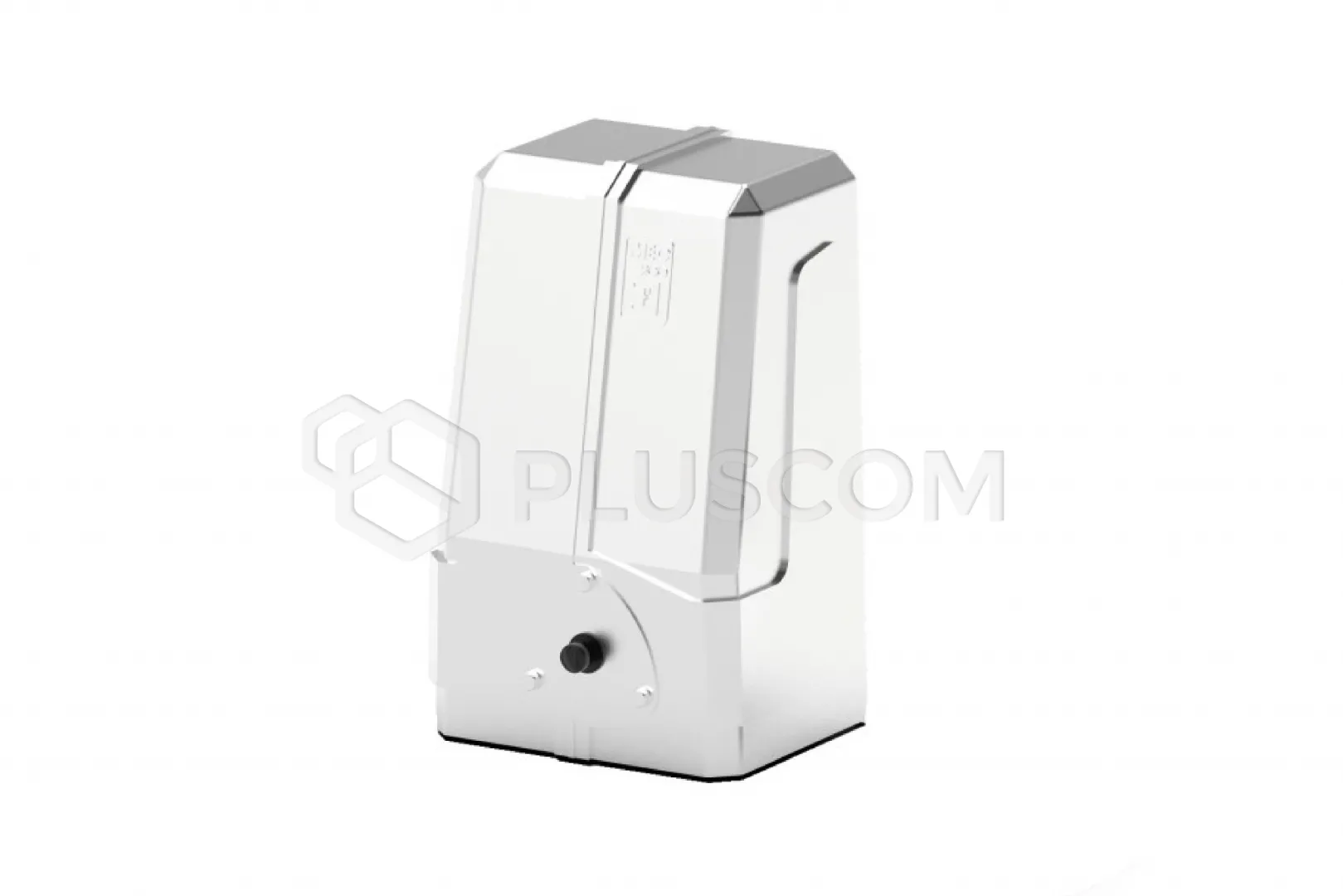

Fadini 7154L MEC 200 Manual opening version up to 1800 kg


Electromechanical drive with gear and mechanical clutch MEC 200 230V 1PH (0.37 kW / 0.5 HP), irreversible (vertical) up to 1200 kg for industrial use.

CAUTION! The drive does not include a control unit and an air-cooled motor with an electro-brake.

POWERFUL

Gear motor powered by 230 V and 400 V AC, equipped with a worm gear in an oil bath and a bronze gear, on ball bearings.

RELIABLE

The aluminum structure and housing provide a full guarantee for a long time.

SAFE

Mechanical clutch for force regulation; discs lubricated with liquid grease for increased efficiency.

SOLID AND COMPACT

Base made of die-cast aluminium.

UNIVERSAL

A full range of models with different types of electric motors, also available with ventilated motor and electronic brake. Depending on the position of the rack on the gate, models are available with horizontal or vertical rack. The control unit can be mounted inside the MEC 200 or placed outside in its own polycarbonate housing.

TESTED AND CERTIFIED

CE marking.

Technical data:

  • Power supply: 230V - 50Hz
  • Max. power consumption: 510W
  • Max. current consumption: 2.4A
  • Power efficiency: 0.37 kW
  • Engine speed: 1,380 rpm
  • Capacitor: 20 μF
  • Nominal torque: 40 Nm
  • Movement speed: 10 m/min
  • Gear ratio: 1/32
  • Operating temperature: -25°C ÷ +80°C
  • Limit switch: mechanical
  • Protection class: IP55
  • Oil type: 706L
  • Weight: 19.5 kg
  • Frequency of use: very intensive
