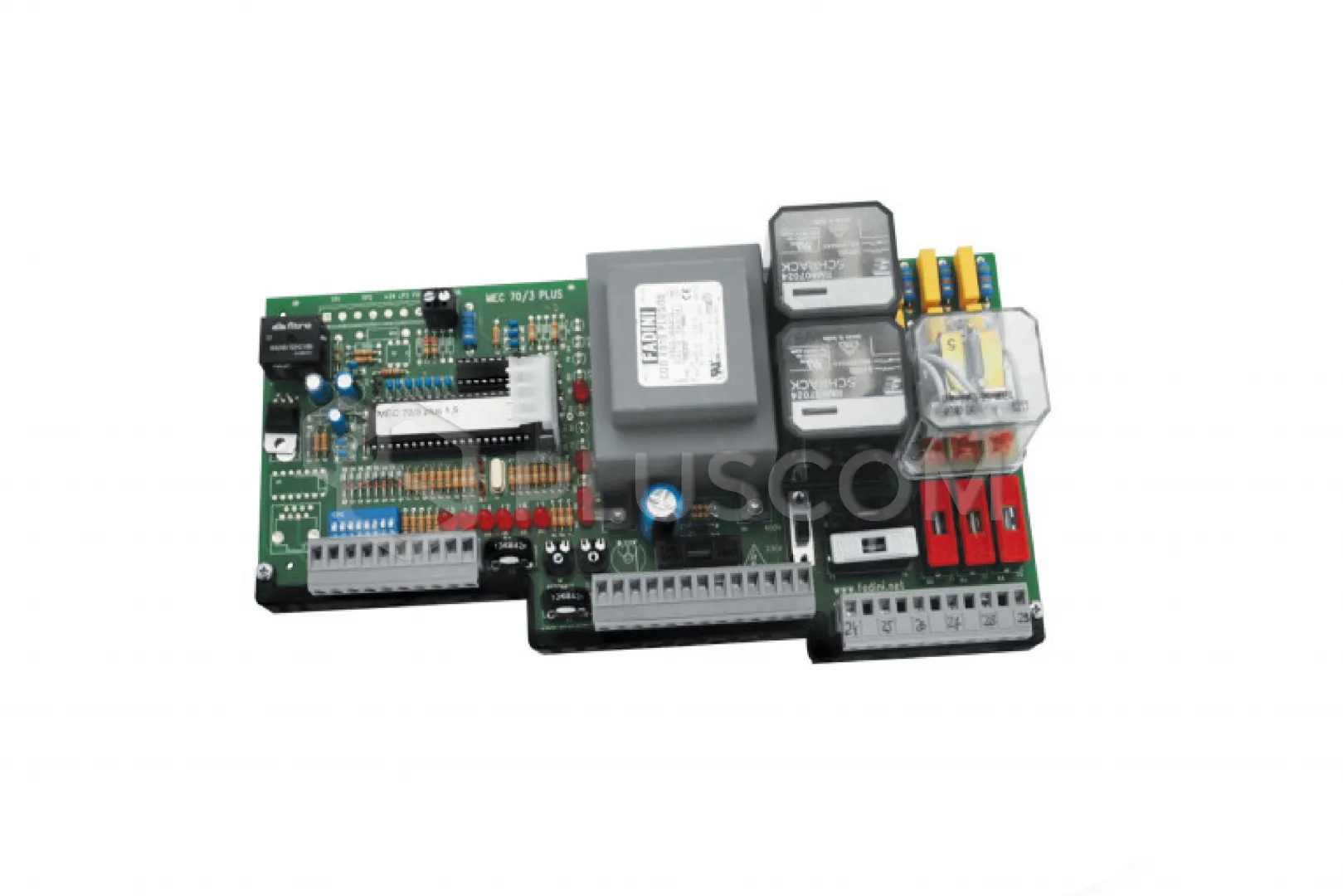

Fadini 7060L ELPRO 70/3 PLUS control unit for MEC 200 drive
ELPRO 70/3 PLUS control unit for sliding gates for MEC 200 drive, for one 230V AC 1PH or 230/400V AC 3PH actuator.
OPERATION LOGIC
Automatic, semi-automatic, step-by-step mode, obstacle detection function, wicket function and flashing of the lamp before gate opening.
BASIC FUNCTIONS
Intuitive adjustment using trimmers and DIP switches: electric lock power supply, radio receiver input, photocell connection, possibility of connecting an external clock, automation status signaling. Single-phase and three-phase power supply. Operating temperature -20°C +55°C.
Control units are entirely designed and manufactured in Meccanica Fadini plants.
They comply with applicable standards and directives in the field of electromagnetic compatibility and meet the requirements of any type of installation: swing gates, sliding gates, automatic barriers, doors, double-leaf, single-leaf or folding gates, or extendable hydraulic posts.
Each ELPRO control unit has its own logic system adapted to the type of actuator. Easy programming of various functions.
All boards are equipped with a connector for Fadini radio receivers.
To obtain a door lock on the plastic housing, a voltage cut-off switch equipped with a lever can be mounted
FEATURES:
- Three-phase power supply: YES
- Photocell operation on opening: YES
- Second pair of photocells input: NO
- Dedicated safety edge input: NO
- Dedicated second safety edge input: NO
- Photocell safety self-test device (DSA): NO
- Safety edge self-test device (DACS): NO
- Electronic brake: NO
- Memorization of remaining motor operating time in interrupted cycles: NO
- Soft start and deceleration: NO
- Force adjustment: NO
- RT data: NO
- Learning of working times using the remote control: NO
- Slave mode: NO
- Electric lock: YES
- Step-by-step mode: YES
- MOTMAN mode: YES
- Wicket door function: YES
- Pedestrian opening using the remote control: YES
- Change of direction of movement: NO
- External timer: YES
- Gate status indicator: YES
- Automation status indicator: YES
- Semi-automatic mode: YES
- Automatic mode: YES
- Pre-flashing: YES
- No flashing when stationary, automatic mode: YES
- Radio receiver connection: YES
- Residential complex: YES
- Close after photo: NO
- Semaphores: NO

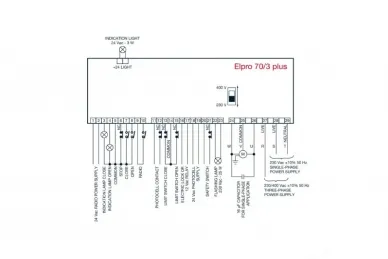

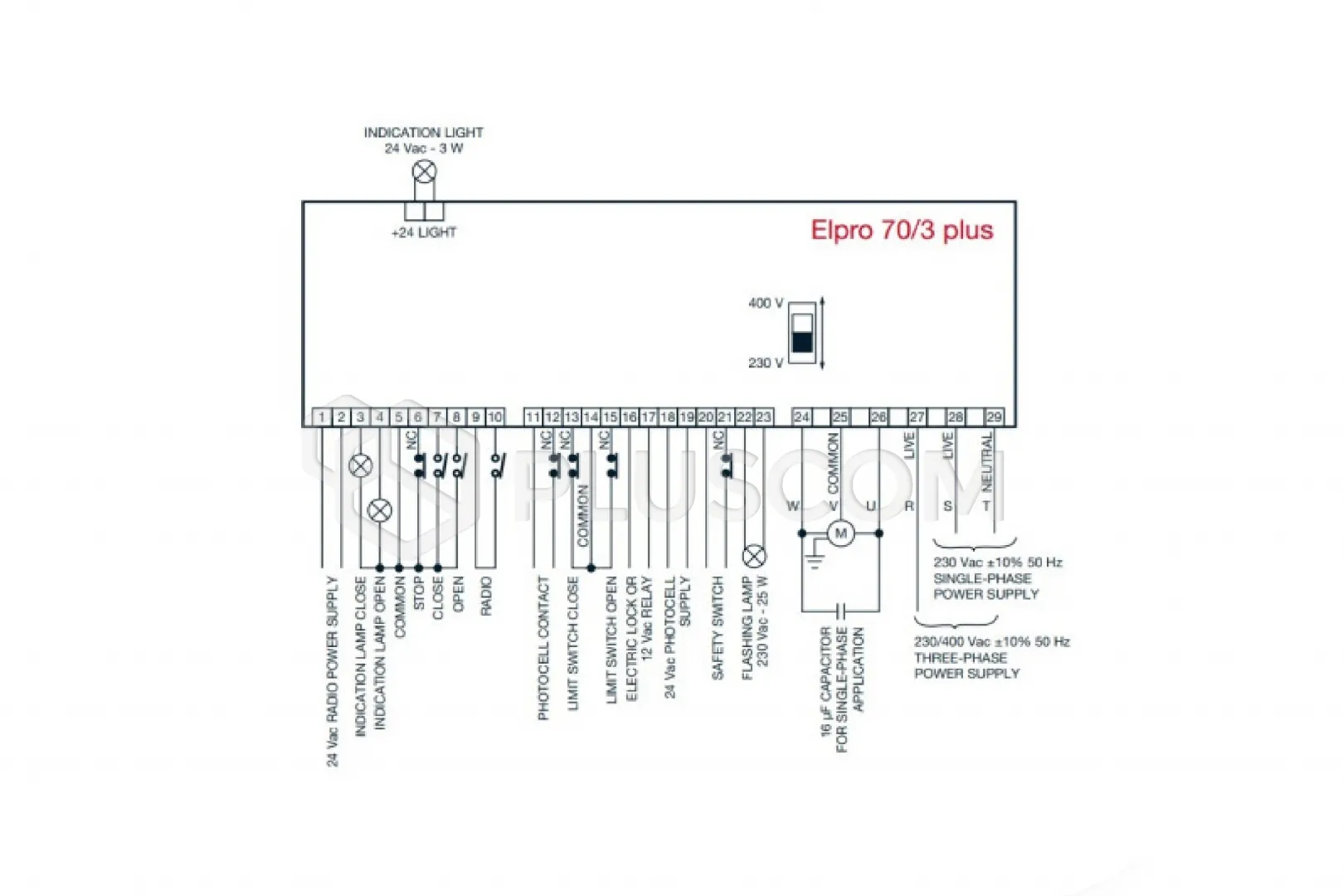

Technical data:
- 1-phase power supply: 230V - 50Hz
- 3-phase power supply: 230/400V - 50Hz
- Maximum engine power: 375W
- Additional lighting output: 12V relay
- Accessories power supply: 24V - 500mA
- Gate status indicator output: 24V - 3W
- DSA control output: -
- Warning lamp output: 230V - 25W
- Engine operating time: 5 - 150 s
- Time pauses: 5 - 150 s
- Gate closing delay: -
- Pedestrian opening time: 3 - 30 s
