Faac 785102 XP 20 D Relay Photocells with Adjustment

102,13 EUR including 23.00% VAT
Product code: #21499
Manufacturer: Faac
  • Power supply: 24V AC/DC
  • Nominal range: 20 m
  • Horizontal adjustment angle: -90° +90°
  • Obstacle detection time: 13 ms
  • Installation type: surface-mounted or column-mounted
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 401070 H500 low column Faac Interface BUS XIB Faac 737100 Column foundation base Faac 401075 High column H1000

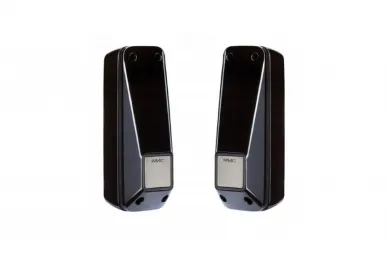

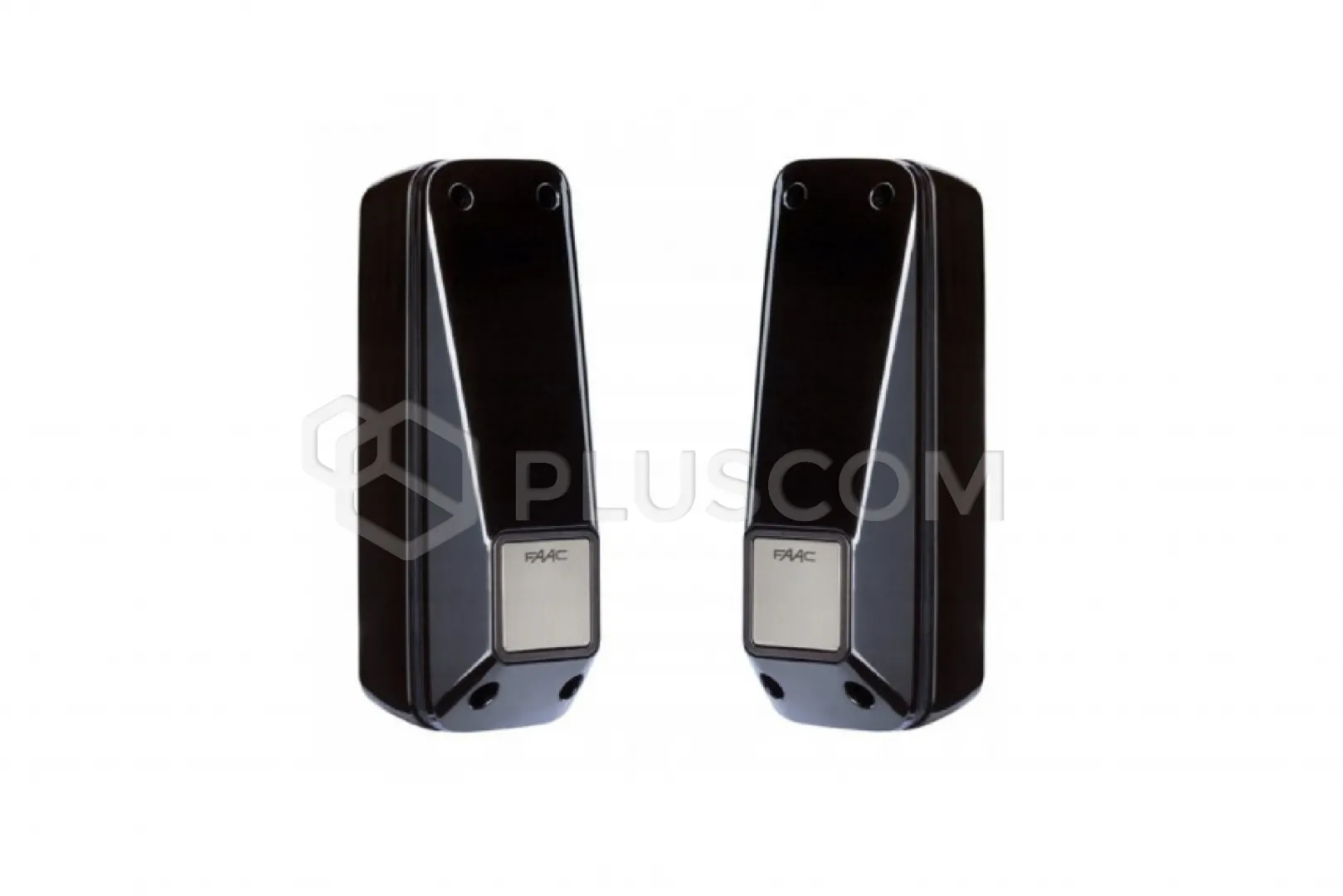

Faac 785102 XP 20 D Relay Photocells with Adjustment


A set of analog (relay) XP 20 D angle adjustable photocells with a nominal range of up to 20 m.

The package includes:

  • TX Transmitter
  • RX Receiver
  • Mounting accessories
  • Connection instructions

Technical data:

  • Power supply: 24V AC/DC
  • Power consumption: 30 mA (RX) + 20 mA (TX)
  • Nominal range: 20 m
  • Horizontal adjustment angle: -90° +90°
  • Self-adjustment angle: ±7° (20 m) ±13.5° (5 m)
  • Obstacle detection time: 13 ms
  • Installation type: surface-mounted or column-mounted
  • Contact type: NC
  • Protection class: IP 54
  • Operating temperature range: -20°C to +55°C
  • Dimensions (W x H x D): 41.5 x 130 x 42.5 mm
