Faac 844 C Z16 drive kit with built-in E781 control unit

1843,65 EUR including 23.00% VAT
Product code: #43884
Manufacturer: Faac
  • Gate weight: up to 1800 kg, length up to 40 m
  • Built-in E781 control unit
  • 230V AC motor
  • Fully adjustable opening and closing speeds
  • 1 x 4-channel FDS remote control, XP 20B D photocells
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,54 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac XLED Flashing signal ligh Faac 786040 XTR B INOX proximity reader Faac 786041 XTR B proximity reader Faac 404038 Wireless code keypad made of stainless steel XKP W 868 INOX Faac 404037 Wireless stainless steel keypad XKP W 433 INOX Faac 404039 Wired code keypad made of stainless steel XKP B INOX

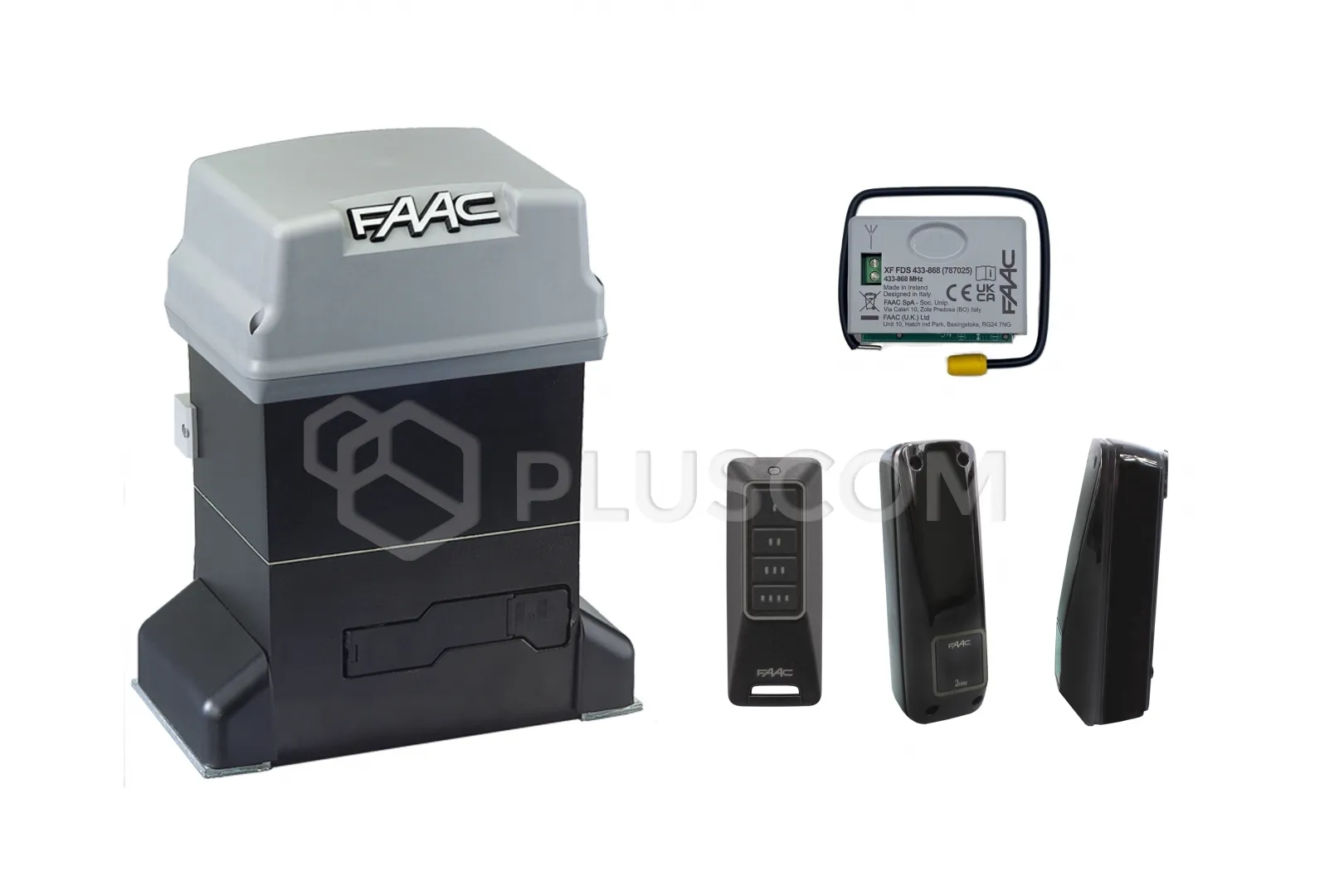

Faac 844 C Z16 kit for sliding gates weighing up to 1800 kg and up to 40 m long



KIT INCLUDES:
Faac 844 C Z16 drive kit with built-in E781 control unit

Faac 844 C Z16 drive kit with built-in E781 control unit
Electromechanical 844C operator for residential and residential use with built-in E781 control unit for sliding gates with a leaf weighing up to 1800 kg and a maximum length of 40 m. Gear immersed in an oil bath.
Powerful and quiet operator with a durable cast aluminum housing and cataphoresis technology for corrosion resistance.

ADVANTAGES
  • Reliability in all conditions – hydraulic oil-bath gear ensures long life in harsh conditions.
  • Quiet operation and comfort of use – oil-bath technology and smooth deceleration improve the smooth operation of the drive.
  • Safety and intuitive control – E781 electronics, encoder, photocells, and programmable outputs – all in a "plug & play" option.
  • Economical operation – low energy consumption, no locking mechanism, and minimal maintenance requirements mean lower operating costs.
  • Universal use – Z16 and Z20 versions allow for the drive to be adapted to gates weighing up to 1800 kg and up to 40 m long.
The drive offers maximum anti-crush protection thanks to the use of a double-disc clutch immersed in an oil bath and a magnetic incremental encoder.

In the event of a power failure, unlocking the drive with a personalized key allows the gate to be opened and closed manually.

FAAC XF FDS 433-868 frequency module is a dual-channel radio module (receiver) from FAAC. It operates using the new, proprietary FDS (FAAC Digital Signature) coding system, supporting both 433 and 868 MHz frequencies. It is designed to receive signals from the new FAAC remote control series, such as the XT2/XT4 FDS.

Key Features:
  • High Performance: FDS protocol ensures better range and longer battery life.
  • Versatile: Compatible with most FAAC control panels equipped with a 3-pin radio connector (e.g., D600, D700, D1000).
  • Security: Uses an advanced rolling coding system.
  • Frequency: Operates in the 433-868 MHz band.
The FAAC XT4 FDS 433-868 SLH LR remote control enables convenient and effective control of automation systems. Thanks to advanced technology, the remote control features a rolling code, ensuring a high level of security and protection against unauthorized access. It features maximum anti-cloning protection. This is ensured by an advanced security scheme based on Secure Vault hardware technology (PSA certified - level 3) and TrustZone, a state-of-the-art method for securing digital financial transactions and IoT High Security devices/networks.

TECHNICAL DATA:

  • Mains voltage: 220 - 240 V~ at 50/60 Hz
  • Maximum power: 230 W
  • Gear: Z16 Module 4
  • Maximum starting force: 606 N
  • Maximum pressing force: 1300 N
  • Maximum leaf weight: 1800 kg
  • Maximum leaf speed: 9.6 m/min
  • Maximum leaf width: 40 m
  • Stopping distance: 30 mm
  • Starting capacitor: 18 µF
  • Frequency of use: Continuous use
  • Protection rating: IP44
  • Ambient operating temperature: -20 °C - +55 °C
  • Weight: 16.9 kg
