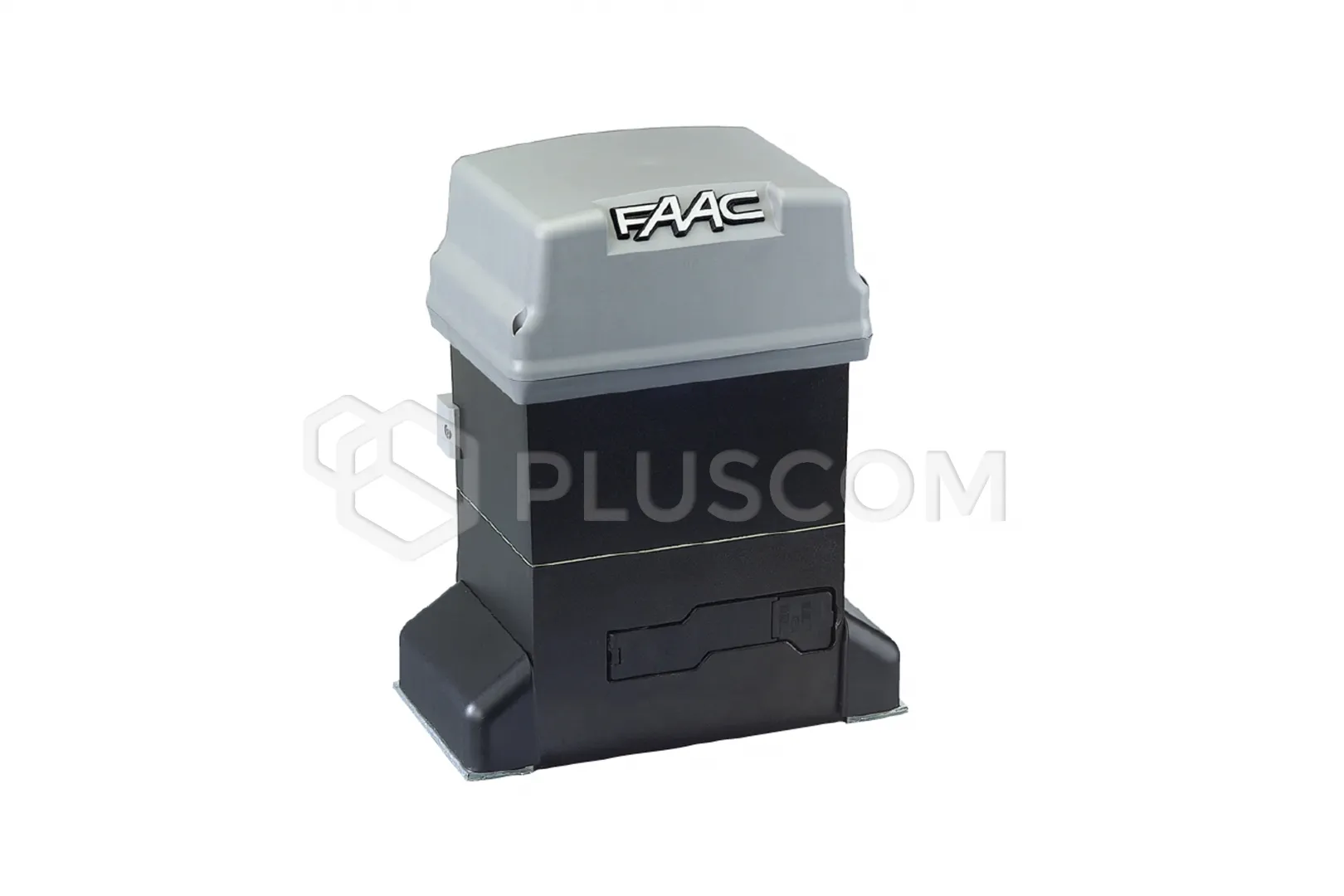

Faac 844 C Z16 drive for gates up to 1800 kg

Product code: #43821
Manufacturer: Faac
  • Gate weight: up to 1800 kg, length up to 40 m
  • 230V AC motor
  • Built-in E781 control unit
  • Fully adjustable opening and closing speeds
  • Modern, high-resolution magnetic encoder
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 719130 Rack pinion Z16 Faac 780D control unit (without transformer) Faac 719167 Pinion z20 Faac 71275101-10 Unlocking lock insert with personalized key

Faac 844 C Z16 operator for sliding gates weighing up to 1800 kg with built-in E781 control unit


Electromechanical 844C operator for residential and residential use with built-in E781 control unit for sliding gates with a leaf weighing up to 1800 kg and a maximum length of 40 m. Gear immersed in an oil bath.
Powerful and quiet operator with a durable cast aluminum housing and cataphoresis technology for corrosion resistance.

ADVANTAGES
  • Reliability in all conditions – hydraulic oil-bath gear ensures long life in harsh conditions.
  • Quiet operation and comfort of use – oil-bath technology and smooth deceleration improve the smooth operation of the drive.
  • Safety and intuitive control – E781 electronics, encoder, photocells, and programmable outputs – all in a "plug & play" option.
  • Economical operation – low energy consumption, no locking mechanism, and minimal maintenance requirements mean lower operating costs.
  • Universal use – Z16 and Z20 versions allow for the drive to be adapted to gates weighing up to 1800 kg and up to 40 m long.
The drive offers maximum anti-crush protection thanks to the use of a double-disc clutch immersed in an oil bath and a magnetic incremental encoder.

In the event of a power failure, unlocking the drive with a personalized key allows the gate to be opened and closed manually.

TECHNICAL DATA:

  • Mains voltage: 220 - 240 V~ at 50/60 Hz
  • Maximum power: 230 W
  • Gear: Z16 Module 4
  • Maximum starting force: 606 N
  • Maximum pressing force: 1300 N
  • Maximum leaf weight: 1800 kg
  • Maximum leaf speed: 9.6 m/min
  • Maximum leaf width: 40 m
  • Stopping distance: 30 mm
  • Starting capacitor: 18 µF
  • Frequency of use: Continuous use
  • Protection rating: IP44
  • Ambient operating temperature: -20 °C - +55 °C
  • Weight: 16.9 kg
