Faac PRATICO - 746 Starter Set

1354,84 EUR including 20.00% VAT
Product code: #26715
Manufacturer: Faac
  • gate weight: 600kg
  • max. gate leaf width: 40 m
  • gate speed 9.5 m/min
  • Z16 M4 gear
  • magnetic limit switch
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 719130 Rack pinion Z16 Faac 780D control unit (without transformer) Faac 737816 Optional mounting base Faac 71275101-10 Unlocking lock insert with personalized key

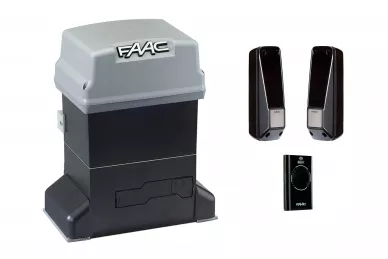

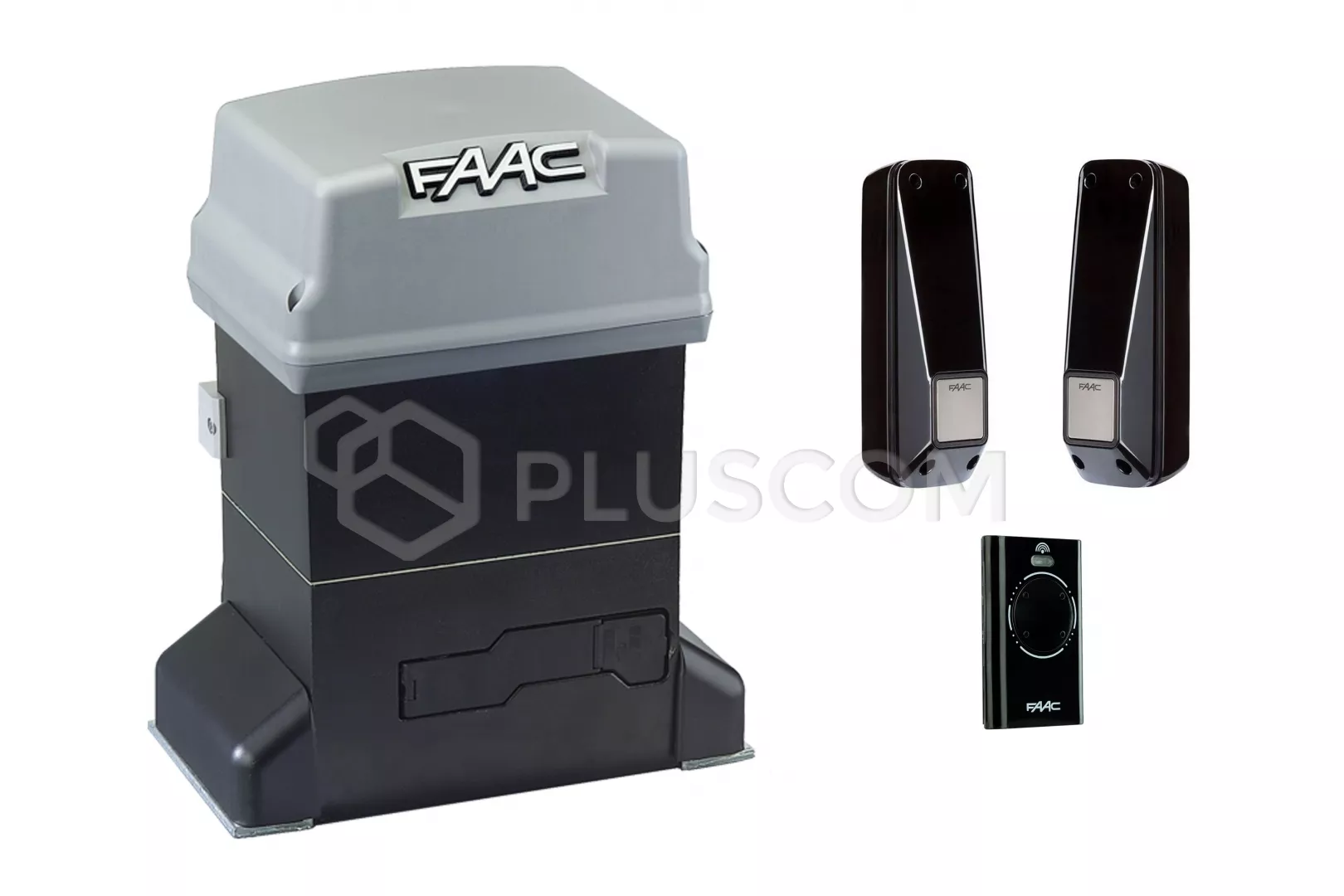

Faac PRATICO starter kit - 746 for sliding gates up to 600kg


SET CONTAINS:
  • electromechanical drive 746 with built-in 780D control unit
  • RP2 LC 868 2-channel receiver
  • 1 x XT4 868 SLH LR 4-channel remote control
  • pair of XP 20D photocells
  • mounting base
Faac PRATICO - 746 Starter Set

Faac PRATICO - 746 Starter Set

Electromechanical drive with a 230 V motor and a gear immersed in an oil bath, designed for gates with a max. weighing 600 kg.

Features and functions:
  • maximum anti-impact protection thanks to the use of a double-disc anti-crushing clutch and an intelligent control unit
  • self-locking drive - does not require the use of an electromagnetic lock even in the event of a power failure
  • unlocking mechanism with individual key
  • magnetic limit switches with simplified installation
  • adapted for installation at height
  • control unit protected by a housing, easy programming using the display
TECHNICAL DATA:
  • Supply voltage: 220-240 V AC 50/60 Hz
  • Motor type: asynchronous, single-phase
  • Maximum power consumption: 400 W
  • Maximum torque: 26 Nm
  • Maximum thrust force: 810 N
  • Reduction ratio: 1:30
  • Maximum gate leaf width: 40 m
  • Gate leaf travel speed: 9.6 m/min
  • Limit switch: magnetic
  • Gear: Z16 M4
  • Force regulation: Through a double-disc clutch immersed in an oil bath and a control unit (50 levels)
  • Control unit: 780 D (built-in)
  • Maximum gate leaf weight: 600 kg
  • Use frequency: 70%
  • Ambient temperature during operation: -20°C ÷ +55°C
  • Thermal protection: 120°C
  • Protection rating: IP44
  • Weight: 14 kg
  • Device dimensions: 277x155x337 mm
