Faac Special kit 844 Z16

1789,24 EUR including 20.00% VAT
Product code: #26730
Manufacturer: Faac
  • gate weight: 1800kg
  • max. gate leaf width: 40 m
  • gate speed 9.5m/min
  • Z16 M4 gear
  • magnetic limit switch
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 737816 Optional mounting base Faac 719167 Pinion z20 Faac 71275101-10 Unlocking lock insert with personalized key Faac 719130 Rack pinion Z16

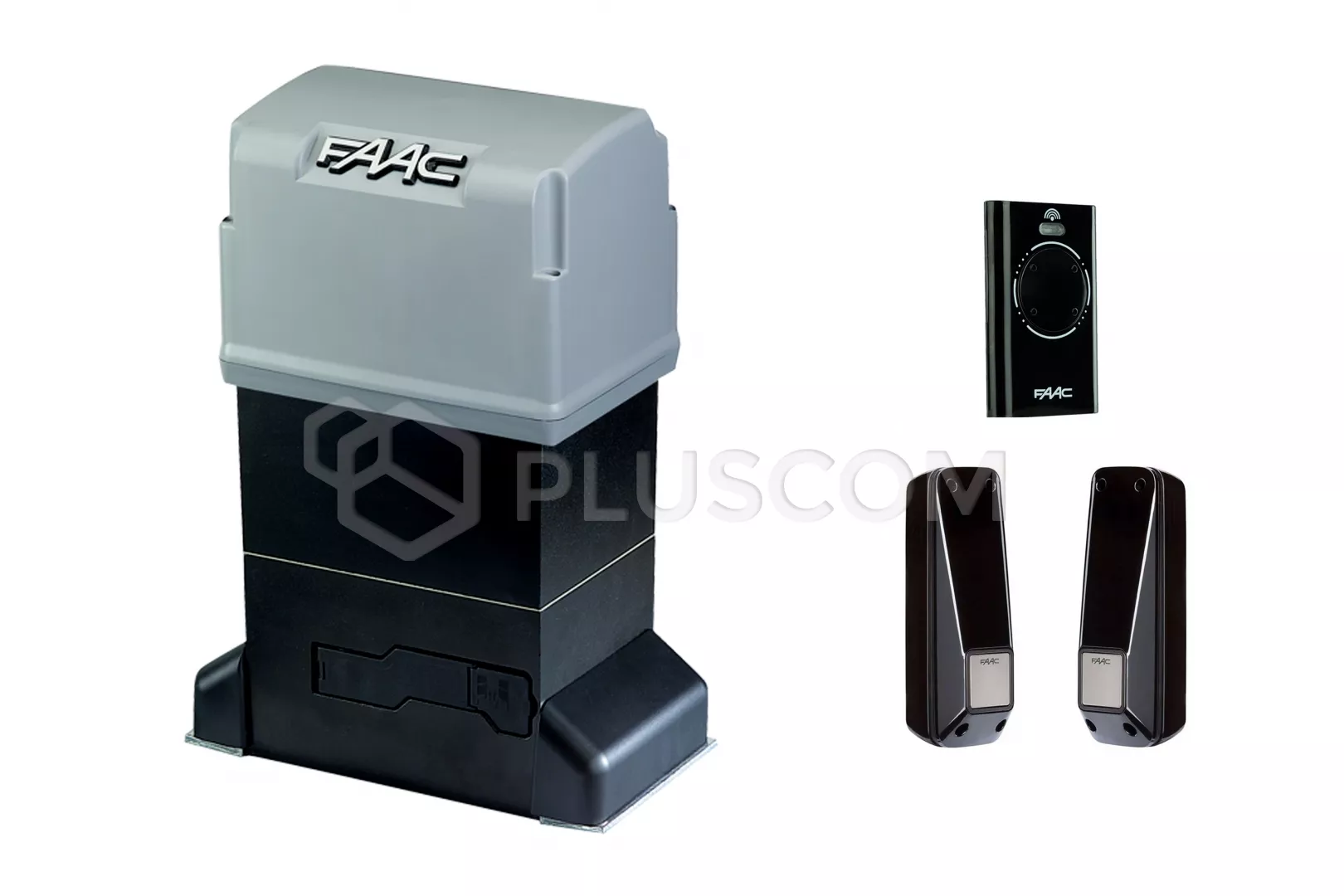

Faac Special set 844 Z16 for sliding gates up to 1800kg


SET CONTAINS:
  • electromechanical drive 844 Z16 with 230 V engine
  • RP2 868 SLH 2-channel radio receiver - pluggable
  • 1 x XT4 868 SLH LR 4-channel remote control
  • pair of XP 20D photocells
Faac Special kit 844 Z16

Faac Special kit 844 Z16

Electromechanical drive with a 230 V motor and a gearbox immersed in a bath oil, intended for gates with max. weighing 1800 kg.

Features and functions:
  • maximum protection against crushing thanks to use a double-disc clutch immersed in an oil bath and a magnetic one incremental encoder
  • self-locking drive – does not require the use of an electromagnetic lock even in the event of a power failure
  • unlocking mechanism with individual key
  • magnetic limit switches
  • force adjustment
TECHNICAL DATA:
  • Supply voltage: 220-240 V AC 50/60 Hz
  • Motor type: asynchronous, single-phase
  • Maximum power consumption: 650 W
  • Maximum torque: 37 Nm
  • Maximum thrust force: 110 Nm
  • Reduction ratio: 1:30
  • Maximum gate leaf width: 40 m
  • Gate leaf travel speed: 9.6 m/min
  • Limit switch: magnetic
  • Gear: Z16 M4
  • Force adjustment: Through a double-disc clutch immersed in a bath oil and control unit (50 levels)
  • Control unit: 780 D (built-in)
  • Maximum gate leaf weight: 1800 kg
  • Use frequency: 70%
  • Ambient temperature during operation: -20°C ÷ +55°C
  • Thermal protection: 120°C
  • Protection rating: IP44
  • Weight: 14.5 kg
  • Device dimensions: 277x155x388 mm
