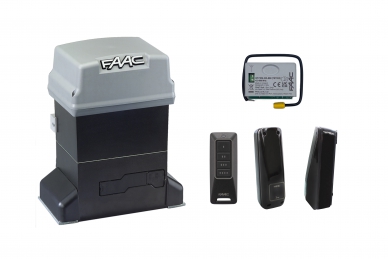

Faac 746 C Z16 drive kit with built-in E781 control unit

Faac 746 C Z16 kit for sliding gates weighing up to 600 kg and up to 40 m long

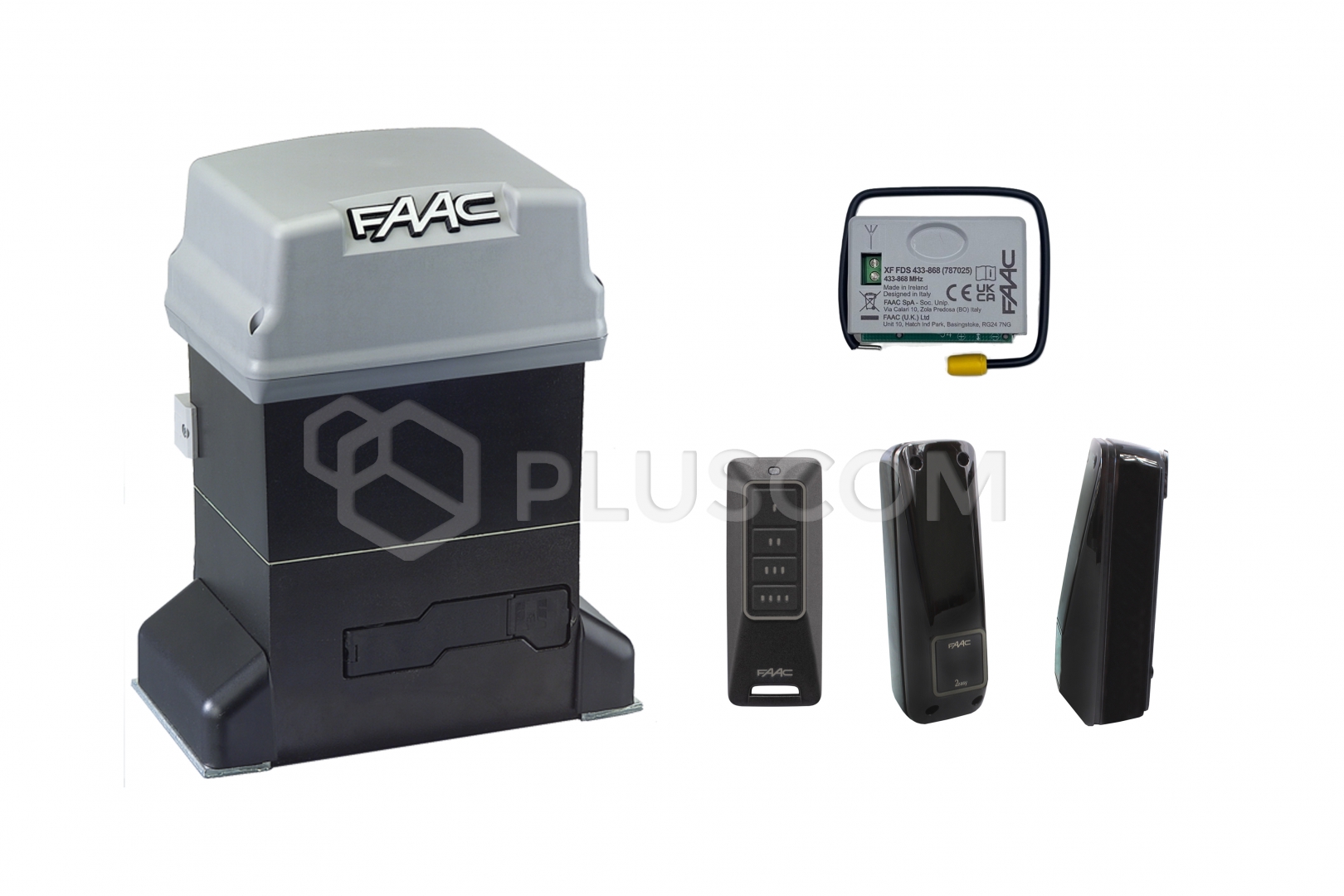

KIT INCLUDES: Faac 746 C Z16 drive for gates up to 600 kg Faac Frequency Module FAAC XF FDS 433-868 Faac XT4 FDS 433-868 SLH LR 4-channel remote control Photocell 785103 XP 20B D with angle adjustment

Faac 746 C Z16 drive kit with built-in E781 control unit

Electromechanical 746C operator for residential and residential use with built-in E781 control unit for sliding gates with a leaf weighing up to 600 kg and a maximum length of 40 m. Gear immersed in an oil bath.
Powerful and quiet operator with a durable cast aluminum housing and cataphoresis technology for corrosion resistance.

ADVANTAGES

• Reliability in all conditions – hydraulic oil-bath gear ensures long life in harsh conditions.
• Quiet operation and comfort of use – oil-bath technology and smooth deceleration improve the smooth operation of the drive.
• Safety and intuitive control – E781 electronics, encoder, photocells, and programmable outputs – all in a "plug & play" option.
• Economical operation – low energy consumption, no locking mechanism, and minimal maintenance requirements mean lower operating costs.
• Universal use – Z16 and Z20 versions allow for the drive to be adapted to gates weighing 400–600 kg and up to 40 m long.

The drive offers maximum anti-crush protection thanks to the use of a double-disc clutch immersed in an oil bath and a magnetic incremental encoder.

In the event of a power failure, unlocking the drive with a personalized key allows the gate to be opened and closed manually.

FAAC XF FDS 433-868 frequency module is a dual-channel radio module (receiver) from FAAC. It operates using the new, proprietary FDS (FAAC Digital Signature) coding system, supporting both 433 and 868 MHz frequencies. It is designed to receive signals from the new FAAC remote control series, such as the XT2/XT4 FDS.

Key Features:

• High Performance: FDS protocol ensures better range and longer battery life.
• Versatile: Compatible with most FAAC control panels equipped with a 3-pin radio connector (e.g., D600, D700, D1000).
• Security: Uses an advanced rolling coding system.
• Frequency: Operates in the 433-868 MHz band.

The FAAC XT4 FDS 433-868 SLH LR remote control enables convenient and effective control of automation systems. Thanks to advanced technology, the remote control features a rolling code, ensuring a high level of security and protection against unauthorized access. It features maximum anti-cloning protection. This is ensured by an advanced security scheme based on Secure Vault hardware technology (PSA certified - level 3) and TrustZone, a state-of-the-art method for securing digital financial transactions and IoT High Security devices/networks.

TECHNICAL DATA:

• Power supply voltage: 220–240 V AC 50/60 Hz
• Motor type: Asynchronous, single-phase
• Maximum power consumption: 400 W
• Maximum torque: 26 Nm
• Maximum thrust force: 810 N
• Reduction ratio: 01:30:00Use frequency: 70%
• Maximum gate leaf weight: 600 kg
• Maximum gate leaf width: 40 m
• Gate leaf speed: 9.6 m/min
• Limit switch: Magnetic
• Gear: Z16 M4
• Encoder: Magnetic, incremental
• Force regulation: Oil bath clutch + control unit (50 levels)
• Oil type: FAAC HP
• Operating ambient temperature: -20°C ÷ +55°C
• Thermal protection: 120°C
• Protection rating: IP44
• Device weight: 14 kg
• Device dimensions: 277 x 155 x 337 mm
