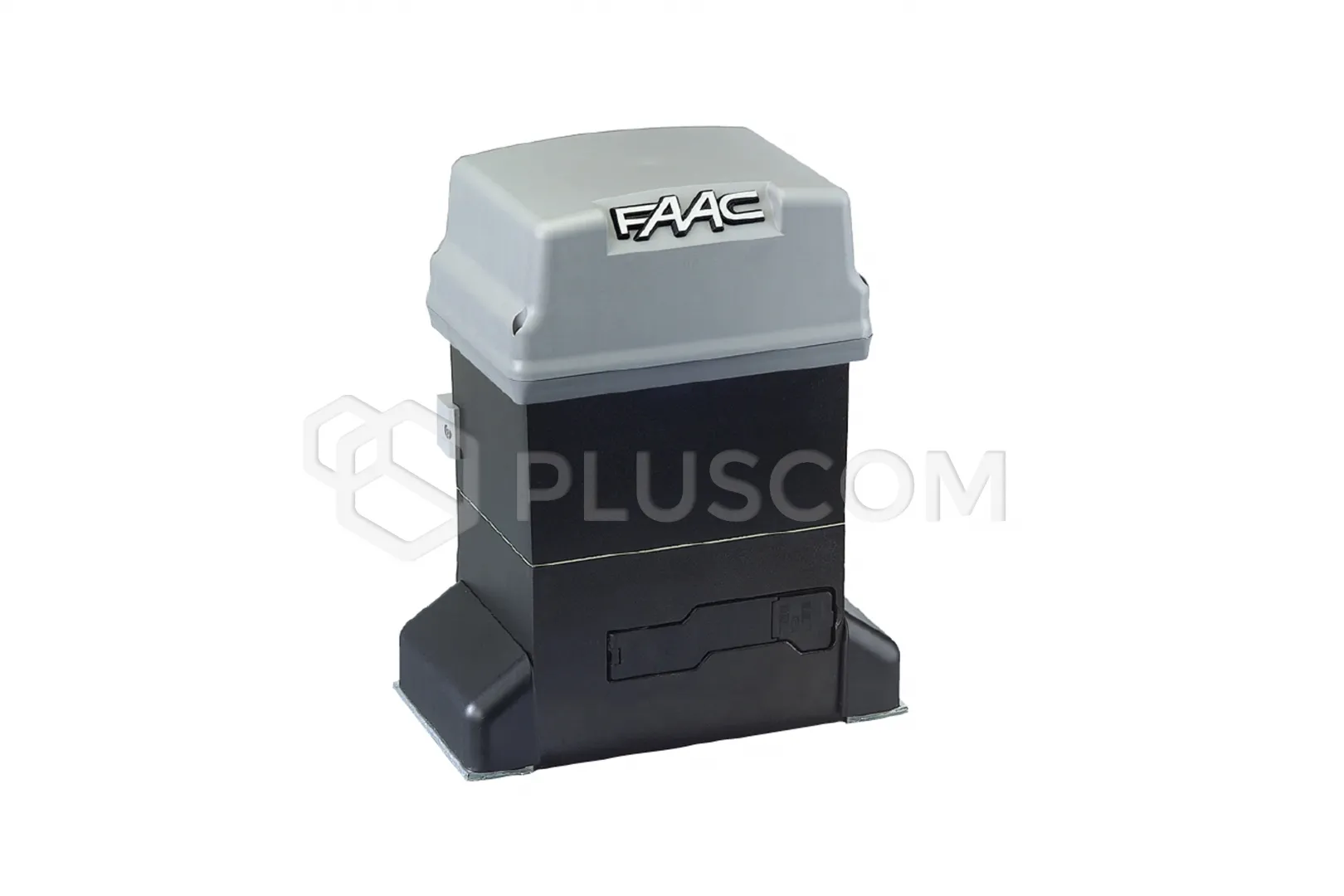

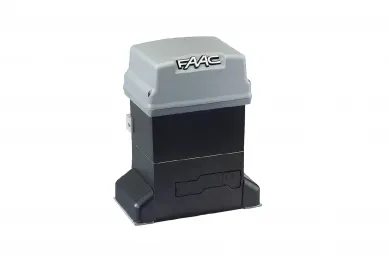

Faac 746 C Z16 drive for gates up to 600 kg

Product code: #43876
Manufacturer: Faac
  • Gate weight: up to 600 kg, length up to 40 m
  • 230V AC motor
  • Built-in E781 control unit
  • Fully adjustable opening and closing speeds
  • Modern, high-resolution magnetic encoder
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 719167 Pinion z20 Faac 71275101-10 Unlocking lock insert with personalized key Faac 719130 Rack pinion Z16 Faac 780D control unit (without transformer)

Faac 746 C Z16 operator for sliding gates weighing up to 600 kg with built-in E781 control unit


Electromechanical 746C operator for residential and residential use with built-in E781 control unit for sliding gates with a leaf weighing up to 600 kg and a maximum length of 40 m. Gear immersed in an oil bath.
Powerful and quiet operator with a durable cast aluminum housing and cataphoresis technology for corrosion resistance.

ADVANTAGES
  • Reliability in all conditions – hydraulic oil-bath gear ensures long life in harsh conditions.
  • Quiet operation and comfort of use – oil-bath technology and smooth deceleration improve the smooth operation of the drive.
  • Safety and intuitive control – E781 electronics, encoder, photocells, and programmable outputs – all in a "plug & play" option.
  • Economical operation – low energy consumption, no locking mechanism, and minimal maintenance requirements mean lower operating costs.
  • Universal use – Z16 and Z20 versions allow for the drive to be adapted to gates weighing 400–600 kg and up to 40 m long.
The drive offers maximum anti-crush protection thanks to the use of a double-disc clutch immersed in an oil bath and a magnetic incremental encoder.

In the event of a power failure, unlocking the drive with a personalized key allows the gate to be opened and closed manually.

TECHNICAL DATA:

  • Power supply voltage: 220–240 V AC 50/60 Hz
  • Motor type: Asynchronous, single-phase
  • Maximum power consumption: 400 W
  • Maximum torque: 26 Nm
  • Maximum thrust force: 810 N
  • Reduction ratio: 01:30:00
  • Use frequency: 70%
  • Maximum gate leaf weight: 600 kg
  • Maximum gate leaf width: 40 m
  • Gate leaf speed: 9.6 m/min
  • Limit switch: Magnetic
  • Gear: Z16 M4
  • Encoder: Magnetic, incremental
  • Force regulation: Oil bath clutch + control unit (50 levels)
  • Oil type: FAAC HP
  • Operating ambient temperature: -20°C ÷ +55°C
  • Thermal protection: 120°C
  • Protection rating: IP44
  • Device weight: 14 kg
  • Device dimensions: 277 x 155 x 337 mm
